as strong as a bull ROOF SYSTEMS RHOMBOID ROOF TILE 44 × 44
AVAILABLE COLOURS
COLOUR 01 P.10 BROWN
COLOUR 02 P.10 ANTHRACITE
COLOUR 03 P.10 BLACK
COLOUR 04 P.10 BRICK RED
COLOUR 05 P.10 OXIDE RED
COLOUR 06 P.10 MOSS GREEN
COLOUR 07 P.10 LIGHT GREY
COLOUR 11 P.10 NUT BROWN
COLOUR 19 P.10 DARK GREY
COLOUR 43 P.10 STONE GREY

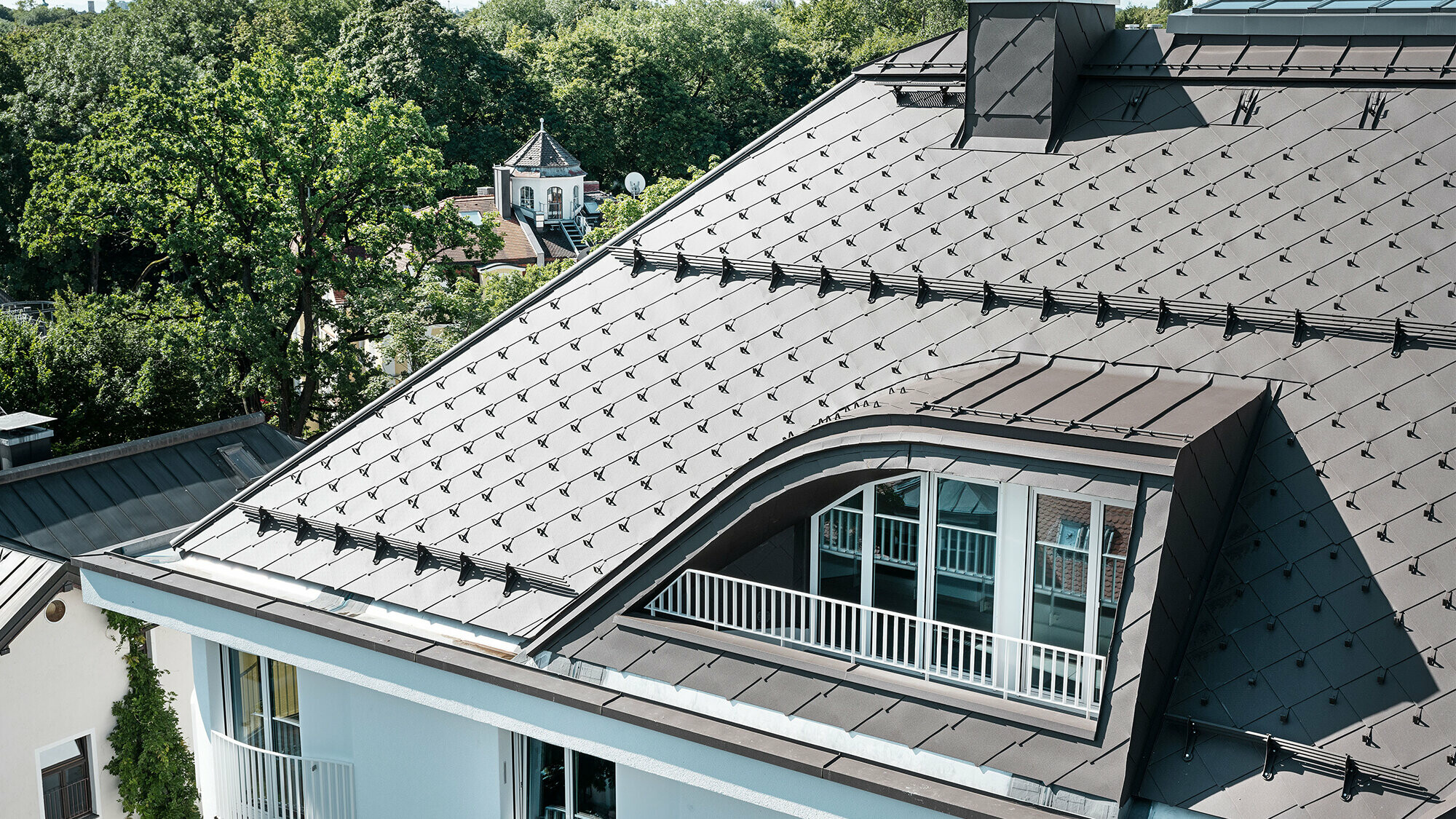

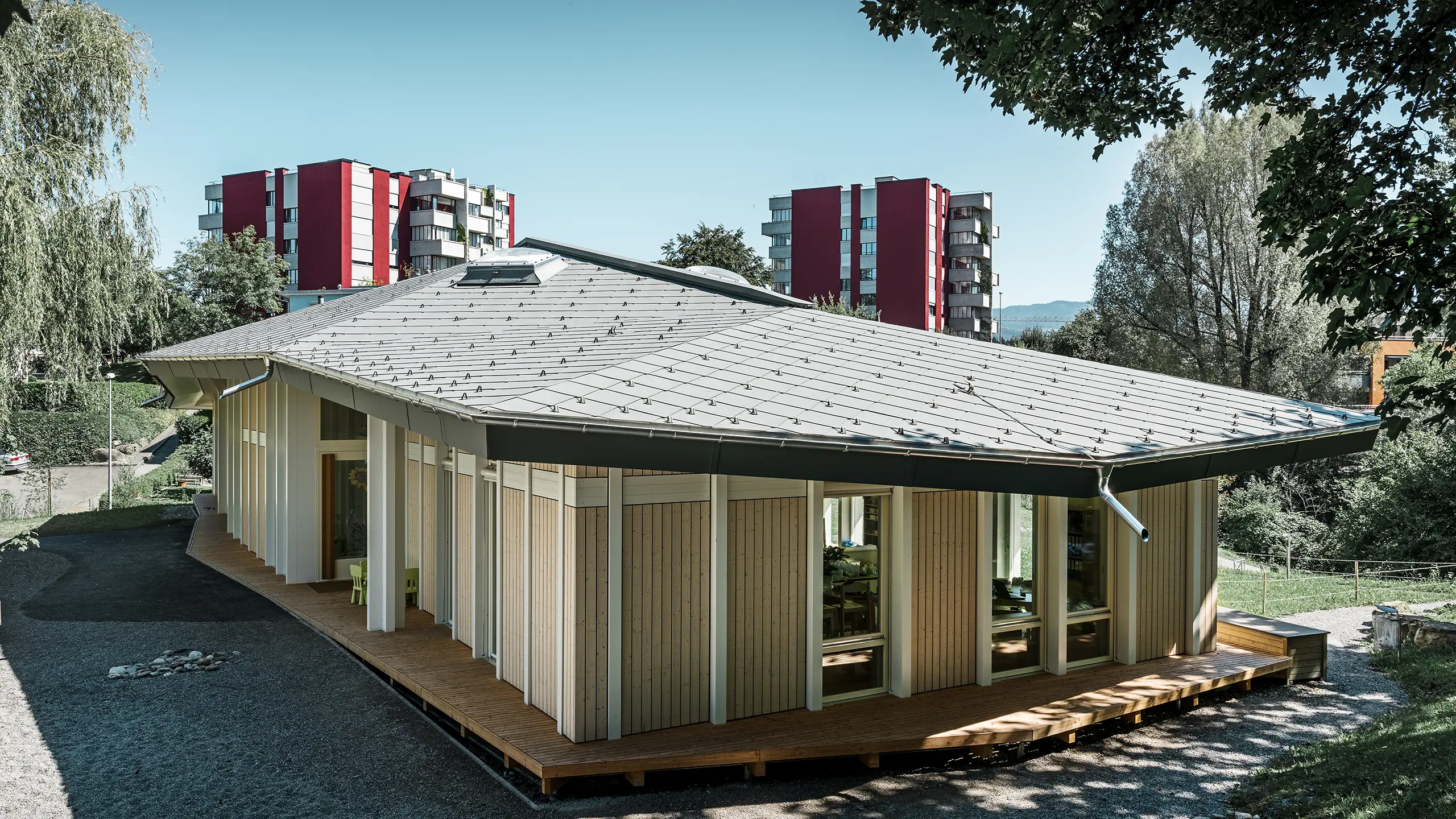

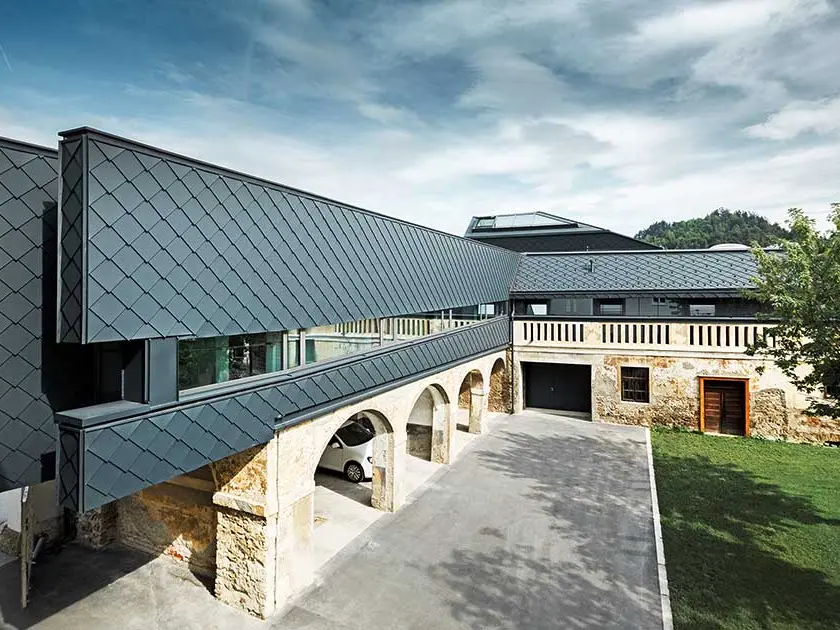

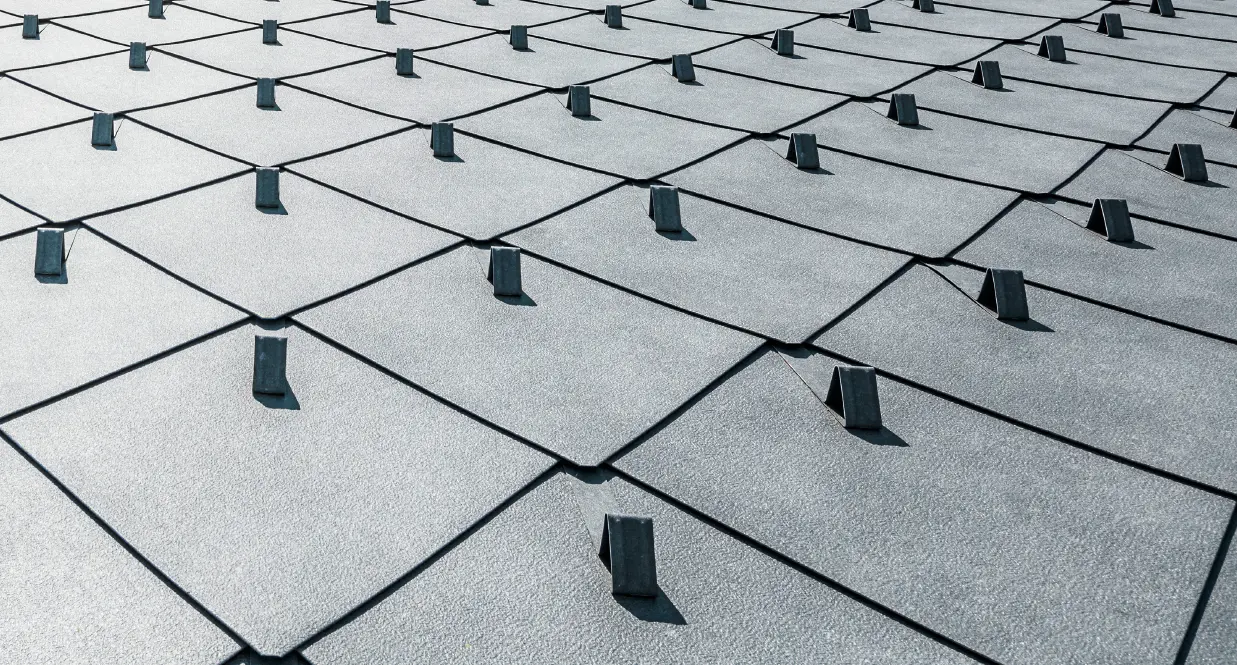

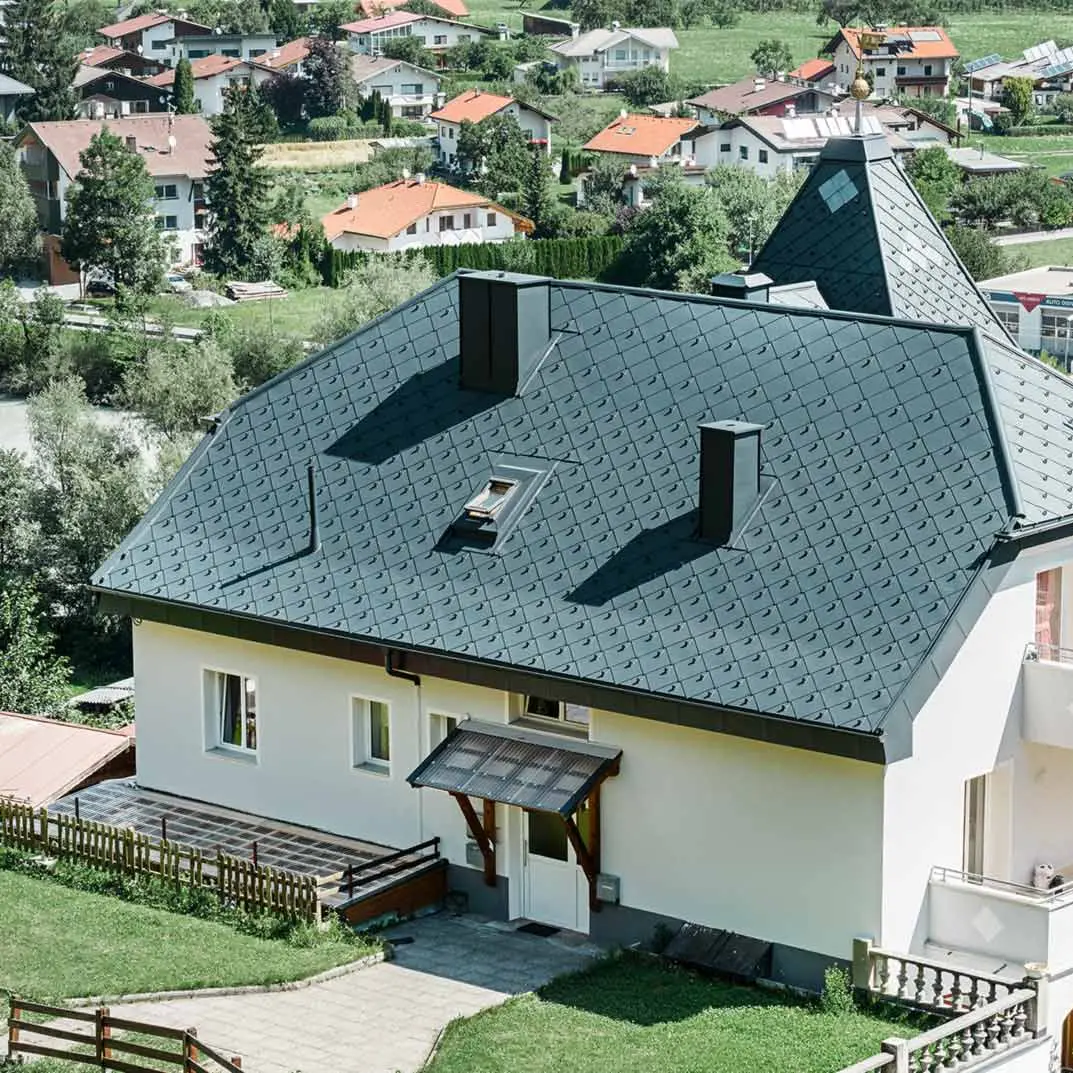

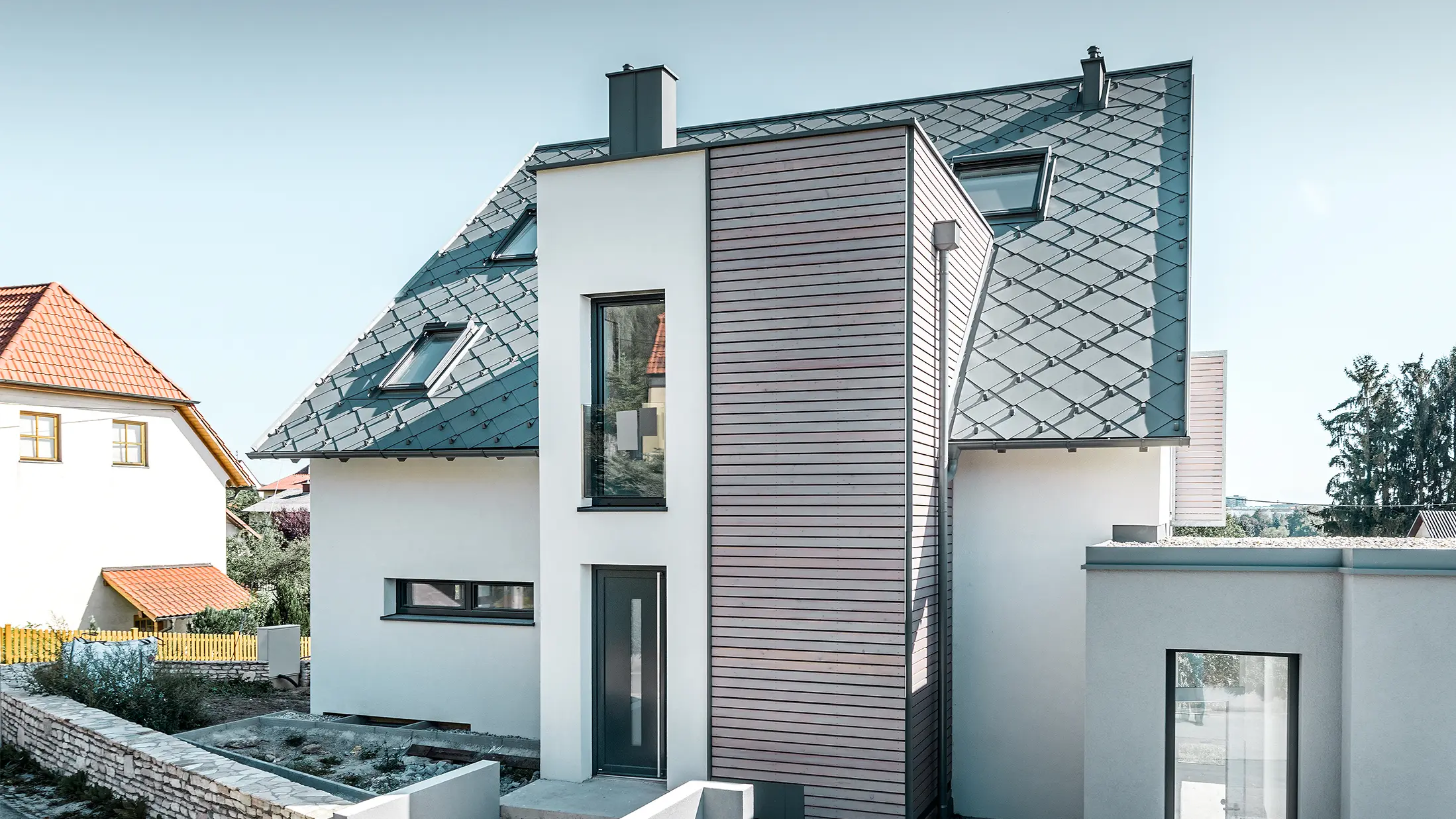

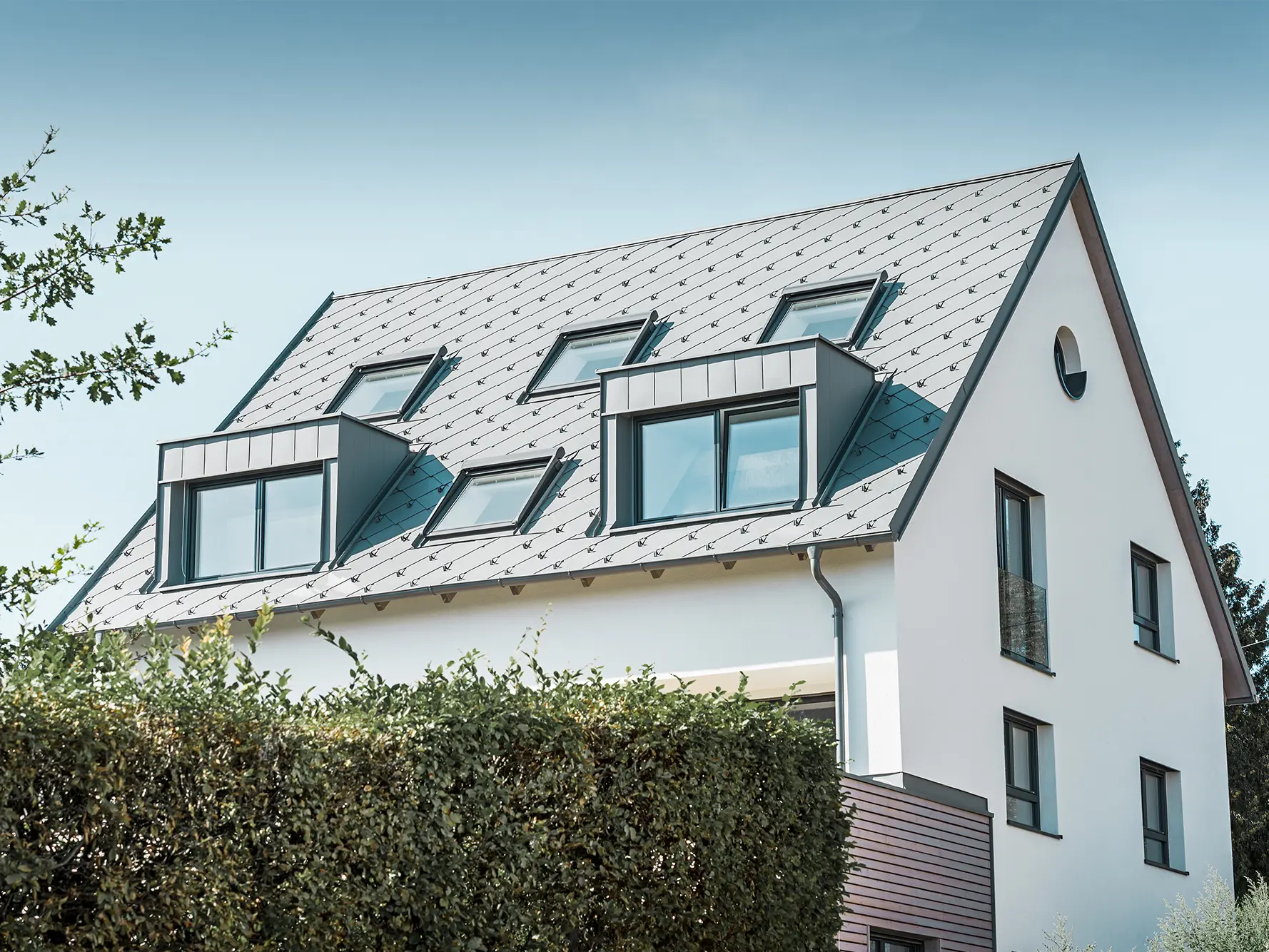

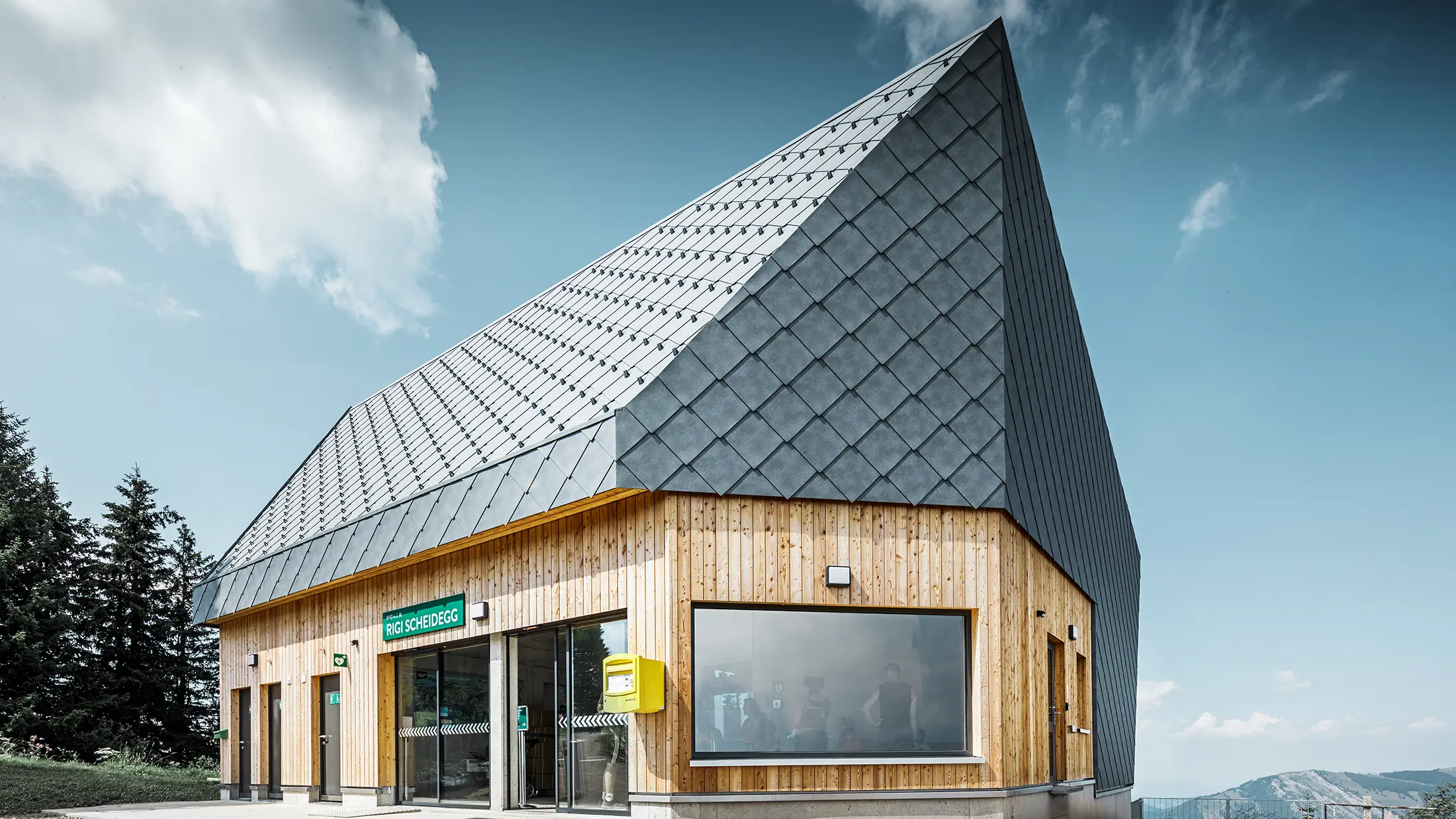

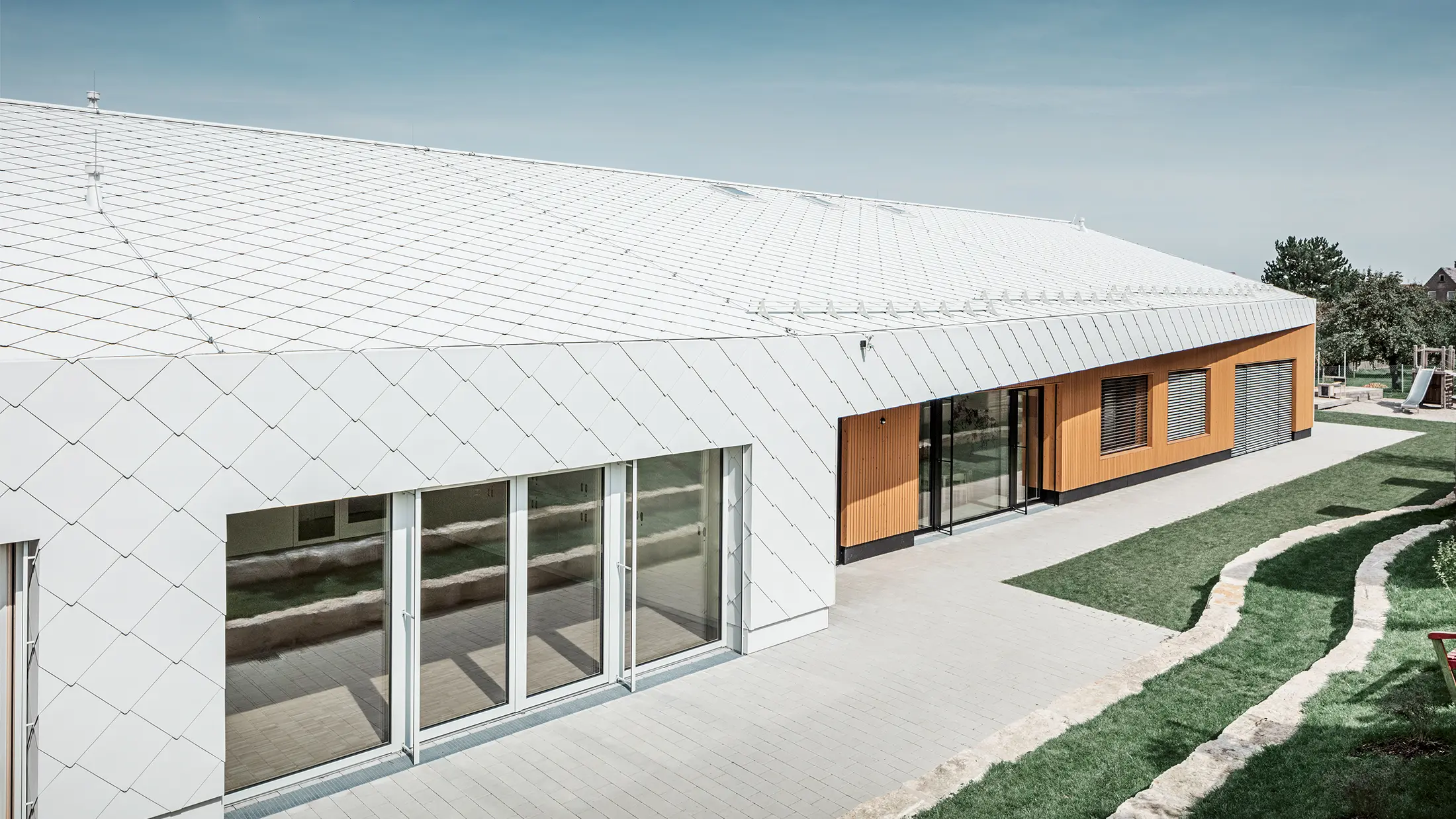

THE ENLARGED SIZE GIVES FREE REIN
With its PREFA aluminium rhomboid roof tile in 44 × 44 cm format, PREFA is once again stimulating a strong and innovative creative impulse. The enlarged surface structure gives free rein for creating traditional shapes with modern accents while maintaining the highest level of durability and excellent weather resistance. The new PREFA design rhomboid roof tile is impressive due to its minimal weight and easy handling: the integrated fastening strips facilitate speedy and inexpensive installation of the roof and façade elements.
- Visually coordinated design
- New mounting system – integrated fastening strip facilitates speedy installation
- System optimisation
- Available in 10 standard colours
RHOMBOID ROOF TILE 44 × 44 – TECHNICAL INFORMATION
- Colour range: 10 standard colours – stucco surface
- Also available with a smooth finish upon request
- MATERIAL:
- aluminium 0.7 mm thick
- VISIBLE SIDE:
- Coil coating
- REAR:
- protective paint
- SIZE:
- 437 × 437 mm (cover)
- WEIGHT:
- 1 m² = approx. 2.6 kg = 5.24 rhomboid roof tiles 44 × 44
- PACKAGING UNIT:
- box containing 42 pc. = 8 m²
- ROOF PITCH:
- from 12° (rafter length: up to 7 m)
from 14° (rafter length: up to 7–12 m)
from 16° (rafter length: over 12 m) - INSTALLATION:
- on solid sheathing (at least 24 mm thick)
- FASTENING:
- direct, using 4 PREFA ring nails 28/25
ROOF STRUCTURE

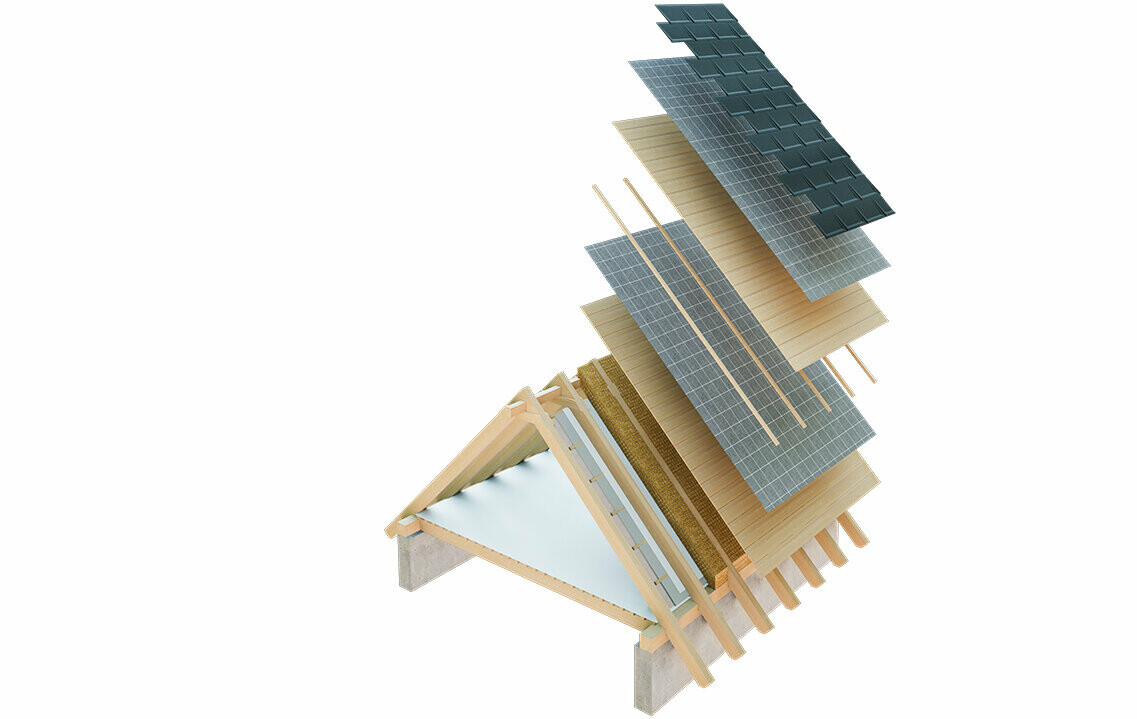

The attic can also be used as living space

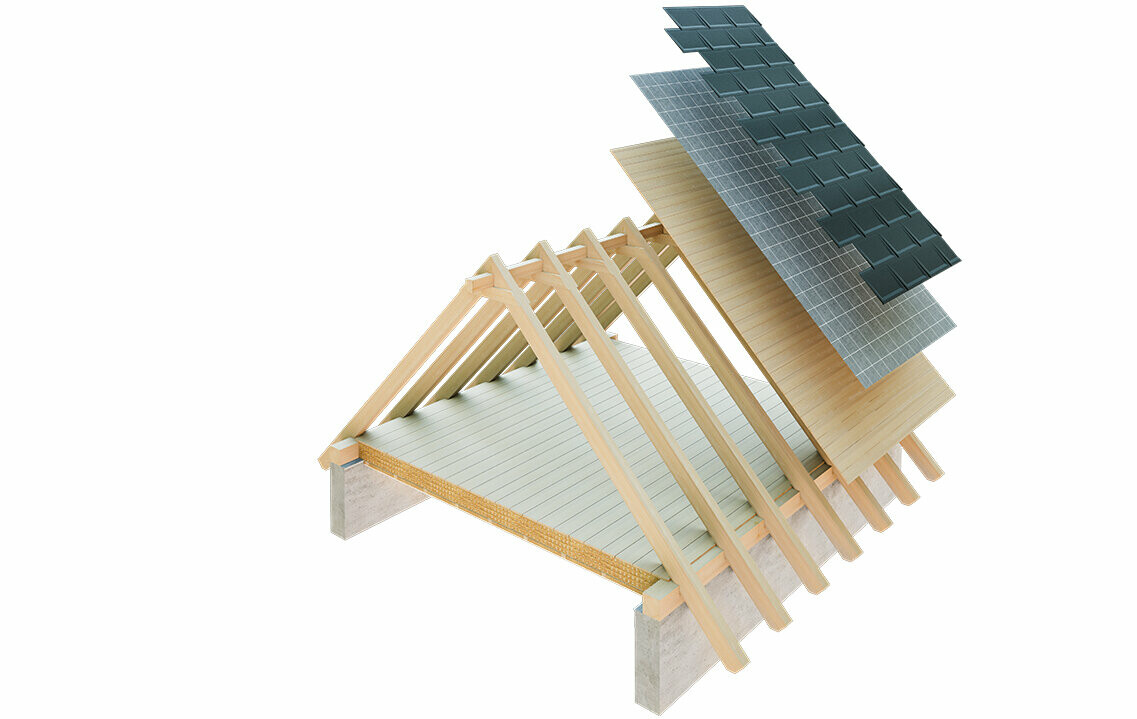

The attic is not used as living space
RHOMBOID ROOF TILE 44 × 44 – COLOUR CHART
THE PRODUCT IS AVAILABLE IN THE FOLLOWING COLOURS
| COLOUR | ~ RAL |
|---|---|
| 01 P.10 brown | 7013 |
| 02 P.10 anthracite | 7016 |
| 03 P.10 black | 9005 |
| 04 P.10 brick red | 8004 |
| 05 P.10 oxide red | 3009 |
| 06 P.10 moss green | 6005 |
| 07 P.10 light grey | 7005 |
| 11 P.10 nut brown | 8019 |
| 19 P.10 dark grey | 7043 |
| 43 P.10 stonegrey¹ | 7031 |
- 01 P.10 BROWN
- 7013
- 02 P.10 ANTHRACITE
- 7016
- 03 P.10 BLACK
- 9005
- 04 P.10 BRICK RED
- 8004
- 05 P.10 OXIDE RED
- 3009
- 06 P.10 MOSS GREEN
- 6005
- 07 P.10 LIGHT GREY
- 7005
- 11 P.10 NUT BROWN
- 8019
- 19 P.10 DARK GREY
- 7043
- 43 P.10 STONEGREY¹
- 7031
¹ The colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, patina grey and natural blank reflect natural colouring and are therefore subject to minimal variation, which gives the products their unmistakable character.
Notes
- The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
- Above all for colour quality P.10, it is almost impossible to define values due to the surface structure. Furthermore, the colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, and patina grey reflect natural colourings that are composed of several colour tones.
- To identify exact colours for complementary components please consult original samples.
RHOMBOID ROOF TILE 44 × 44 – ACCESSORIES
YOU CAN FIND A LIST OF ACCESSORIES FOR THE PRODUCT HERE
PREFA EDGE CLEAT STRIP FOR SHINGLES, RHOMBOID ROOF TILES, FX.12 AND R.16
1,800 × 158 × 1.00 mm, pre-drilled
PREFA LEADING PLATE FOR RHOMBOID ROOF TILE 44 × 44
1.48 pc. per metre
PREFA END PLATE FOR RHOMBOID ROOF TILE 44 × 44
2.2 pc. per metre
PREFA BASE PLATE FOR RHOMBOID ROOF TILE 44 × 44
length = 660 mm; width = 125 mm
PREFA BIRD SCREEN
125 × 2,000 × 0.70 mm; round perforations (⌀ 5 mm)
PREFA EAVES APRON ICE STRIP
230 × 2,000 × 0.70 mm
PREFA VERGE FLASHING
95 × 2,000 × 0.70 mm; with cleat strip
PREFA SAFETY VALLEY
3,000 mm; with double lock standing seam (canted)

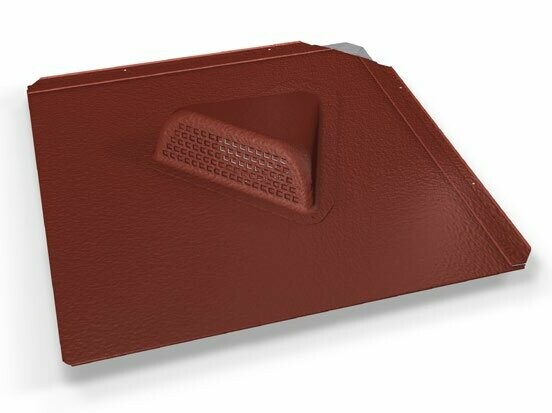

PREFA FROG-MOUTH VENT COVER
for riveting; air intake section: approx. 30 cm²
PREFA HIP AND RIDGE CAP
500 × 1.00 mm
EDGE COVERING FRONT HEAD
PREFA RIDGE VENT
3,000 × 1.00 mm; 1,200 × 1.00 mm; self-supporting ridge vent for ventilated roofs
PREFA JET FAN FRONT HEAD
PREFA ROOF HATCH
Inside dimensions: 595 × 595 mm; from roof pitches of 12°, complete with wooden frame, opening restrictor with cotter pin and 6 mm twinwall clear sheet
PREFA FLASHING FOR VELUX ROOF WINDOWS
available in various dimensions
PREFA FLASHING FOR ROTO ROOF WINDOWS
available in various dimensions
PREFA SAFETY TREAD
composed of safety tread and two mounts with surface sealant, including fixing material, adjustable for roof pitches between 12° and 60° According to DIN EN 516-1-A
PREFA WALKWAY SUPPORT ON ONE FOOT
250 mm; roof pitch: 5°–55°
PREFA WALKWAY SUPPORT ON TWO FEET
360 mm; roof pitch: 12°–55°
PREFA WALKWAY
250 × 420 mm
250 × 600 mm
250 × 800 mm
250 × 1200 mm
360 × 800 mm
360 × 1.200 mm
WALKWAY CONNECTOR
PREFA ROOF ANCHOR HOOK ACCORDING TO EN 517 B
PREFA ROOF ANCHOR HOOK ACCORDING TO EN 517 B (ON MOUNTS)
PREFA FLASHING PLATE FOR RHOMBOID ROOF TILE 44 × 44
for pipe openings of ⌀ 80–125 mm and roof pitches between 12° and 52°
PREFA UNIVERSAL FLASHING
for pipes with a diameter of 40–120 mm; roof pitch: 12°–52°
PREFA VENTILATION CAP
roof pitch from 12°; ⌀ 100 mm
PREFA VENT PIPE
⌀ 100 mm, ⌀ 120 mm, flashing plates
PREFA FLEXIBLE PIPE COLLAR 100
⌀ 100 – 130 mm, permanently flexible EPDM pipe collar for roof openings
PREFA PIPE-STYLE SNOW GUARD BRACKET
Opening height: 135 mm; bracket height: 165 mm
PREFA PIPE
for pipe-style snow guard brackets; 15 × 3,000 mm
END PIECE FOR PIPE STYLE SNOW GUARD
PREFA PIPE-STYLE SNOW GUARD SYSTEM
with 3 pipe openings
PREFA REMOVABLE PIPE FOR PIPE-STYLE SNOW GUARD SYSTEM
3,000 mm 25/25
PREFA ICE-RETENTION BRACKET FOR PIPE-STYLE SNOW GUARD SYSTEM
removable pipe including fixing material for pipe-style snow guard system
PREFA END PIECE FOR PIPE-STYLE SNOW GUARD SYSTEM
PREFA ALUMINIUM MOUNTAIN SNOW GUARD BRACKET
300 × 246 mm; for logs (⌀ 140 mm)
PREFA CHIMNEY CAP
700 × 700 mm, 800 × 800 mm, 1000 × 700 mm, 1100 × 800 mm, 1500 × 800 mm
PREFA FLAT PROFILE
PREFA VENTILATION SCREEN
square perforations (6 mm); colours brown/anthracite and light grey/light grey; dimensions: 1.00 × 250 mm and 1.00 × 333 mm
PREFA SNOW GUARD FOR RHOMBOID ROOF TILE 44 × 44
RHOMBOID ROOF TILE 44 × 44 – PLANNING & INSTALLATION
MORE PRODUCT INFORMATION IS AVAILABLE FOR DOWNLOADING HERE
Note: Download DWG and DXF format files by right-clicking and selecting “Save link as”.
