Creating surprising effects

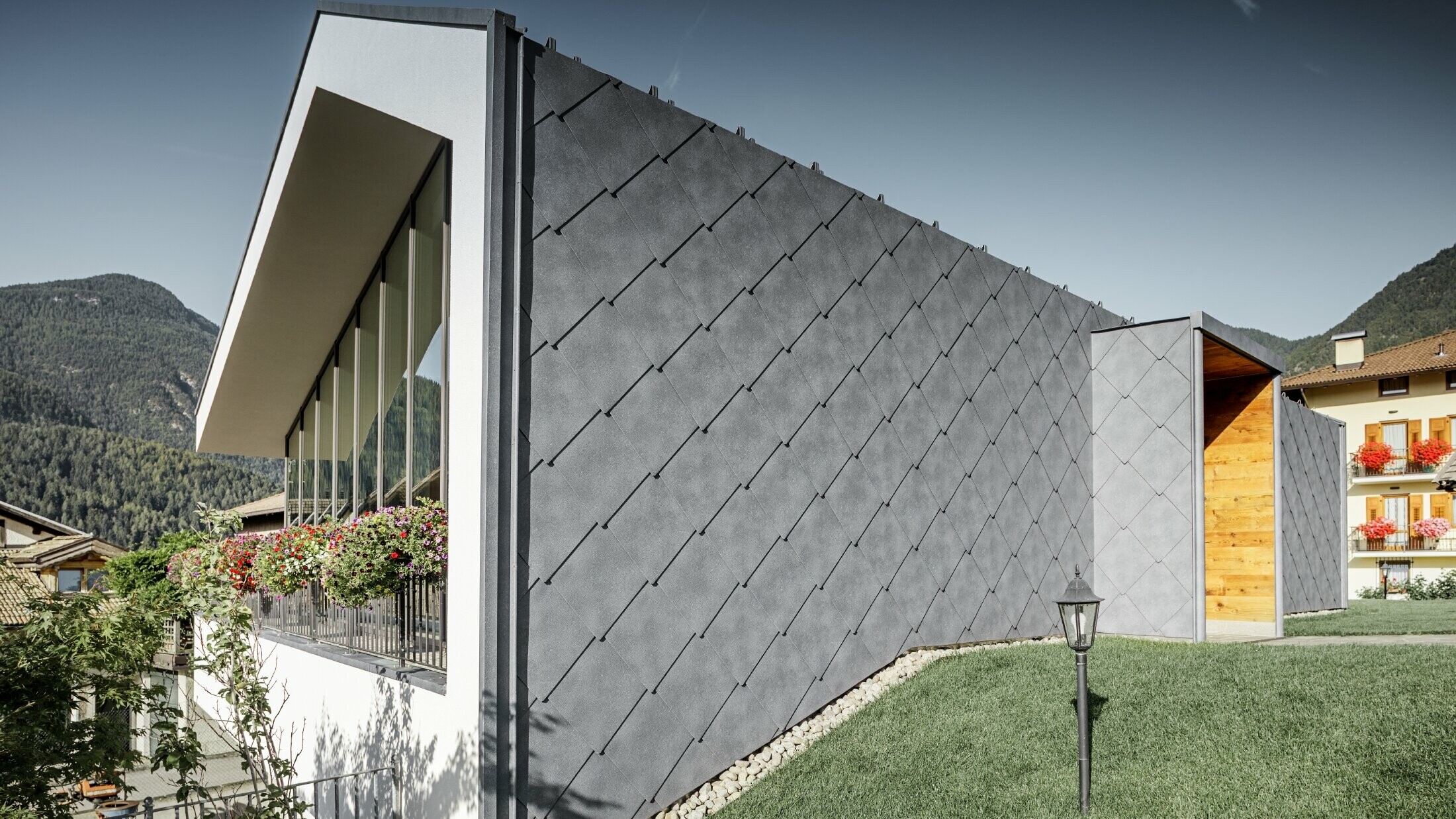

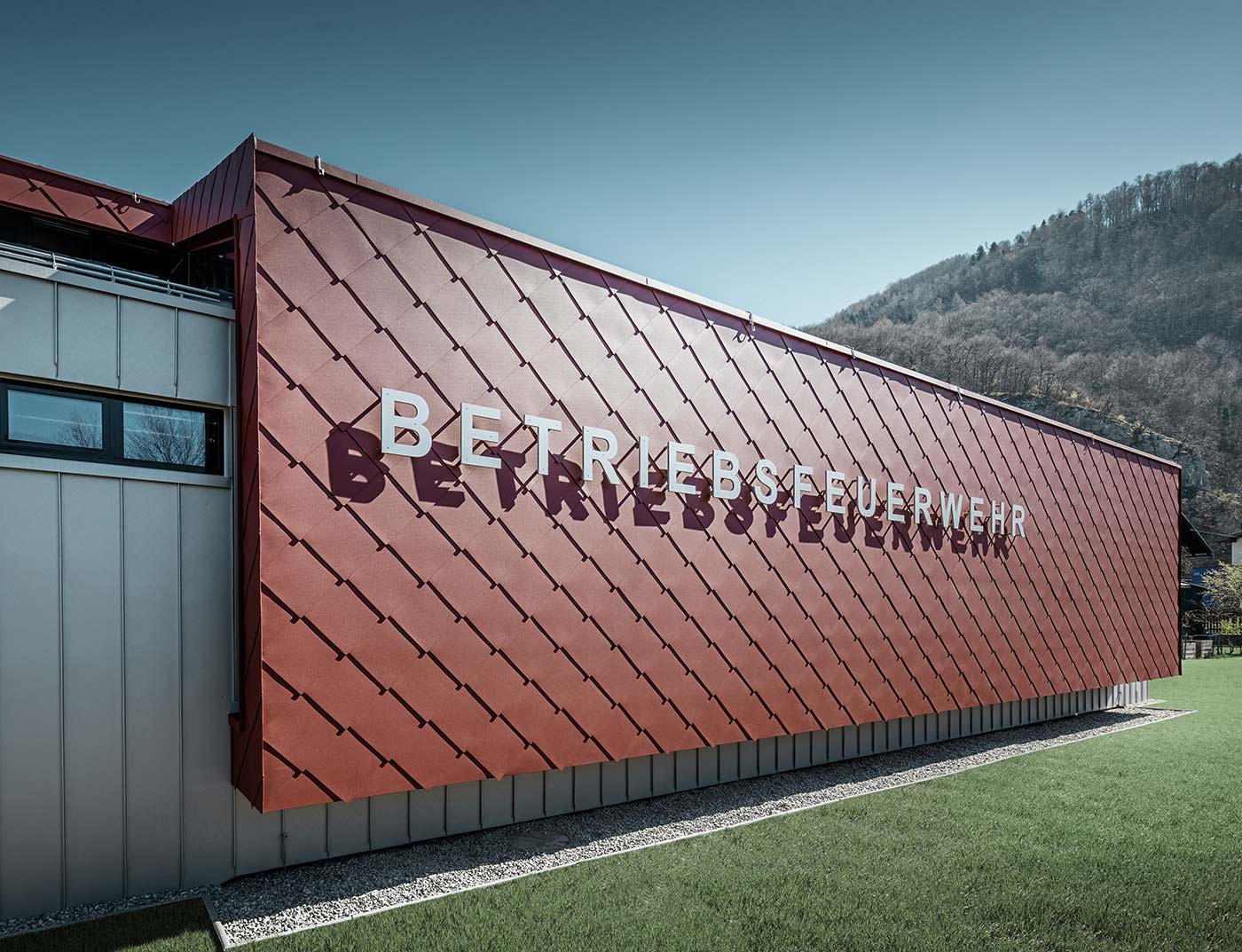

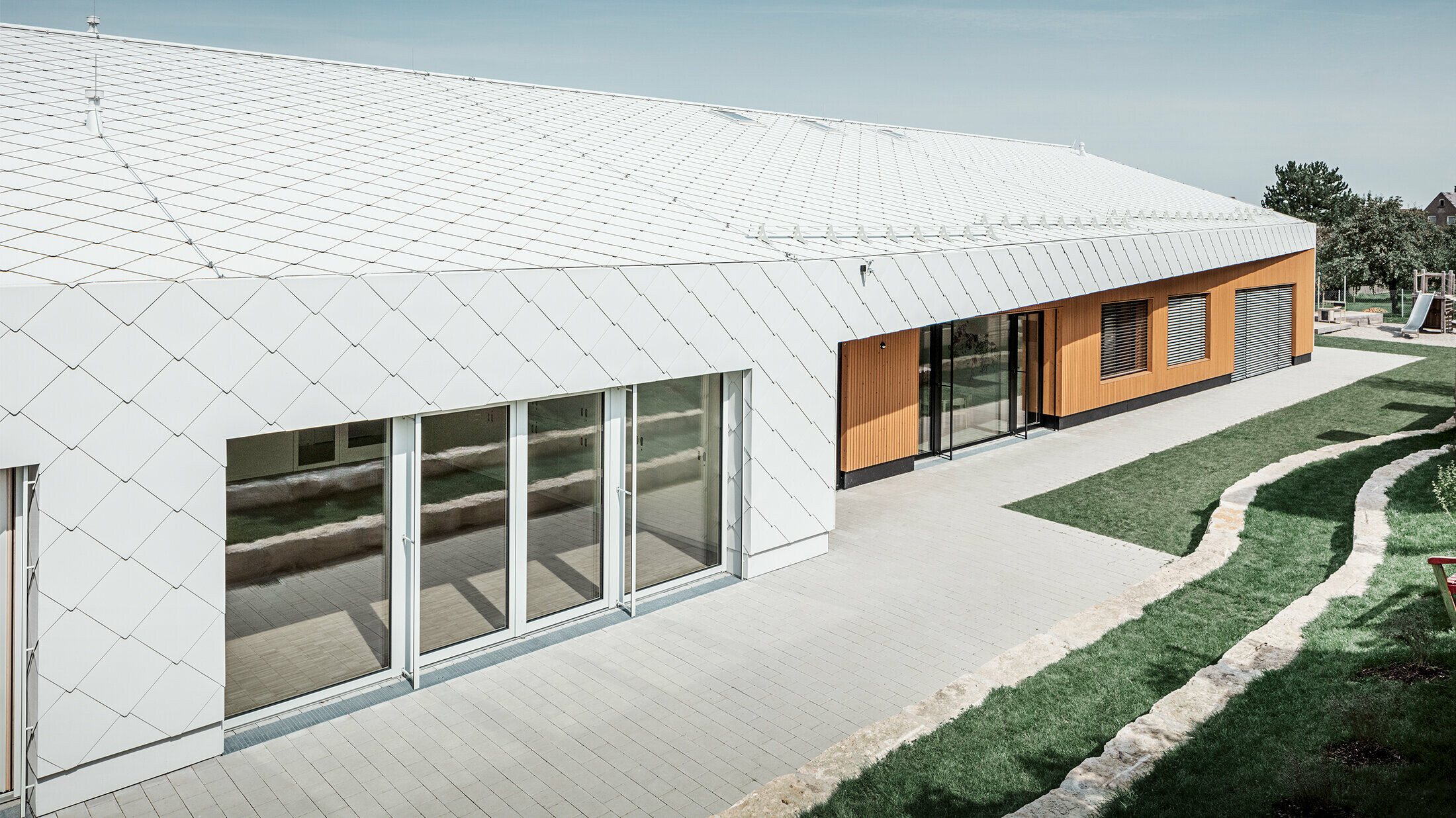

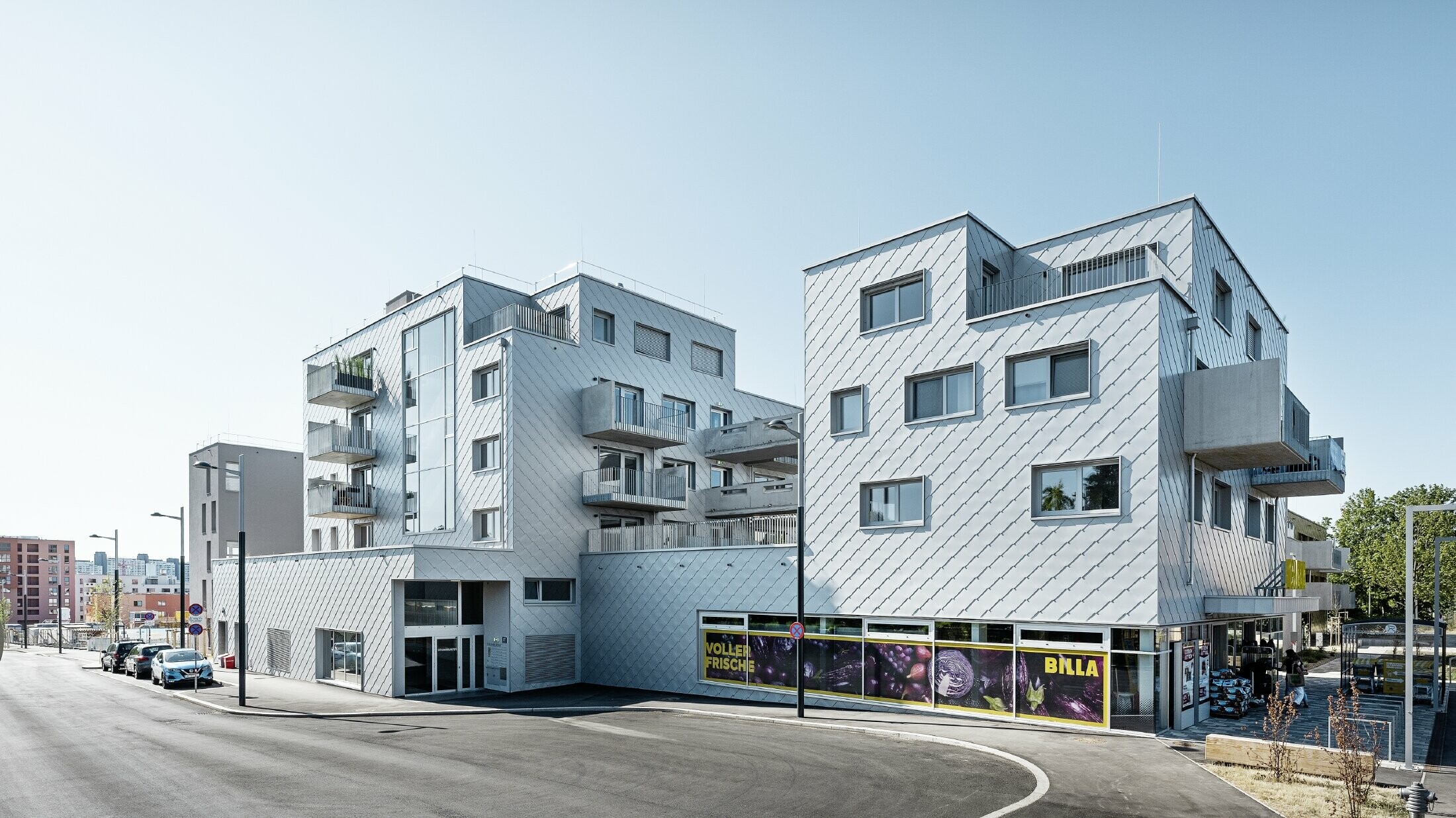

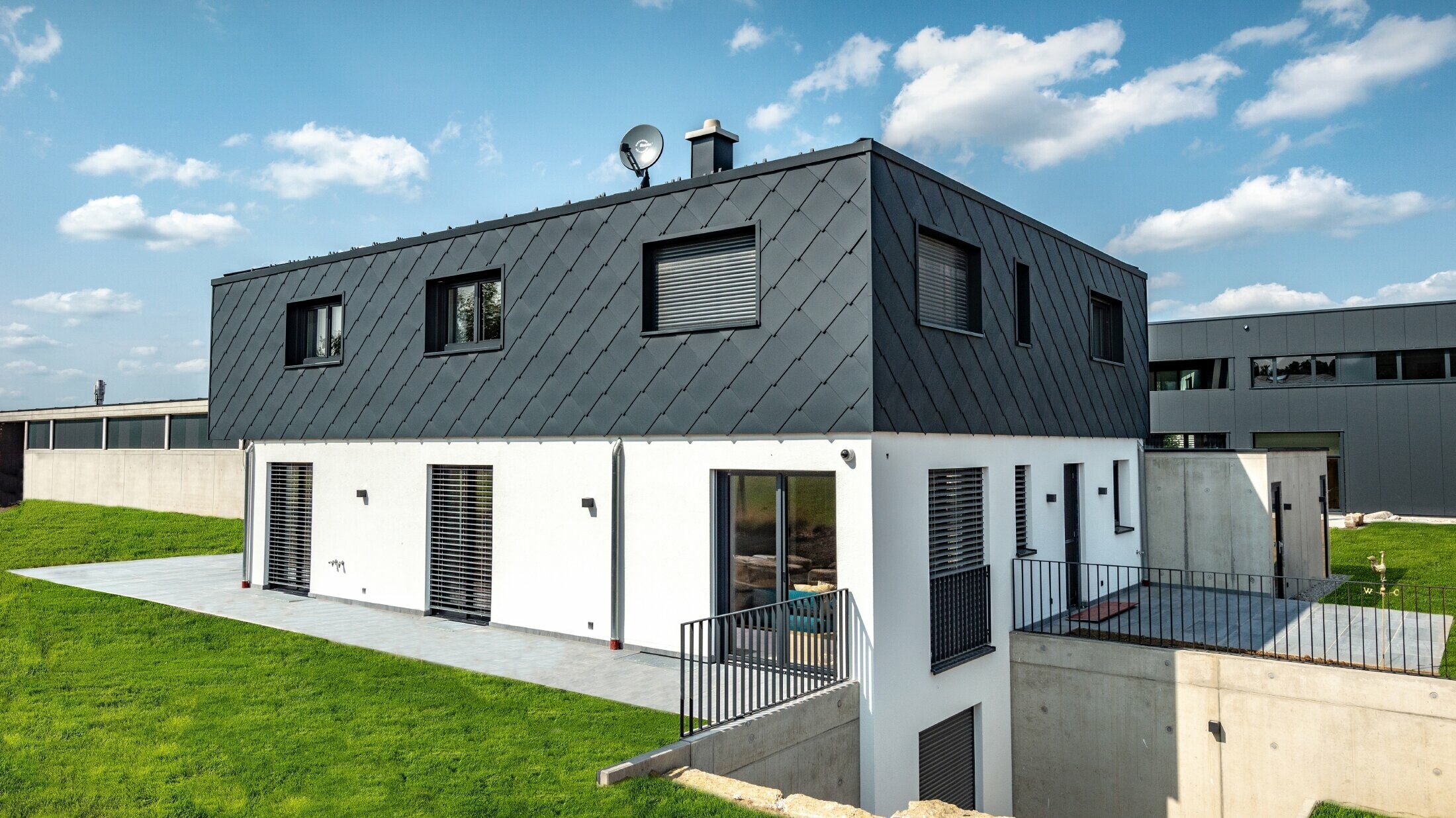

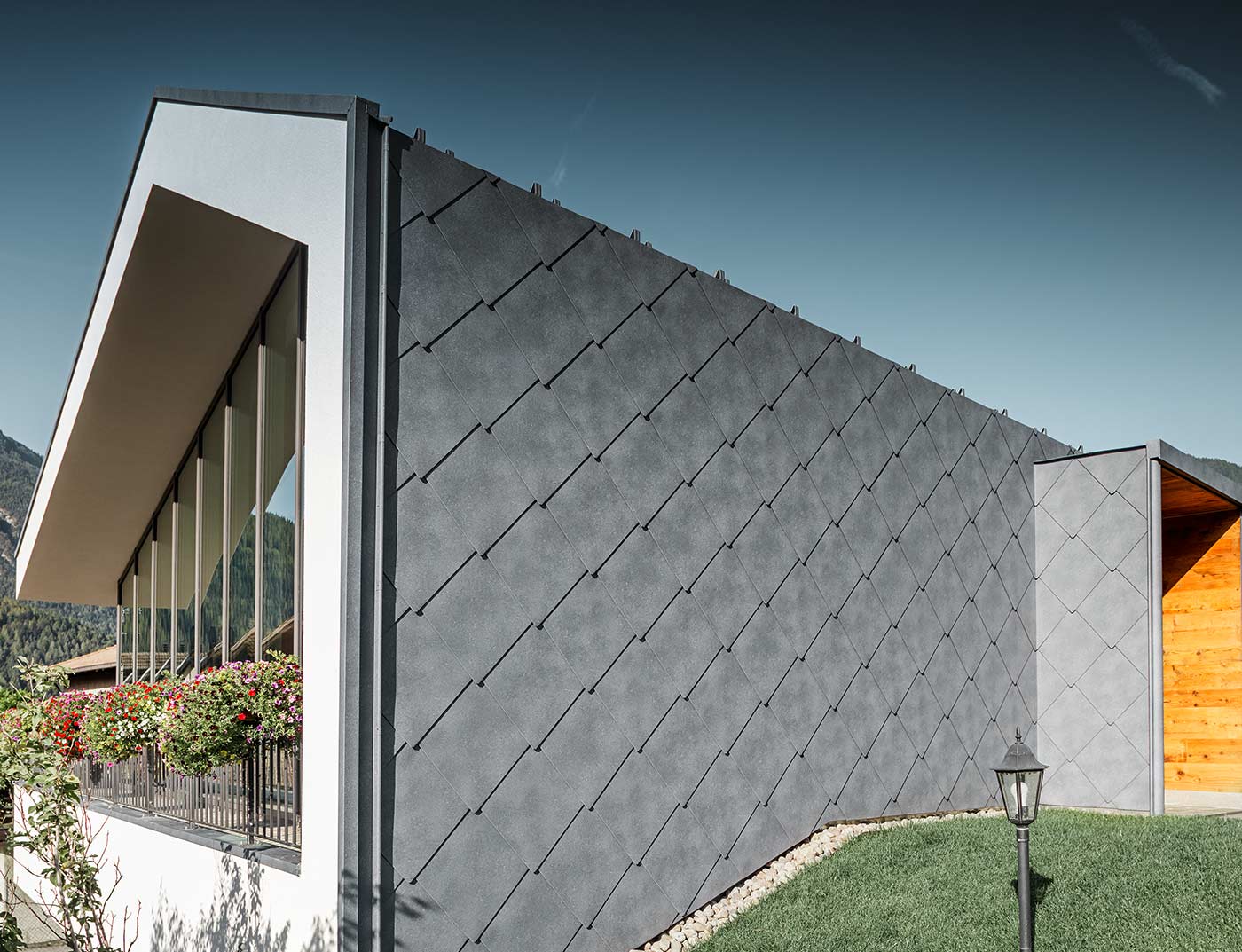

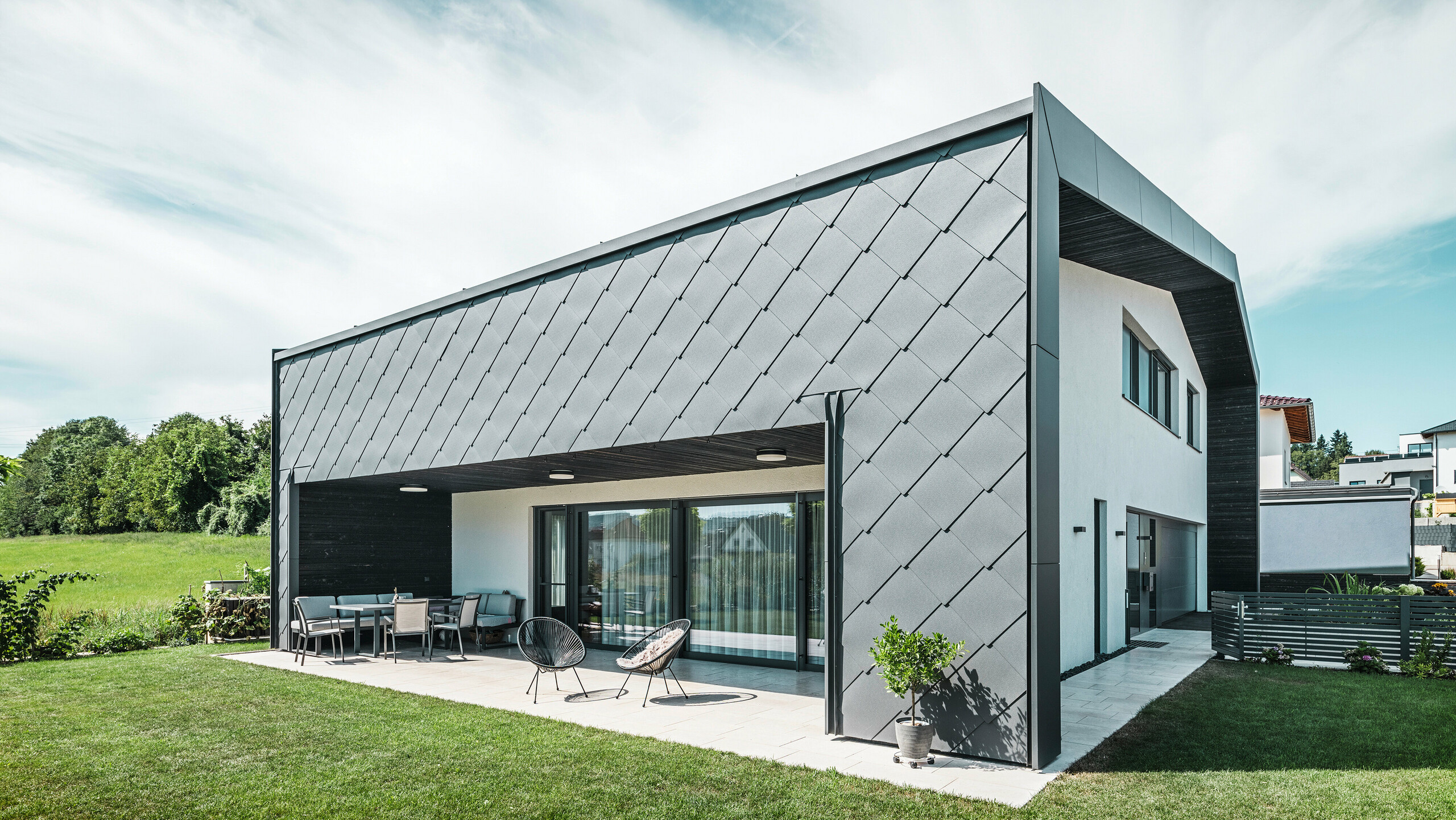

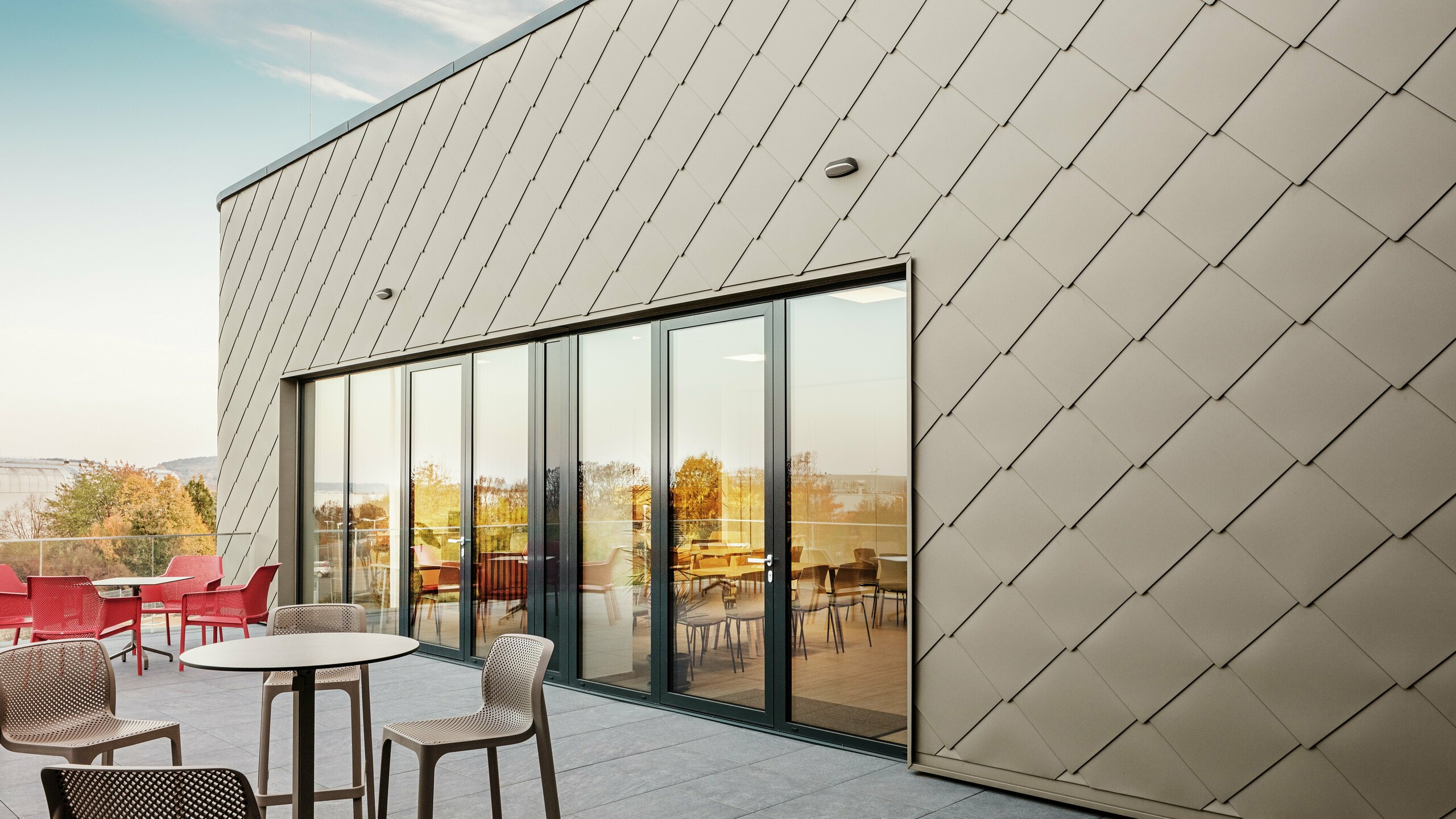

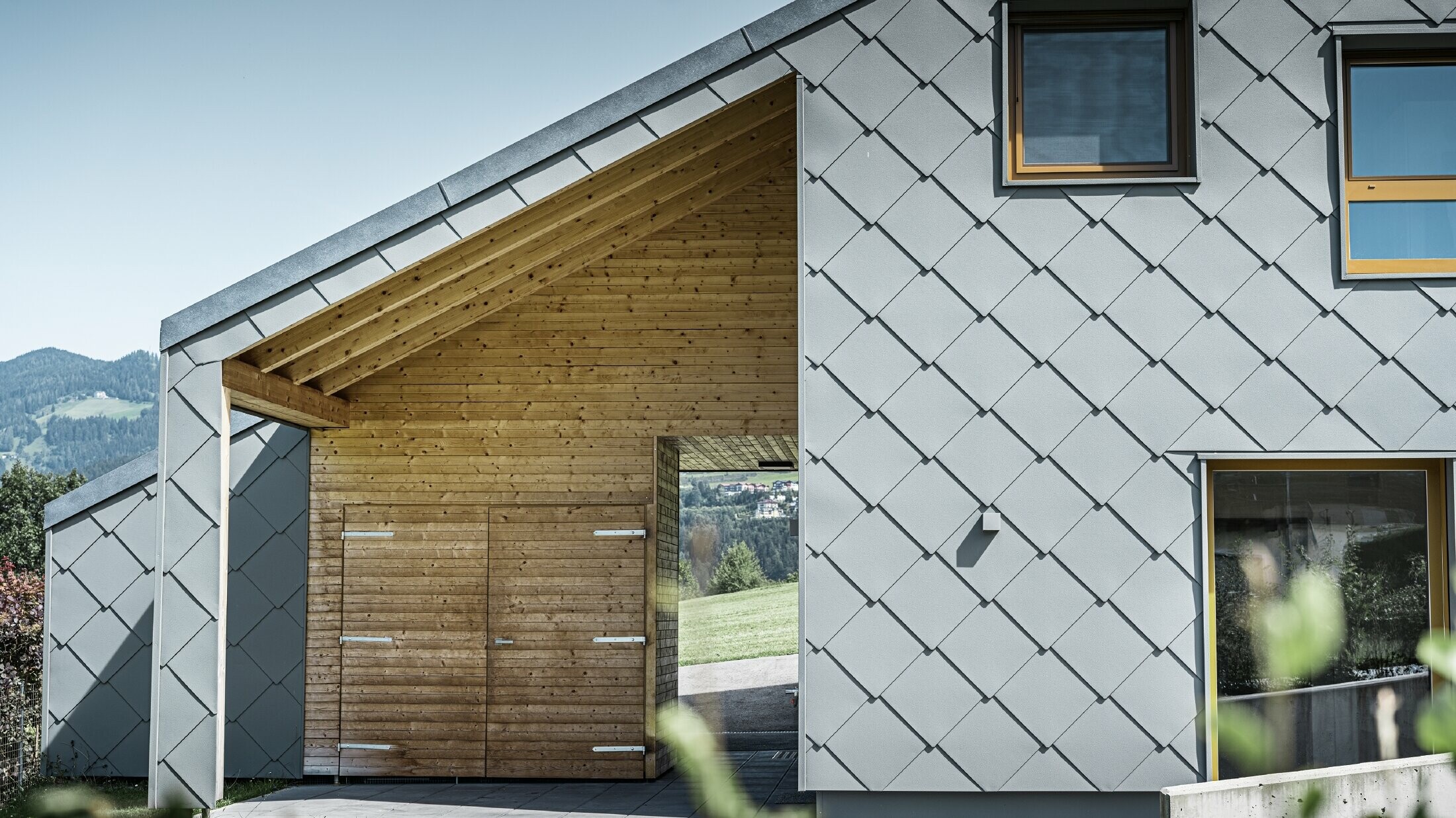

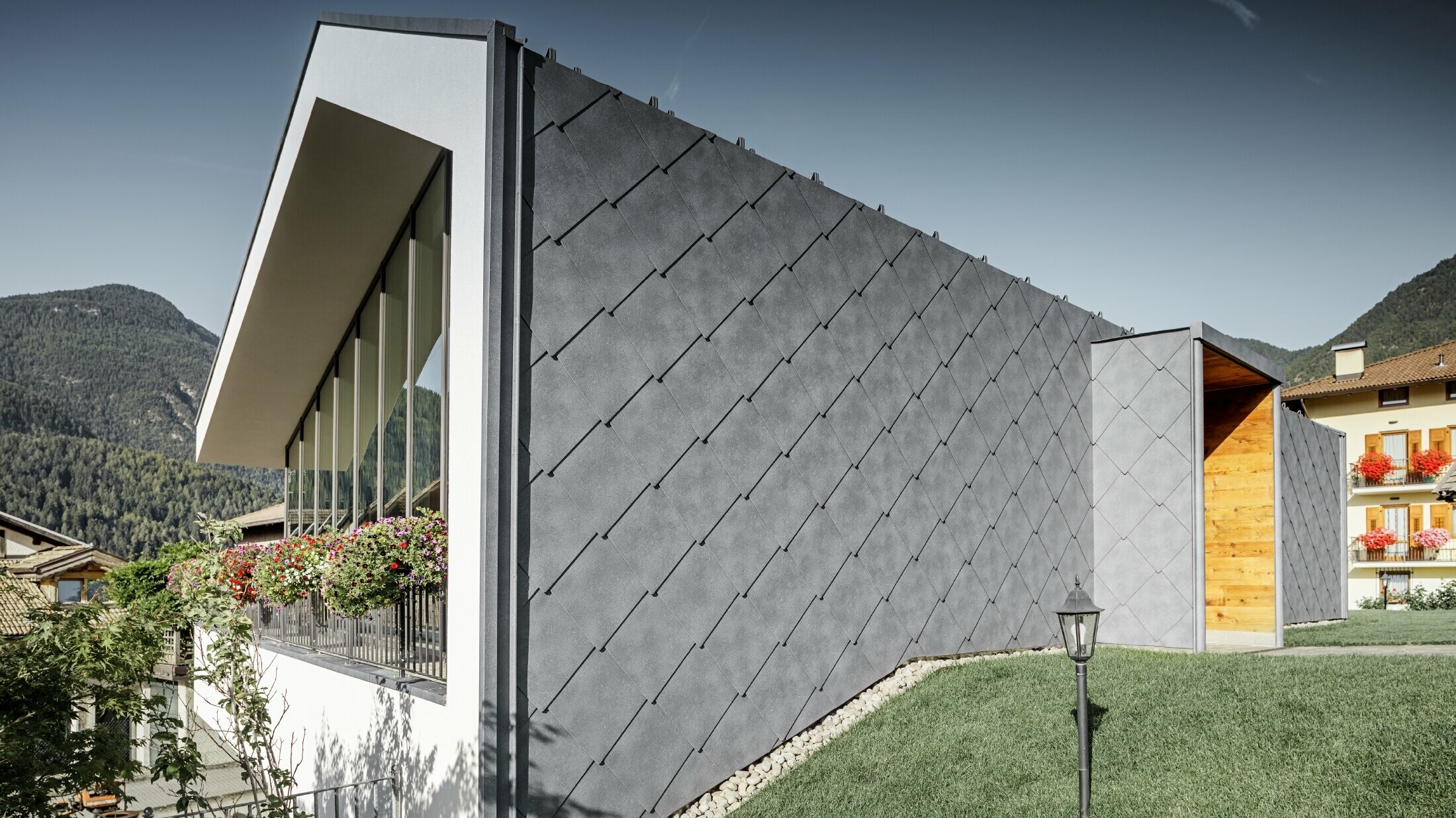

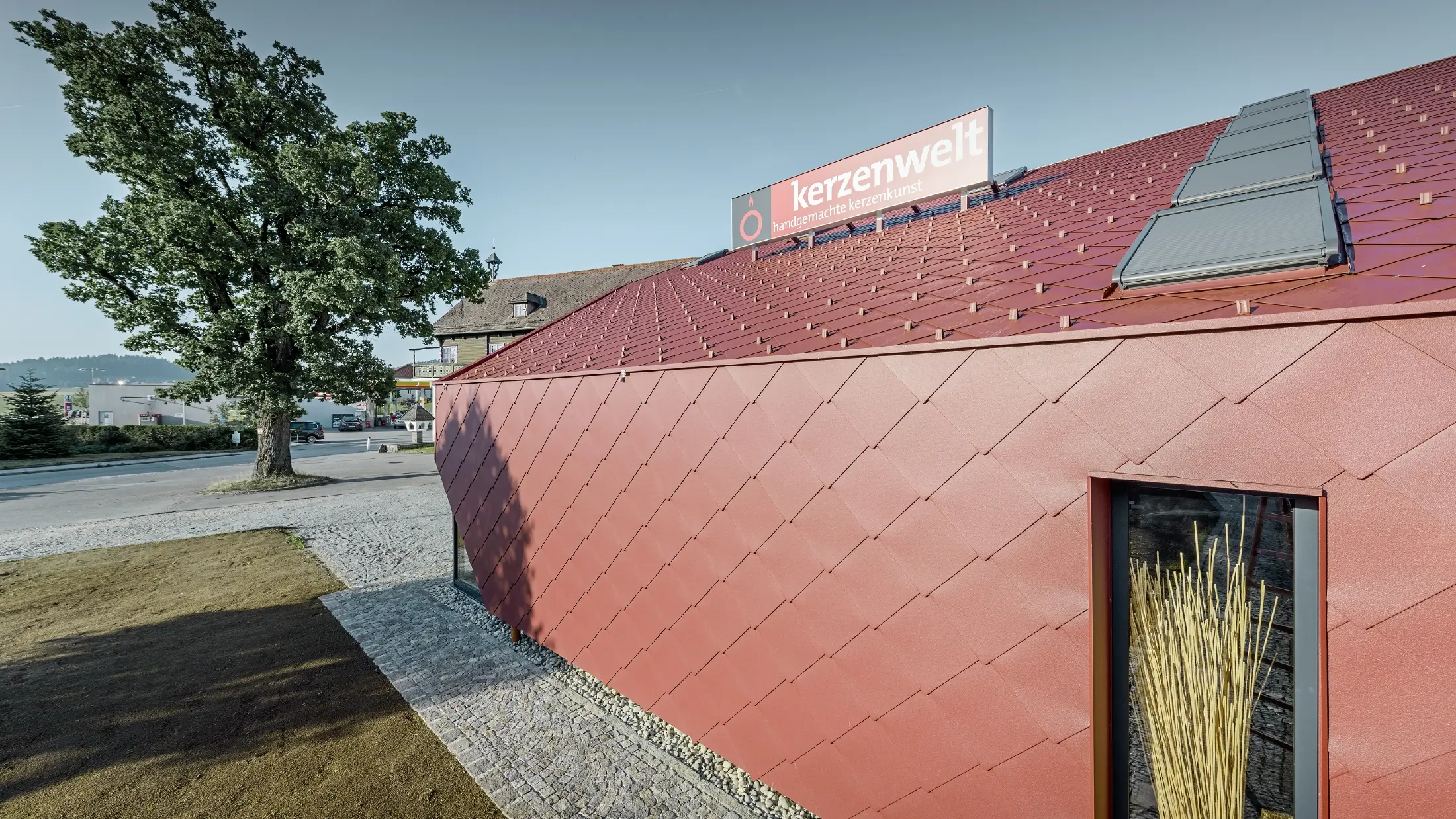

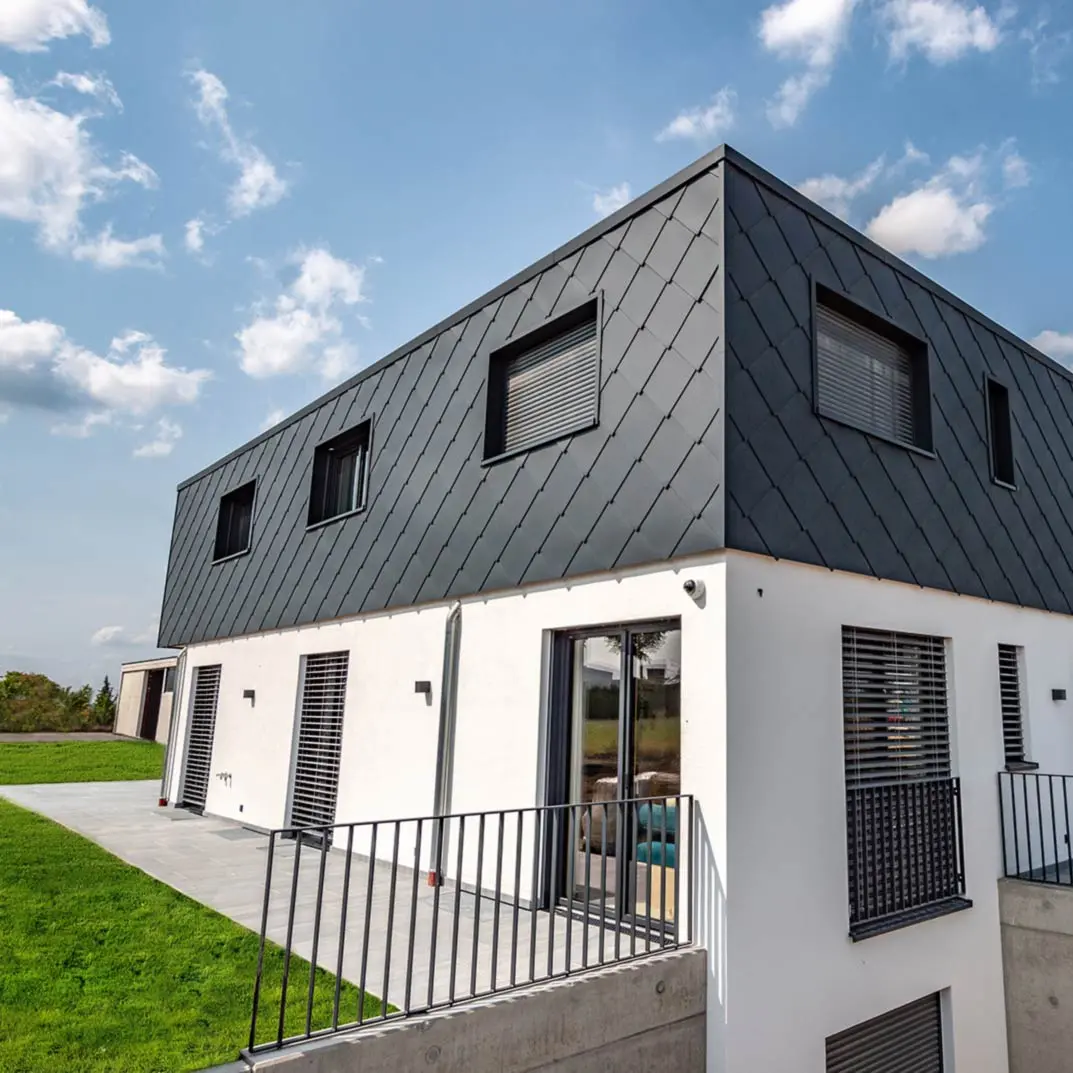

PREFA rhomboid façade tiles in the large 44 × 44 cm format add surprising touches to the tried and tested “scaly” appearance of buildings. The fascinating rhomboid shape creates a contemporarily-styled façade which emphasizes the overall design and makes every building unique and full of character. The integrated fastening strips facilitate speedy and inexpensive installation of the façade elements.
- Visually coordinated design
- New mounting system – integrated fastening strip facilitates speedy installation
- System optimisation
- Available in 10 standard colours
Colour overview (11)
The product is available in the following colours
Colour |
Code |
~ RAL |
|
P.10 brown |
7013 |
|
P.10 anthracite |
7016 |
|
P.10 black |
9005 |
|
P.10 brick red |
8004 |
|
P.10 oxide red |
3009 |
|
P.10 moss green |
6005 |
|
P.10 light grey |
7005 |
|
P.10 prefa white |
9002 |
|
P.10 nut brown |
8019 |
|
P.10 dark grey |
7043 |
|
P.10 stone grey |
7031 |
Notes
- The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
- Above all for colour quality P.10, it is almost impossible to define values due to the surface structure.
- Plain aluminium: The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.
- Metallic colours may vary in shade.
- To identify exact colours for complementary components please consult original samples.

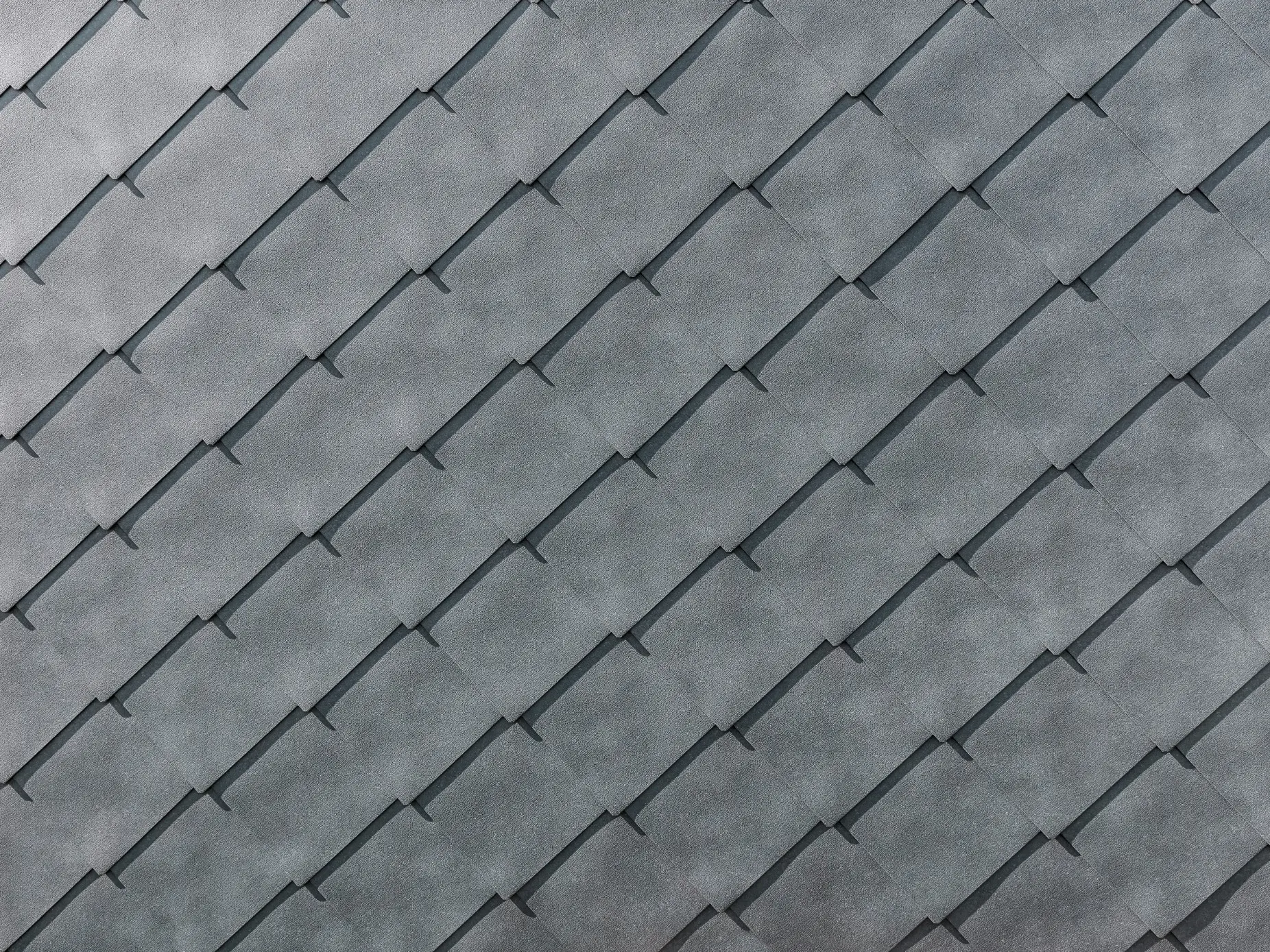

Rhomboid façade tile 44 × 44 – Technical information
- Colour range: 10 standard colours – stucco surface
- Also available with a smooth finish upon request
Technical information about the product
Material |
coil-coated aluminium, 0.7 mm thick |
|---|---|
Dimensions |
437×437 mm (cover), i.e. approx. 5 pc./m² |
Weight |
approx. 2.6 kg/m² |
Supporting substrate* |
on fully boarded substrate (at least 24 mm)* * Observe country-specific standards and specialist guidelines. |
Standard fastening |
direct fastening, 4 PREFA ring nails per rhomboid façade tile 44×44 (i.e. 20 PREFA ring nails per m²) |
Rhomboid Façade tile 44 × 44 – Planning and installation
More product information is available for downloading here.
Note: download DWG and DXF format files by right-clicking and selecting “Save link as”.
Accessories
Here, you will find a list of matching accessories for the rhomboid façade tile 44 x 44.
For a complete, detailed list of accessory products, see our price list (only for processors).
Leading plate for rhomboid façade tile 44 × 44
-
End plate for rhomboid façade tile 44 × 44
-
Starter strip façade
for façade shingles, rhomboid façade tiles and FX.12; 1800 × 158 × 1,00 mm, pre-drilled
Fastener (aluminium screw)
Special screw for aluminium substructures, with hardened drill point (red tip for illustration only)
Fastener (steel screw)
Special screw for steel substructures, with hardened drill point (red tip for illustration only)
