ROOF SYSTEMS SHINGLE

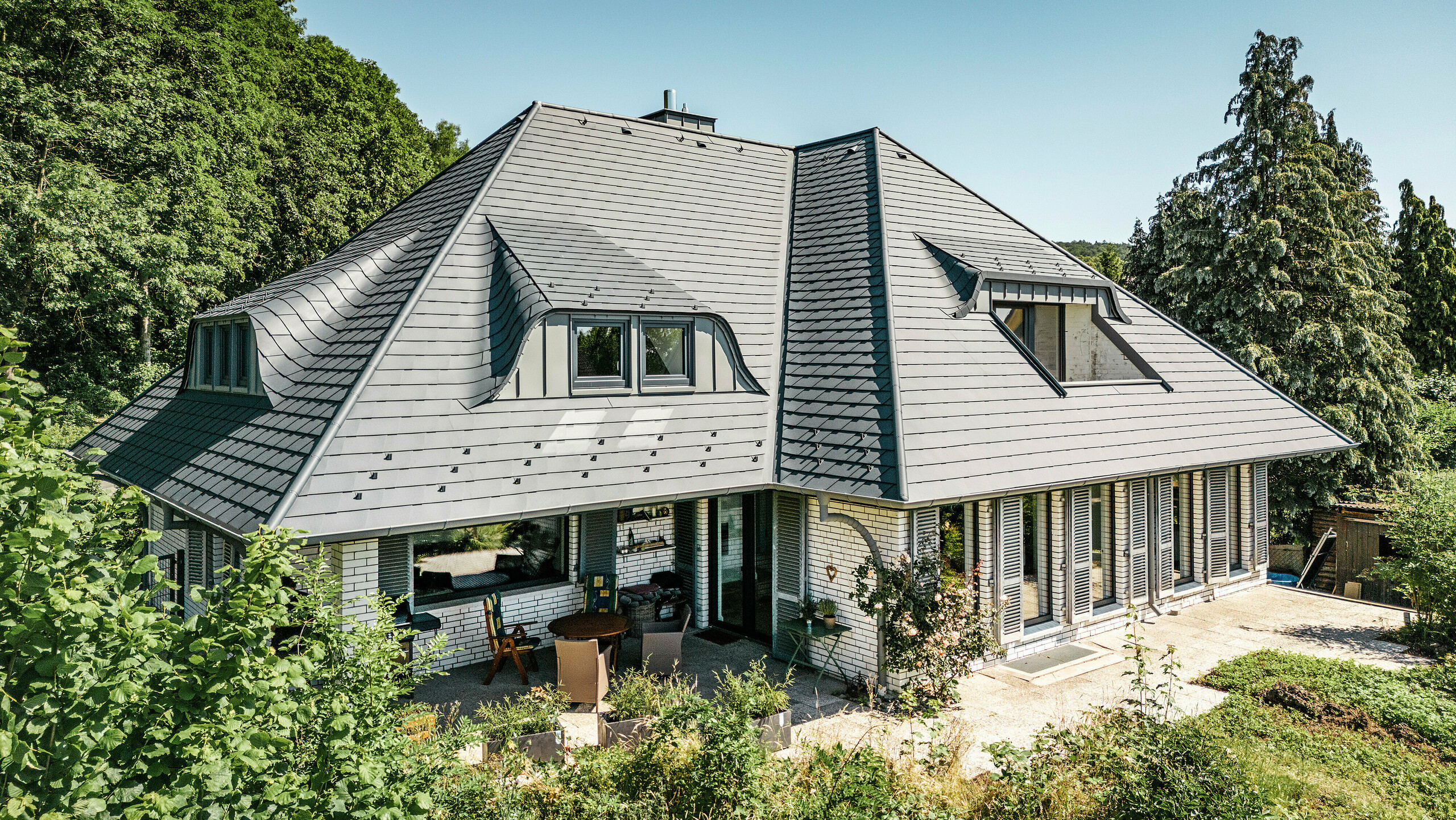

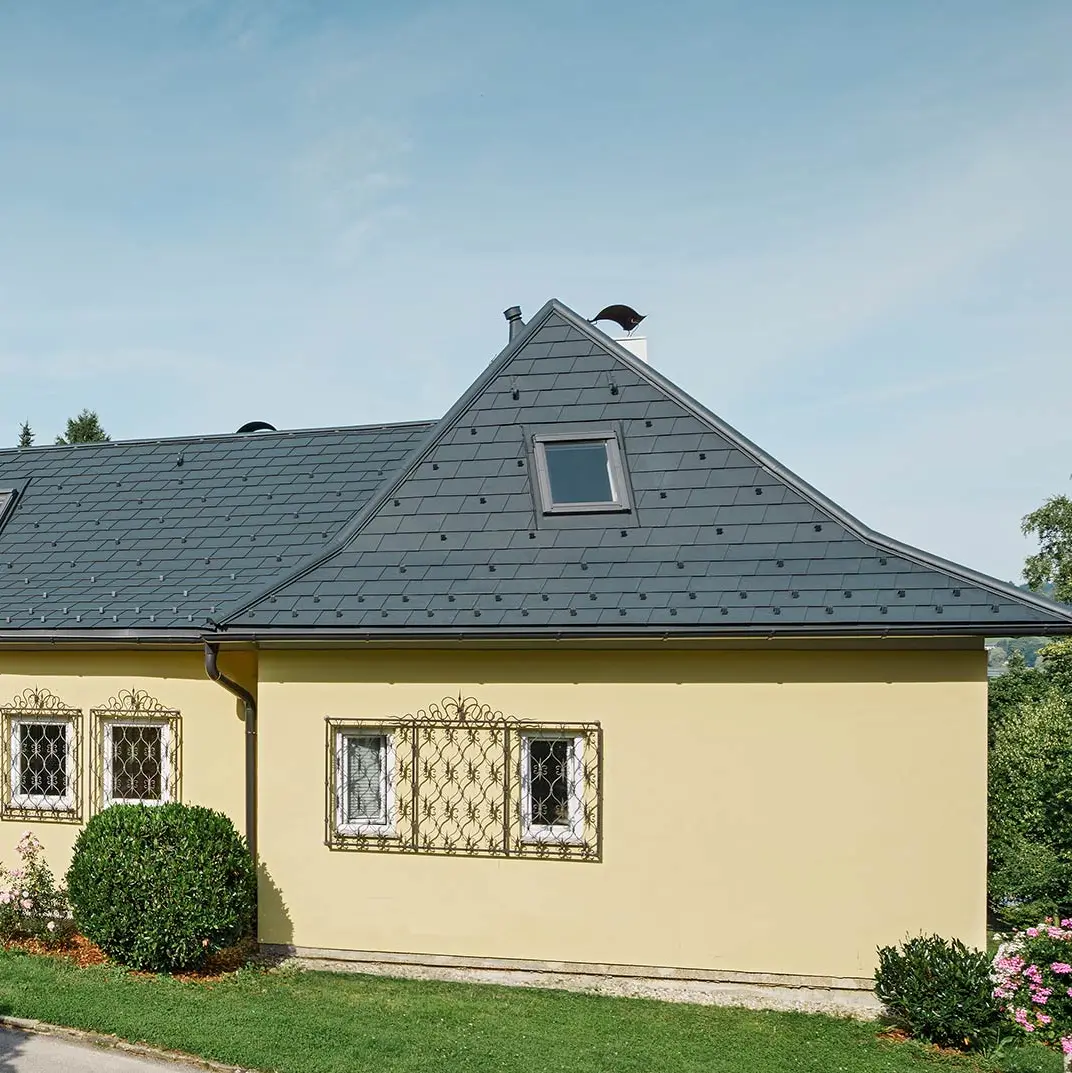

Einfamilienhaus mit Walmdach und mit gelber Putzfassade; Das Dach wurde mit der PREFA Dachschindel in Anthrazit eingedeckt.

Altes traditionelles Bauernhaus mit Krüppelwalmdach; Das Dach wurde mit der Aluschindel in Schwarz von PREFA neu eingedeckt, an der Fassade ranken sich Kletterpflanzen hoch.

Reference buildings PREFA Roof systems Shingle 04 brick red (similar to RAL 8004)

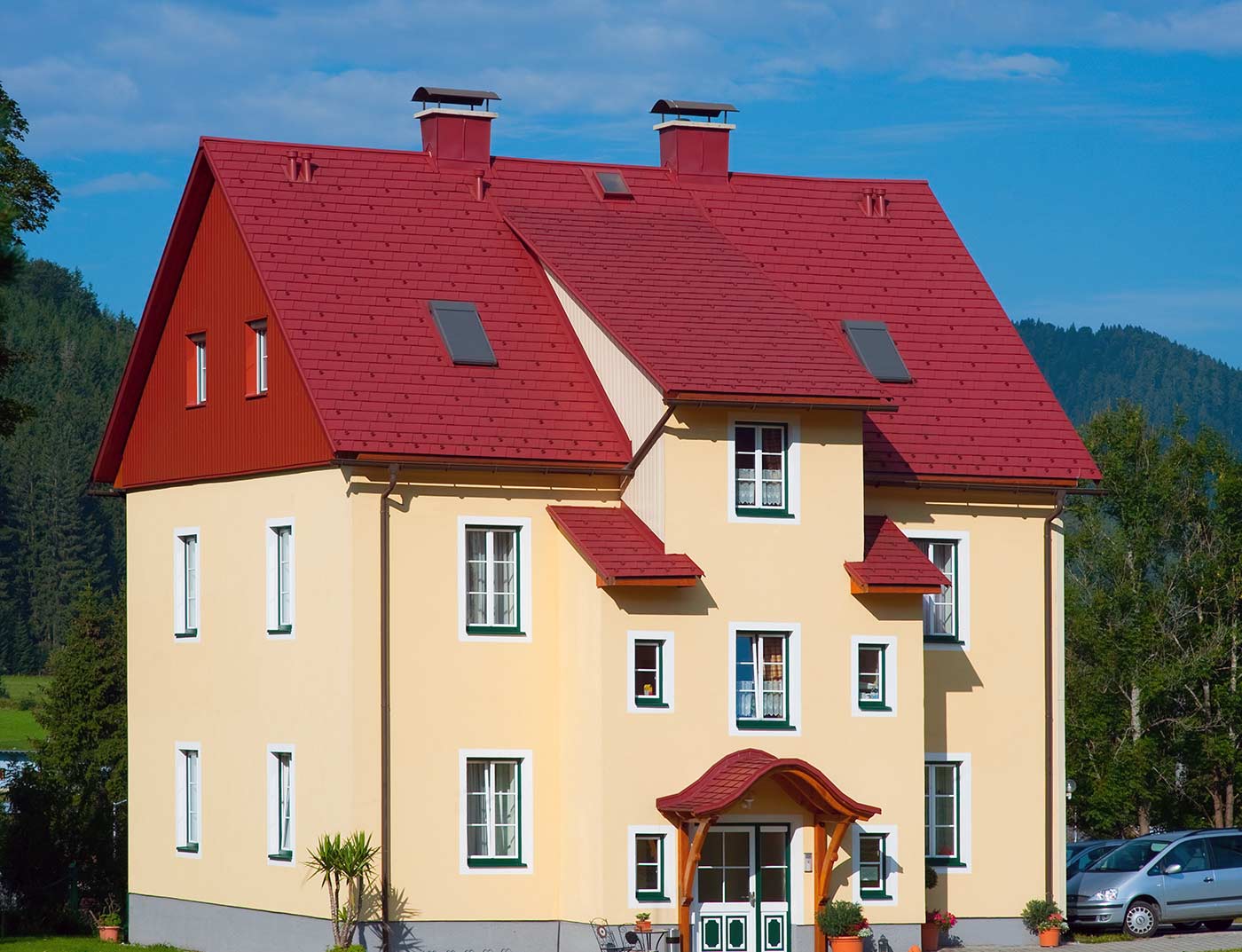

Reference buildings PREFA Roof systems Shingle 05 oxide red (similar to RAL 3009)

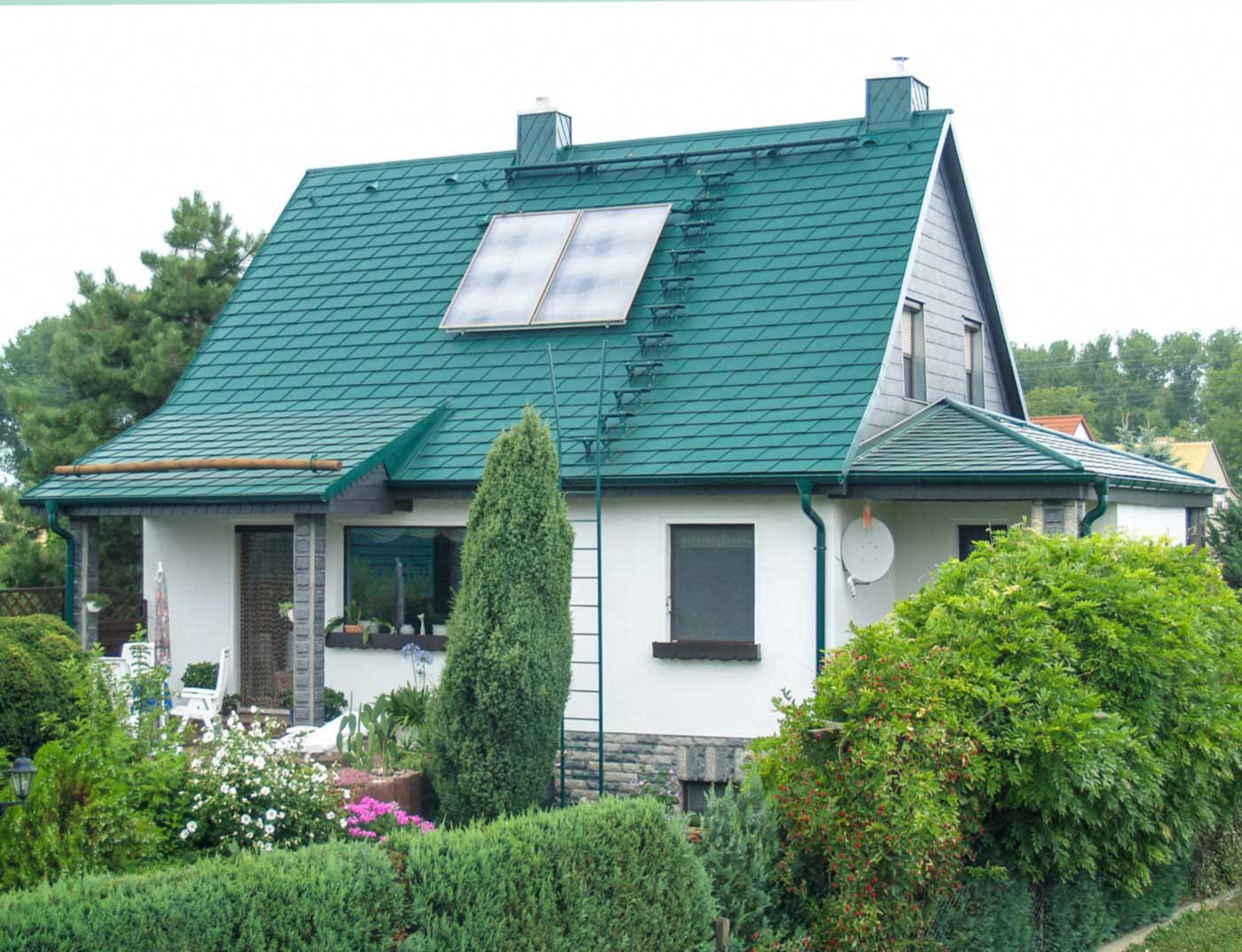

Reference buildings PREFA Roof systems Shingle 06 moss green (similar to RAL 6005)

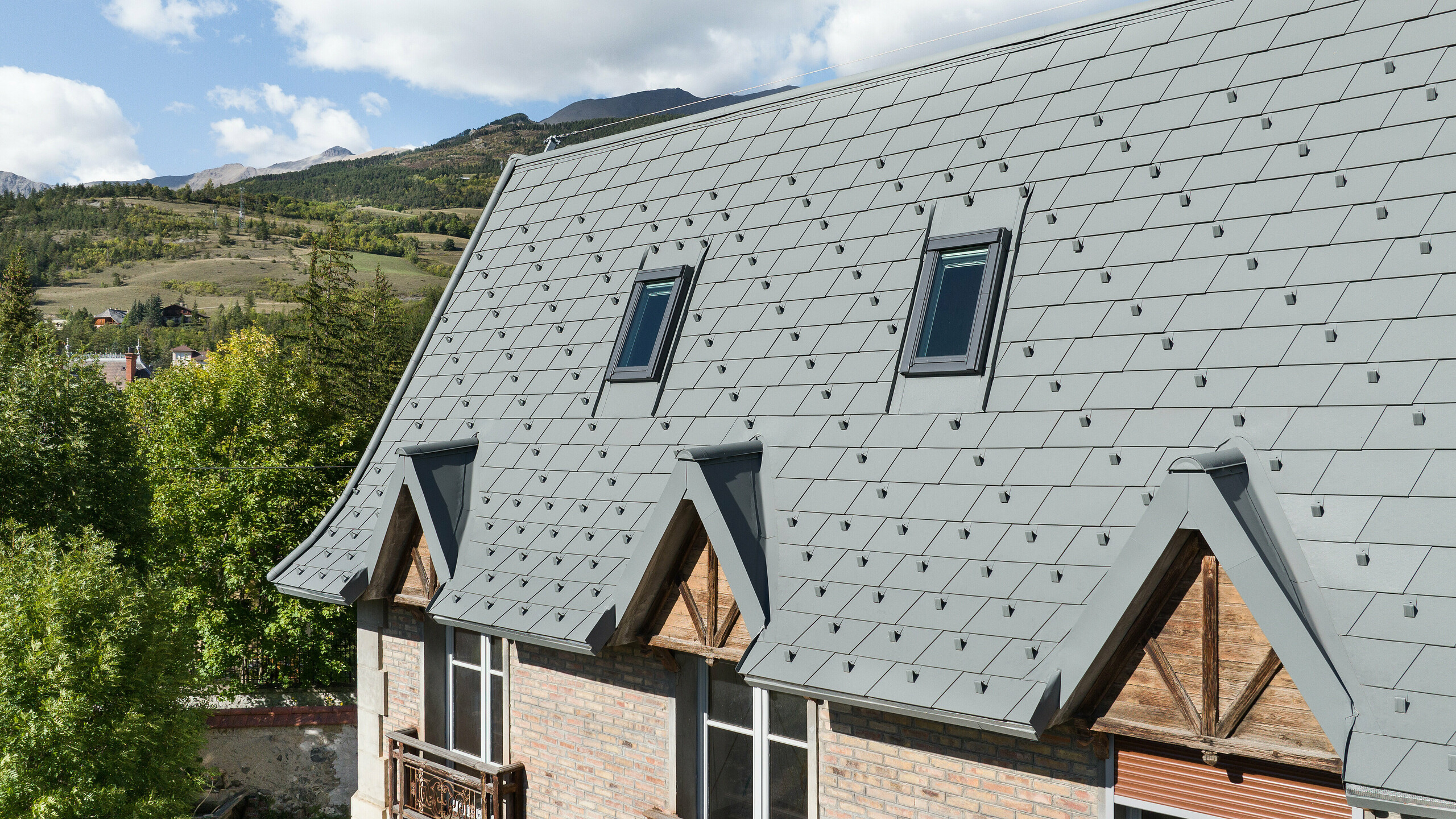

Reference buildings PREFA Roof systems Shingle 07 light grey (similar to RAL 7005)

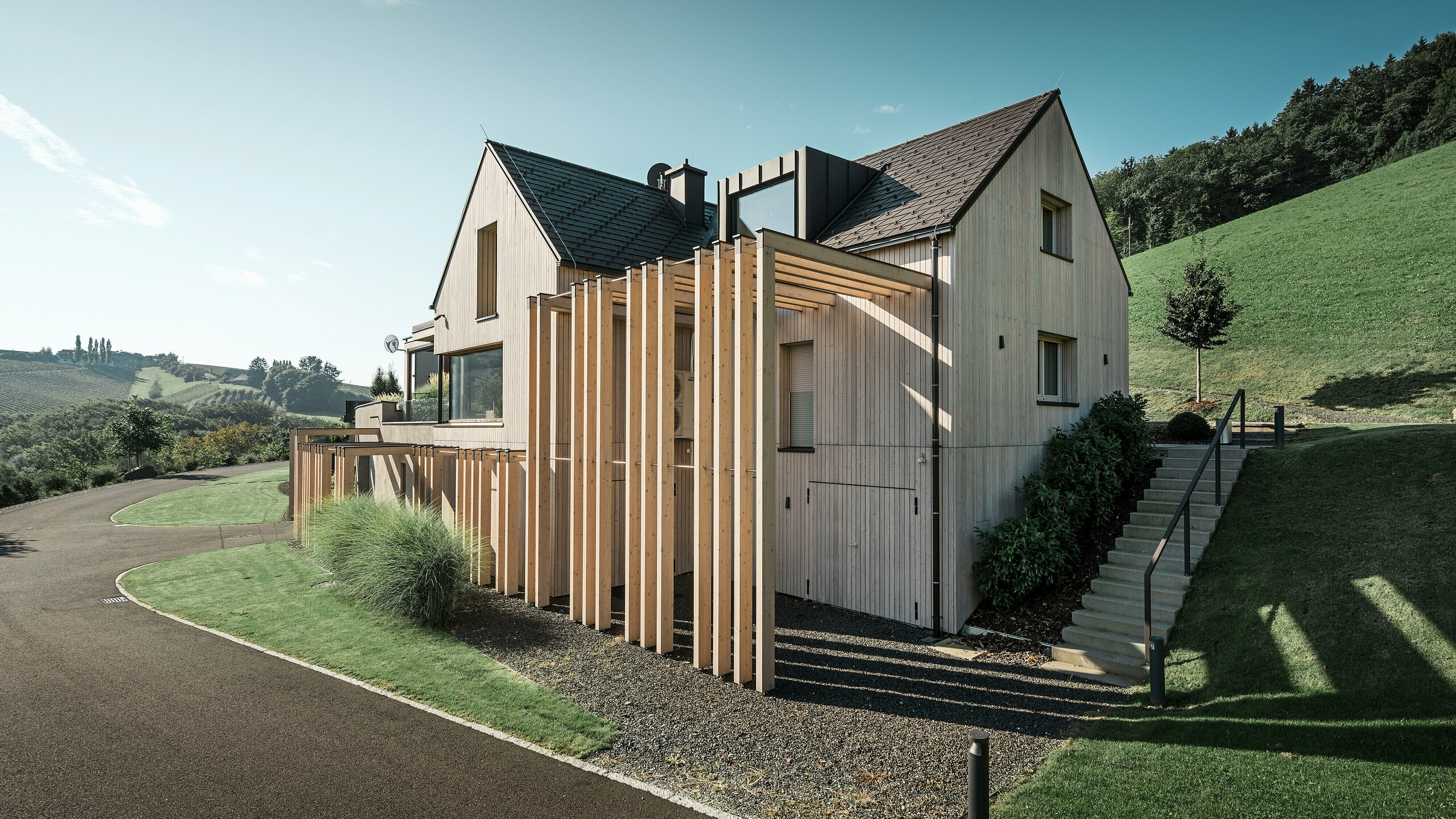

Reference buildings PREFA Roof systems Shingle 11 nut brown (own colour)

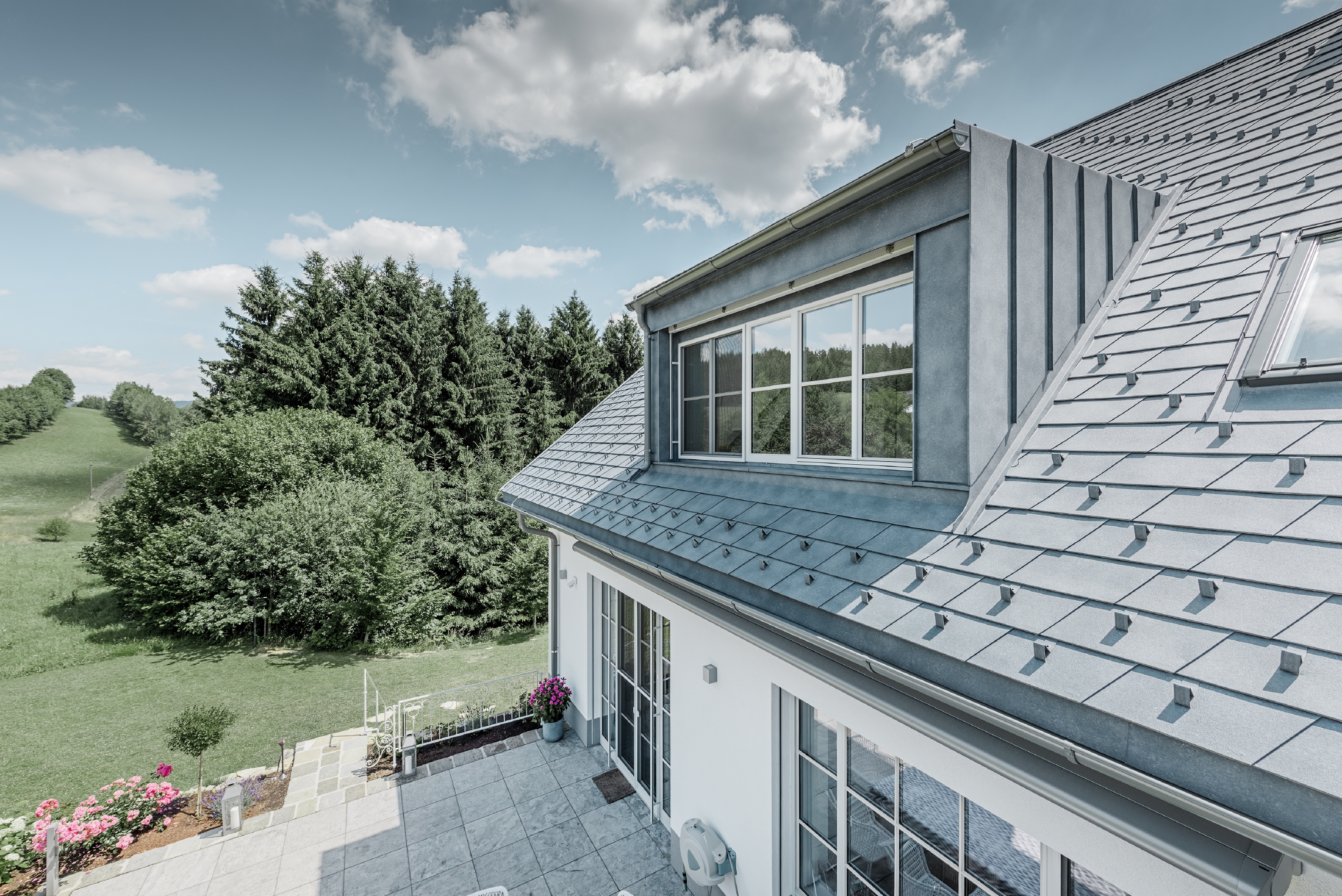

Reference buildings PREFA Roof systems Shingle 43 stone grey (own colour)

Product catalogue PREFA Roof systems Shingle 01 brown (own colour) P.10

Product catalogue PREFA Roof systems Shingle 02 anthracite (similar to RAL 7016) P.10

Product catalogue PREFA Roof systems Shingle 03 black (own colour) P.10

Product catalogue PREFA Roof systems Shingle 04 brick red (similar to RAL 8004) P.10

Product catalogue PREFA Roof systems Shingle 05 oxide red (similar to RAL 3009) P.10

Product catalogue PREFA Roof systems Shingle 06 moss green (similar to RAL 6005) P.10

Product catalogue PREFA Roof systems Shingle 07 light grey (similar to RAL 7005) P.10

Product catalogue PREFA Roof systems Shingle 11 nut brown (own colour) P.10

Product catalogue PREFA Roof systems Shingle 43 stone grey (own colour) P.10

AVAILABLE COLOURS

COLOUR 01 BROWN (OWN COLOUR) SURFACE P.10

COLOUR 02 ANTHRACITE (SIMILAR TO RAL 7016) SURFACE P.10

COLOUR 03 BLACK (OWN COLOUR) SURFACE P.10

COLOUR 04 BRICK RED (SIMILAR TO RAL 8004) SURFACE P.10

COLOUR 05 OXIDE RED (SIMILAR TO RAL 3009) SURFACE P.10

COLOUR 06 MOSS GREEN (SIMILAR TO RAL 6005) SURFACE P.10

COLOUR 07 LIGHT GREY (SIMILAR TO RAL 7005) SURFACE P.10

COLOUR 11 NUT BROWN (OWN COLOUR) SURFACE P.10

COLOUR 43 STONE GREY (OWN COLOUR) SURFACE P.10

Tried and tested thousands of times, the shingle shape combines with high-tech aluminium, making the PREFA shingles the perfect covering material — for classic roof structures or contemporary building designs alike. The broad choice of colours ensures attractive and harmonious roof surfaces. Seams on the lengthwise and transverse sides guarantee the necessary reliability, and ensure a sealed, weatherproof fit.

Available in 9 standard colours
Complete range of accessories
40-year guarantee
Alloy according to EN 1396
Surface treatment in a coil-coating procedure

Available in 9 standard colours (stucco surface)
Also available with a smooth finish upon request (delivery time: 10 days); plain aluminium available on request

MATERIAL:: aluminium 0.7 mm thick
VISIBLE SIDE:: made of powder-coated aluminium alloy
REAR:: protective paint
SIZE:: 420 × 240 mm (cover)
WEIGHT:: 1 m² = approx. 2.5 kg = 10 shingles
ROOF PITCH:: from 25°

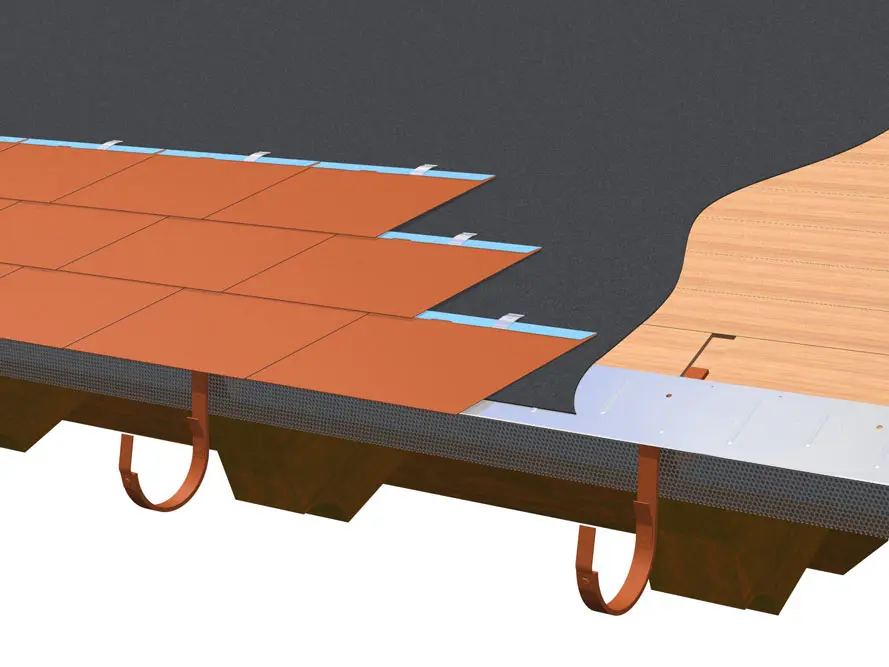

INSTALLATION:: on solid sheathing (at least 24 mm thick)
FASTENING:: 1 patent clip per shingle = 10 patent clips per m²

The attic can also be used as living space

The attic is not used as living space

Shingle

01 P.10 BROWN: own colour
02 P.10 ANTHRACITE: similar to RAL 7016
03 P.10 BLACK: own colour
04 P.10 BRICK RED: similar to RAL 8004
05 P.10 OXIDE RED: similar to RAL 3009
06 P.10 MOSS GREEN: similar to RAL 6005
07 P.10 LIGHT GREY: similar to RAL 7005
11 P.10 NUT BROWN: own colour
43 P.10 STONE GREY: own colour
13 PLAIN ALUMINIUM

PREFA EDGE CLEAT STRIP FOR SHINGLES, RHOMBOID ROOF TILES, FX.12 AND R.16

1,800 × 158 × 1.00 mm, pre-drilled

PREFA FITTING SHINGLE

840 × 240 mm; note: not suitable for entire roof coverings

PREFA PATENT CLIP FOR ROOF TILE AND SHINGLE

made of uncoated aluminium alloy

PREFA BIRD SCREEN

125 × 2,000 × 0.7 mm; round perforations (⌀ 5 mm)

PREFA VENTILATION SCREEN

square perforations (6 mm); colours brown/anthracite and light grey/light grey; dimensions: 1.00 × 250 mm and 1.00 × 333 mm

PREFA EAVES APRON ICE STRIP

230 × 2,000 × 0.70 mm

PREFA VERGE FLASHING

95 × 2,000 × 0.70 mm; with cleat strip

PREFA SAFETY VALLEY

3,000 mm; with double lock standing seam (canted)

PREFA FROG-MOUTH VENT FOR PREFA SHINGLES

420 × 240 mm; air intake section: approx. 30 cm²

PREFA FROG-MOUTH VENT COVER

for riveting; air intake section: approx. 30 cm²

PREFA HIP AND RIDGE CAP

500 × 1.00 mm

PREFA HIP AND RIDGE CAP | END PIECE

PREFA RIDGE VENT

3,000 × 1.00 mm; 1,200 × 1.00 mm; for cold roofs; suitable for all rafter lengths

PREFA RIDGE VENT END PIECE

PREFA ROOF HATCH

Inside dimensions: 600 × 600 mm; from roof pitches of 12°, complete with wooden frame, opening restrictor with cotter pin and 6 mm twinwall clear sheet

PREFA FLASHING FOR VELUX ROOF WINDOWS

55 × 78 – CK02 / 55 × 98 – CK04 / 55 × 118 – CK06 / 66 × 98 – FK04 / 66 × 118 – FK06 / 66 × 140 – FK08 / 78 × 98 – MK04 / 78 × 118 – MK06 / 78 × 140 – MK08 / 78 × 160 – MK10 / 78 × 180 – MK12 / 94 × 98 – PK04 / 94 × 118 – PK06 / 94 × 140 – PK08 / 94 × 160 – PK10 / 114 × 118 – SK06 / 114 × 140 – SK08 / 114 × 160 – SK10 / 134 × 98 – UK04 / 134 × 140 – UK08 / 134 × 160 – UK10 /

PREFA FLASHING FOR ROTO ROOF WINDOWS

54 × 78 – 05/07 / 54 × 98 – 05/09 / 54 × 118 – 05/11 / 65 × 98 – 06/09 / 65 × 118 – 06/11 / 65 × 140 – 06/14 / 74 × 78 – 07/07 / 74 × 98 – 07/09 / 74 × 118 – 07/11 / 74 × 140 – 07/14 / 74 × 160 – 07/16 / 94 × 78 – 09/07 / 94 × 98 – 09/09 / 94 × 118 – 09/11 / 94 × 140 – 09/14 / 94 × 160 – 09/16 / 114 × 78 – 11/07 / 114 × 98 – 11/09 / 114 × 118 – 11/11 / 114 × 140 – 11/14 / 114 × 160 – 11/16 / 134 × 98 – 13/09 / 134 × 78 – 13/07 / 134 × 140 – 13/14 Q series: Q55 × 78 / Q78 × 98 / Q78 × 118 / Q94 × 140 / Q114 × 118 / Q134 × 160

PREFA SAFETY TREAD

composed of safety tread and two mounts with surface sealant, including fixing material, adjustable for roof pitches between 12° and 60° According to DIN EN 516-1-A

PREFA WALKWAY SUPPORT

250 mm; roof pitch: 5°–55°

PREFA WALKWAY

250 × 1200 mm, 250 × 800 mm, 250 × 600 mm, 250 × 420 mm

PREFA CONNECTOR FOR WALKWAYS

PREFA ROOF ANCHOR HOOK ACCORDING TO EN 517 B (ON MOUNTS) SDH 41

PREFA ROOF ANCHOR HOOK ACCORDING TO EN 517 B

PREFA FLASHING PLATE (FOR SEAMING)

roof pitch: 12°–52°; Ø 80–125 mm

PREFA UNIVERSAL FLASHING

for pipes with a diameter of 40–120 mm; roof pitch: 12°–52°

PREFA VENTILATION CAP

roof pitch from 12°; ⌀ 100 mm

PREFA VENT PIPE

⌀ 100 mm, ⌀ 120 mm, flashing plates

PREFA FLEXIBLE PIPE COLLAR 100

⌀ 100 mm, permanently flexible EPDM pipe collar for roof openings

PREFA SNOW GUARD FOR SHINGLE

PREFA BASE PLATE

PREFA PIPE-STYLE SNOW GUARD BRACKET

Opening height: 135 mm; bracket height: 165 mm

PREFA PIPE

for pipe-style snow guard brackets; 15 × 3,000 mm

END PIECE FOR PREFA PIPE-STYLE SNOW GUARD

PREFA PIPE-STYLE SNOW GUARD SYSTEM

with 3 pipe openings

PREFA REMOVABLE PIPE FOR PIPE-STYLE SNOW GUARD SYSTEM

3,000 mm 25/25

PREFA ICE-RETENTION BRACKET FOR PIPE-STYLE SNOW GUARD SYSTEM

removable pipe including fixing material for pipe-style snow guard system

PREFA END PIECE FOR PIPE-STYLE SNOW GUARD SYSTEM

PREFA ALUMINIUM MOUNTAIN SNOW GUARD BRACKET

300 × 246 mm; for logs (⌀ 140 mm)

PREFA CHIMNEY CAP

700 × 700 mm, 800 × 800 mm, 1000 × 700 mm, 1100 × 800 mm, 1500 × 800 mm

PREFA FLAT PROFILE

Note: download DWG and DXF format files by right-clicking and selecting “Save link as”.

65 KB PREFA_Tender_Texts_Roof_Shingle_2018-06_-_EN.docx 704 KB PREFA_Tender_Texts_Roof_Shingle_2018-06_-_EN.pdf

6 MB PREFA_Details_roof_shingle_2017_Q4_EN.dwg 21 MB PREFA_Details_roof_shingle_2017_Q4_EN.dxf 6 MB PREFA_Details_roof_shingle_2017_Q4_EN.pdf
