AVAILABLE COLOURS

FALZONAL® – INFORMATION

    In terms of alloy, strength and coating, this colour aluminium strip has been specially tailored for applications using sheet metal techniques. It is perfectly suited to the widest variety of folding techniques – and can be combined with materials such as wood, glass or steel.

    Rainproof, single or double-skin ventilated roof and wall constructions can be realized in the same way as complex façade designs.

    Falzonal® is available in a wide range of colours and surfaces with plain or metallic colours including copper, zinc or titanium shades.

    • Large choice of colours
    • PVdF coating (80/20) – UV-resistant and environmentally sound
    • Resists corrosion caused by condensation
    • Easy to work, strong load-bearing capacity
    • Alloy, mechanical properties and coating are coordinated with the folding technology
    • Falzonal® is non-combustible(A1)
    • No heavy metal erosion

    FALZONAL® – TECHNICAL INFORMATION

    Falzonal® Novelis colour aluminium in fold quality has been specially developed for roof & façade applications using sheet metal techniques.

    MATERIAL:
    aluminium 0.7 mm thick
    VISIBLE SIDE:
    made of powder-coated aluminium strip
    REAR:
    protective paint
    SIZE:
    “thickness: 0.7 mm width: 600 mm / 1,200 mm centre-to-centre seam distance: 53 cm”
    WEIGHT:
    “sheet strip: 1.89 kg/m² approx. 2.2 kg/m² roof area with FALZONAL 600”
    FIRE PROTECTION:
    Falzonal ® is non-combustible according to EN 13501-A1. Smoke gases comply with DIN 4102 and pose no threat to health.

    FOLD TYPES

    The pre-painted aluminium strips can be easily rolled, cut, sawn, folded, canted, rounded, drilled, riveted and glued. Falzonal® can be combined with other materials such as wood, glass or steel. From arched roofs to narrow-angled dormers or bays, from church spires to large-scale façade cladding: Falzonal® offers many possibilities for individual roof and wall designs.

    TECHNICAL DRAWING

    FALZONAL® – COLOUR RANGE

    PAINTS, COLOURS AND SURFACES

    PAINT QUALITY:
    “visible side: two-layer stove-enamel finish (available in 15 colours) Rear: protective paint”
    GLOSS
    Depending on the shade, covers approx. 10 to 20 units as per the Gardner measuring system (measuring angle 60°). Metallic colours approx. 40 units.
    QUANTITIES
    The colour range is available at short notice from your stockist. Your stockist will be delighted to provide you with more information.
    PROTECTIVE FILM
    The visible side of Falzonal® is coated with a patent, asymmetric perforated, non-slip protective film. This film is UV-resistant and can remain on the trays for up to six months after all work is complete.

    THE PRODUCT IS AVAILABLE IN THE FOLLOWING COLOURS

    STANDARD PURE WHITE
    similar to RAL 9010
    TIN GREY
    PEARL WHITE
    similar to RAL 1013
    DUSTY BLUE (SIMILAR TO RAL 5014)
    LIGHT IVORY
    similar to RAL 1015
    MATT LIGHT ZINC
    BROOM YELLOW
    similar to RAL 1003
    GREY-GREEN
    similar to RAL 6021
    OPAL GREEN

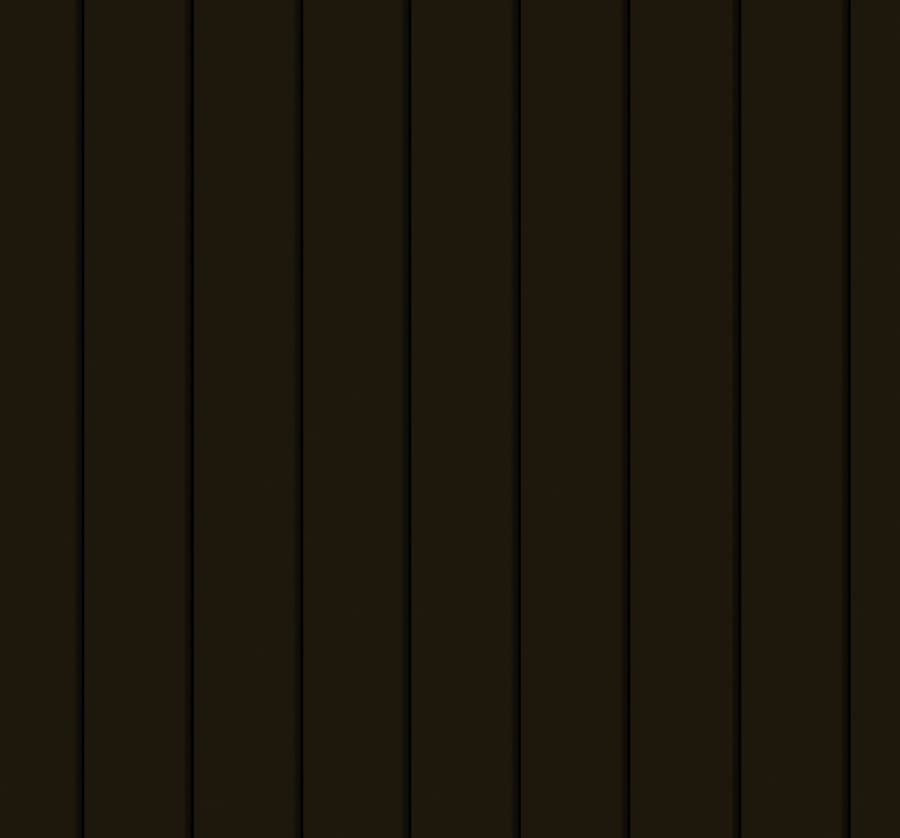

    ANODIC BROWN
    MATT DARK GREY
    ANTHRACITE GREY
    similar to RAL 7016
    MATT LIGHT GREY
    RUSTIC ZINC
    BRIGHT METALLIC
    similar to RAL 9006
    PASTEL TURQUOISE
    similar to RAL 6034

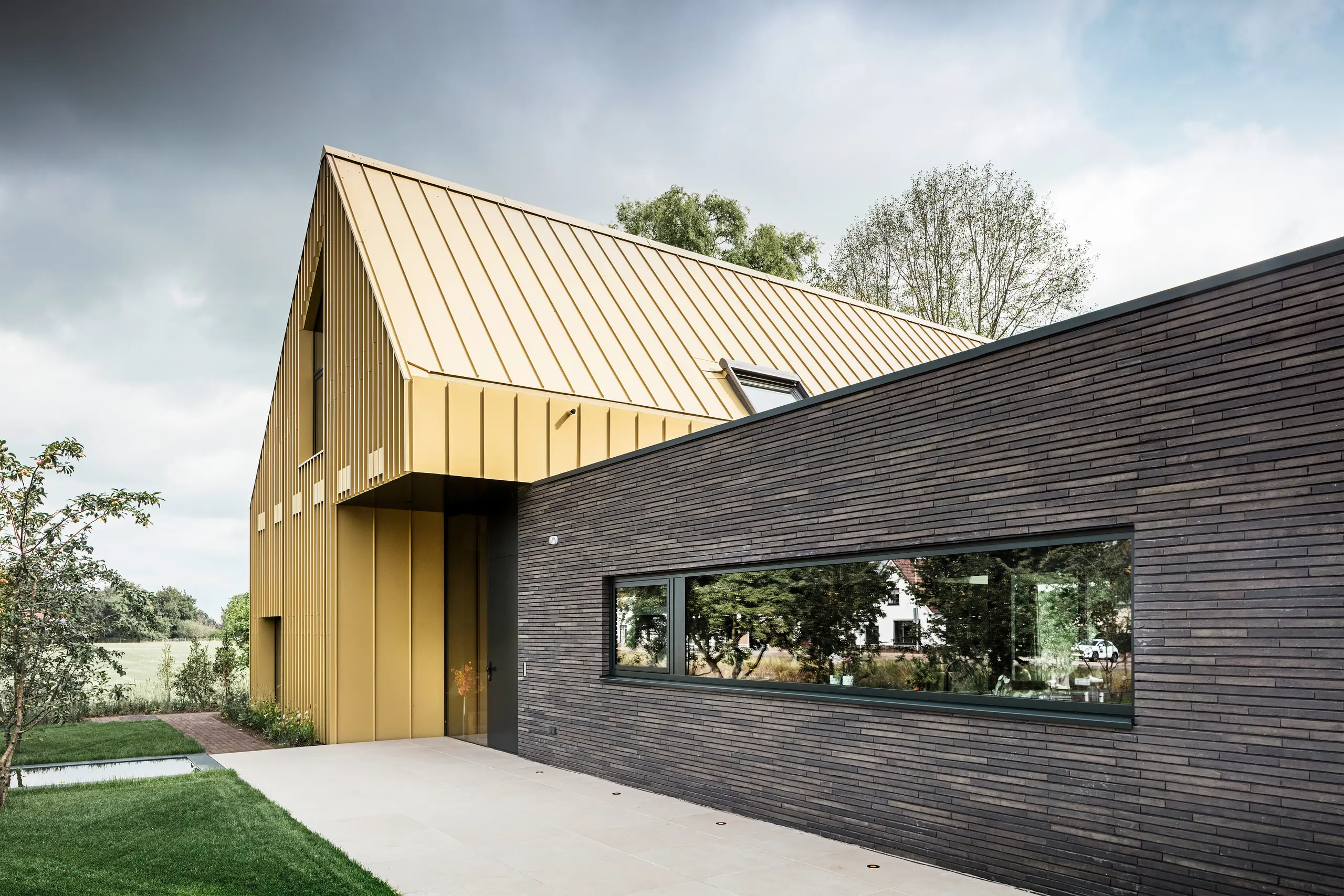

    SAVANNAH BEIGE
    CARBON BLACK
    similar to RAL 9004
    GENTIAN BLUE
    LIGHT GREY
    similar to RAL 7035
    RESEDA GREEN
    similar to RAL 6011
    STAINLESS BRIGHT
    MAYA GOLD
    AZURE BLUE
    similar to RAL 5009
    OLIVE GREEN
    similar to RAL 6003
    MINT GREEN
    similar to RAL 6029
    QUARTZ GREY
    similar to RAL 7039
    COFFEE BROWN
    similar to RAL 8024
    COPPER BROWN
    similar to RAL 8004
    VICTORIAN BRICK RED
    ROSEWOOD PINK
    WEATHERED CLEAR VARNISH

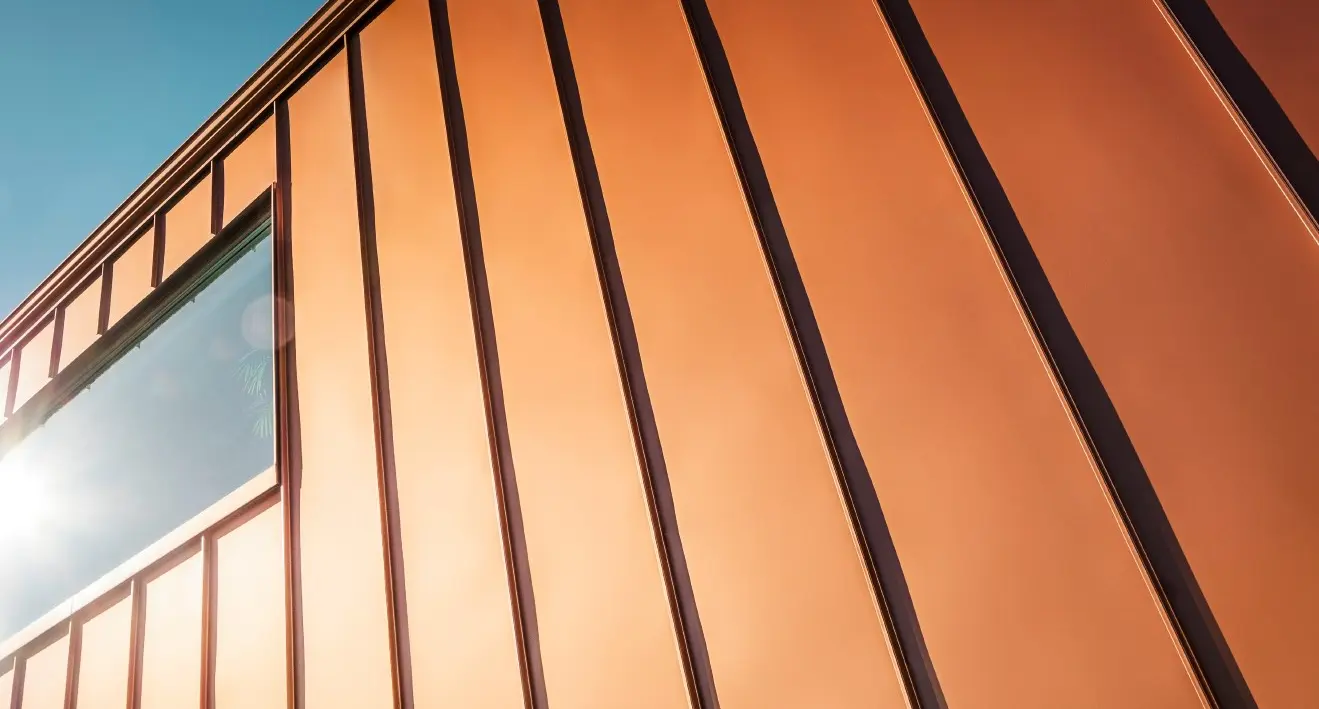

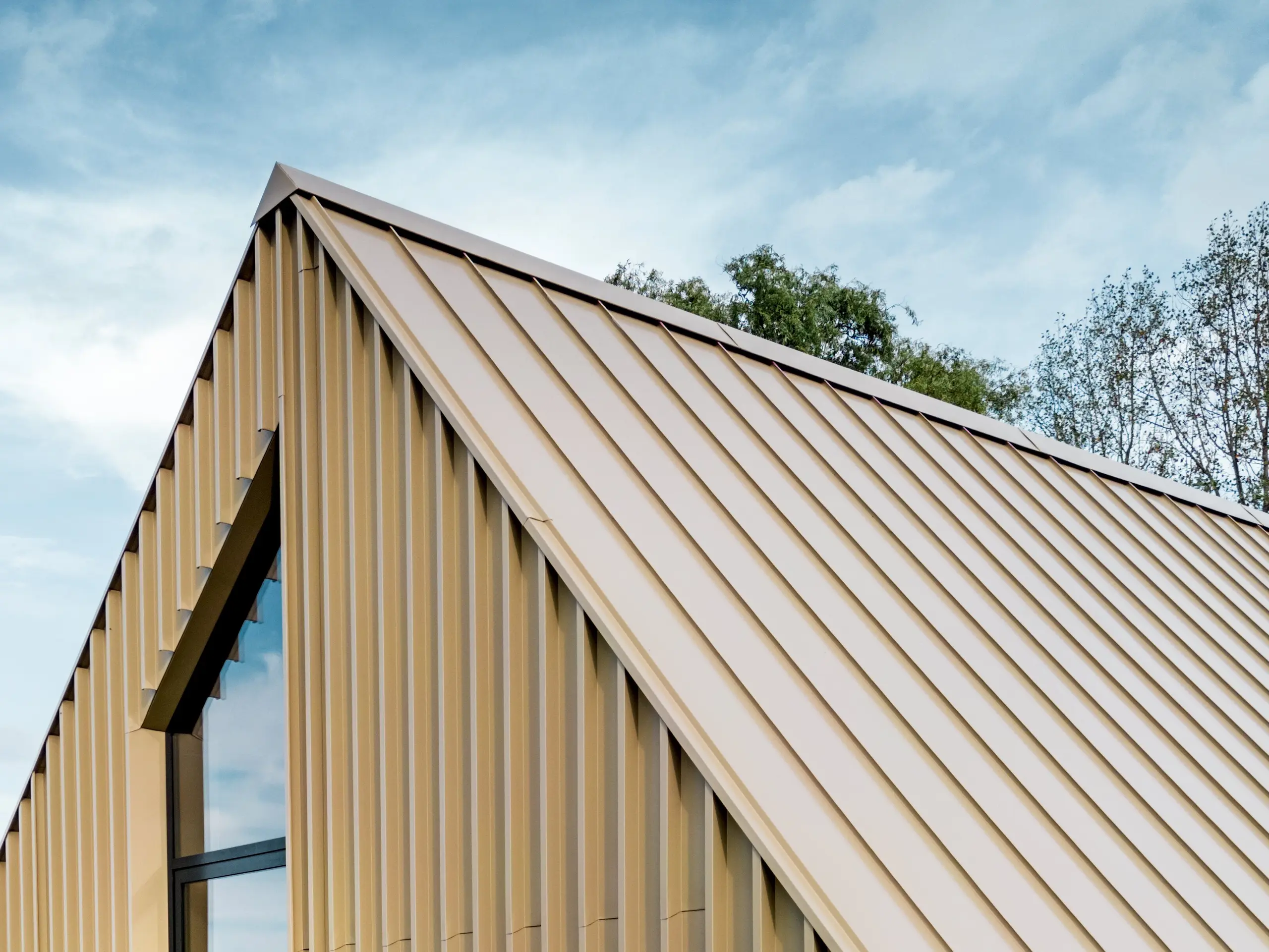

    NEW COPPER
    STANDARD GREY ALUMINIUM
    similar to RAL 9007
    TURQUOISE BLUE
    similar to RAL 5018
    CARMINE RED
    similar to RAL 3002

    FALZONAL® – ACCESSORIES

    YOU CAN FIND A LIST OF ACCESSORIES FOR THE PRODUCT HERE

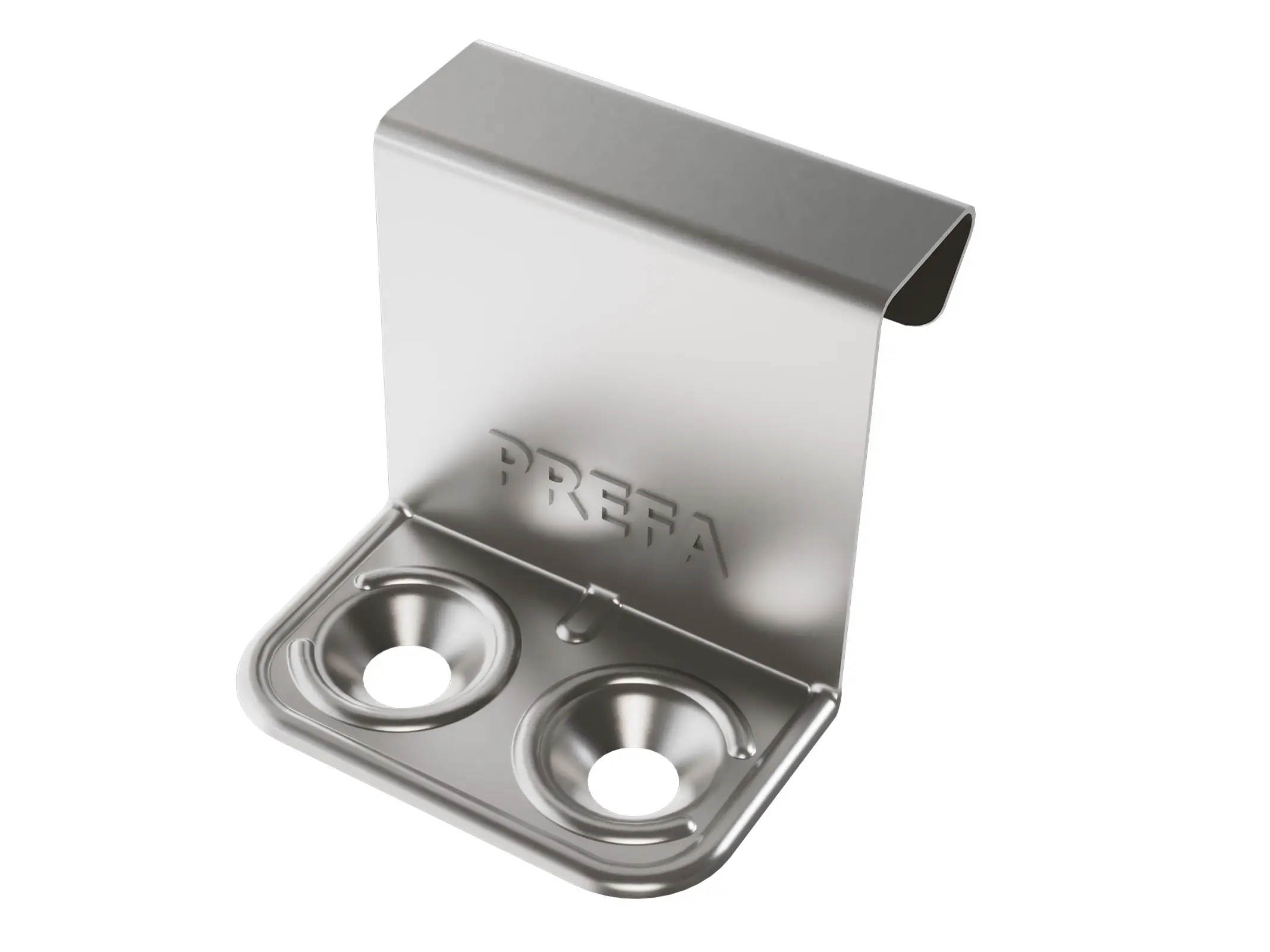

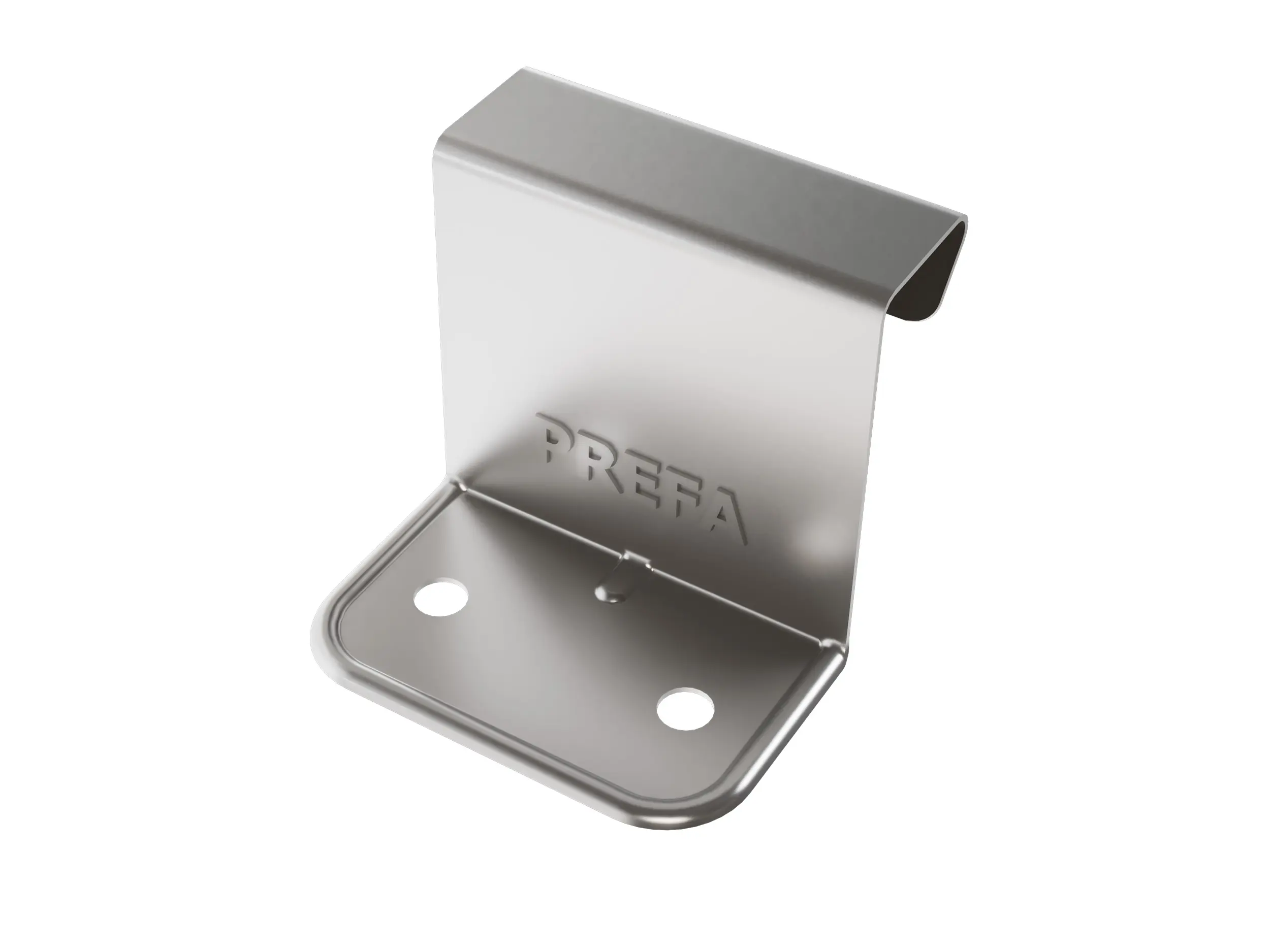

    PREFA stainless steel preformed fixed clip

    PREFA STAINLESS STEEL PREFORMED FIXED CLIP

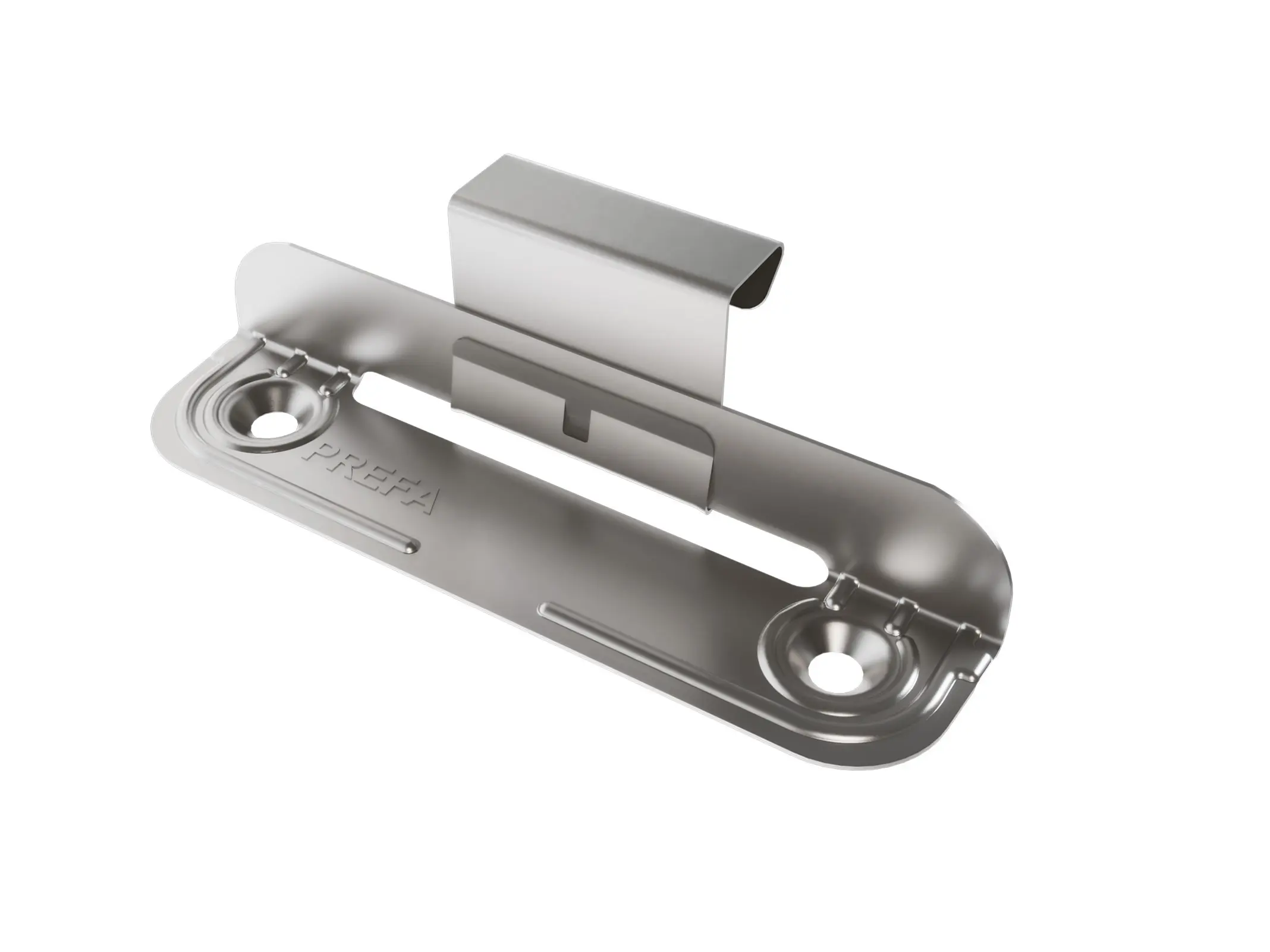

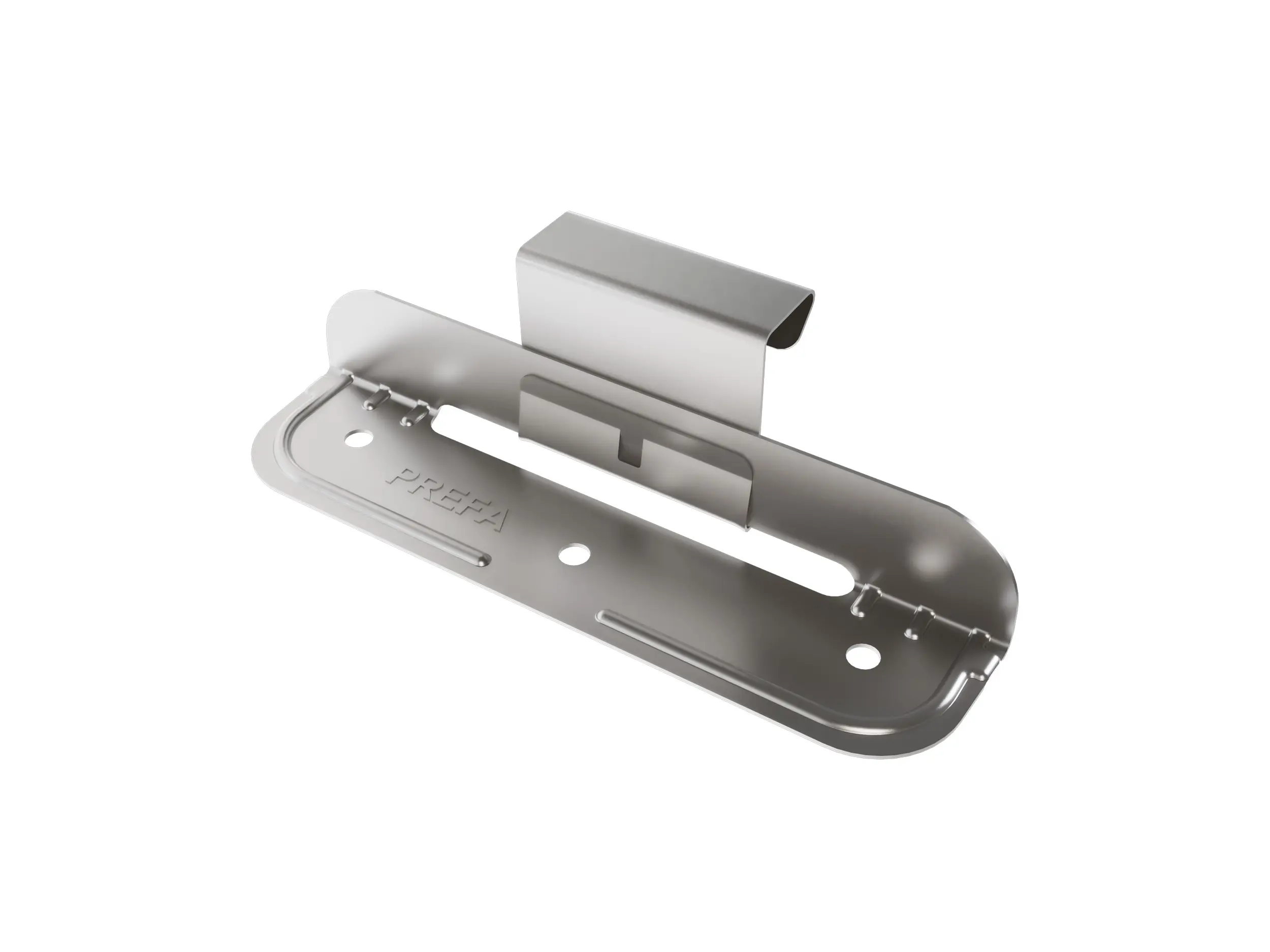

    PREFA stainless steel preformed sliding clip

    PREFA STAINLESS STEEL PREFORMED SLIDING CLIP

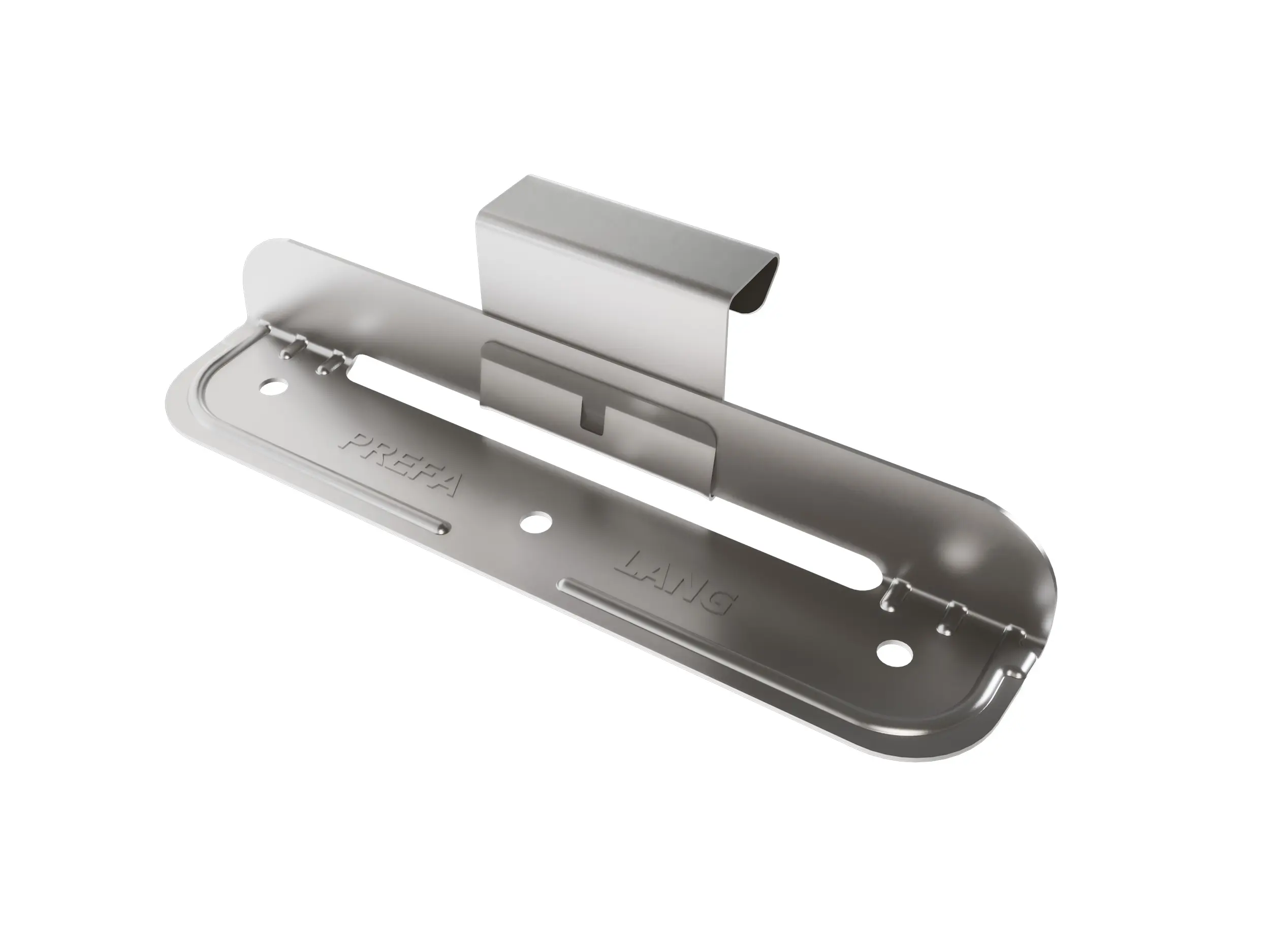

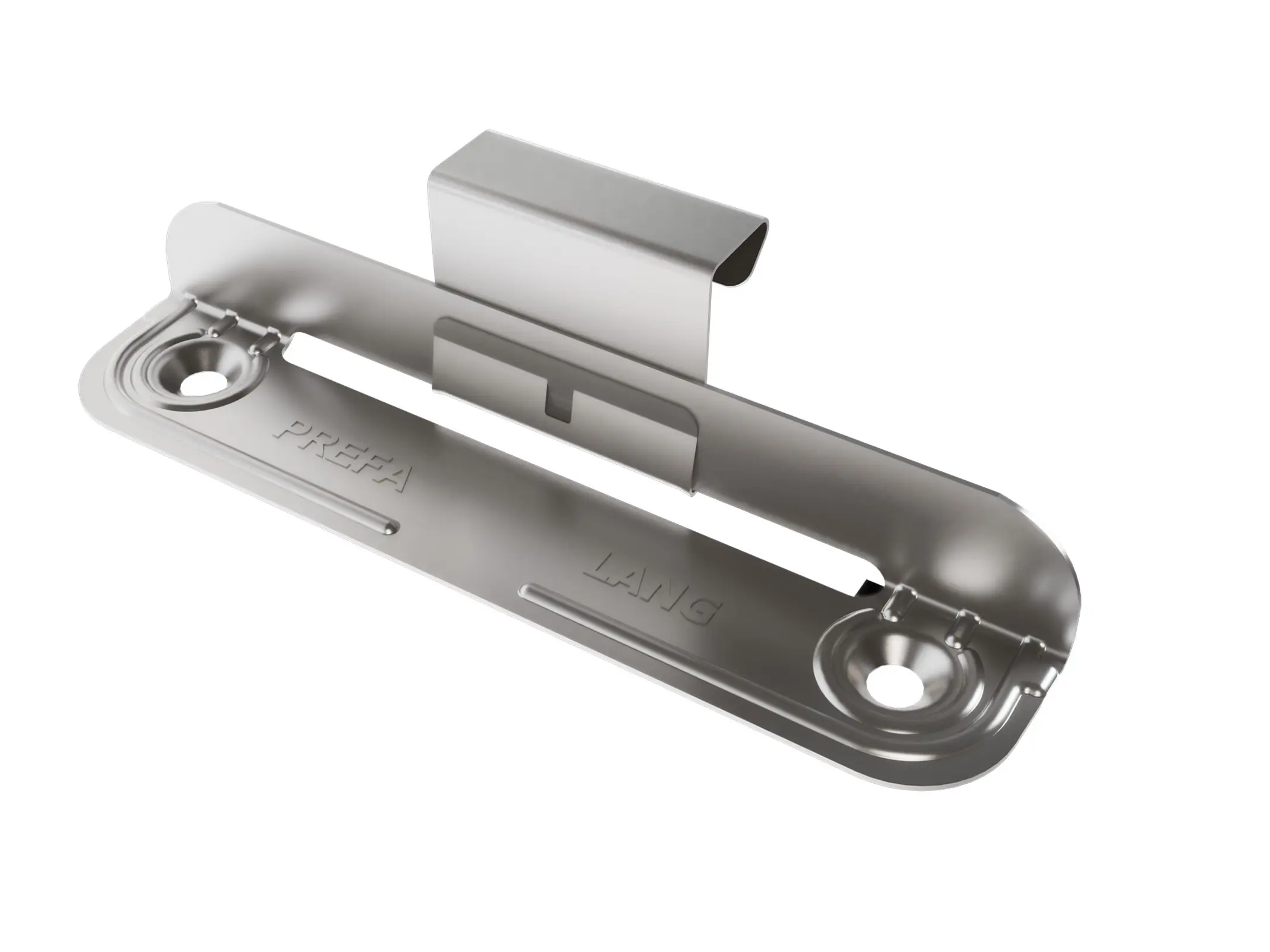

    PREFA stainless steel preformed long sliding clip

    PREFA STAINLESS STEEL PREFORMED LONG SLIDING CLIP

    tray length up to 15 m

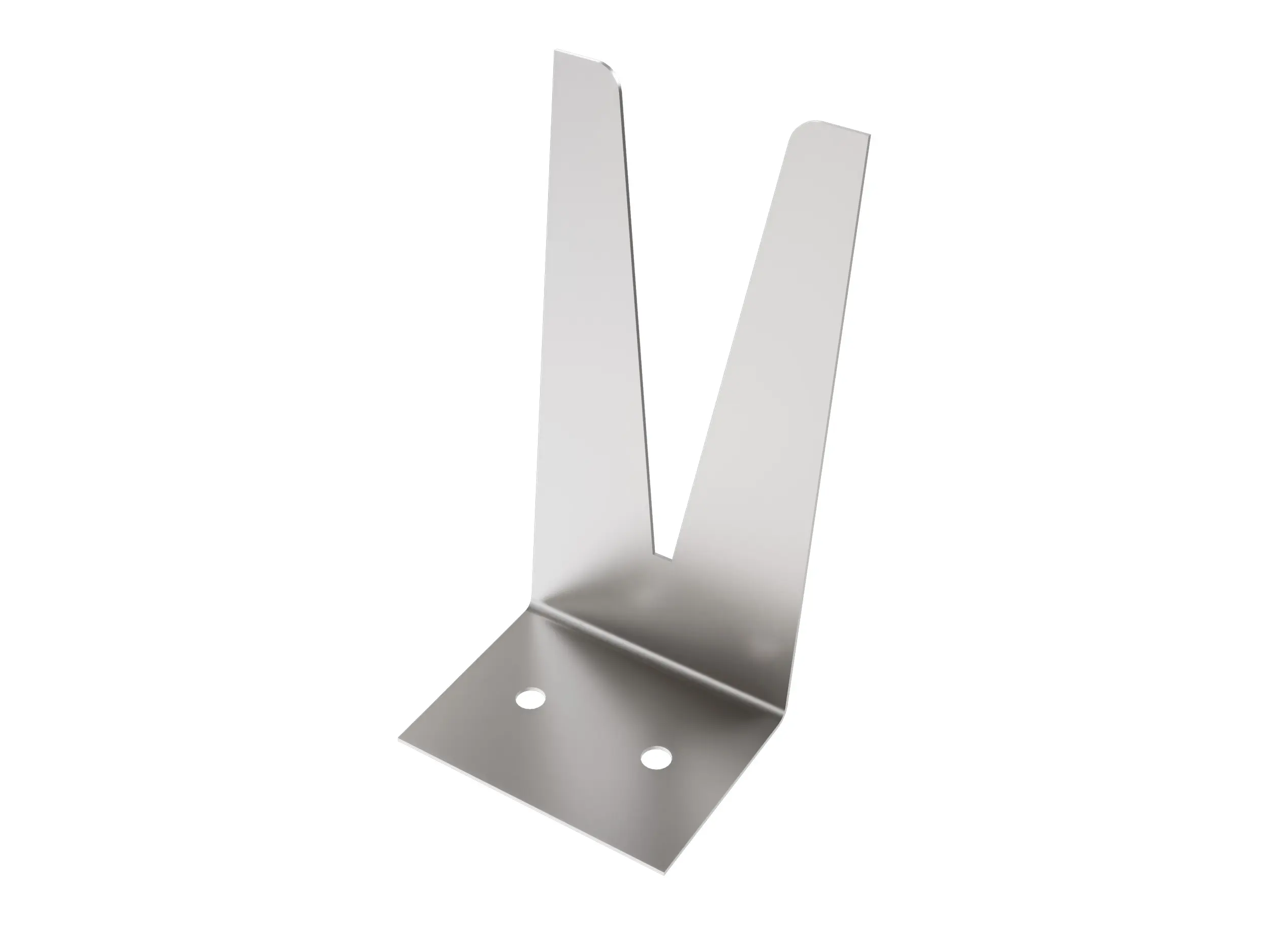

    PREFA stainless steel fish tailed fixed clip

    PREFA STAINLESS STEEL FISH TAILED FIXED CLIP

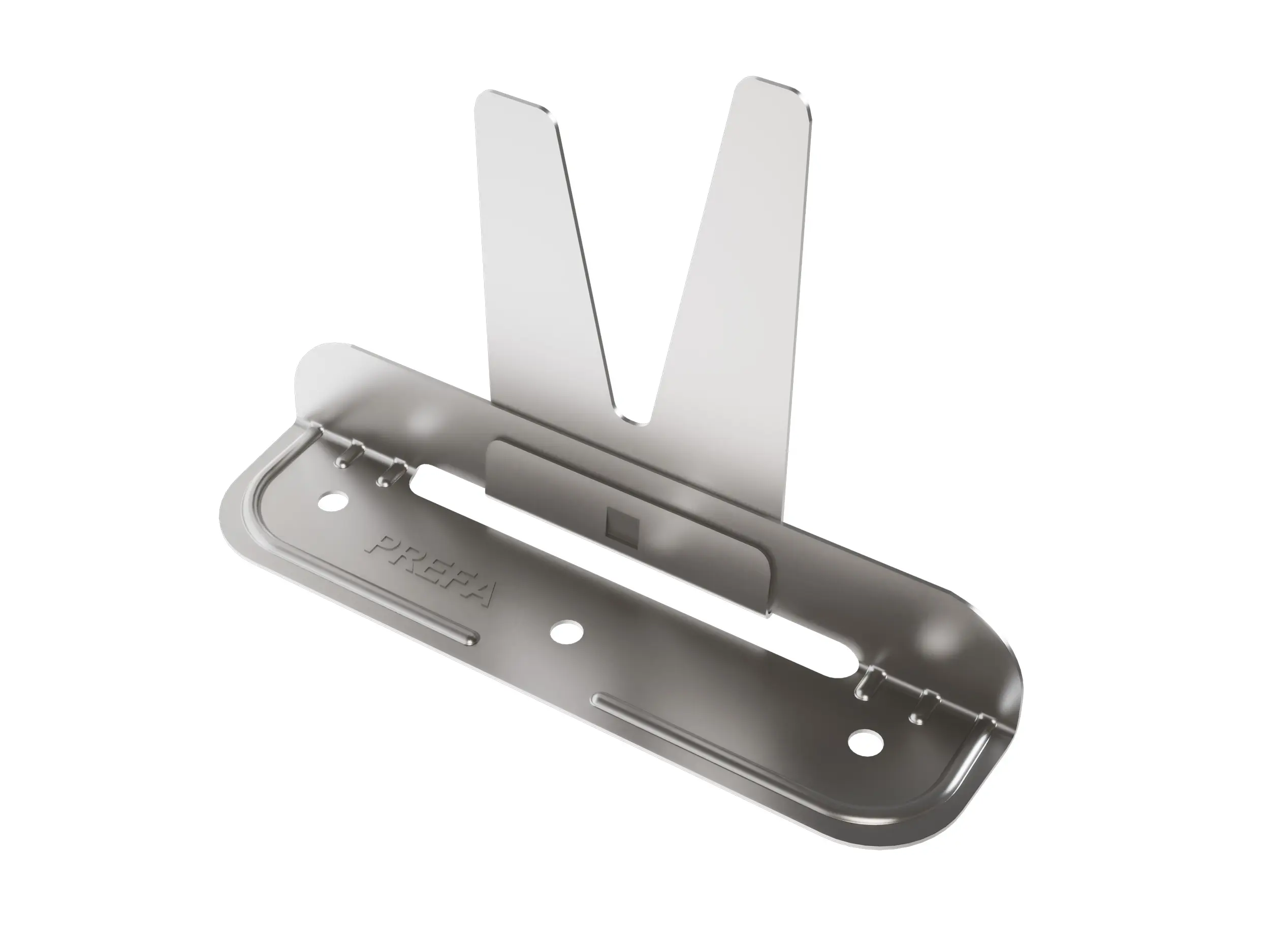

    PREFA stainless steel fish tailed sliding clip

    PREFA STAINLESS STEEL FISH TAILED SLIDING CLIP

    PREFA sealing gel

    PREFA SEALING GEL

    PREFA one-pipe seam clamp

    PREFA ONE-PIPE SEAM CLAMP

    for pipe openings with a diameter of 28 mm

    PREFA seam clamp with oblong hole for diagonal seams

    PREFA SEAM CLAMP WITH OBLONG HOLE FOR DIAGONAL SEAMS

    for pipe openings with a diameter of 28 mm

    PREFA two-pipe seam clamp

    PREFA TWO-PIPE SEAM CLAMP

    for pipe openings with a diameter of 28 mm

    PREFA pipes

    PREFA PIPES

    28 × 2 × 3,000 mm, for seam clamps, including connection sleeve

    PREFA corner connector 90°

    PREFA CORNER CONNECTOR 90°

    for PREFA pipe 28 × 2 mm

    PREFA ice stopper

    PREFA ICE STOPPER

    for PREFA pipe 28 × 2 mm

    PREFA walkway

    PREFA WALKWAY

    250 × 1,200 mm, 250 × 800 mm, 250 × 600 mm, according to DIN EN 516-1-A

    PREFA walkway supports for standing seam roofs

    PREFA WALKWAY SUPPORTS FOR STANDING SEAM ROOFS

    roof pitch: 5°–55°

    PREFA connector for walkways

    PREFA CONNECTOR FOR WALKWAYS

    PREFA single anchor point

    PREFA SINGLE ANCHOR POINT

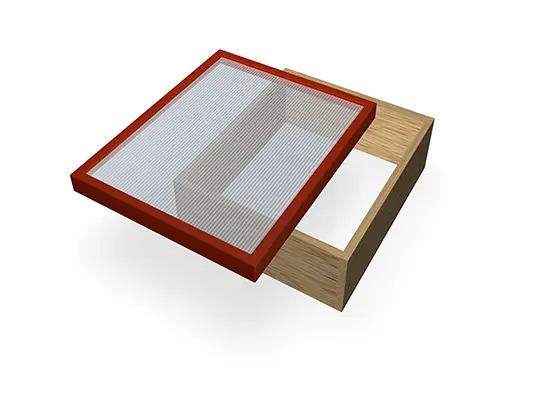

    PREFA roof hatch cover and wooden frame

    PREFA ROOF HATCH COVER AND WOODEN FRAME

    from roof pitches of 12°

    PREFA adhesive flashing strip for standing seam roofs

    PREFA ADHESIVE FLASHING STRIP FOR STANDING SEAM ROOFS

    roof pitch: 3°–52°

    PREFA vent pipe

    PREFA VENT PIPE

    ⌀ 100 mm, ⌀ 120 mm

    PREFA frog-mouth vent cover

    PREFA FROG-MOUTH VENT COVER

    air intake section: approx. 30 cm²

    PREFA special adhesive kit

    PREFA SPECIAL ADHESIVE KIT

    Content: 1 × 290 ml cartridge of PREFA special adhesive, 1 × 60 ml can of adhesive cleaner, 1 piece of sandpaper, 1 cloth and 2 adapter nozzles

    PREFA bird screen

    PREFA BIRD SCREEN

    125 × 2,000 × 0.7 mm; round perforations (⌀ 5 mm)

    PREFA ventilation screen

    PREFA VENTILATION SCREEN

    square perforations (6 mm); colours brown/anthracite and light grey/light grey; dimensions: 1.00 × 250 mm and 1.00 × 333 mm
