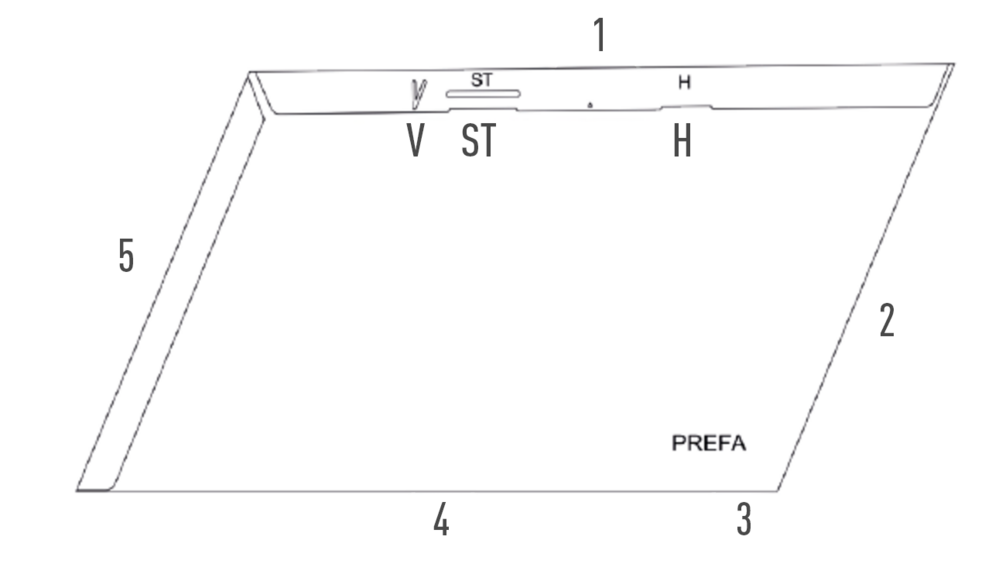

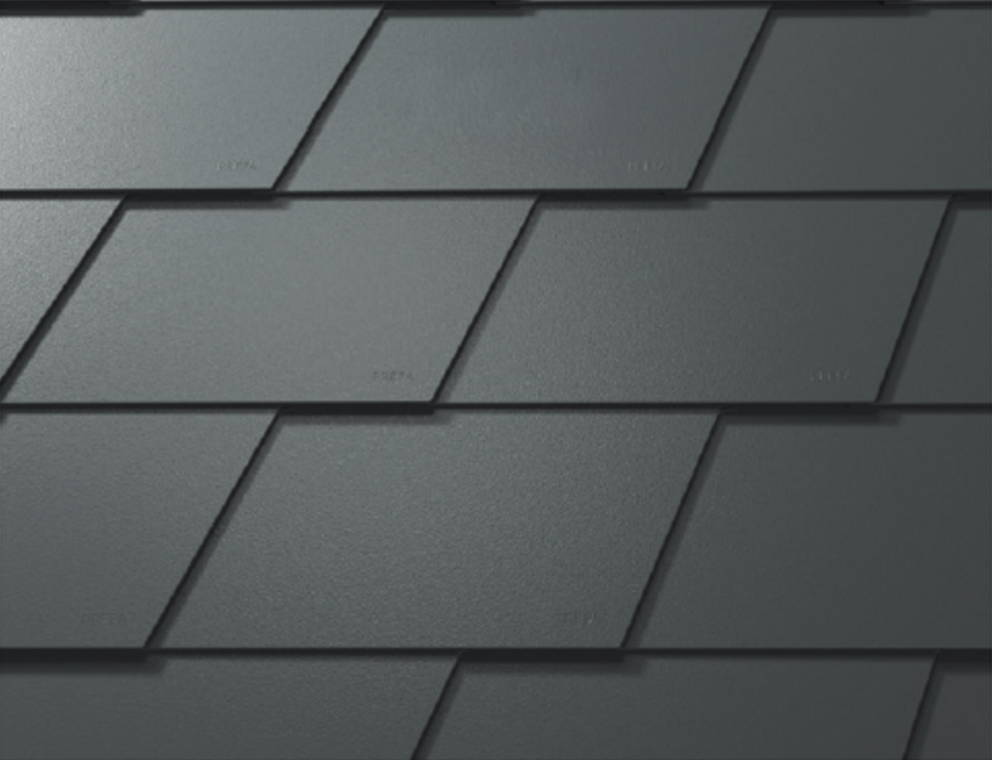

The roof shingles are laid from right to left and should be laid in rows (in horizontal rows). The offset from row to row is 1/3 - see “V” marking on the upper fold of the shingles.
Each shingle is fastened with a clip and a supplied 2.8/25 grooved nail (= base attachment).
In areas particularly prone to storms, a wind load calculation is required and fastenings must be adjusted according to the calculation.
1 Head |
