Inner and outer corners are usually designed with two channel profiles and a corner bracket. Please ensure a plumb-vertical installation of the channel profiles and pay attention to the positioning of fixed and sliding points.
Install the channel profiles before you start installing the façade cladding.

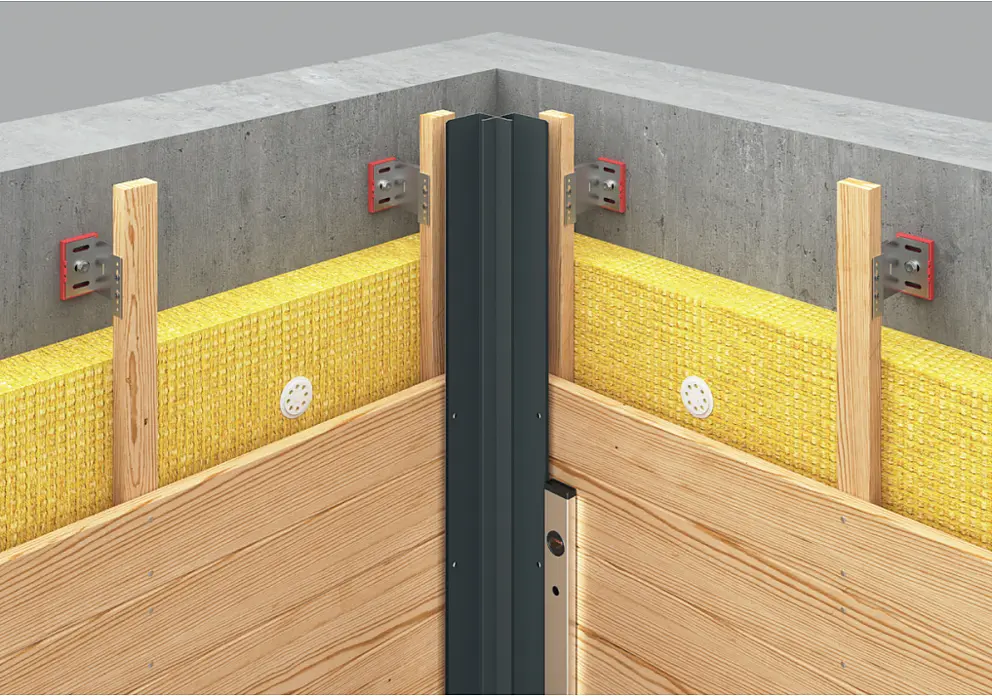

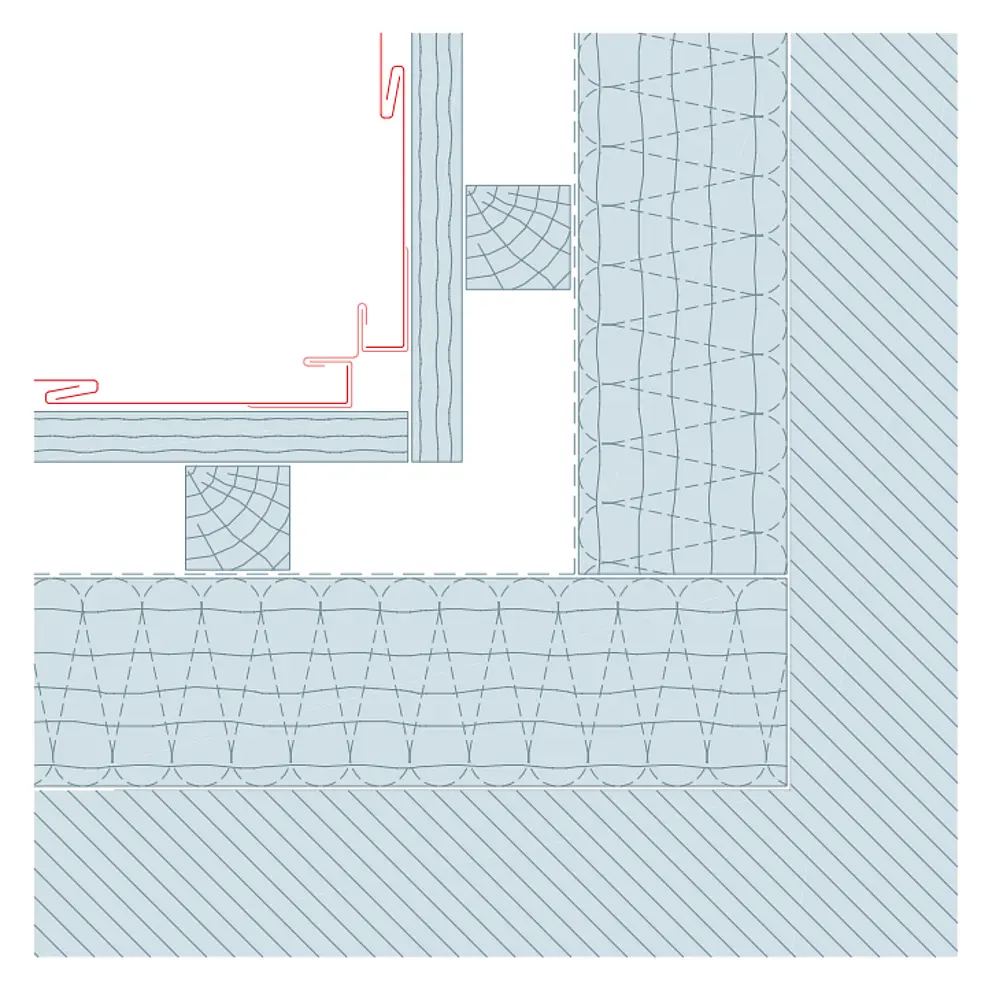

For those small-format products that protrude into the internal corner, ensure there is an additional 20 mm, which is raised after trimming.
The corner bracket is then applied and fastened on both sides with a fold on the channel profiles.

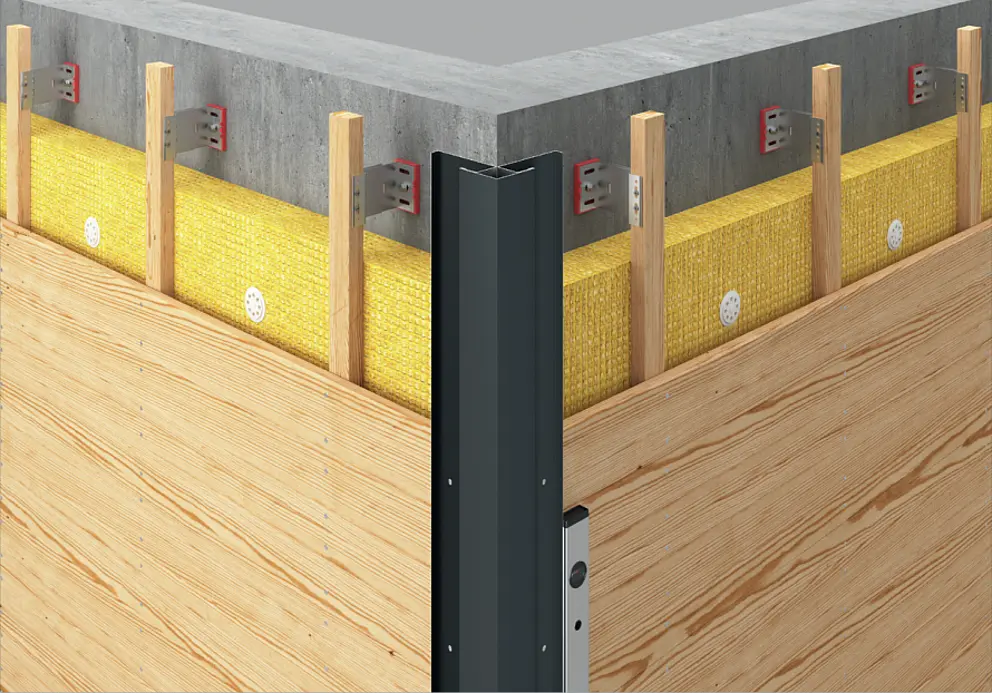

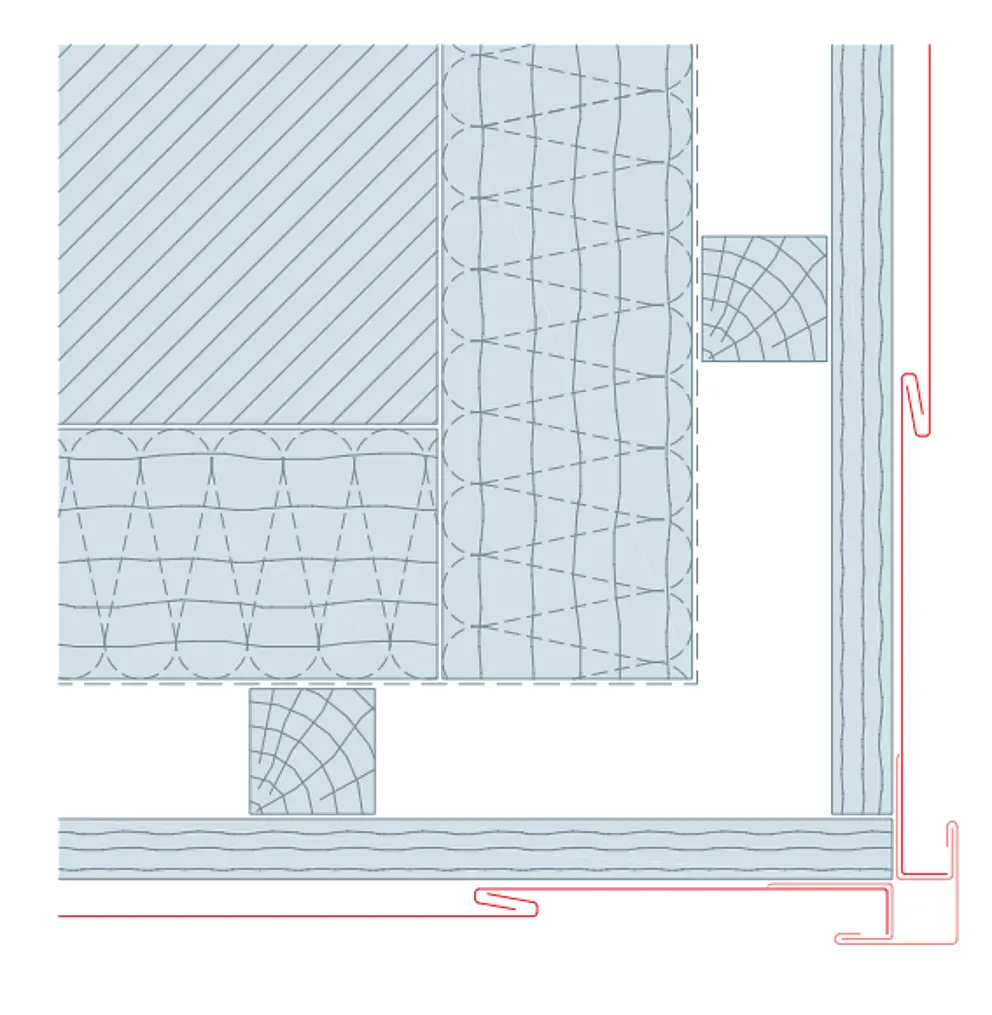

For those small-format products that protrude into the external corner, ensure there is an additional 20 mm, which is raised after trimming.
The corner bracket is then applied and fastened on both sides with a fold on the channel profiles.
