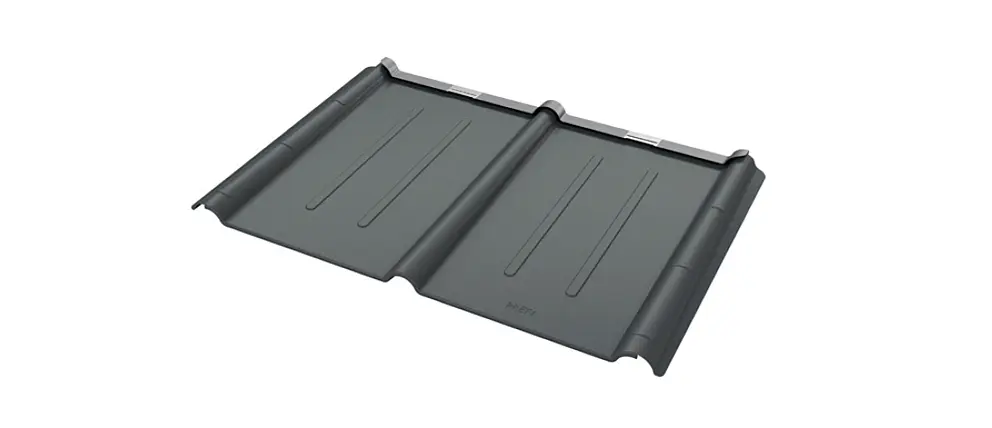

Roof tile

Material	Coil-coated aluminium, 0.7 mm thick
Size	600×420 mm in installed area
Weight	1 m² = approx. 2.3 kg = 4 panels
Roof pitch	from 12° = approx. 21% (for a rafter length up to 7 m), from 14° = approx. 25% (for a rafter length of 7-12 m), from 16° = approx. 29% (for a rafter length of over 12 m)
Substructure and separation layer	See chapter “General information”
Standard fastening	2 pcs. Aluminium patent clips per roof tile = 8 clips per m²

roof tile
