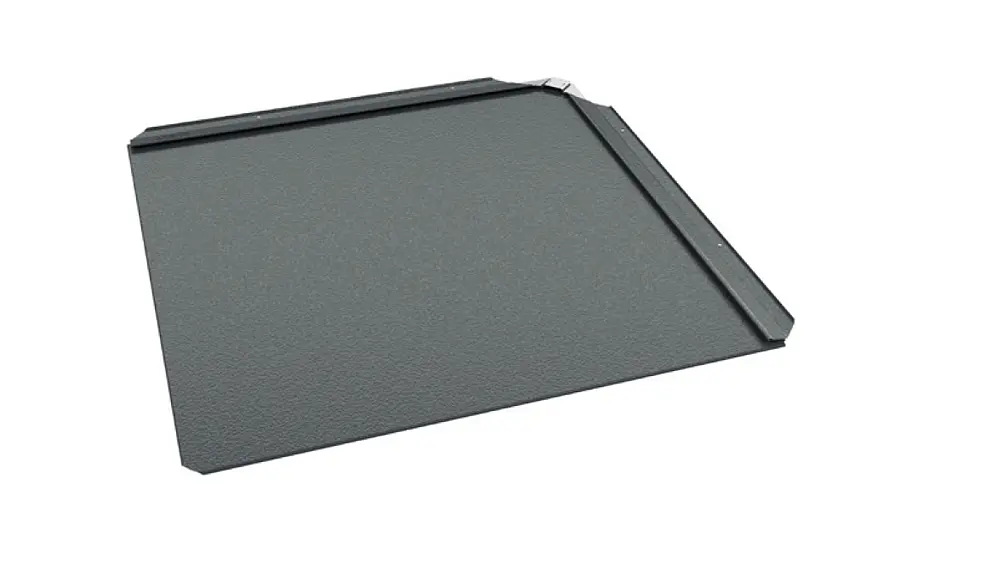

Rhomboid roof tile 44 × 44

Material	Coil-coated aluminium, 0.7 mm thick
Size	437×437 mm in installed area
Weight	1 m² = approx. 2.6 kg = approx. 5 rhomboid roof tiles 44 × 44
Roof pitch	From 12° = approx. 21% (for a rafter length up to 7 m), from 14° = approx. 25% (for a rafter length of 7-12 m), from 16° = approx. 29% (for a rafter length of over 12 m)
Substructure and separation layer	See chapter “General information”
Standard fastening	Direct, 4 pcs. 2.8/25 grooved nails per rhomboid roof tile 44 × 44
