Installation guidelines
Installation guidelines
Please select one or more chapters to download.
Table of contents
Roof Small format products FX.12 roof panel FX.12 roof panel

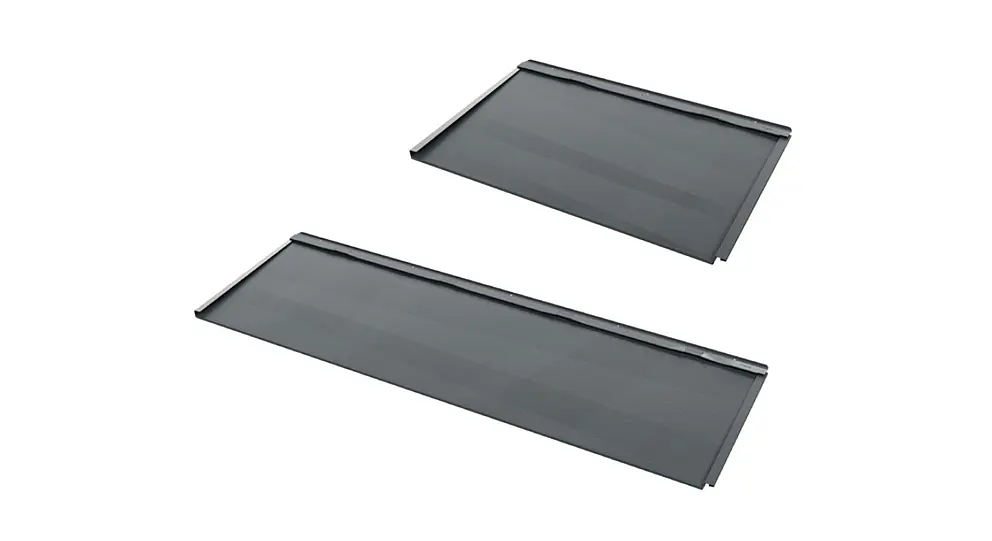

FX.12 roof panel

Material

Coil-coated aluminium, 0.7 mm thick

Size

700 × 240 mm and 1,400 × 420 mm in installed area

Weight

1 m² = approx. 2.4–2.5 kg = 3.4 pcs./m² (small panels)
or 1.7 pcs./m² (large panels)

Roof pitch

From 17° = approx. 31%

Substructure and separation layer

See chapter “General information”,
a bituminous separation layer is required up to a roof pitch of 25°.

Standard fastening

Direct, with 3 (small panel) or 5 (large panel) 2.8/25 grooved nails
previous next

Note

You can only download content from one product category. If you require content from multiple categories, please create a separate download for each product area.
