Roof Small format products Rhomboid roof tile 44 × 44 Replacing a rhomboid roof tile 44 × 44

Replacing a rhomboid roof tile 44 × 44

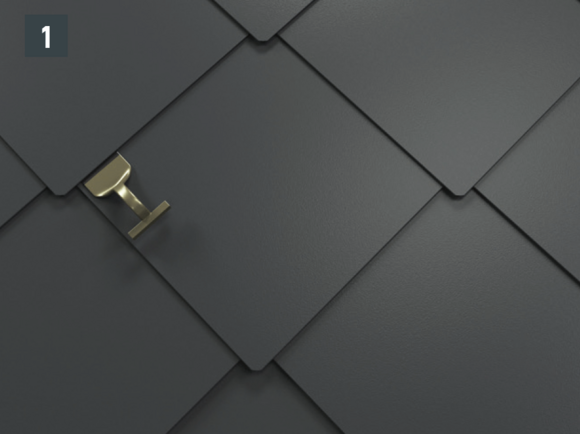

  • Open the fold with the shuttering iron (Image 1).

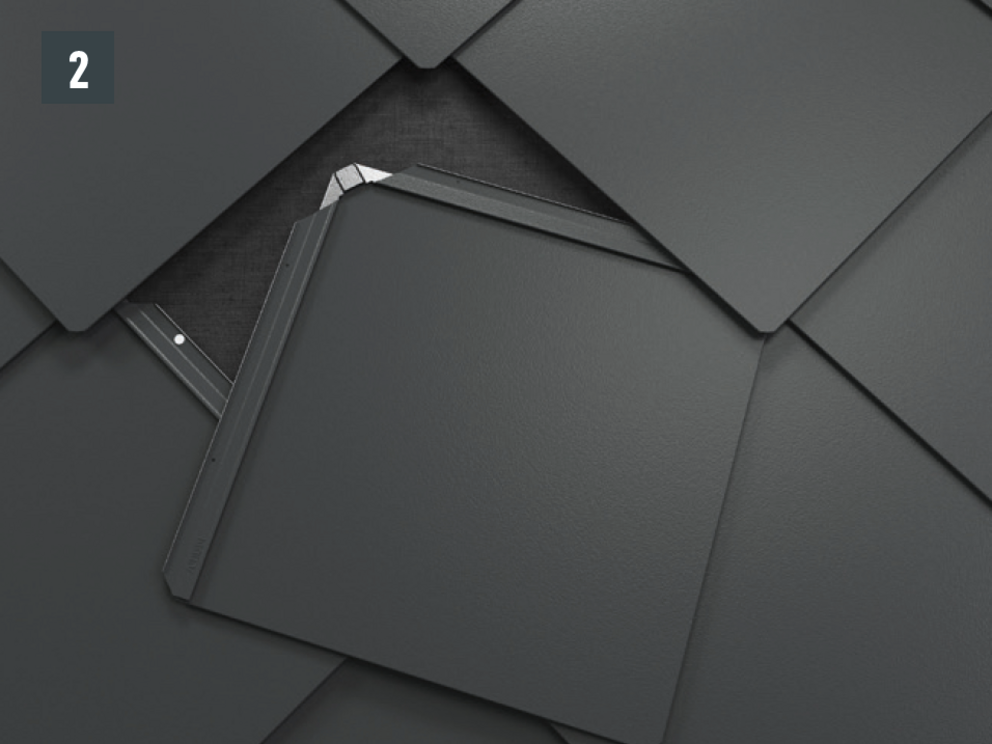

  • Loosen the nails and remove the rhomboid roof tile 44 × 44 to be replaced (Fig. 2).

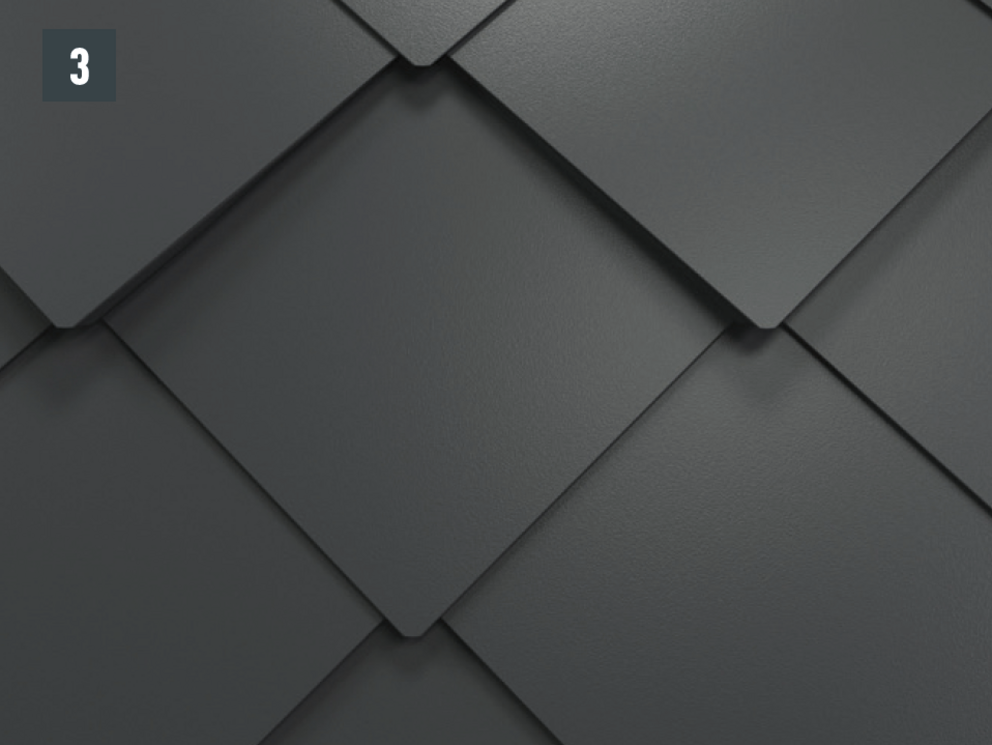

  • Slightly open the hook-on seam of the new rhomboid roof tile 44 × 44, push up and fasten (Fig. 3).
    CAUTION: Choose the position of the new ring nails carefully, they must not hammeredd into the existing holes!

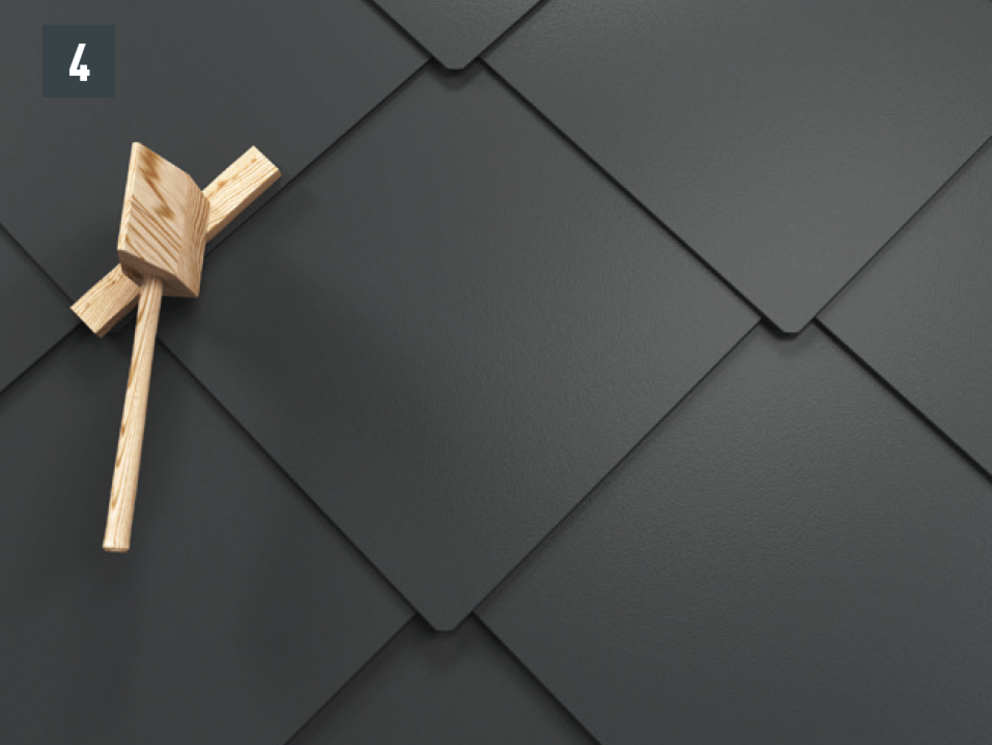

  • Carefully work in the rebates and restore them to their original shape (Image 4).
