Replacing a rhomboid roof tile 29 × 29

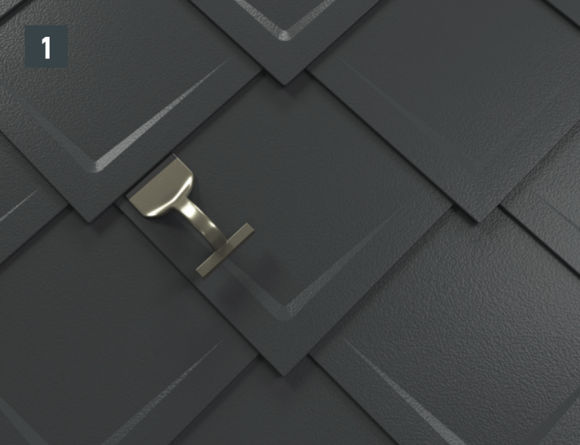

  • Open the fold with the shuttering iron (Image 1).

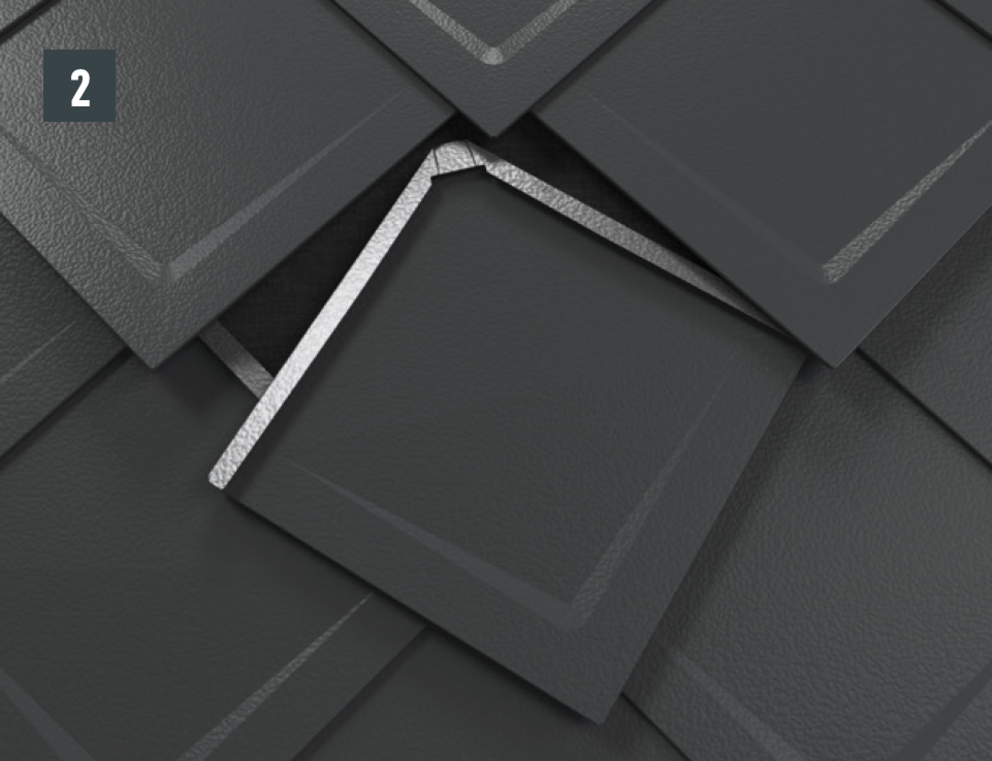

  • Open the clip and remove the rhomboid roof tile 29 × 29 to be replaced (Fig. 2).

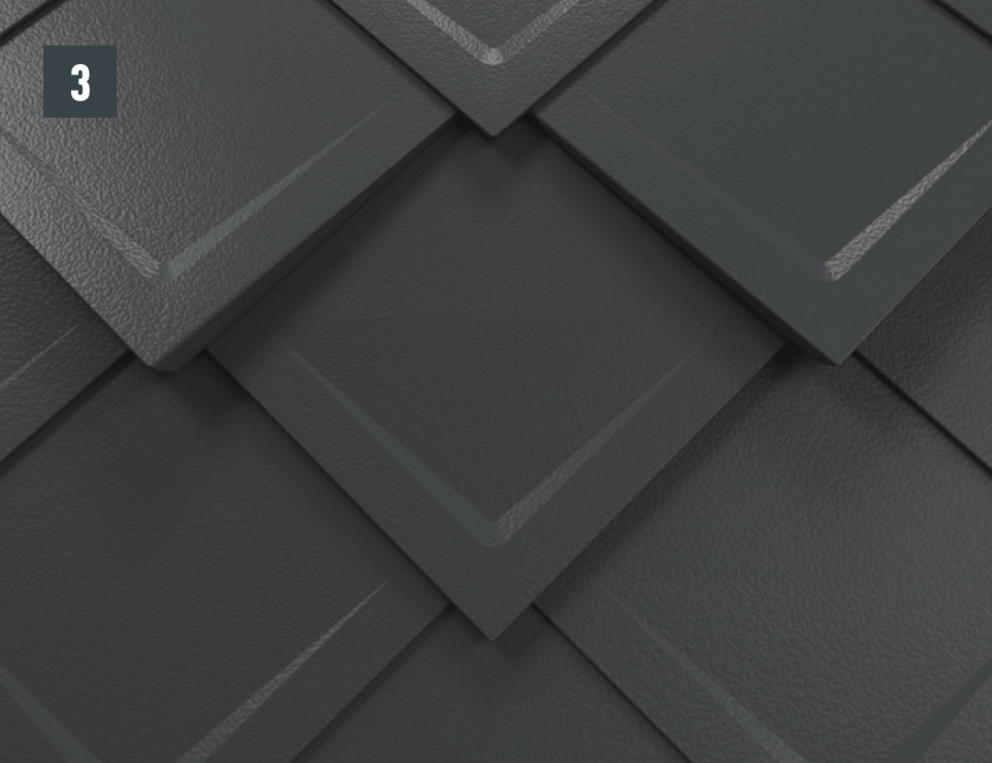

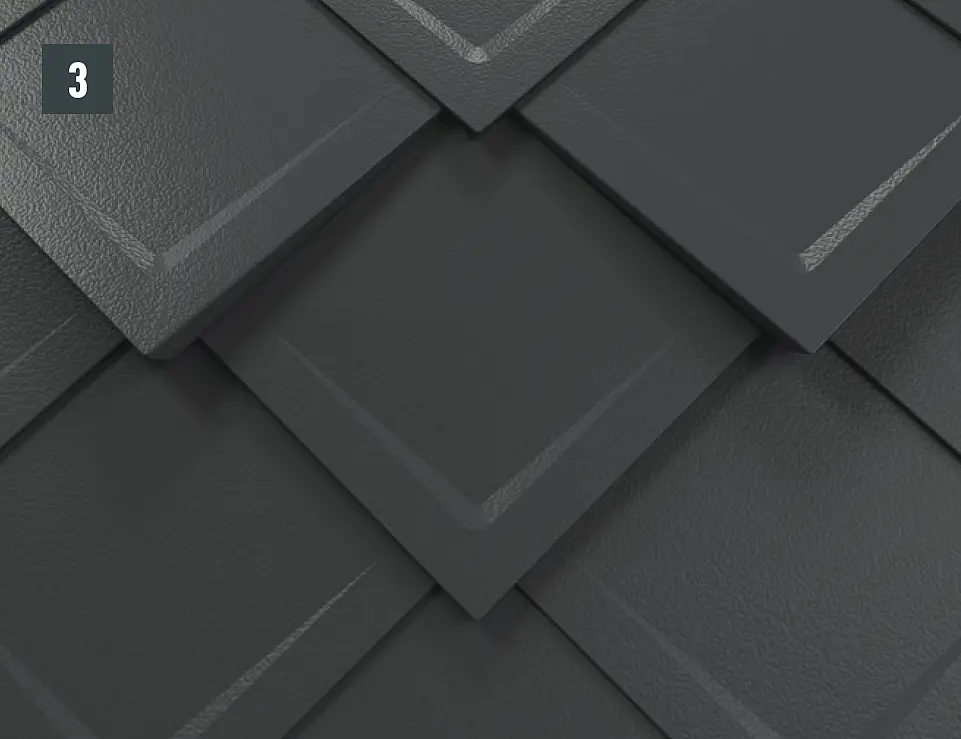

  • Cover new rhomboid roof tile 29 × 29 and close clip again (Fig. 3).

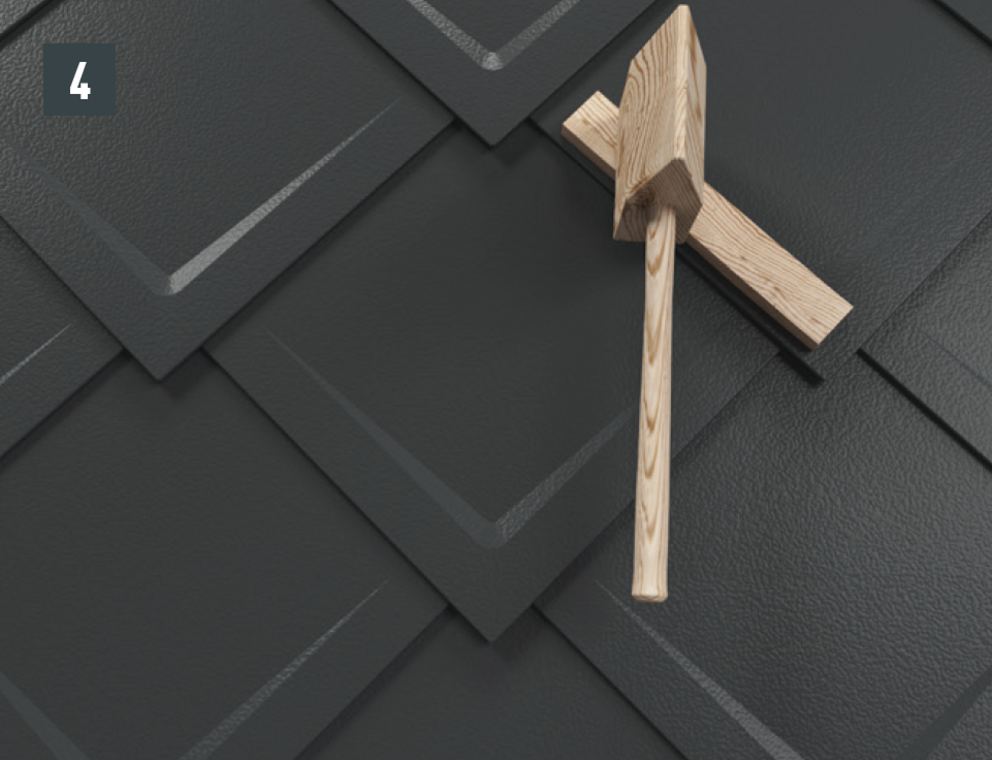

  • Carefully work in the rebates and restore them to their original shape (Image 4).
