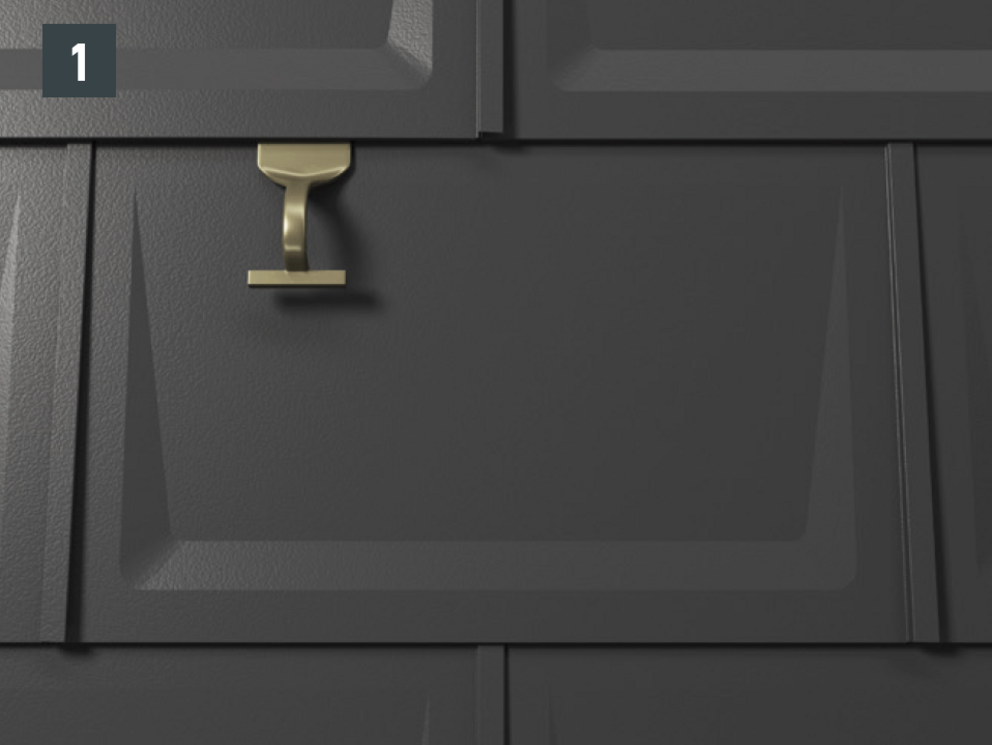

- Lift up the upper transverse fold of the damaged R.16 roof tile (Image 1).

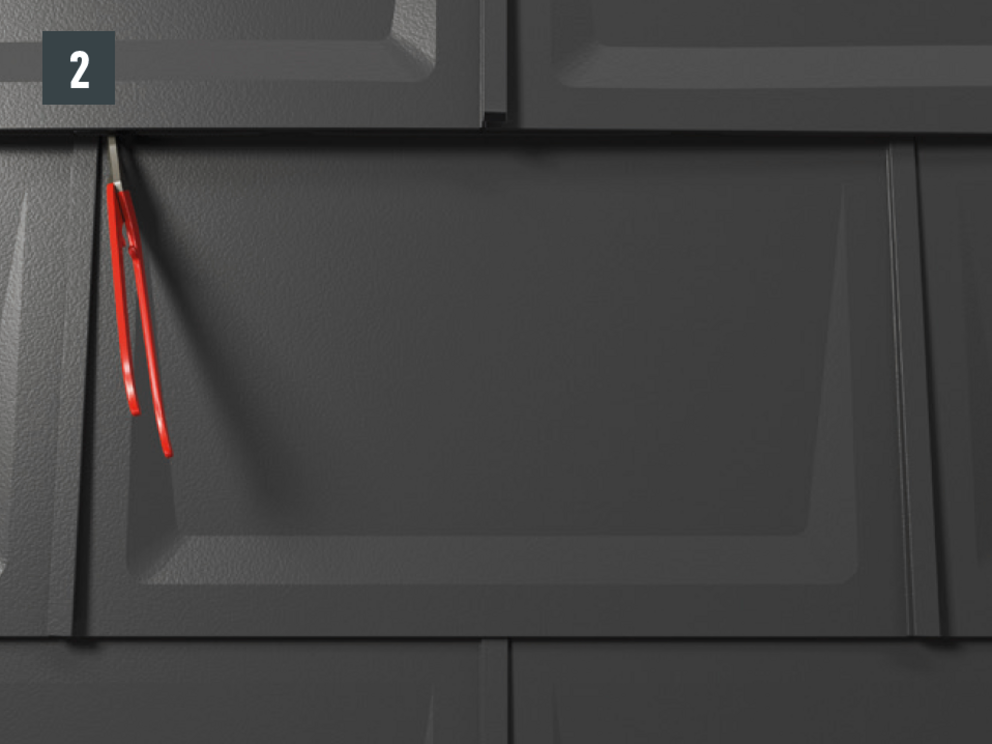

- Remove the fastening and cut into the upper patent fold (Image 2).
Then pull the R.16 roof tile down and out.

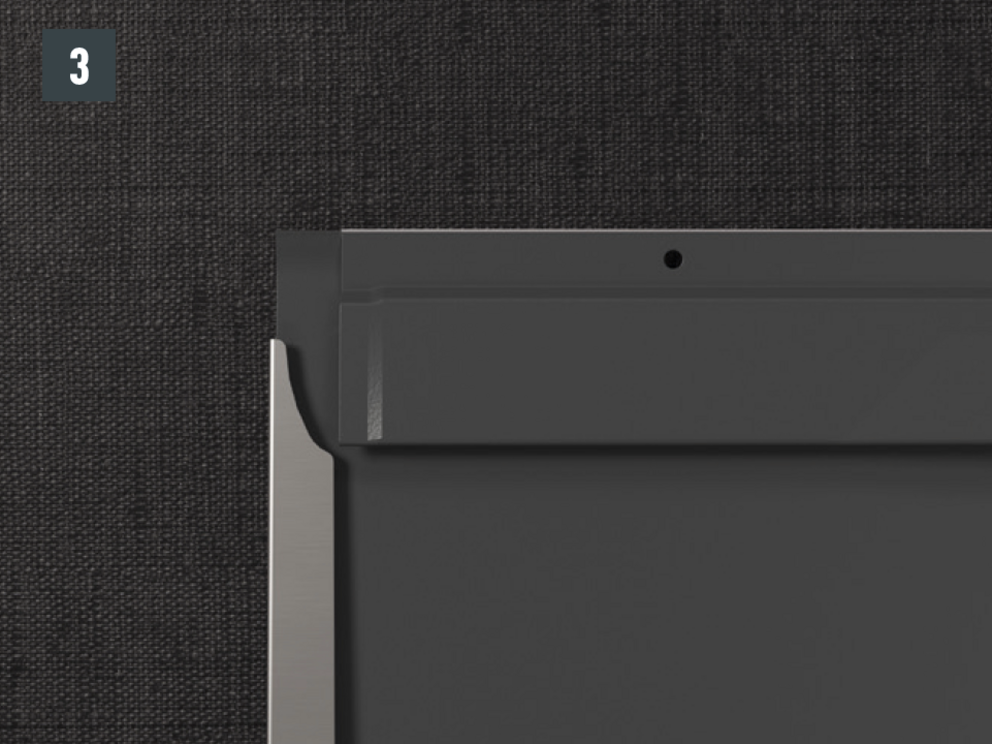

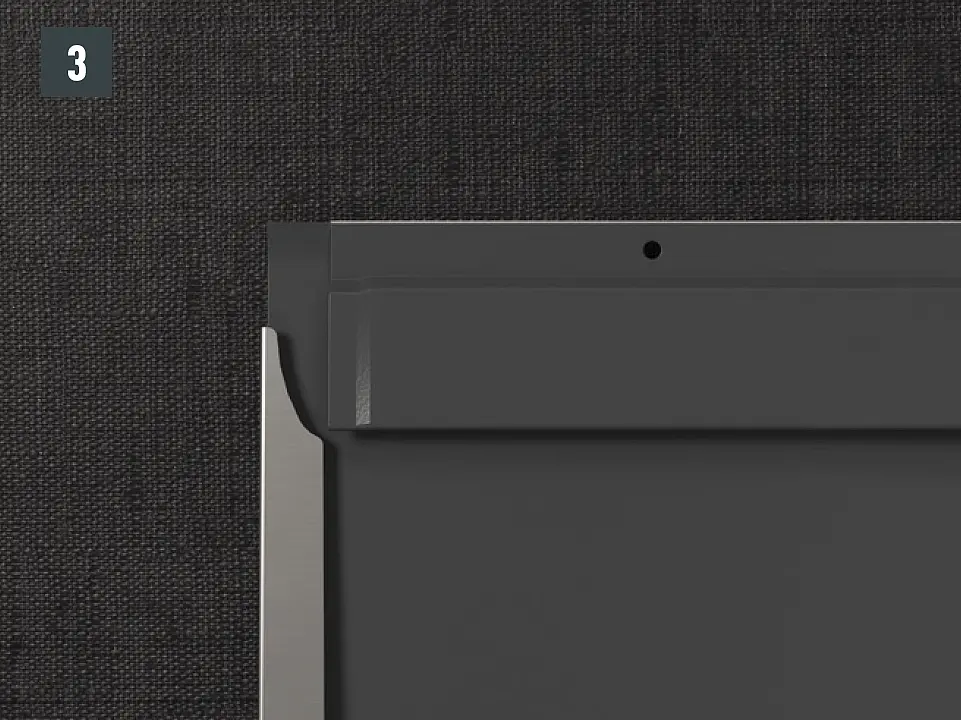

- Prepare new R.16 rooftop according to Figure 3.

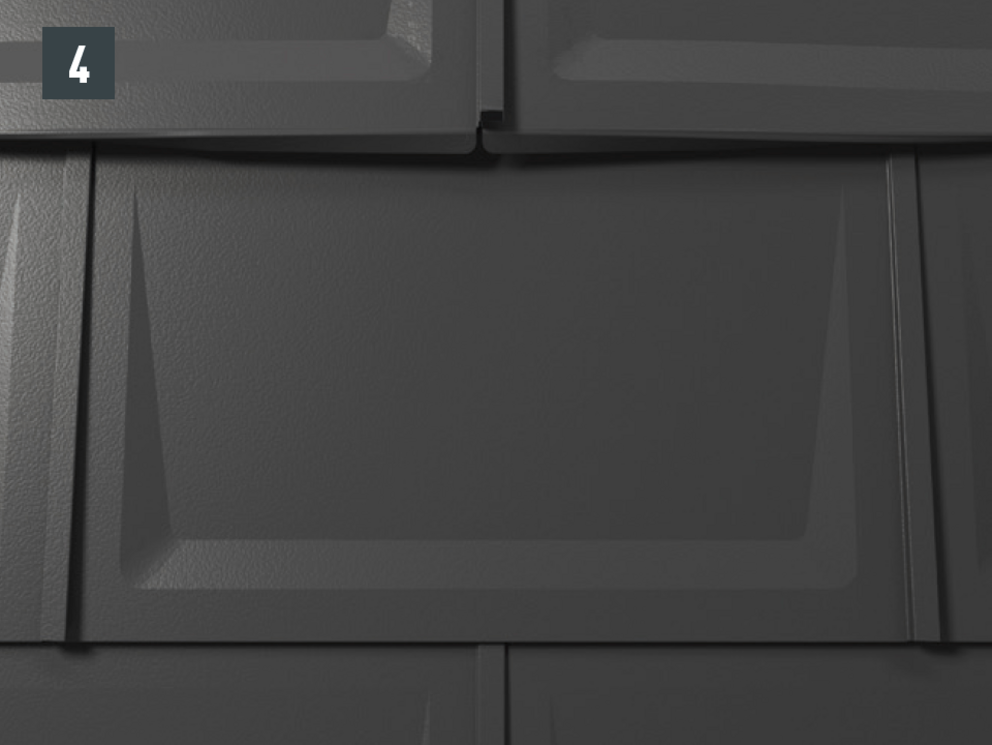

- Push in new R.16 roof panel and fasten. Bend the fold of the upper R.16 roof tile downwards at an angle of approx. 90° (Fig. 4).
CAUTION: Choose the position of the new ring nails carefully, they must not hammeredd into the existing holes!

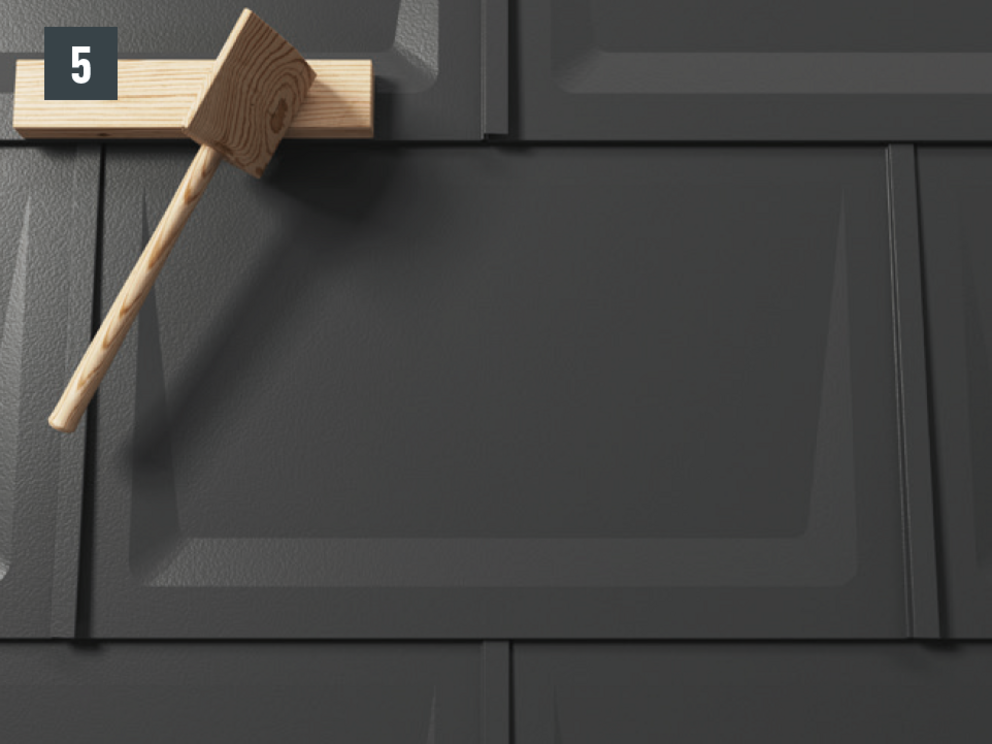

- Carefully adjust the fold into the original shape (Image 5).

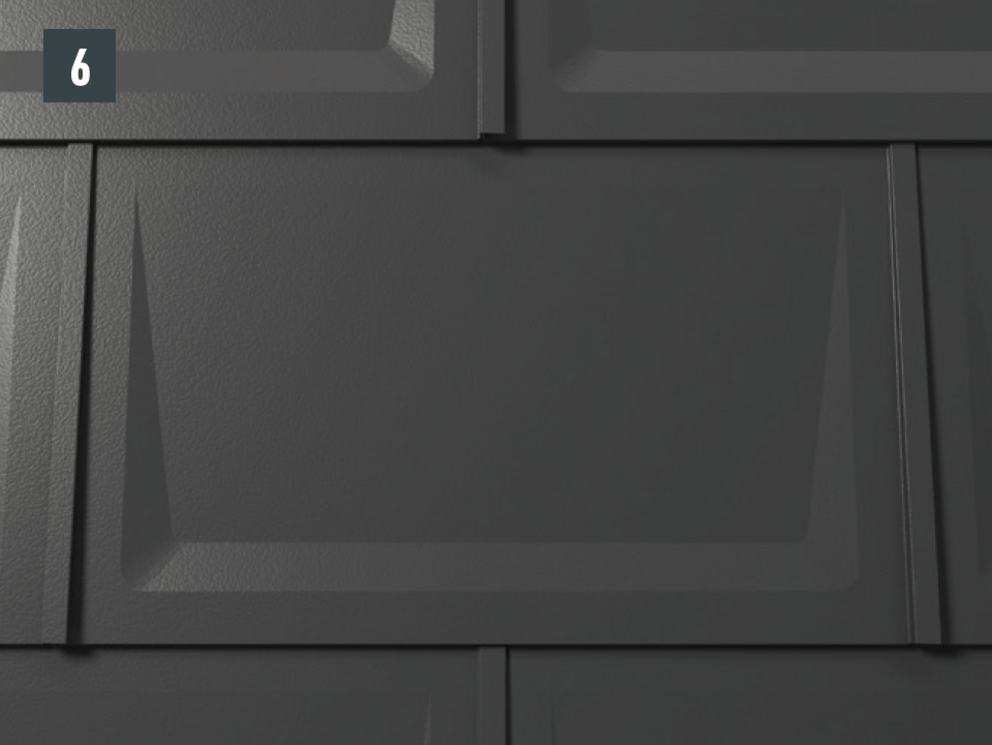

- A professionally replaced shingle should not be recognisable as such (Image 6).
