Installation guidelines
Installation guidelines
Please select one or more chapters to download.
Table of contents
Roof Small format products FX.12 roof panel Installation and covering direction

Installation and covering direction

  • The FX.12 roof panels areto be installed from right to left in horizontal rows.

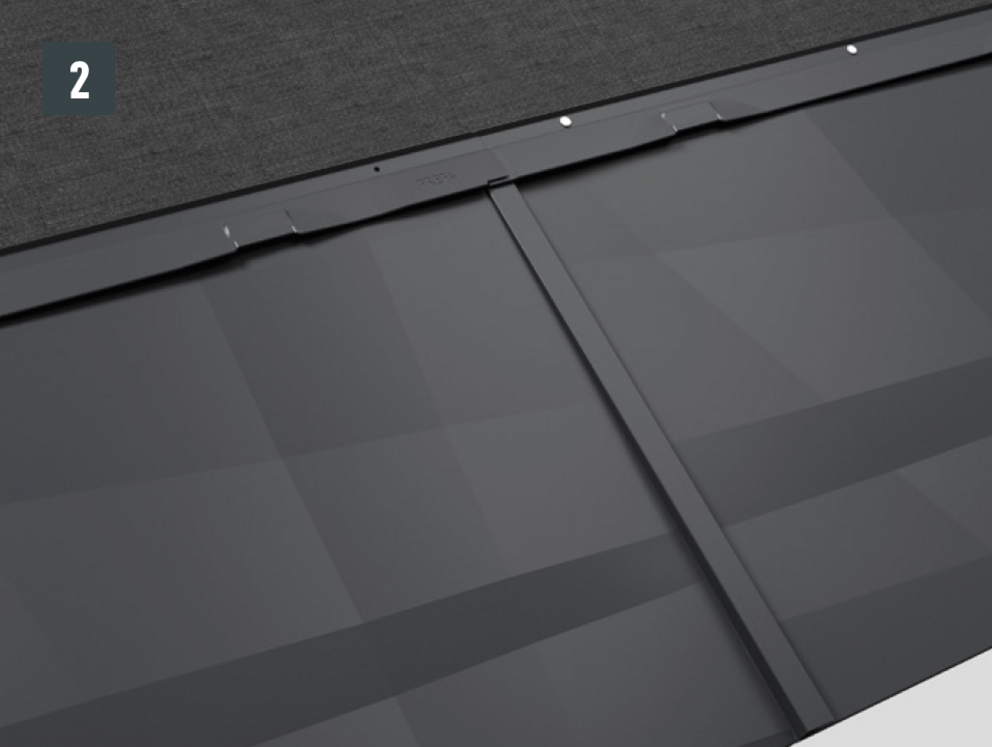

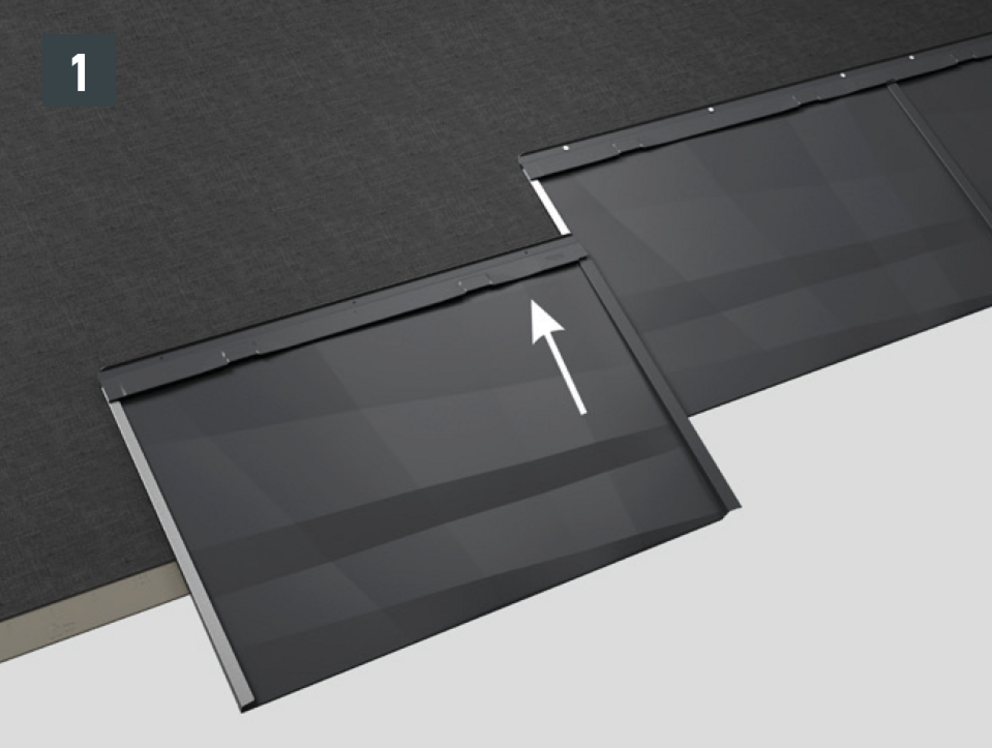

  • Adjust FX.12 roof panel and push into the folds (Fig. 1 and 2). Strike the bottom edge of the panel lightly with the handle of the hammer.
  • Press the panel slightly to the left (however, the angle fold should not be deformed) and align it with the horizontal chalk line or at the mark on the starter strip.
  • Horizontal lacing: 420 mm (beginning with upper edge of the first row of FX.12 roof panels).
