Installation guidelines
Installation guidelines
Please select one or more chapters to download.
Table of contents

Wall profile details

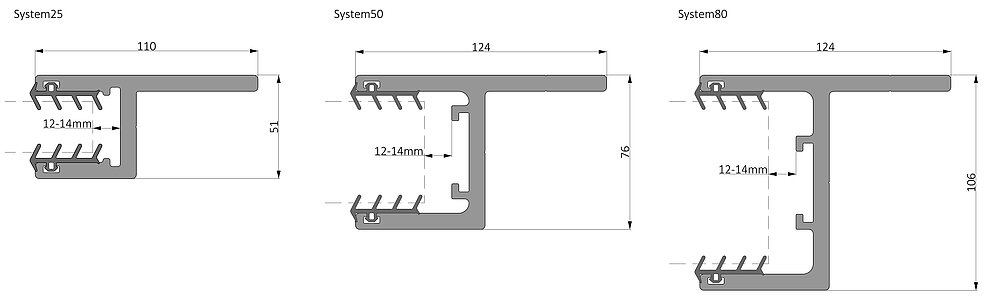

Base profile detail

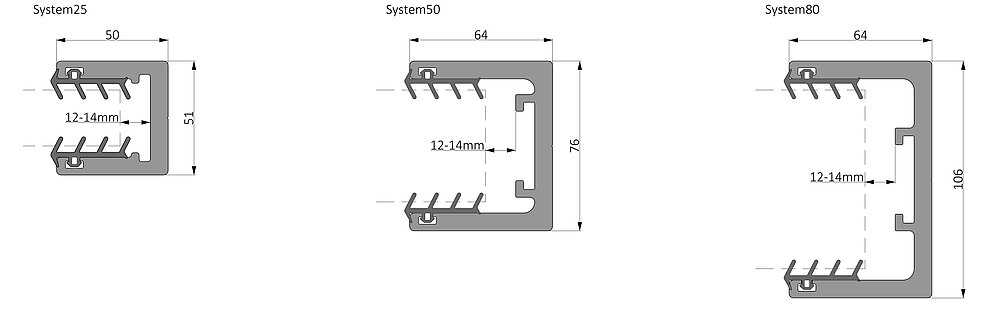

U-profile details

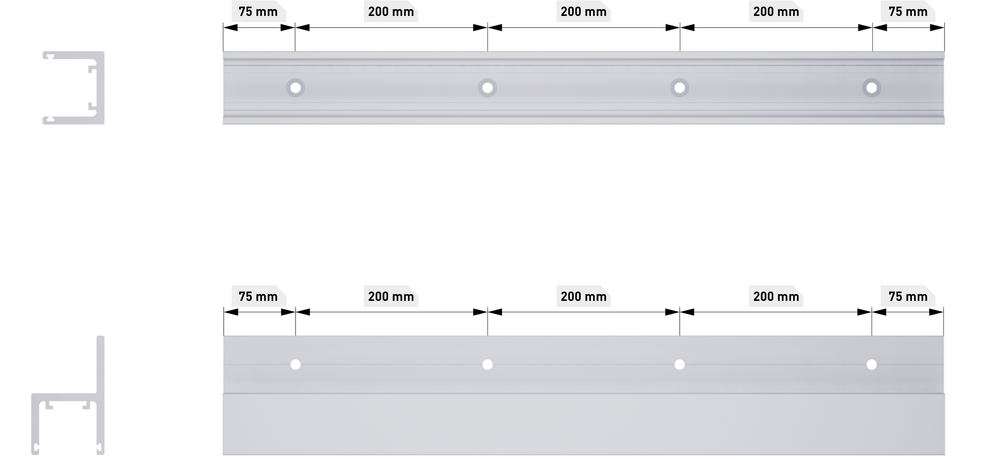

Number of fastening holes

Wall profile length

System 25

System 50

System 80

750 mm

4

4

4

1350 mm

7

7

7

1750 mm

9

9

9

2150 mm

11

11

11

Minimum diameter of fasteners

8 mm

10 mm

10 mm
