Template for positioning the ground sleeve for Vario round profiles

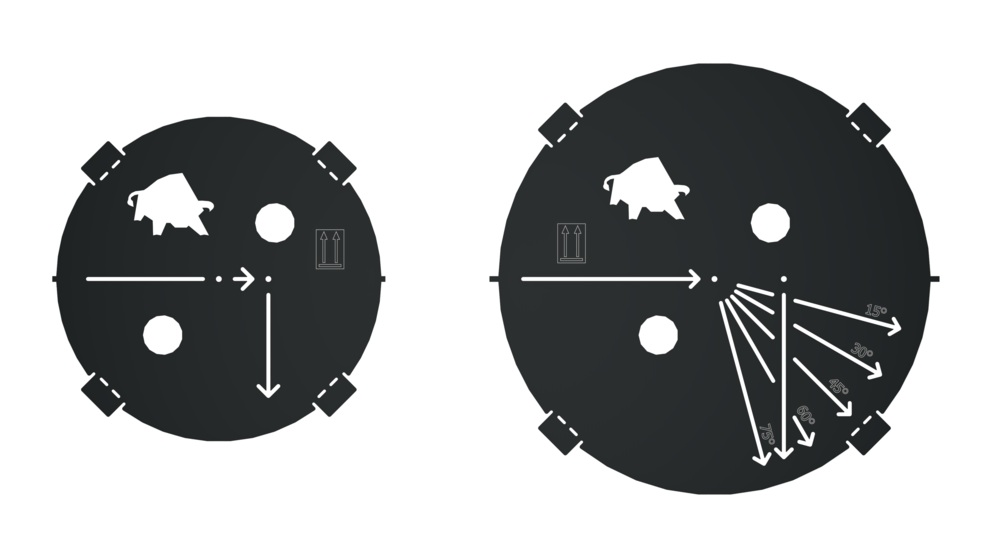

Template “small” and template “large”
For positioning and aligning the small or large ground sleeve, PREFA recommends using the corresponding template, on which all angle variants are also engraved.
Folding the support tabs

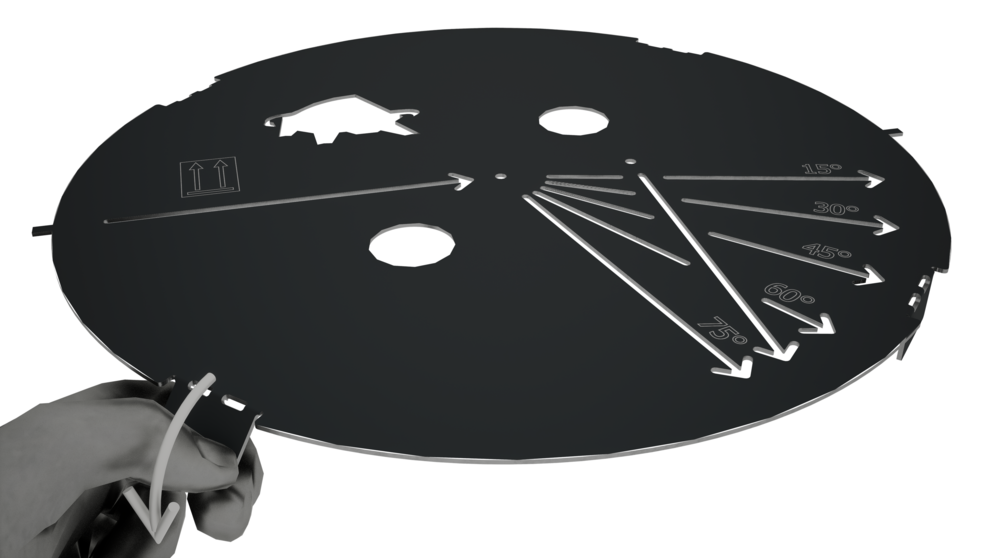

To ensure the template finishes flush at the top, the four support tabs are bent down 90° “by hand” before use.
Inserting the template

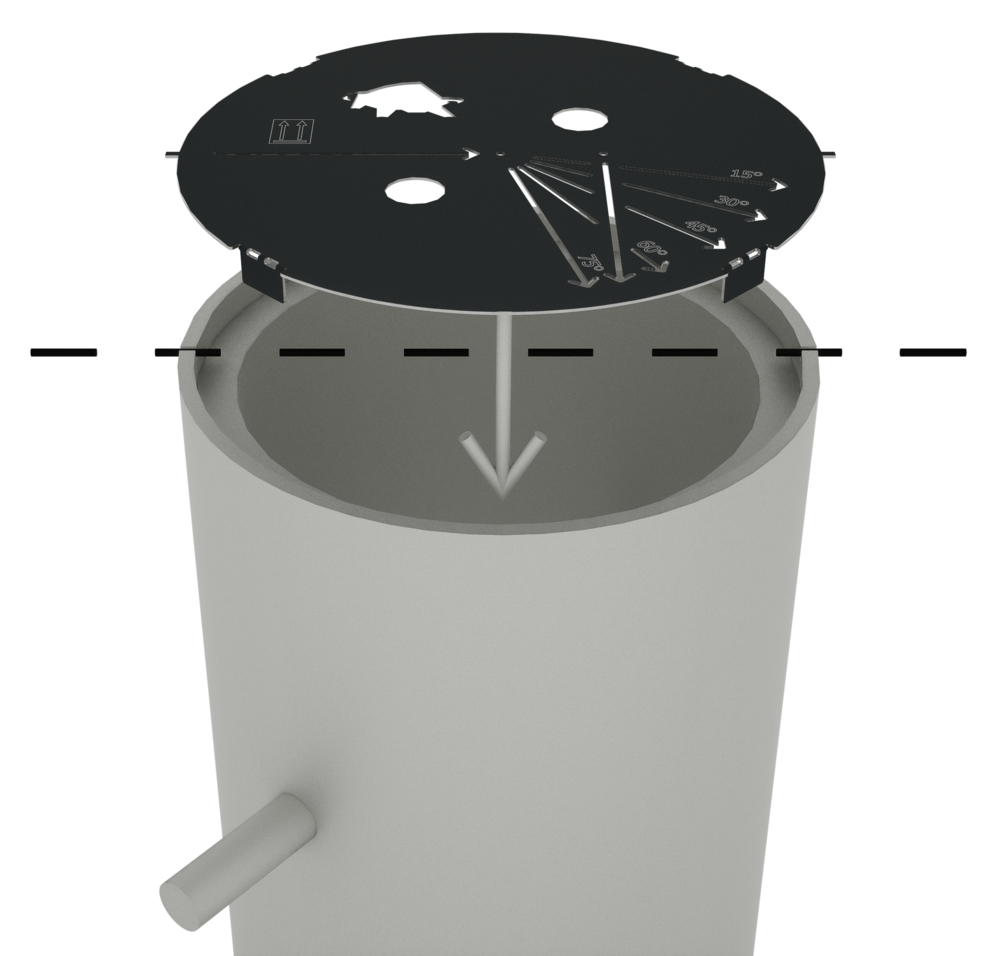

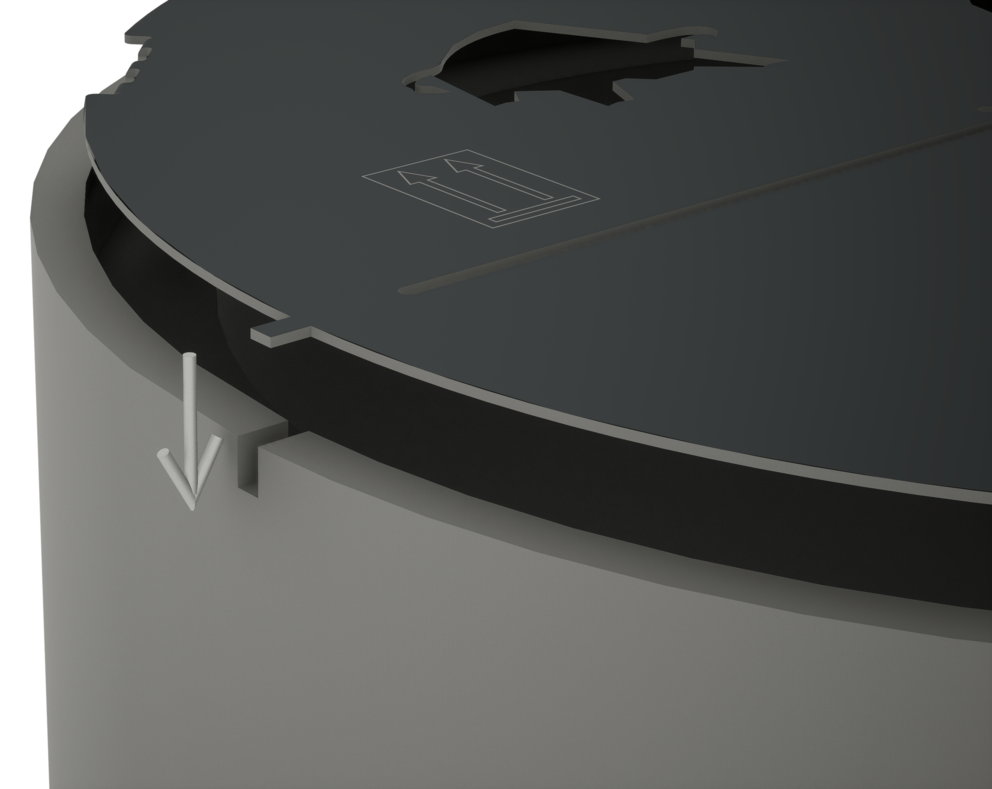

Any desired template can now be inserted into the ground sleeve. If care is taken to ensure that the two “centering lugs” also engage perfectly in the groove of the ground sleeve, it can be assumed that the template has been correctly inserted.

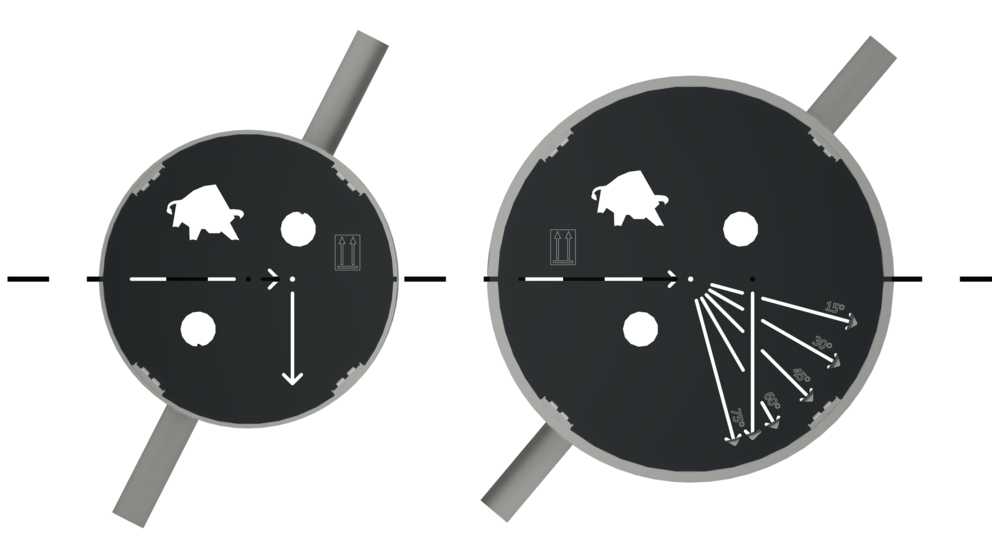

Top view of the correctly inserted template
After successfully handling the desired template, the ground sleeve can now be finely adjusted and aligned at an angle.
