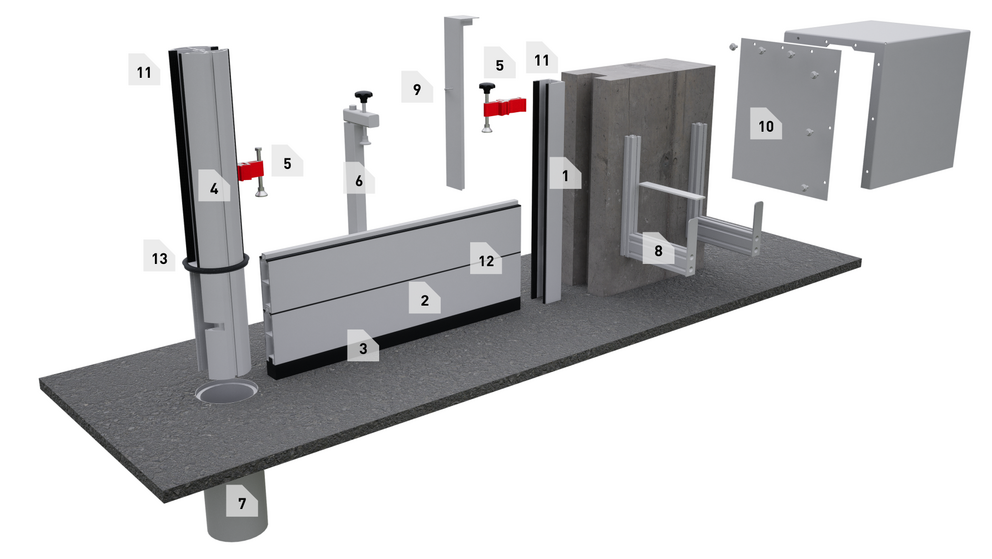

Legend
1. Wall profile
Fixed to the main structure as U-profile as well as base profile, in front or behind the jam.
2. barrier panels
Illustrated here: the lowest barrier panel connected to the ground seal (no. 3)
3. Ground seal
Ensures sealing between the lowest barrier panel and the ground.
4. centre column (round profile)
For long barriers with multiple fields, centre columns are used.
5. Compression clamp
For clamping the barrier panels in place.
6. Retainer
Prevents vertical deflection of the barrier panels and increases pressure on the ground seal.
7. Ground sleeve
Sleeve fixed in the ground with concrete for inserting the centre column.
8. Wall bracket
For storing the barrier panels when not in use.
9. Cover
For covering the wall profiles and protecting the seals when not in use.
10. Storage casing
For covering the panels when stored outdoors.
11. Base profile seal
Ensures sealing between the wall profile/centre column and the barrier panel.
12. Barrier panel seal
Ensures sealing between the barrier panels.
13. Seal for cover and ground sleeve
Ensures sealing between the centre column/cover and ground sleeve.
barrier panels |
System 25 |
System 50 |
System 80 |
Thickness |
25 mm |
50 mm |
80 mm |
Weight |
2.99 kg/m |
5.6 kg/m; 4.12 kg/m |
7.78 kg/m |
Panel height |
200 mm |
150 mm / 200 mm |
200 mm |
Groove |
17 mm |
15 mm |
15 mm |
Centre column |
|
diameter |
140 mm / 185 mm |
height |
750 mm - 2,150 mm |
system |
50 or 80 mm |
