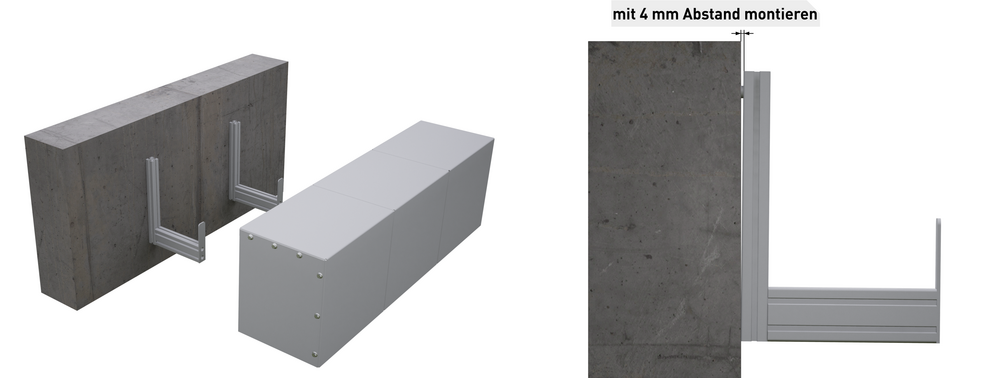

The wall bracket consists of 2 holders, which are to be attached to the wall with suitable fasteners. For the fastening, there are 9 mm through holes with a 20 mm countersink for the screw head.

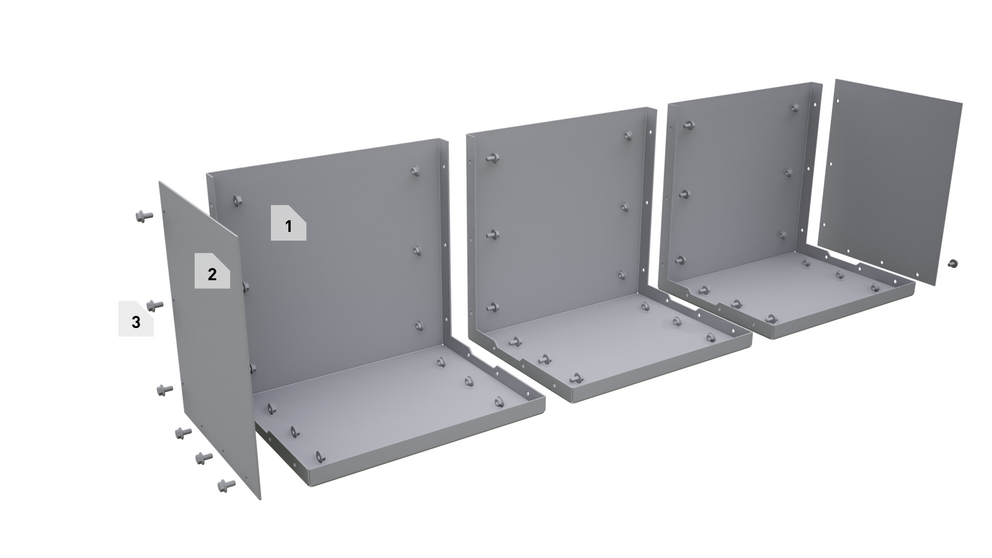

1. Central part of storage casing
2. Side part of storage casing
3. Locking screw for cover
Note
The base profile seals of the wall profiles must be protected against soiling and UV radiation, e.g. by using covers.
The barrier panels with built-in seal must be protected against soiling and UV radiation. The best way to do this is to store them on the wall bracket, with the barrier panels separated from each other by separating strips. Additionally, a storage casing should be attached.
An operating manual and a video are available as building instructions for end customers.
