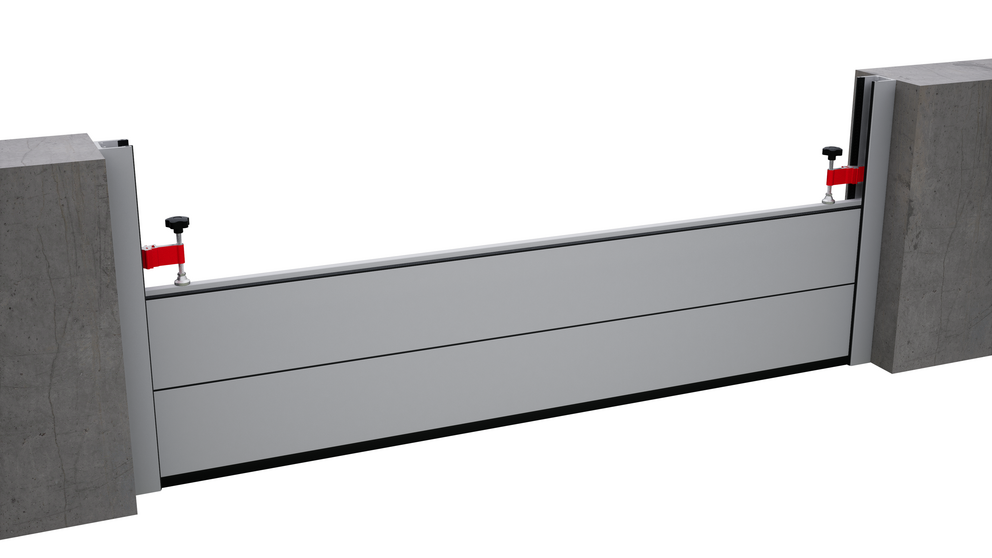

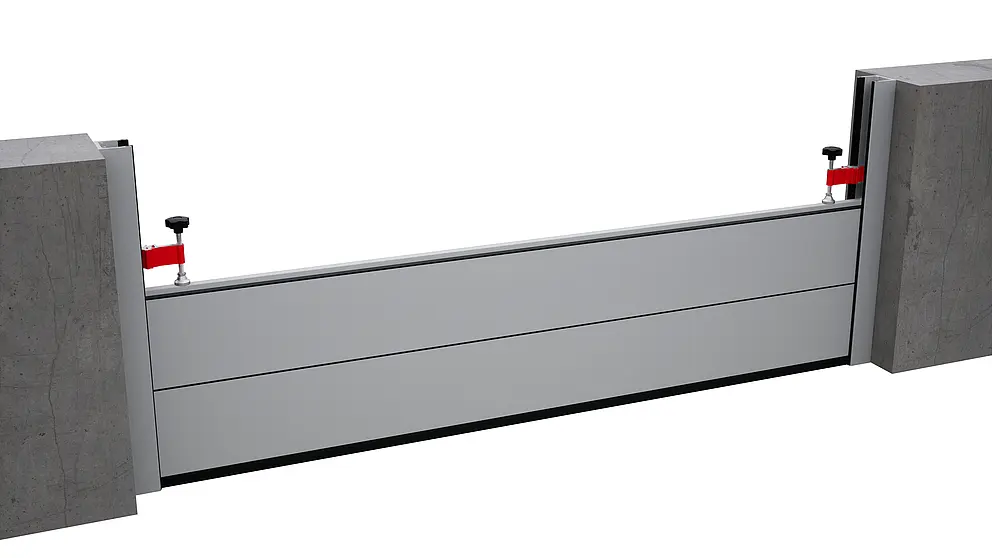

Installation variant in the soffit

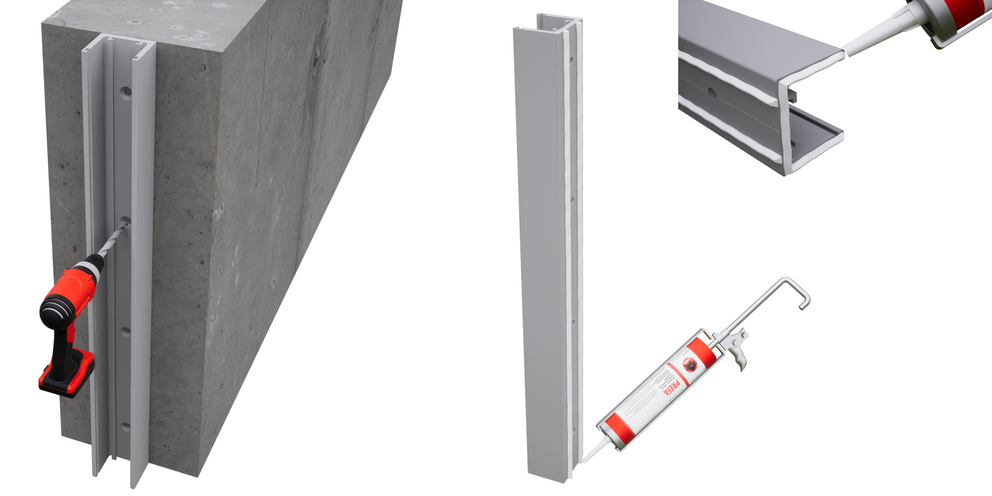

Position the U-profile, mark and drill the holes.
Attach two beads of waterproof and permanently elastic sealant to the back of the U-profile.
In the event of direct contact with concrete, a protective coating on the back of the U-profile is recommended.
Attach the sealant bead to the bottom of the base profile.
When screwing the U-profile into the M10 countersunk drill holes, ensure that the screw heads are flush with each other.

Note

The flood protection solution may only be installed on load-bearing wall structures!
