Table of contents
Façade Small format products Small rhomboid tile Replacing a small rhomboid tile

Replacing a small rhomboid tile

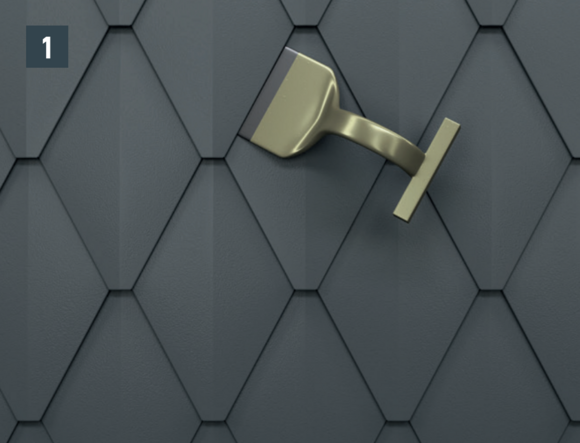

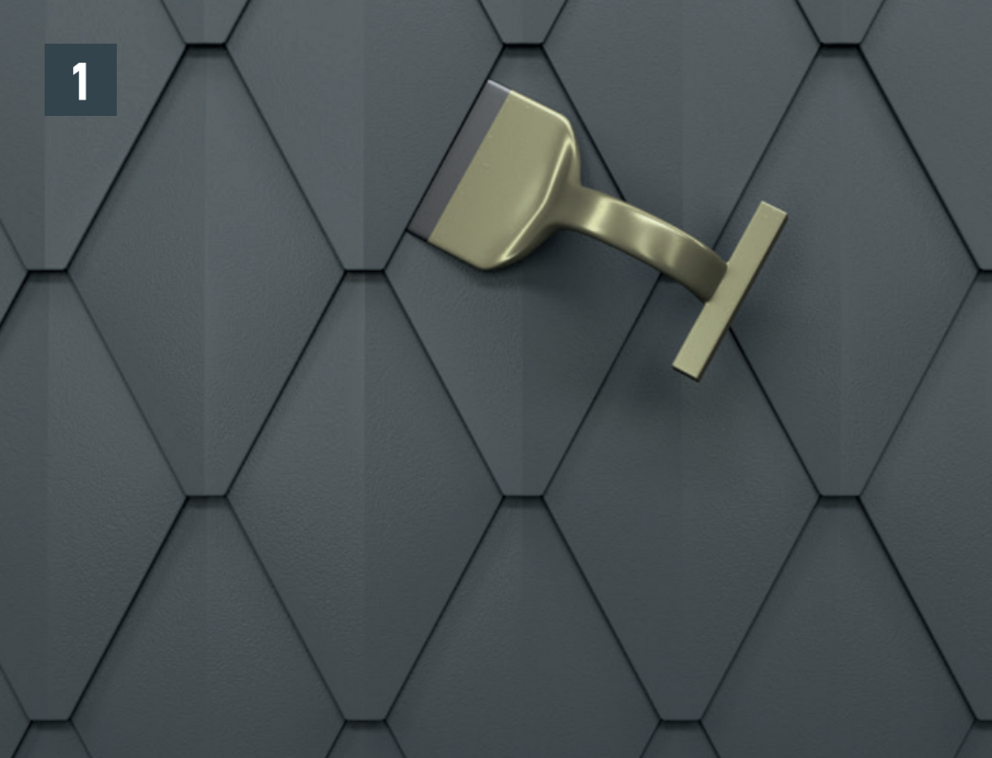

  • Open the fold with the shuttering iron (Image 1).

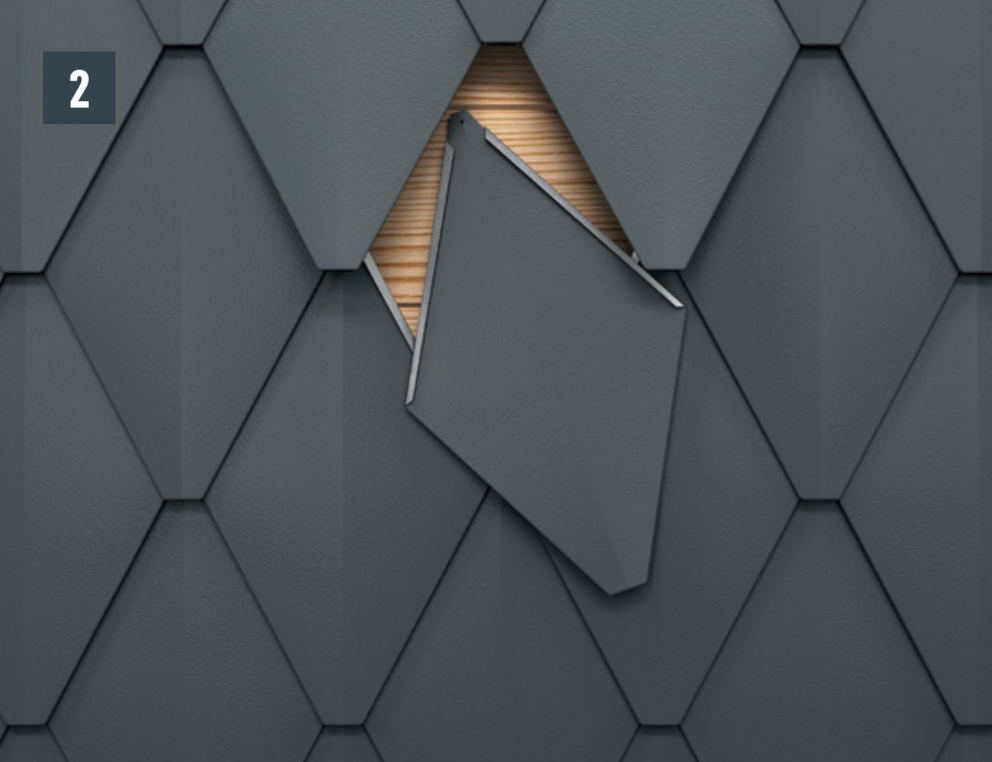

  • Loosen the nails and remove the small rhomboid tile to be replaced (Image 2).

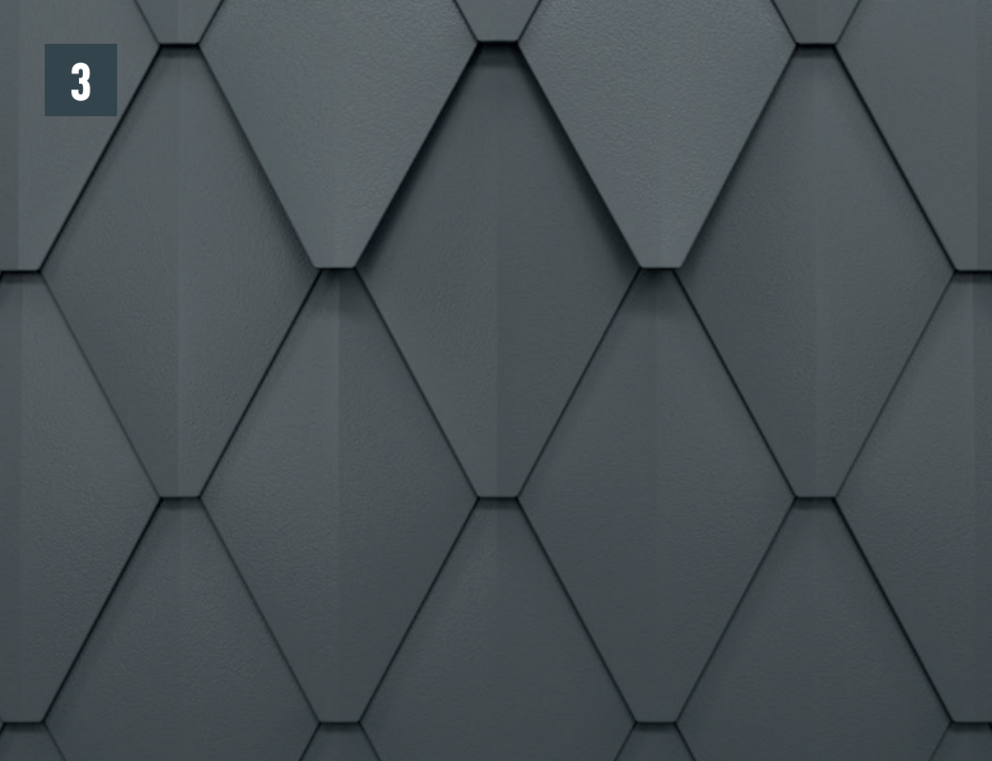

  • Slightly open the hook-on seam of the new small rhomboid tile, push up and fasten (Image 3).

    CAUTION: Choose the position of the new ring nails carefully, they must not hammeredd into the existing holes!

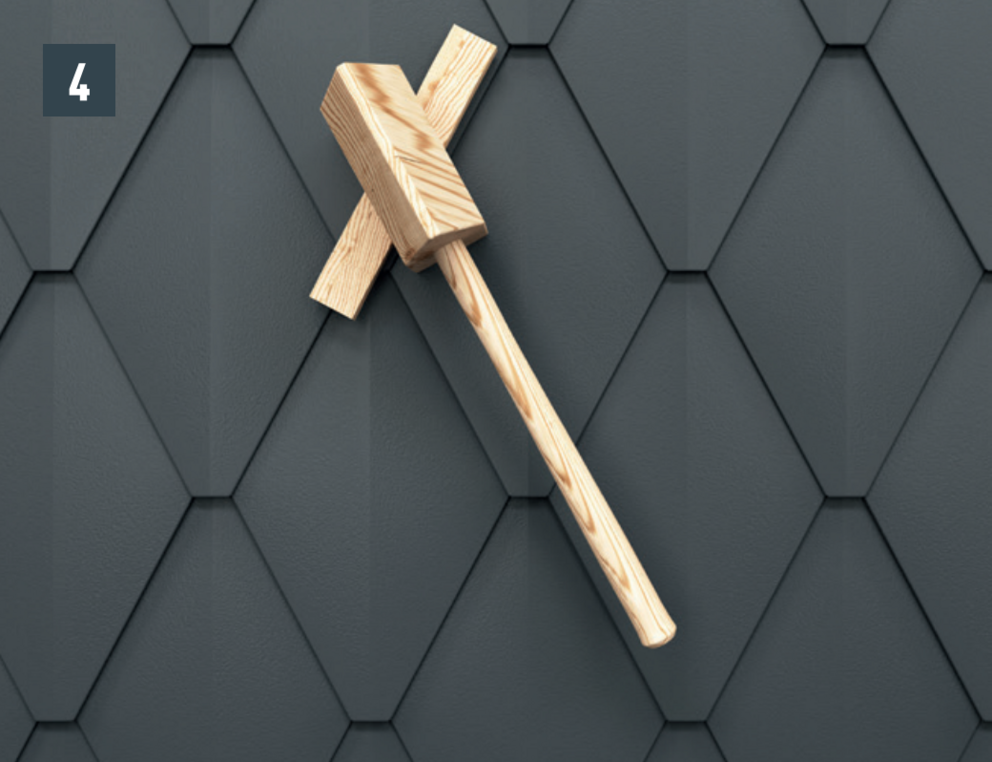

  • Carefully work in the rebates and restore them to their original shape (Image 4).
