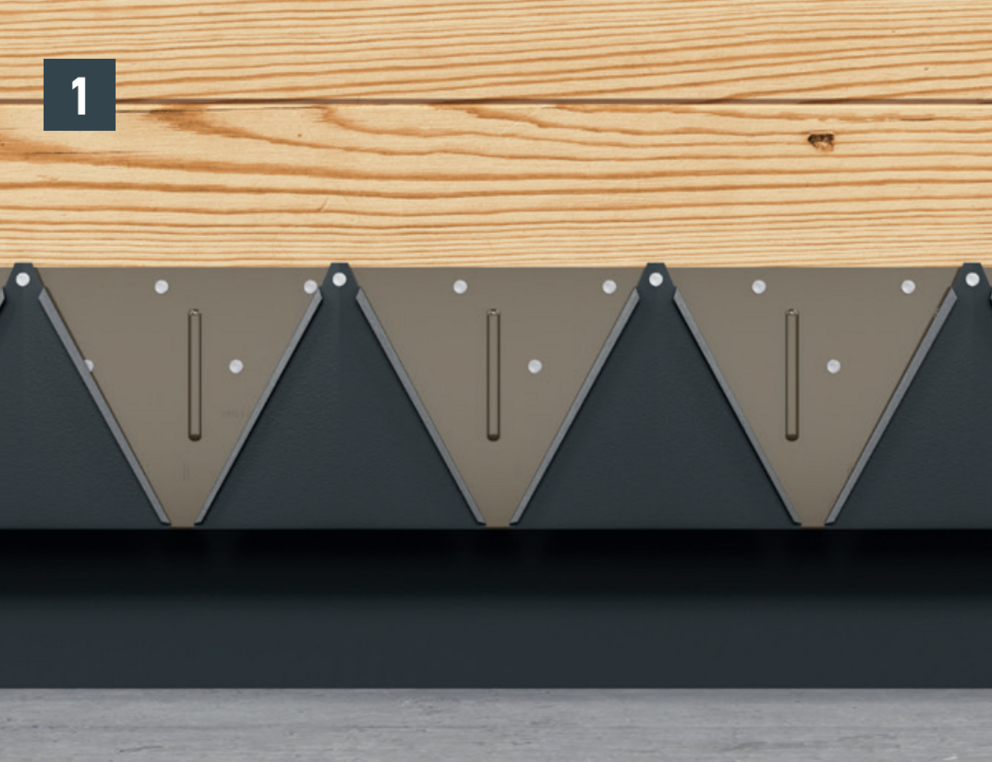

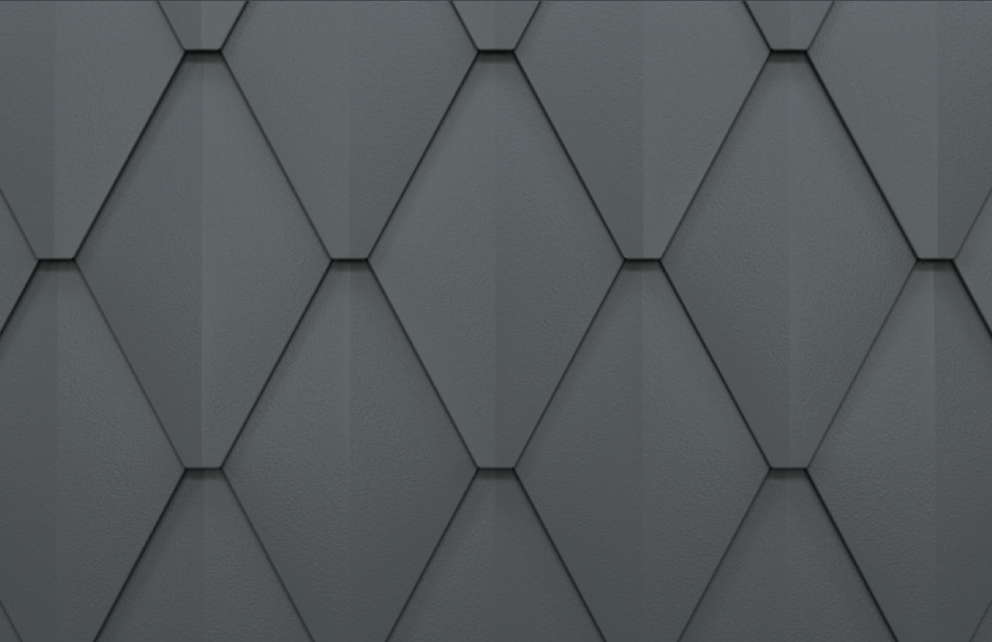

Rhomboids 20 x 20 can be installed in both directions, left and right, but do not change direction during installation. Adhere to the laying direction once started. Never cover to the middle (Exception: Penetrations).

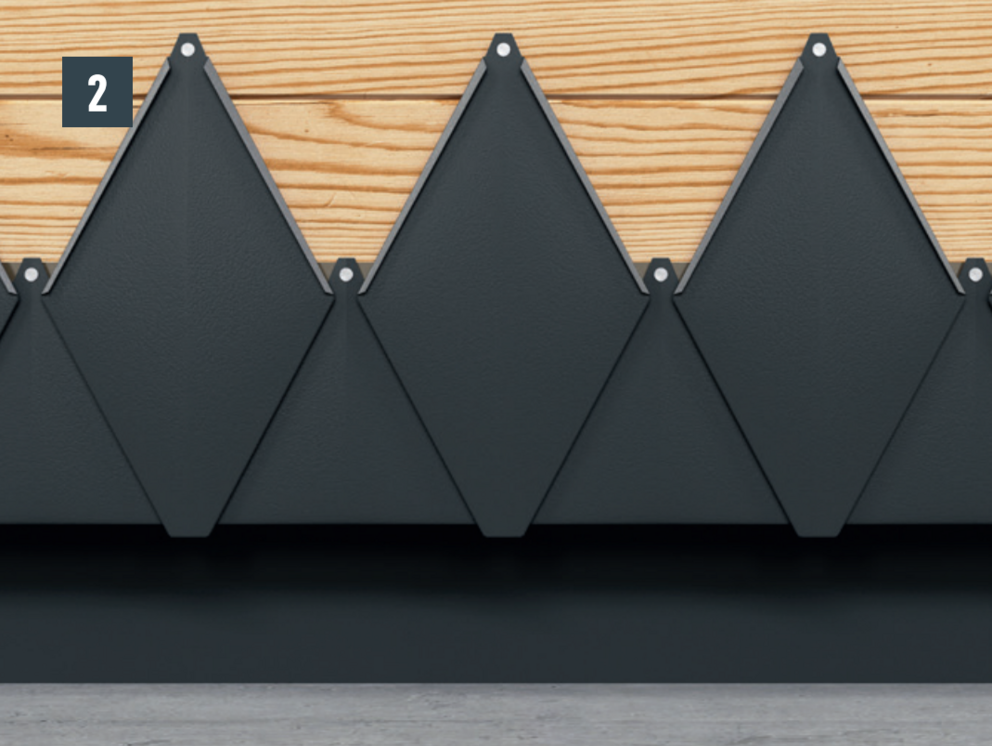

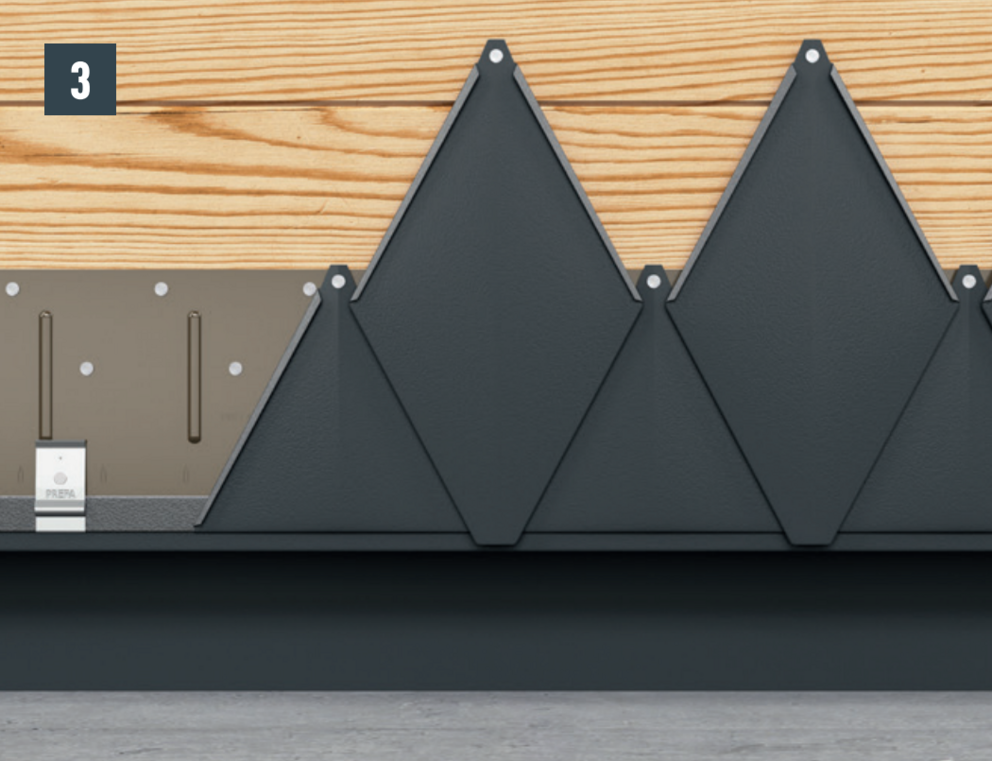

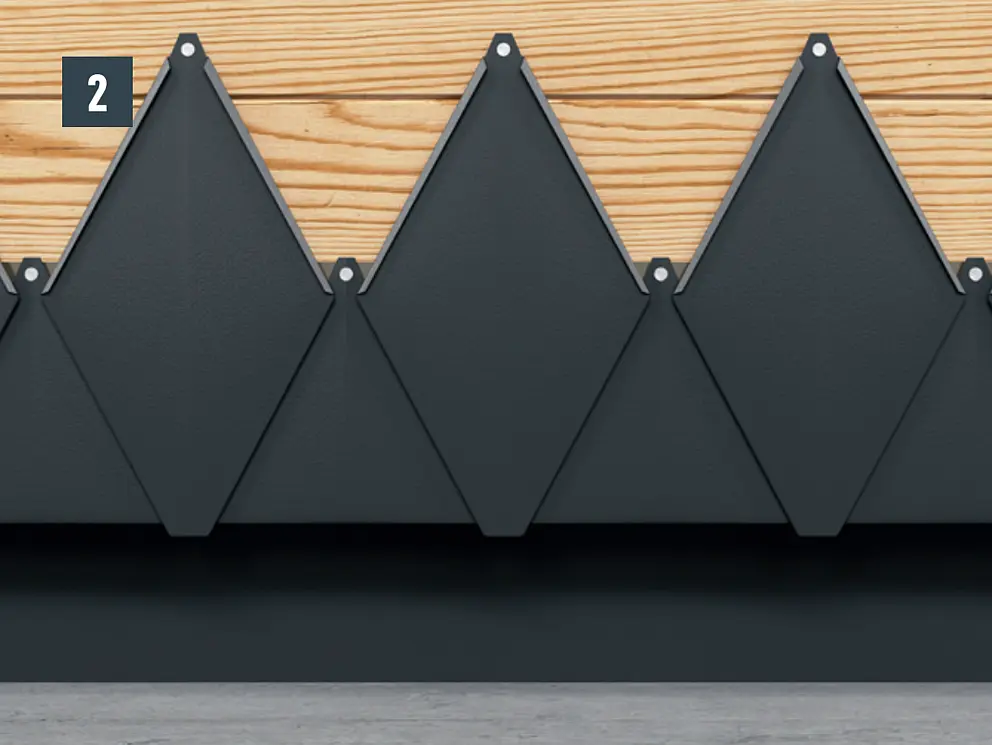

Each small rhomboid tile is fastened directly through the pre-punched fastening hole with a supplied ring nail 2.8/25.
In areas particularly prone to storms, a wind load calculation is required and fastenings must be adjusted according to the calculation.
CAUTION: Do not bend the bottom tip of the small rhomboid tile downwards.
