Table of contents
Façade Small format products Rhomboid façade tile 20 × 20 Replacing a 20 x 20 rhomboid façade tile

Replacing a 20 x 20 rhomboid façade tile

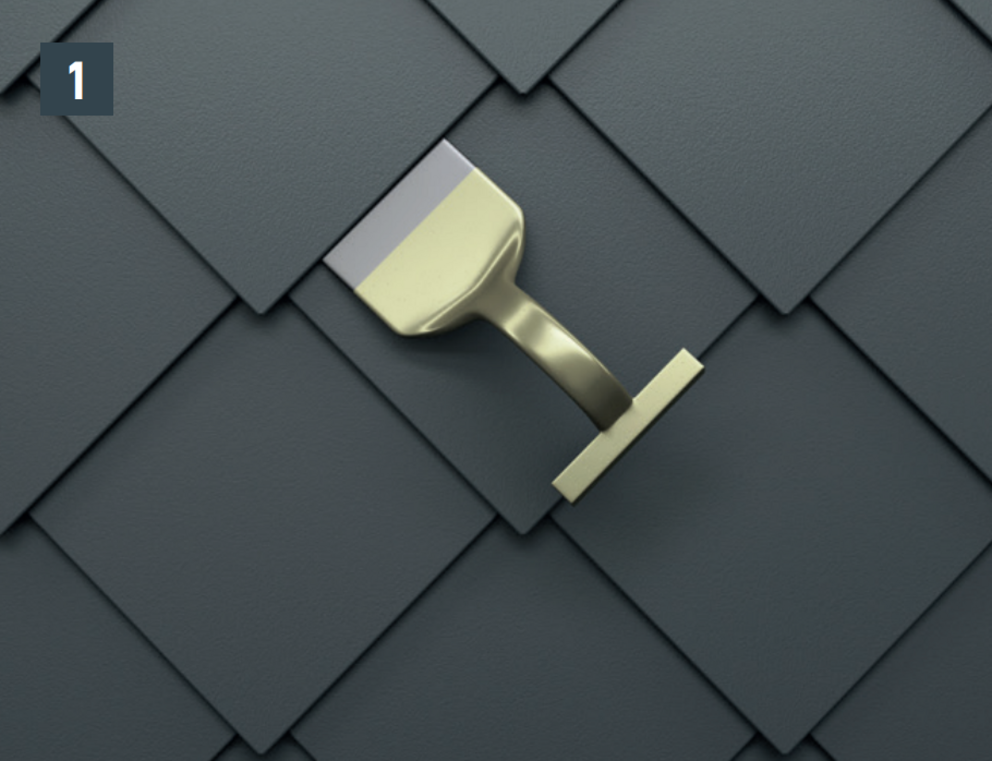

  • Open the fold with the shuttering iron (Image 1).

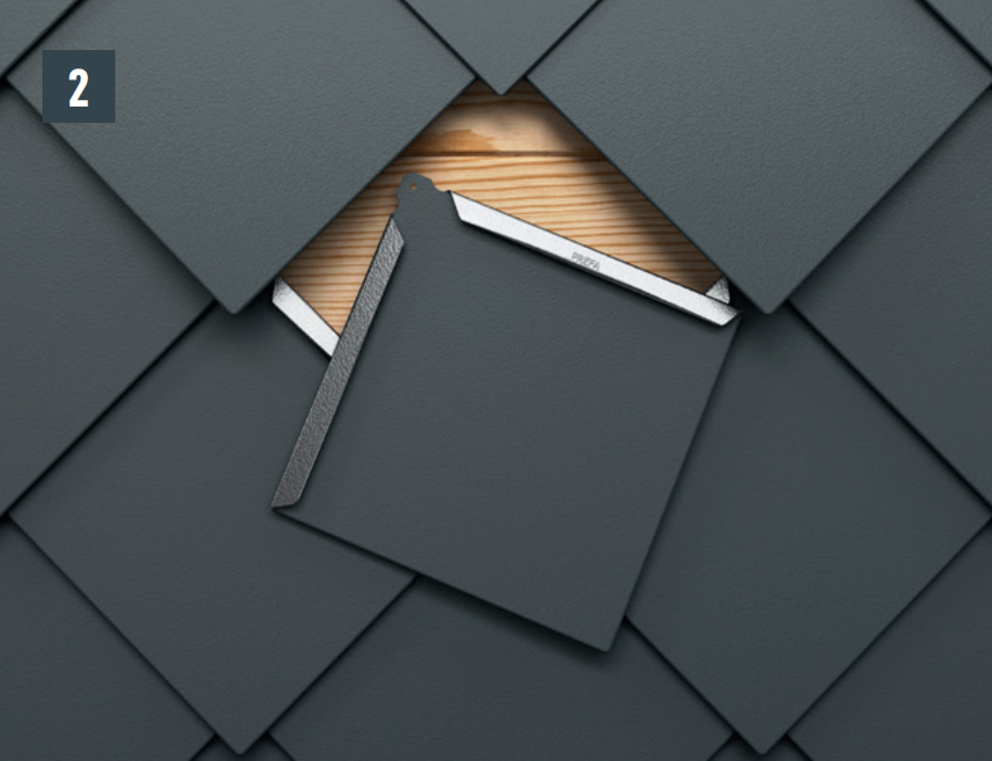

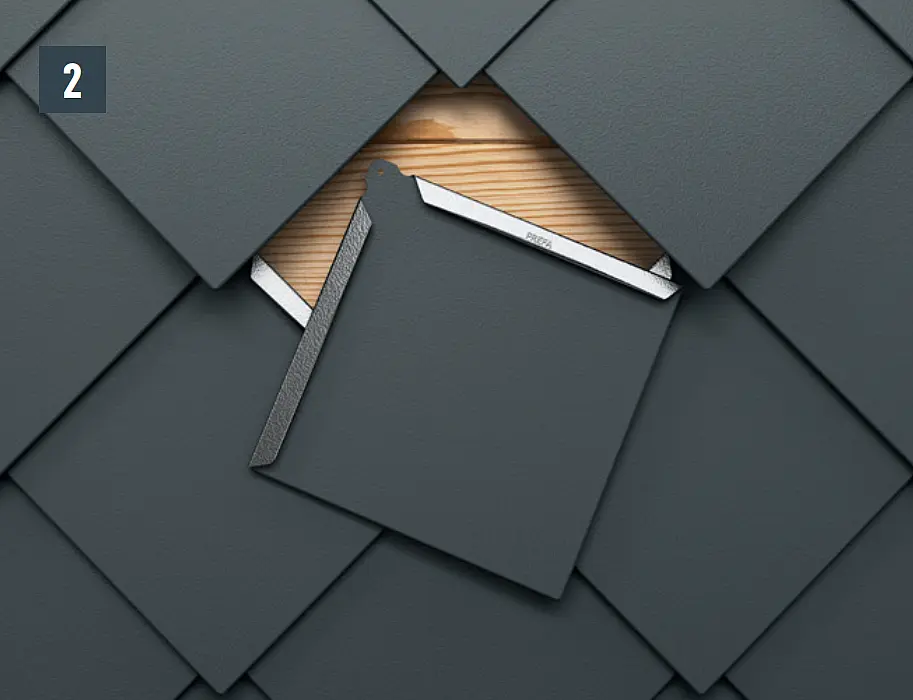

  • Loosen the nails and remove the 20 × 20 rhomboid façade tile to be replaced (Image 2).

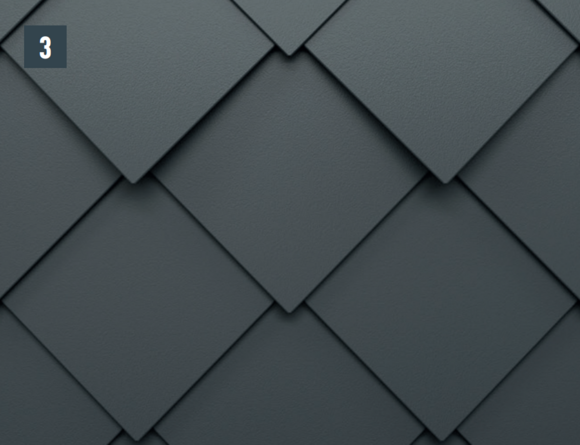

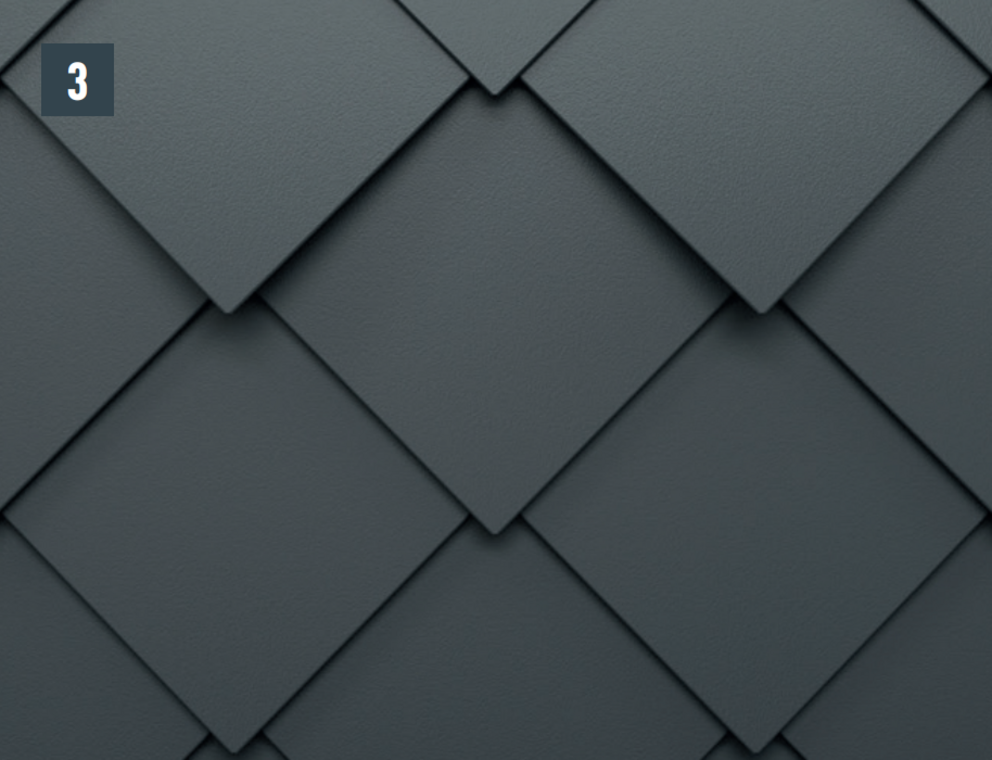

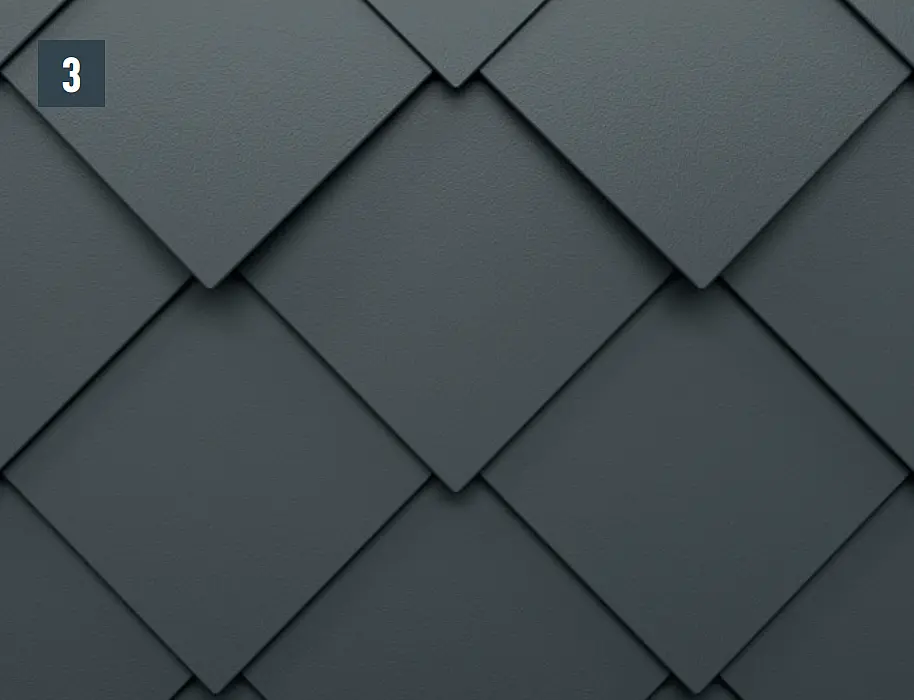

  • Slightly open the seam of the new 20 x 20 rhomboid roof tile, push up and fasten (Image 3).
    CAUTION: Choose the position of the new ring nails carefully, they must not hammeredd into the existing holes!

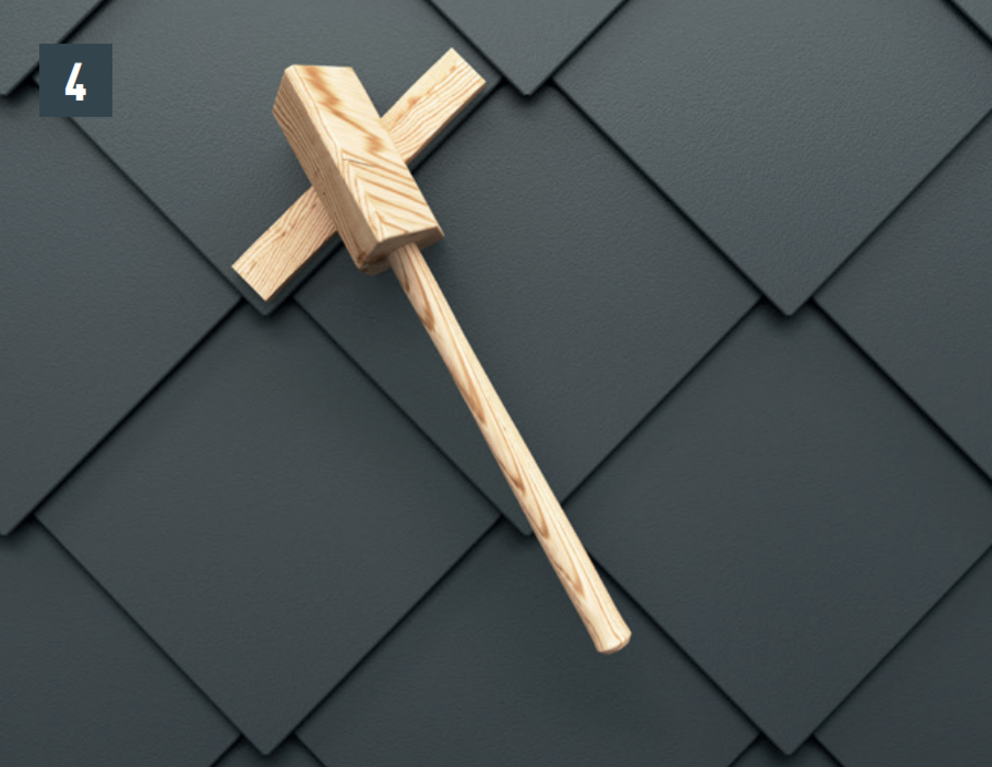

  • Carefully work in the rebates and restore them to their original shape (Image 4).
