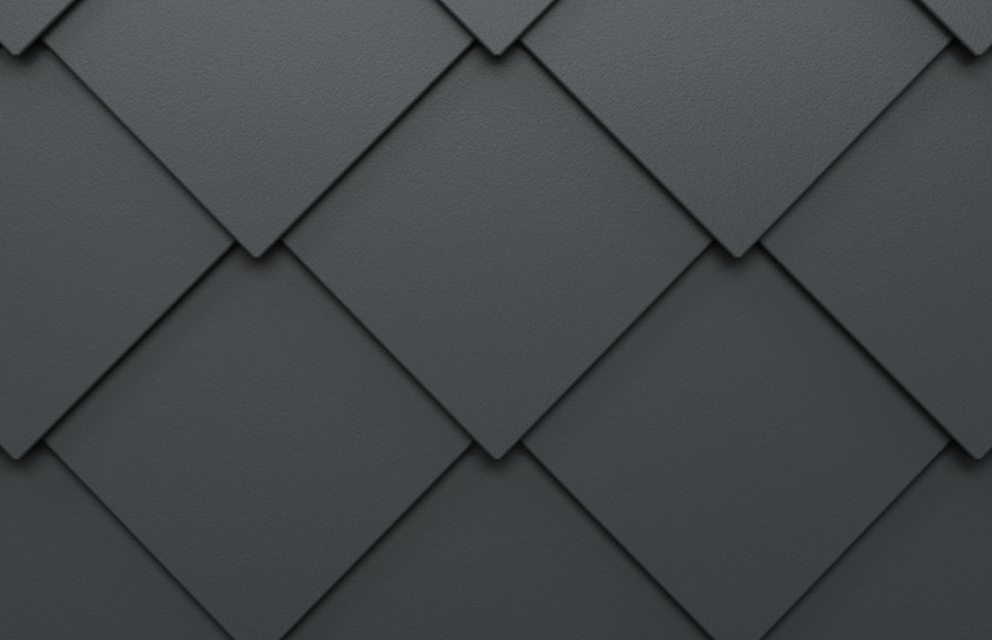

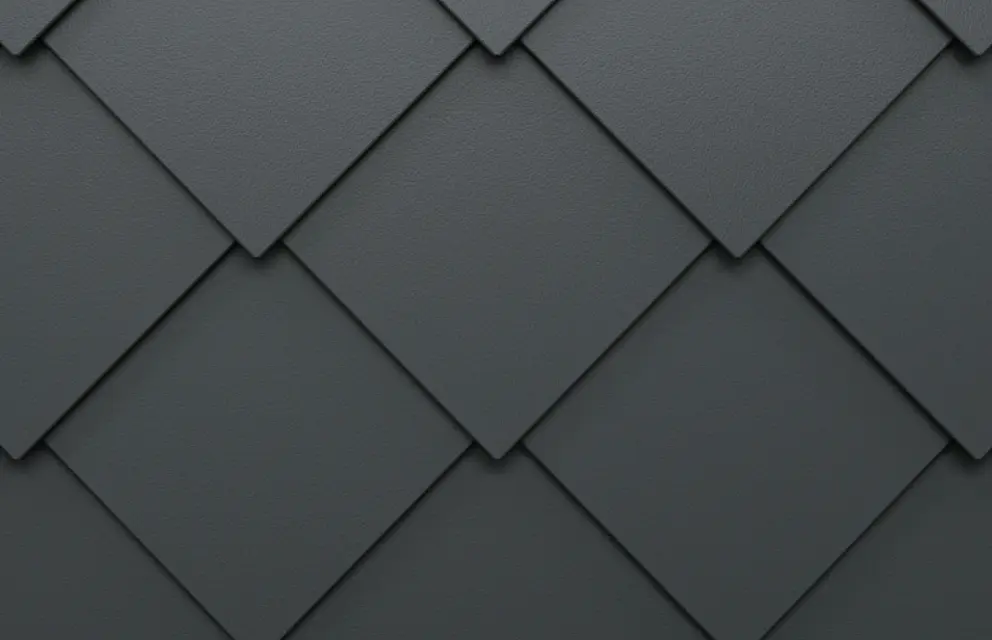

Rhomboids 20 x 20 can be installed in both directions, left and right, but do not change direction during installation. Adhere to the laying direction once started. Never cover to the middle (Exception: penetrations).

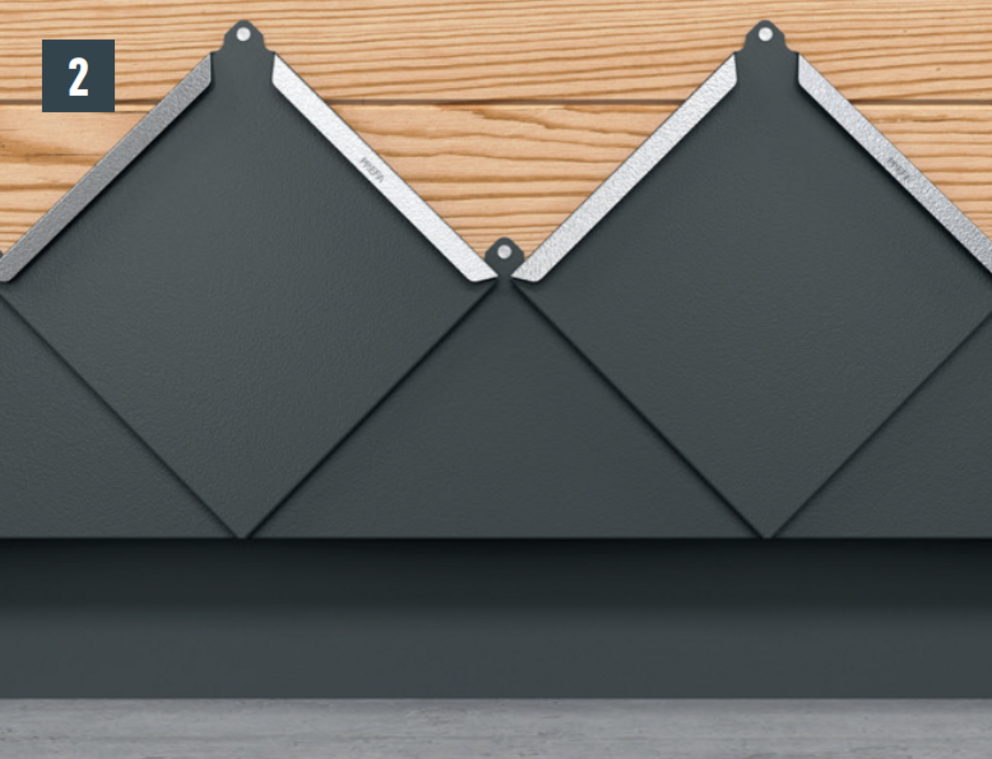

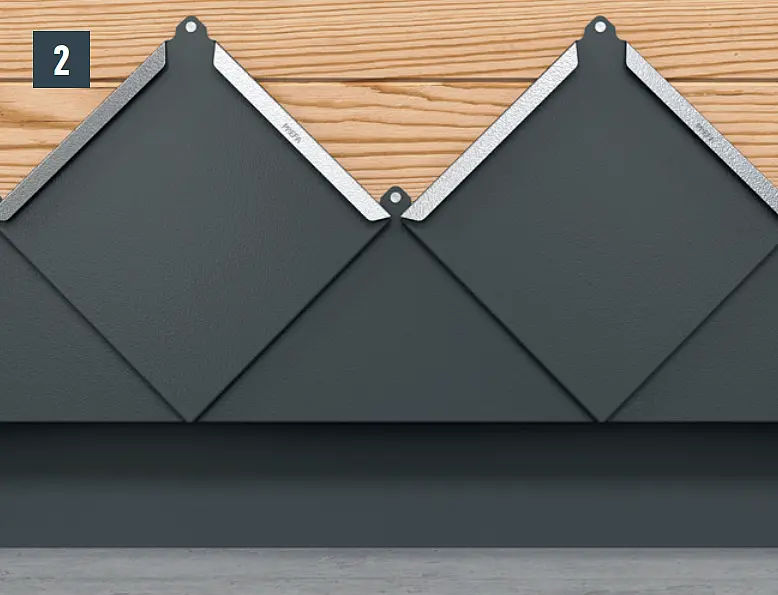

Each 20 × 20 rhomboid façade tile is fastened directly through the pre-punched fastening hole with a supplied ring nail 2.8/25.
In areas particularly prone to storms, a wind load calculation is required and fastenings must be adjusted according to the calculation.

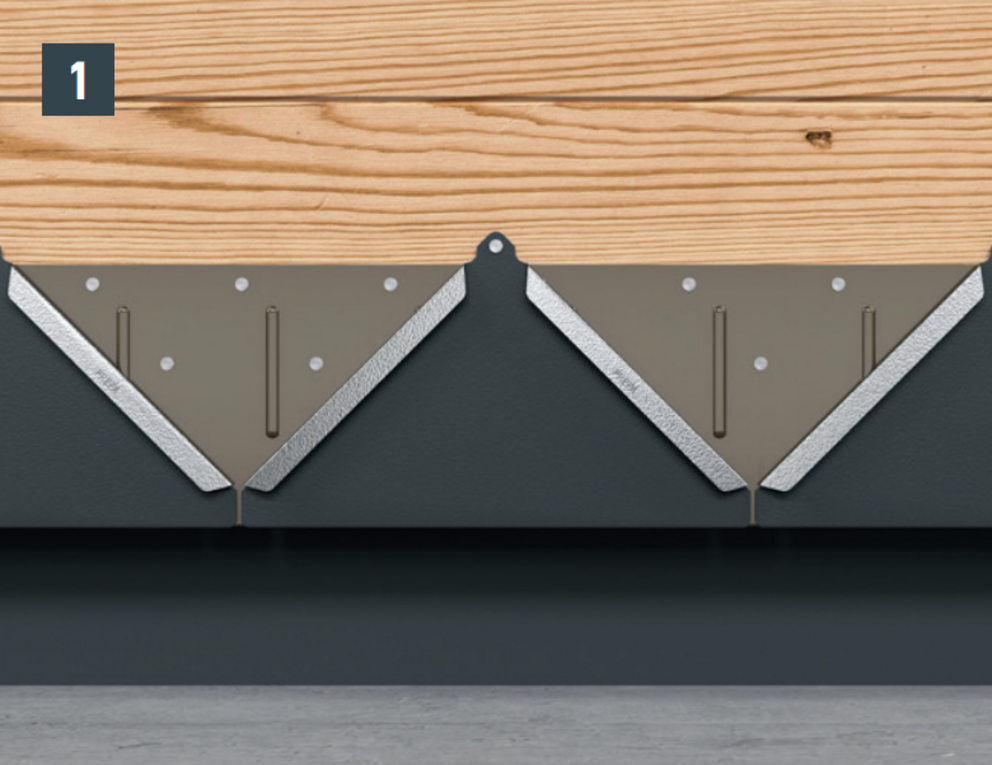

Bottom details require starting plates (3.20 pcs/running metre).
