The FX.12 façade panel panels areto be installed from right to left in horizontal rows.

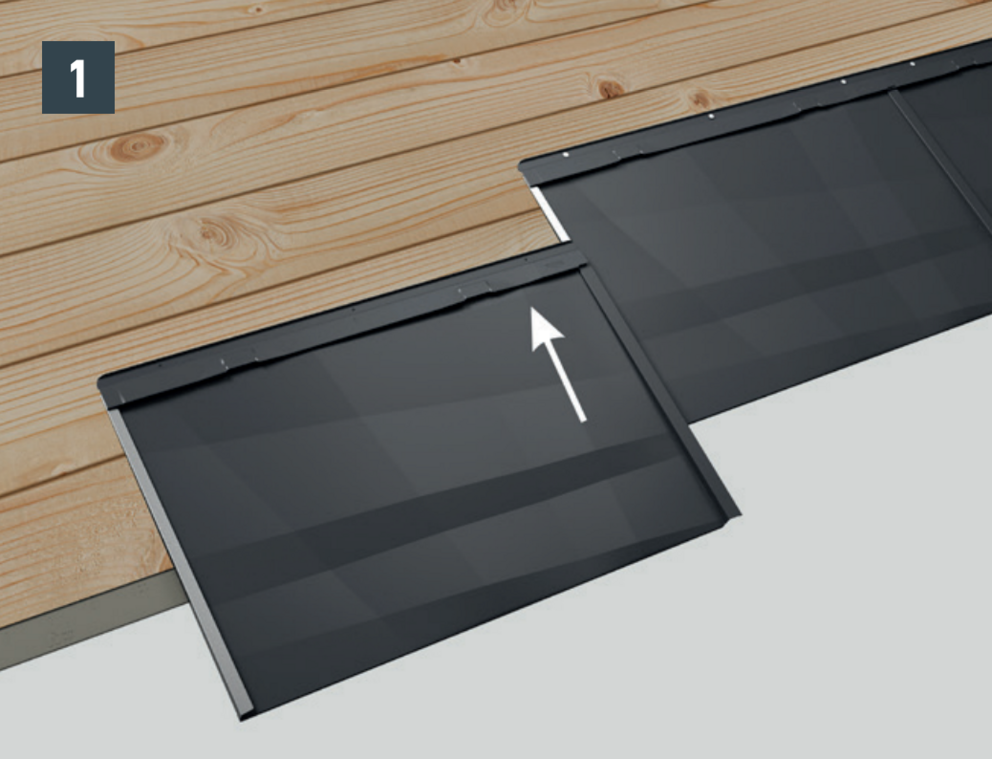

Adjust FX.12 façade panel and push into the folds. Strike the bottom edge of the panel lightly with the handle of the hammer (Image 1).
Press the panel slightly to the left (however, the angle fold should not be deformed) and align it with the horizontal chalk line or at the mark on the starter strip.
Horizontal lacing: 420 mm (beginning with upper edge of the first row of FX.12 façade panels.

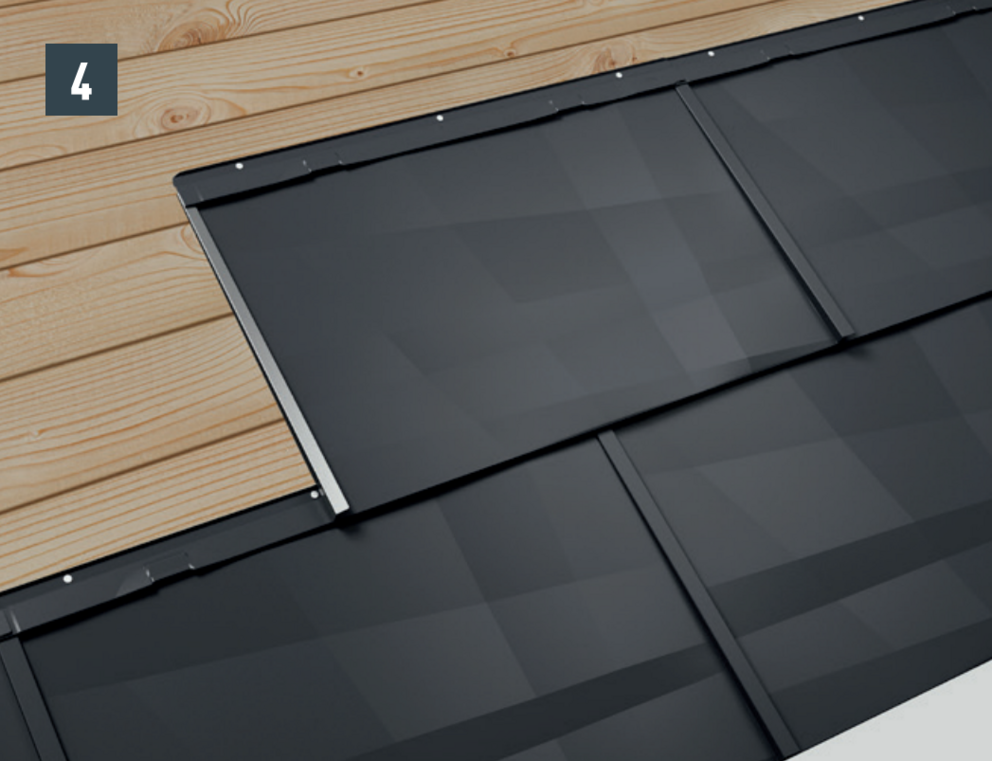

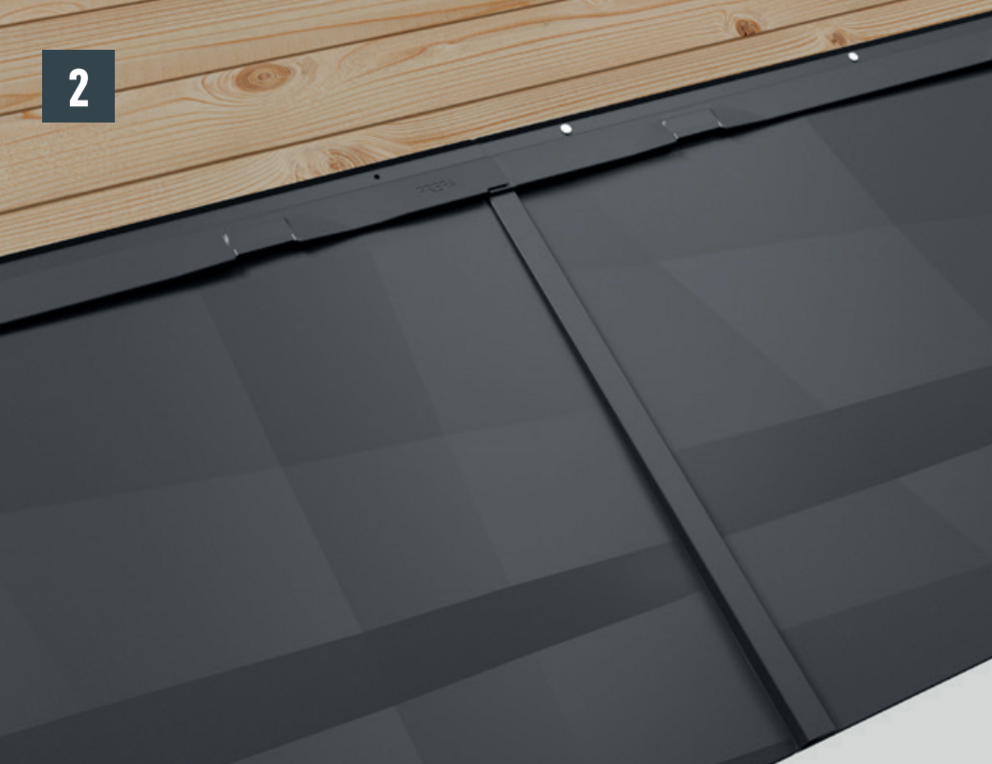

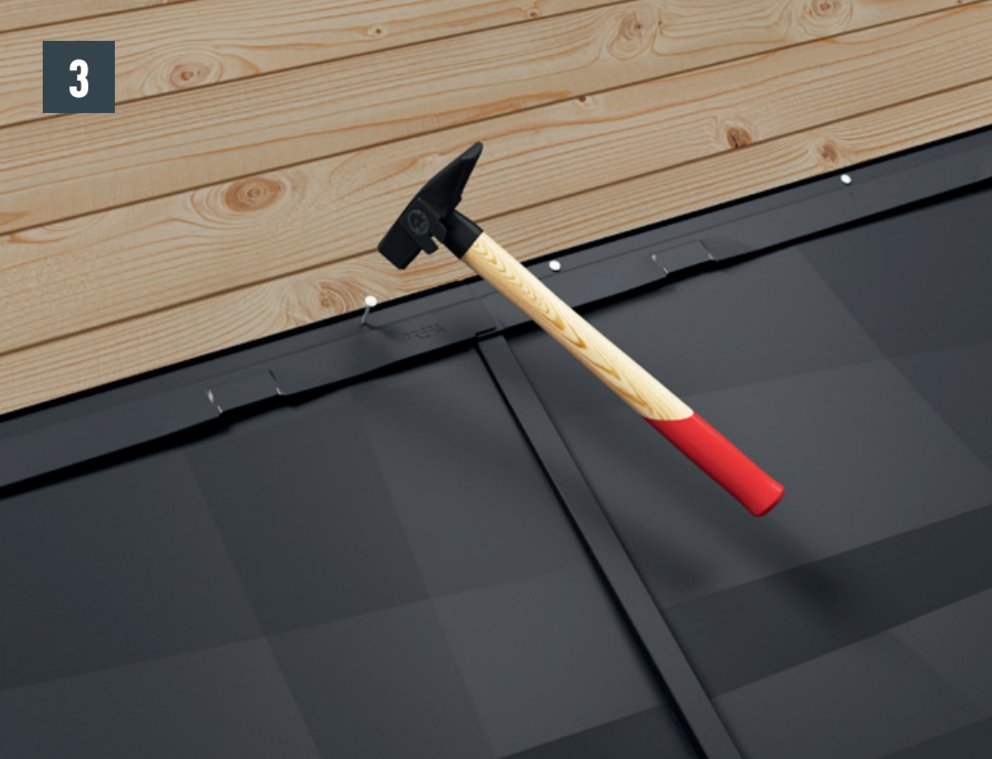

Fasten each panel with the supplied 2.8/25 ring nails (Image 2).
In areas particularly prone to storms, a wind load calculation is required and fastenings must be adjusted according to the calculation.
Standard fastening
Note
In the case of additional fastenings, the prepared grains can be used.

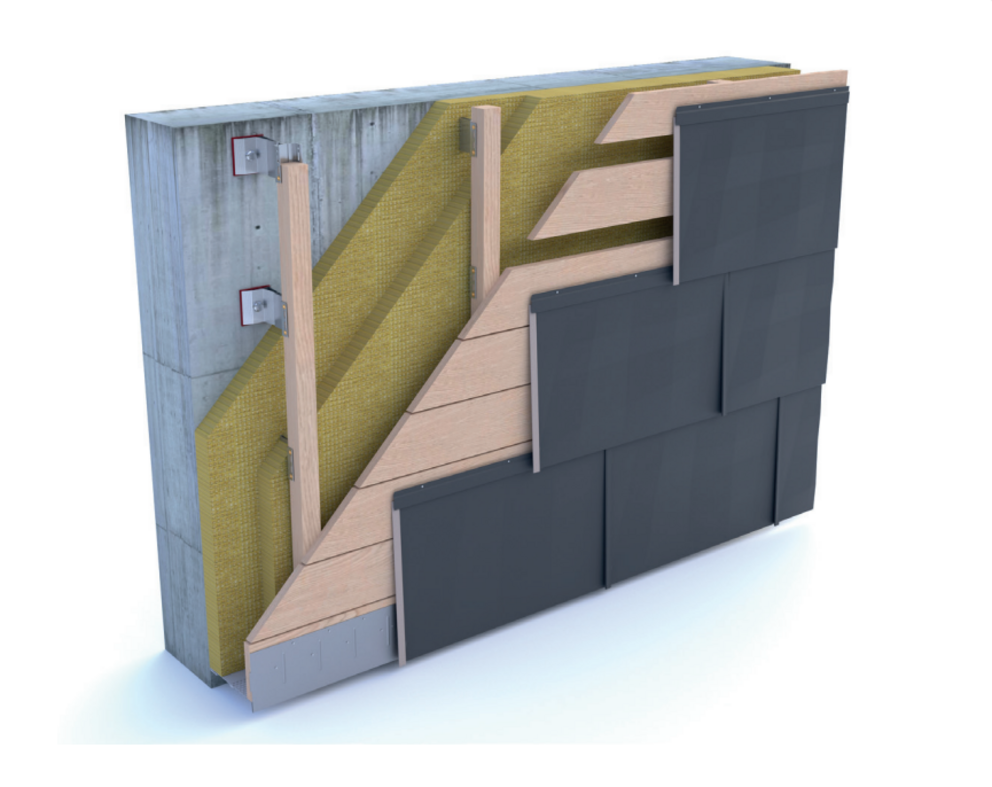

The FX.12 façade panel can also be installed on an open gap boarding (at least 24 mm thick). When installing on a open gap boarding a board must be placed under each fastening strip with a spacing of 420 mm to be achieved.
