The calculation does not take into account offcuts or window and door openings. Normally (for openings up to approx. 3 m²), the waste is offset and is compensated by rounding up the packaging units.
In principle, it is possible to install FX.12 with large panels only. The desired effect of the irregularity due to panel length and offset is considerably reduced as a result. The piece ratio of 2 parts of large panels and 1 part of small panels taken into account in the calculation has turned out to be a good solution in terms of installation, as well as both technically and visually.

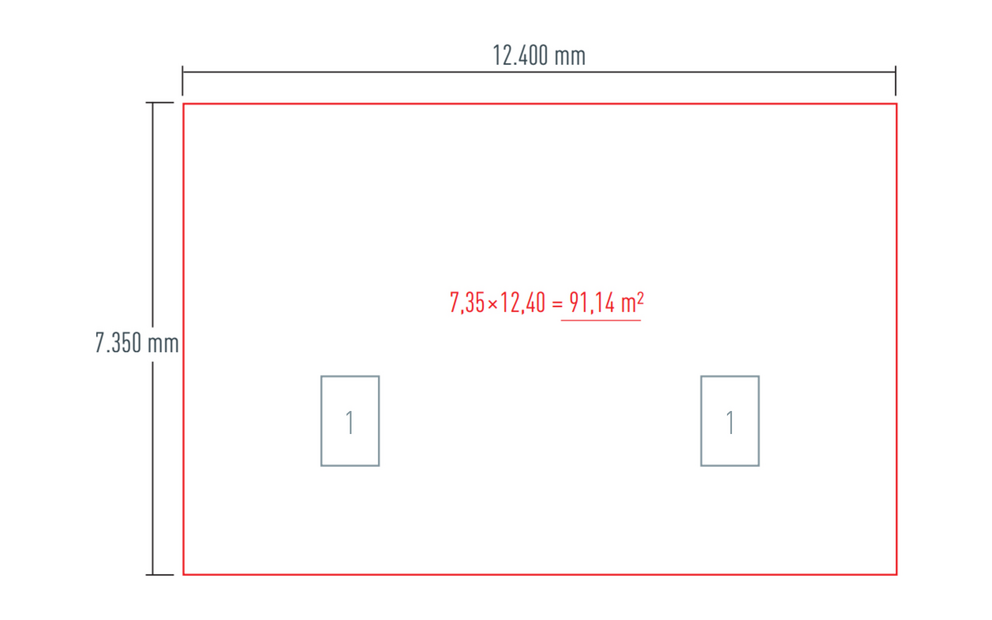

Examples for FX.12 quantity calculation
Surface area of large FX.12 panel |
0.588 m² |
|---|---|
Surface area of small FX.12 panel |
0.294 m² |
Unit ratio |
FX.12 large panel: FX.12 small panel = 2: 1 |
Surface ratio |
FX.12 large panel: FX.12 small panel = 4: 1 |
Quantity calculation share of small panel (in m²) |
91.14 m² / 5 = 18.228 m² |
Quantitycalculation share of small panel (in pcs.) |
18.228 m² / 0.294 m² = 62 pcs. |
Quantity calculation share of large panel (in pcs.) |
62 pcs. × 2 = 124 pcs. |
Quantity determination of FX.12 packs |
|
Packaging unit: |
20 pcs. (11.76 m²) or 10 pcs. (5.88 m²) for large panel, 28 pcs. (8.24 m²) for small panel |
Large panel |
124 pcs. = 7 packs (to 11.76 m² each) |
Small panel |
62 pcs. = 3 packs (to 8.24 m² each) |
Note
With a piece ratio of 2: 1 (large panels:small panels), the surface area of the small FX.12 panels is 20%.
