Table of contents
Façade Siding, Siding.X & Perforated Siding Product information Siding, Siding.X and perforated Siding (profile depth 22 mm)

Siding, Siding.X and perforated Siding (profile depth 22 mm)

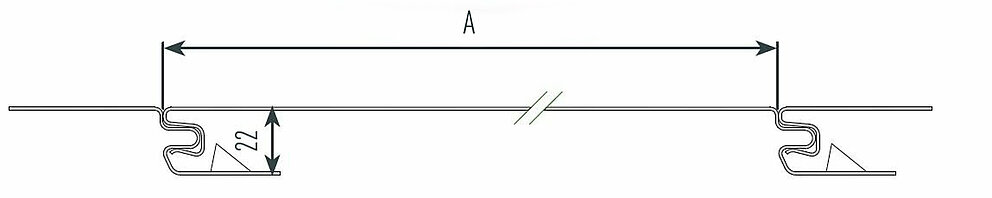

A = visible width | Without shadow gap (dimensions in mm)

Note

Production of perforated siding with a shadow gap is not possible.

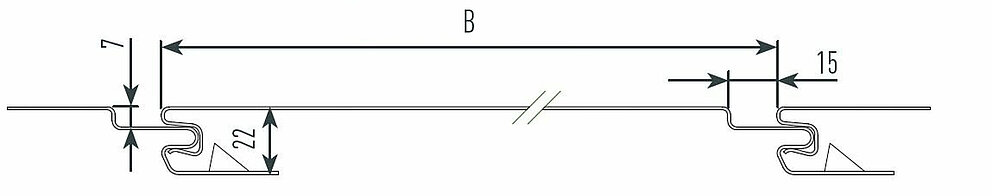

B = visible width | With shadow gap (dimensions in mm)

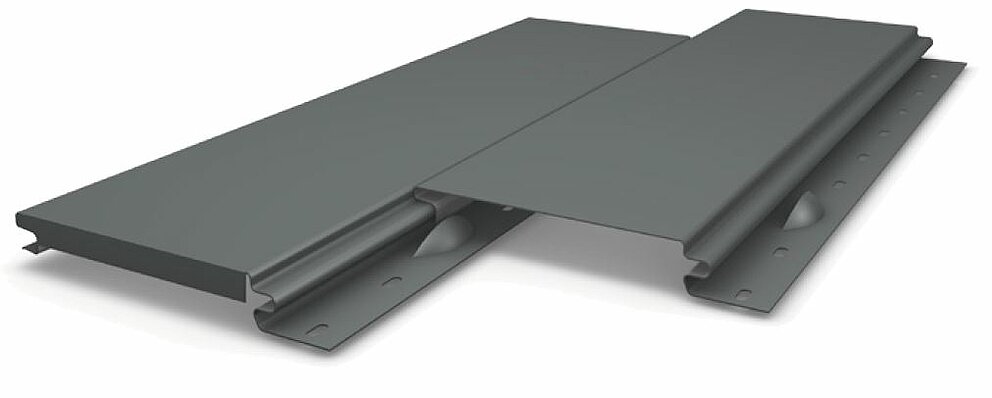

Standard formats for siding

  • 138 x 0.7 mm
  • 200 x 1.0 mm
  • 300 x 1.2 mm
  • 400 x 1.2 mm

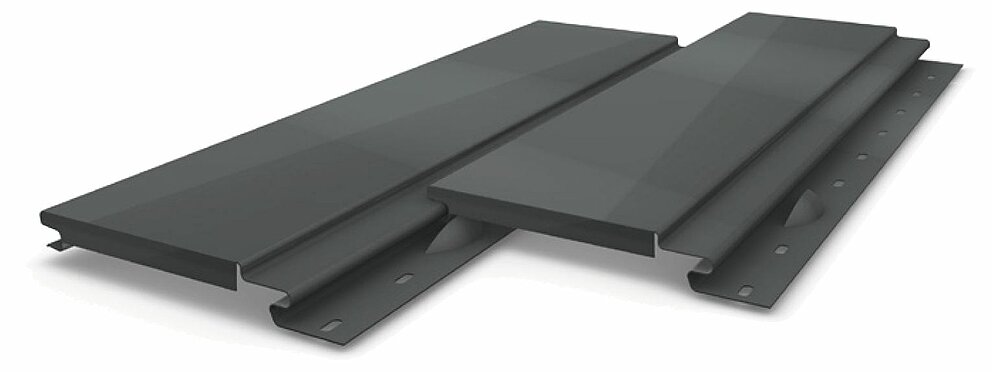

Standard formats for siding.X

  • 138 x 1.0 mm
  • 200 x 1.0 mm
  • 300 x 1.0 mm
  • 400 x 1.0 mm

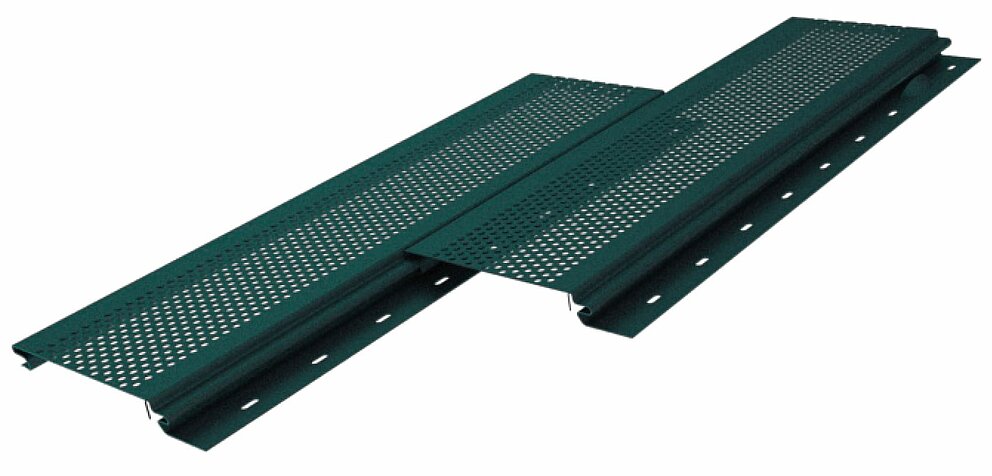

Standard formats for perforated siding

  • 138 x 1.0 mm
  • 200 x 1.0 mm
  • 300 x 1.2 mm
  • 400 x 1.2 mm
