Installation guidelines
Installation guidelines
Please select one or more chapters to download.
Table of contents
Façade Siding, Siding.X & Perforated Siding Product information Overview of accessory profiles

Overview of accessory profiles

Ensure that the accessory profiles have been agreed and are consistent with the differing profile depths of 22 mm and 32 mm.

All dimensions in mm.

Accessory profiles (profile depth 22 mm)

The red arrow indicates the colour side of the accessory profiles in each case.

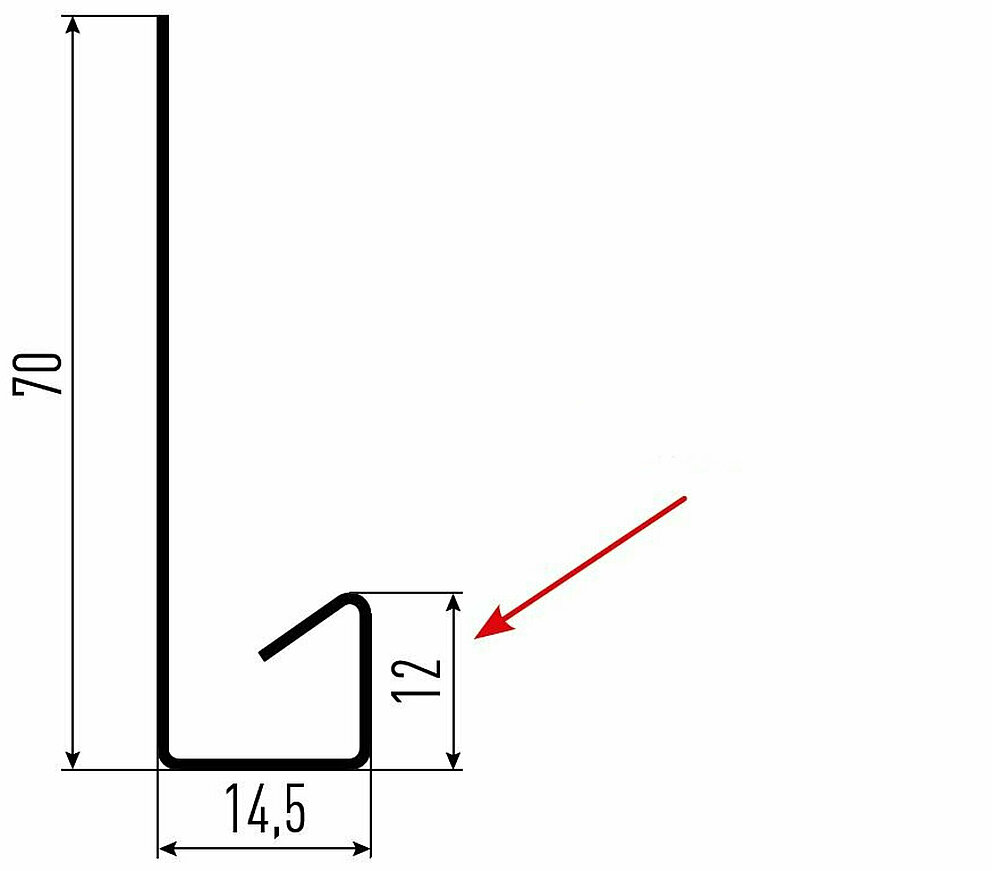

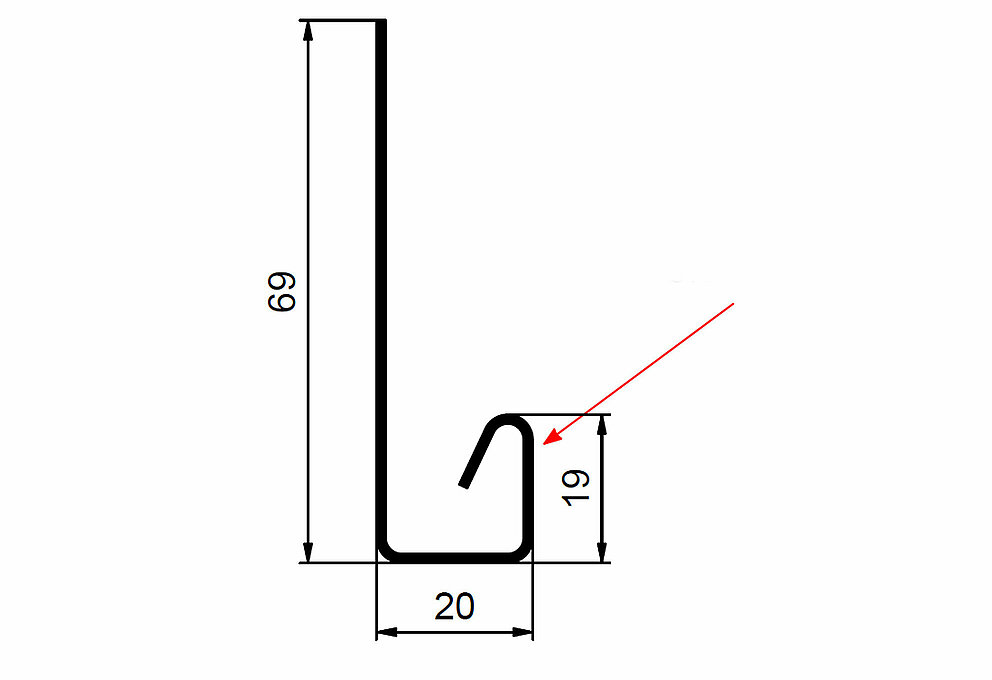

Starter profile

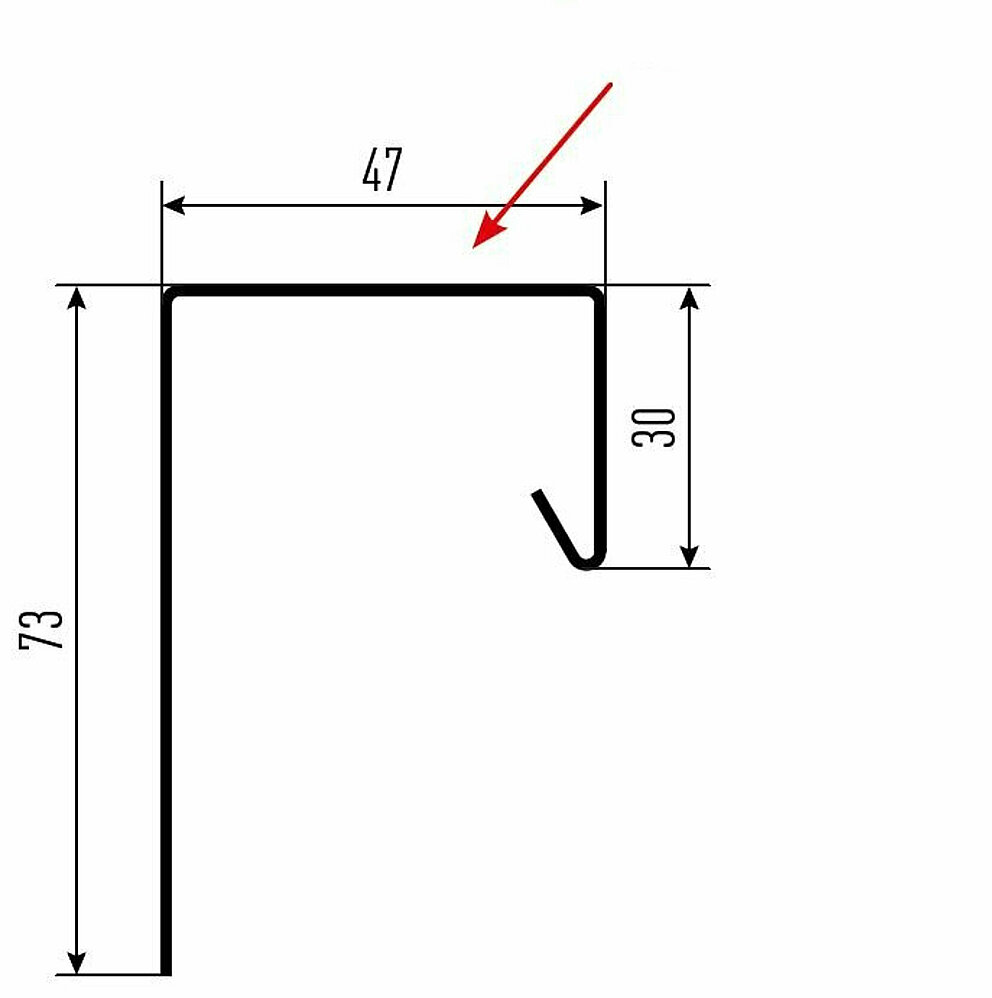

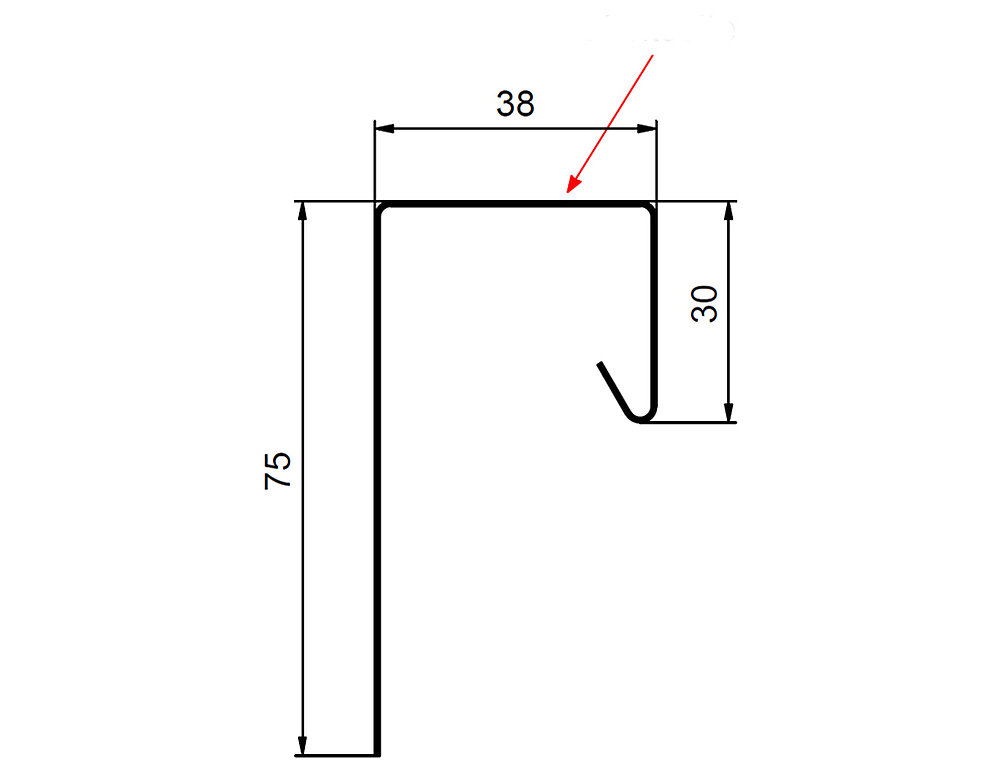

Pocket flashing

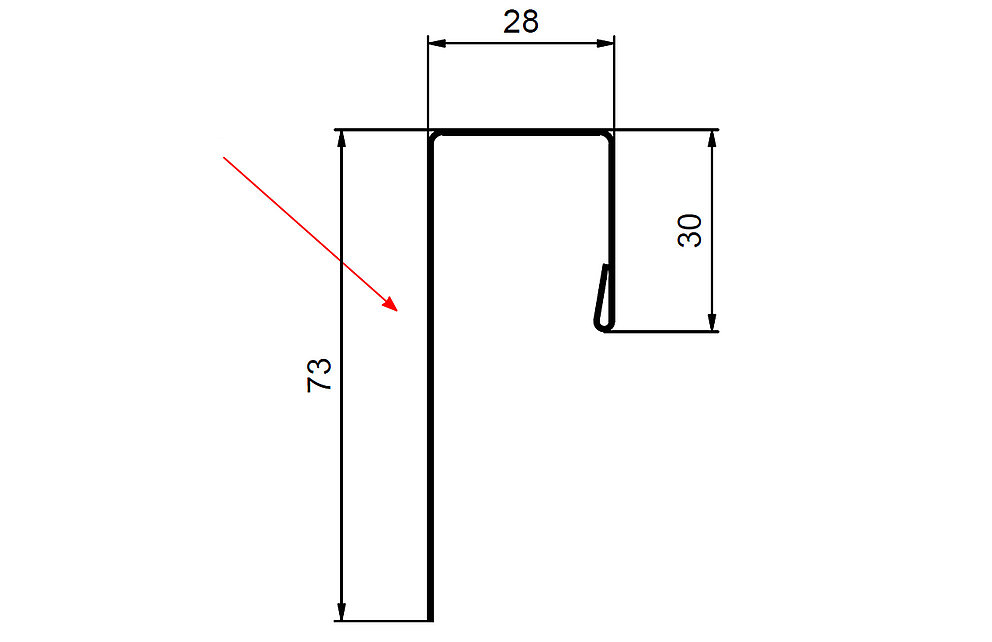

Canted channel profile, flush

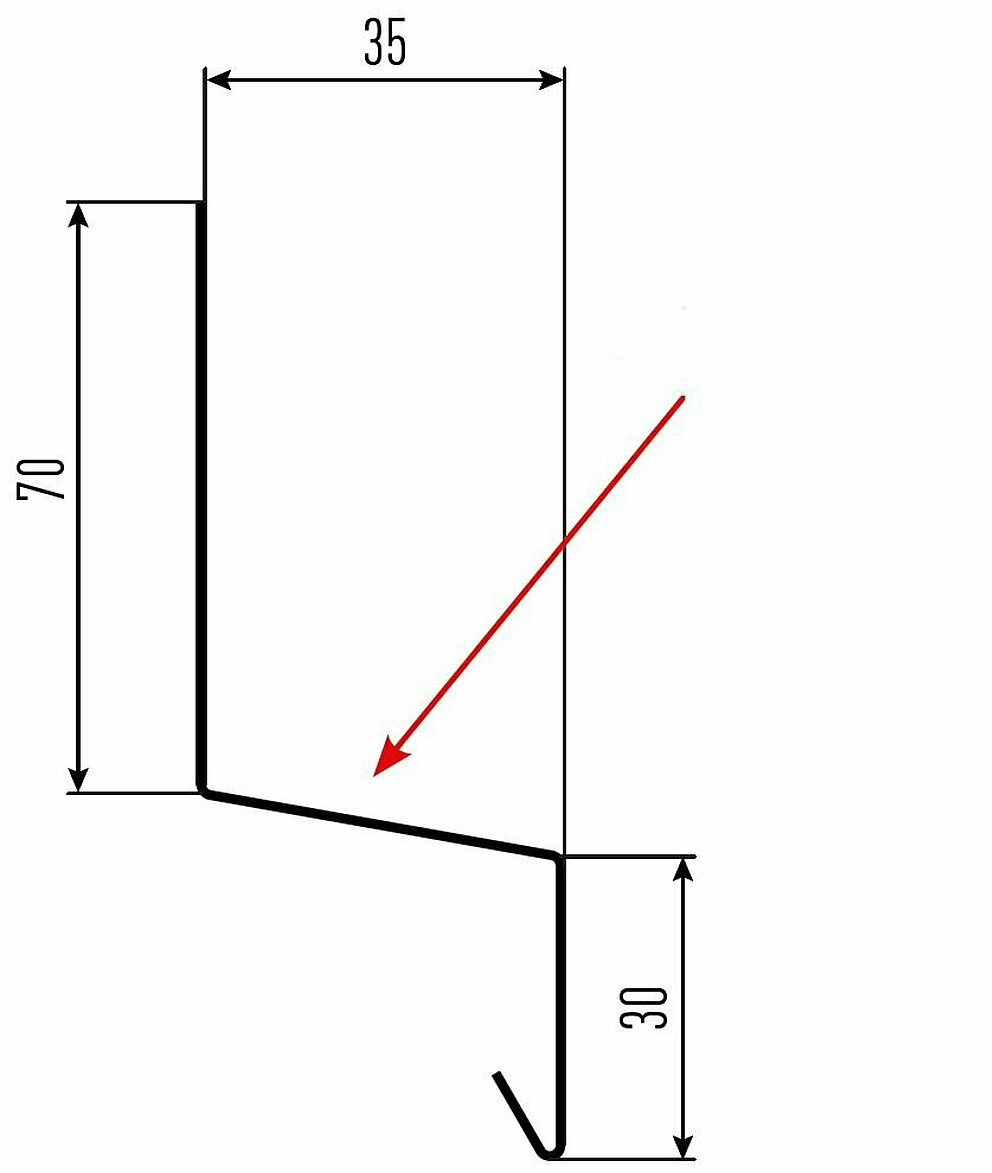

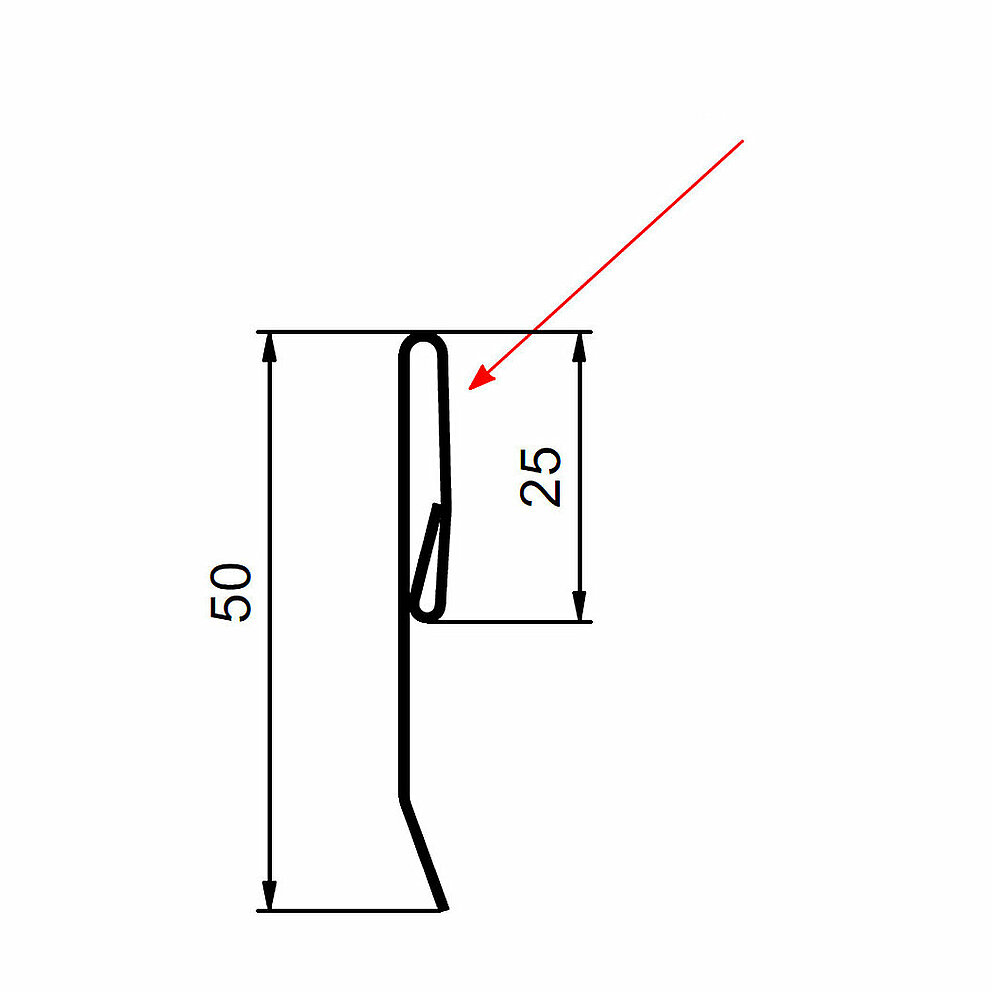

Drip

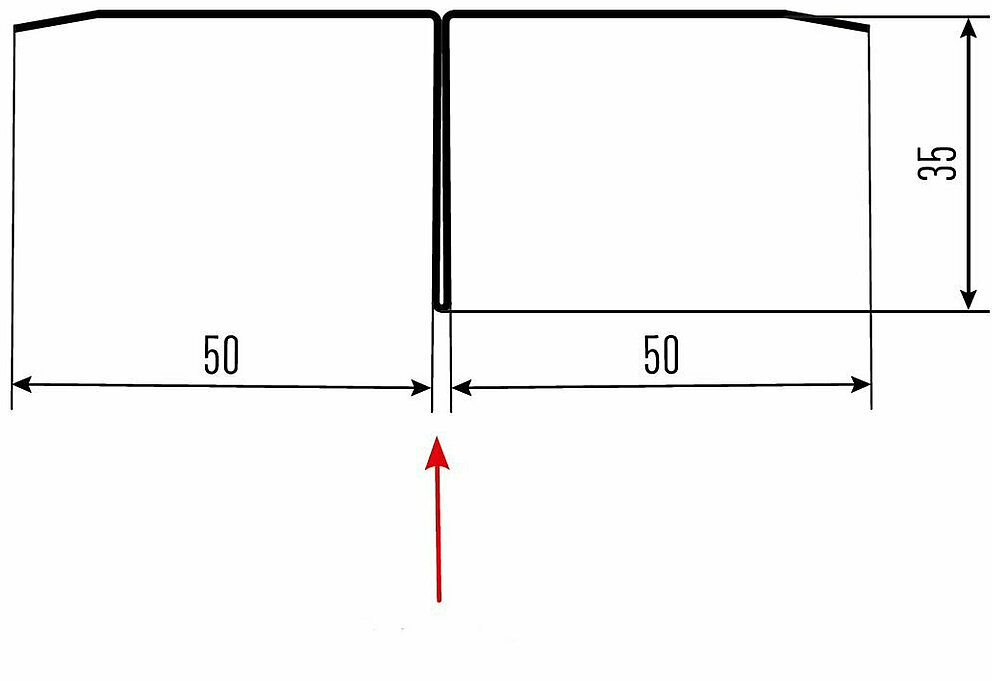

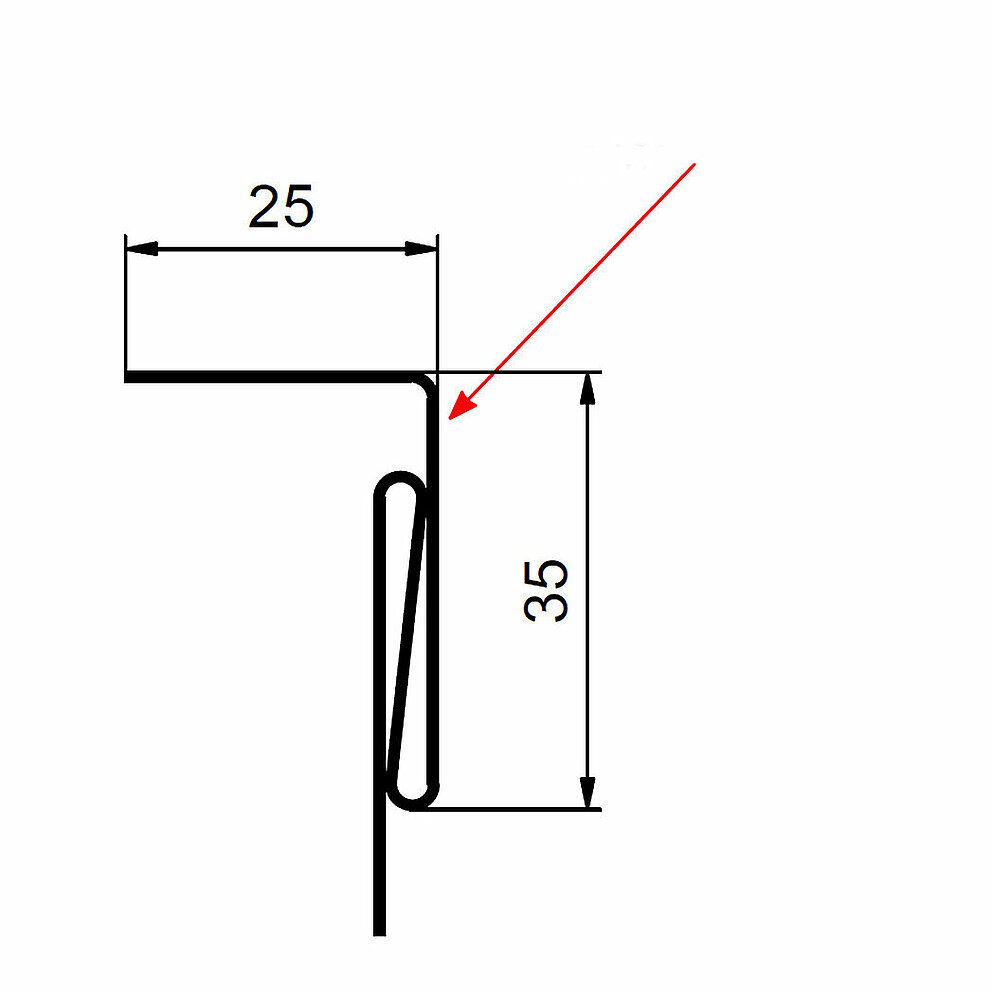

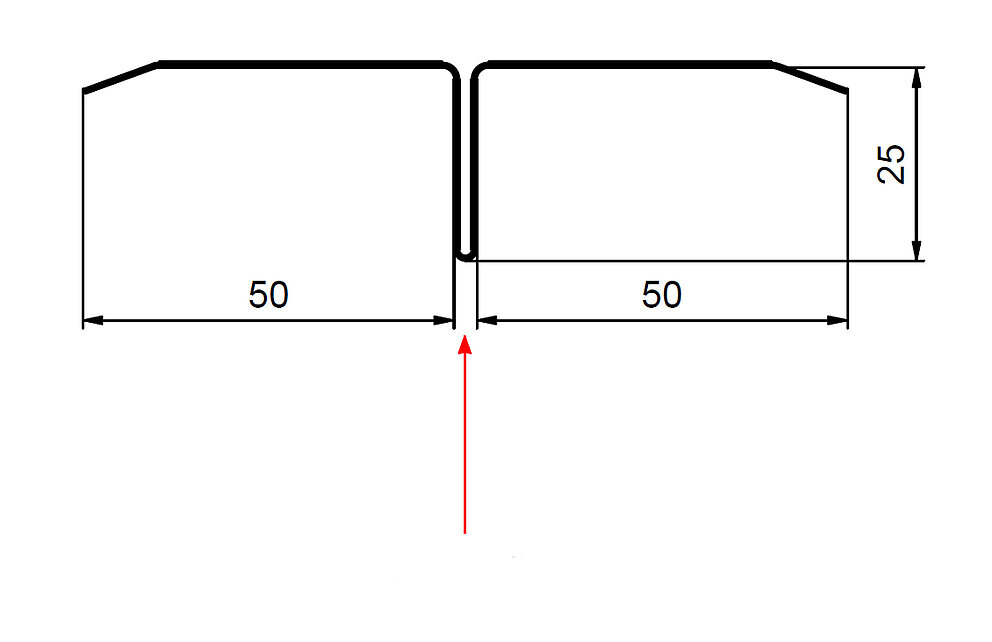

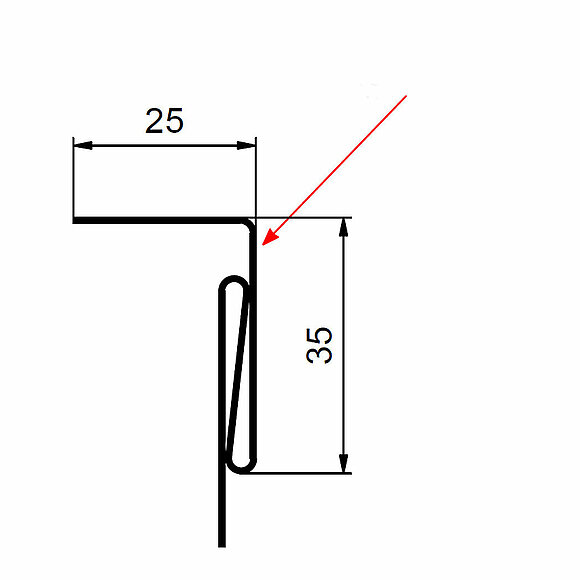

Joint connection

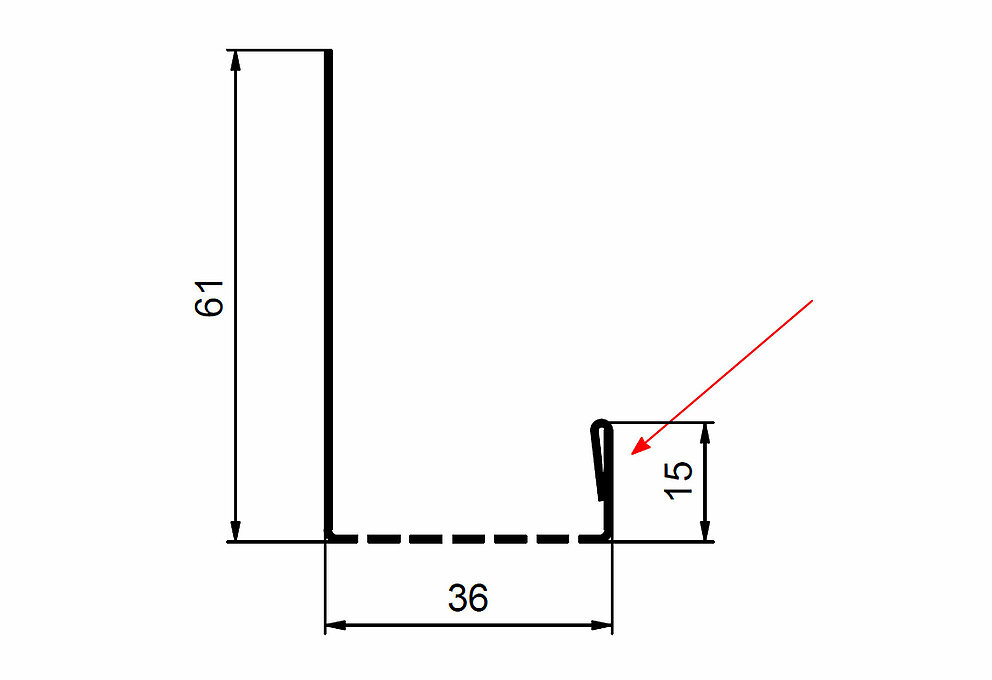

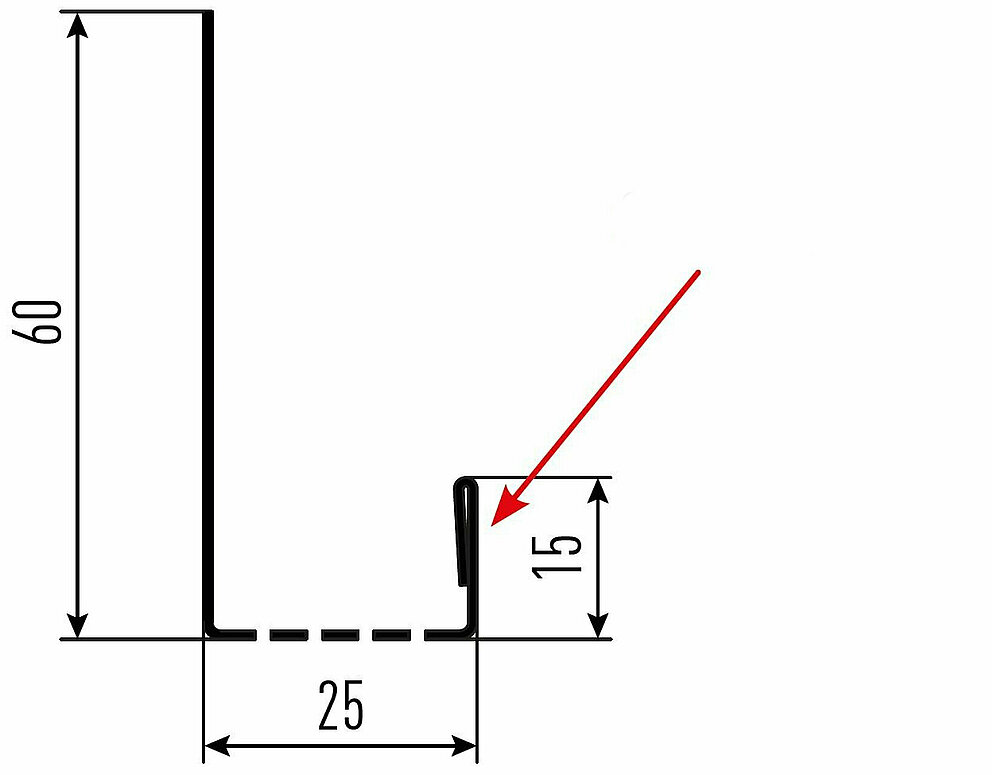

Perforated starter profile

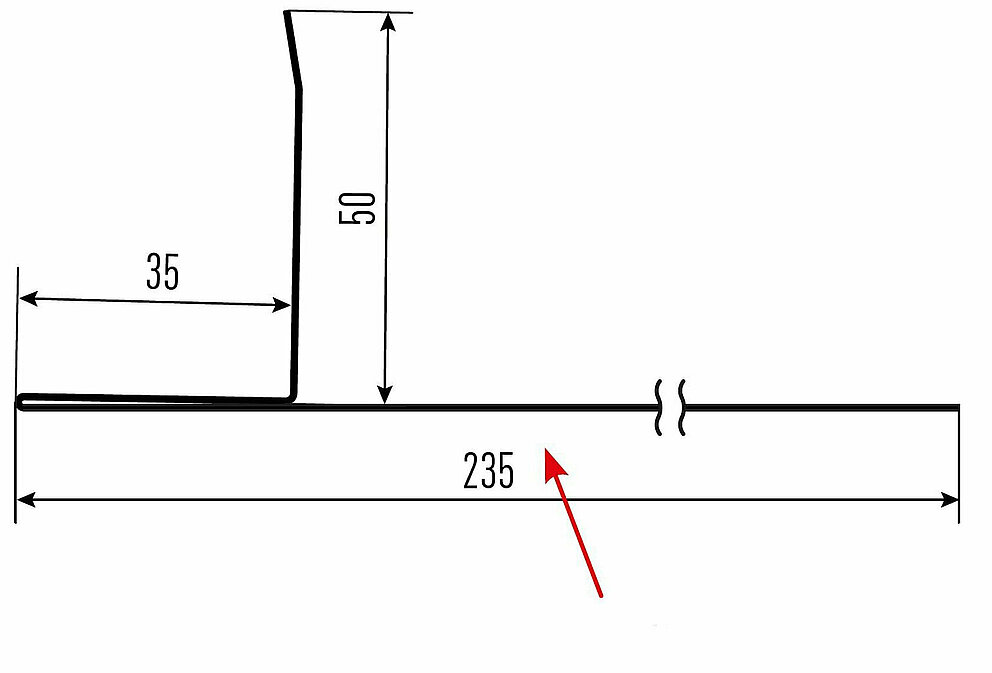

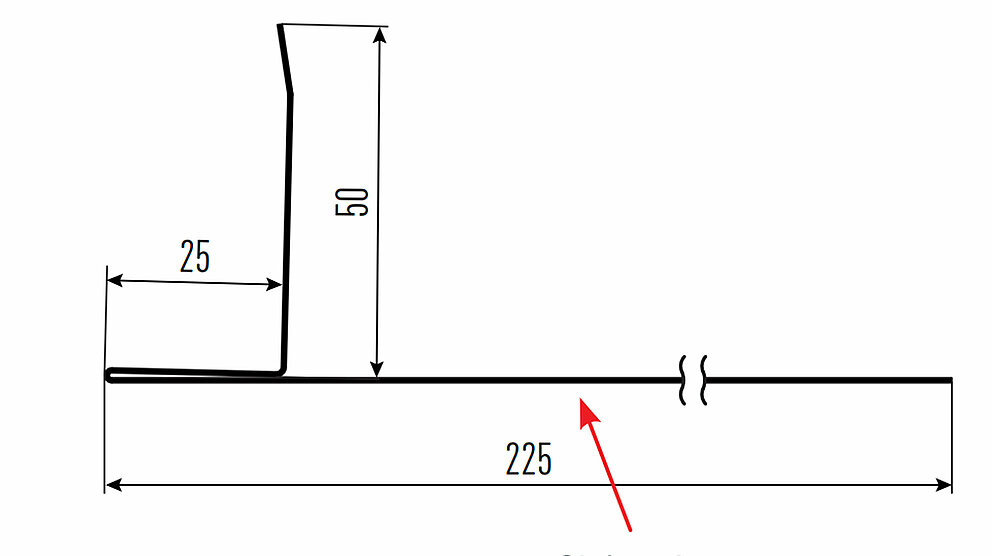

Jamb flashing

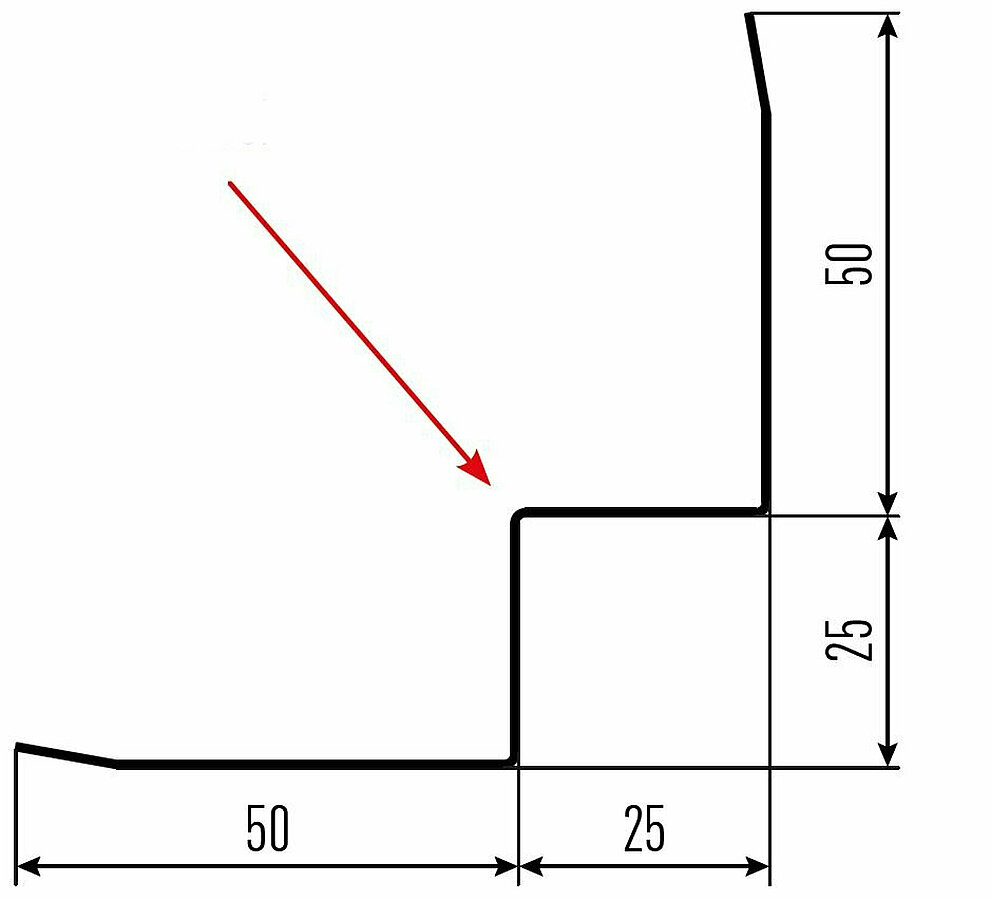

Internal corner (one-piece)

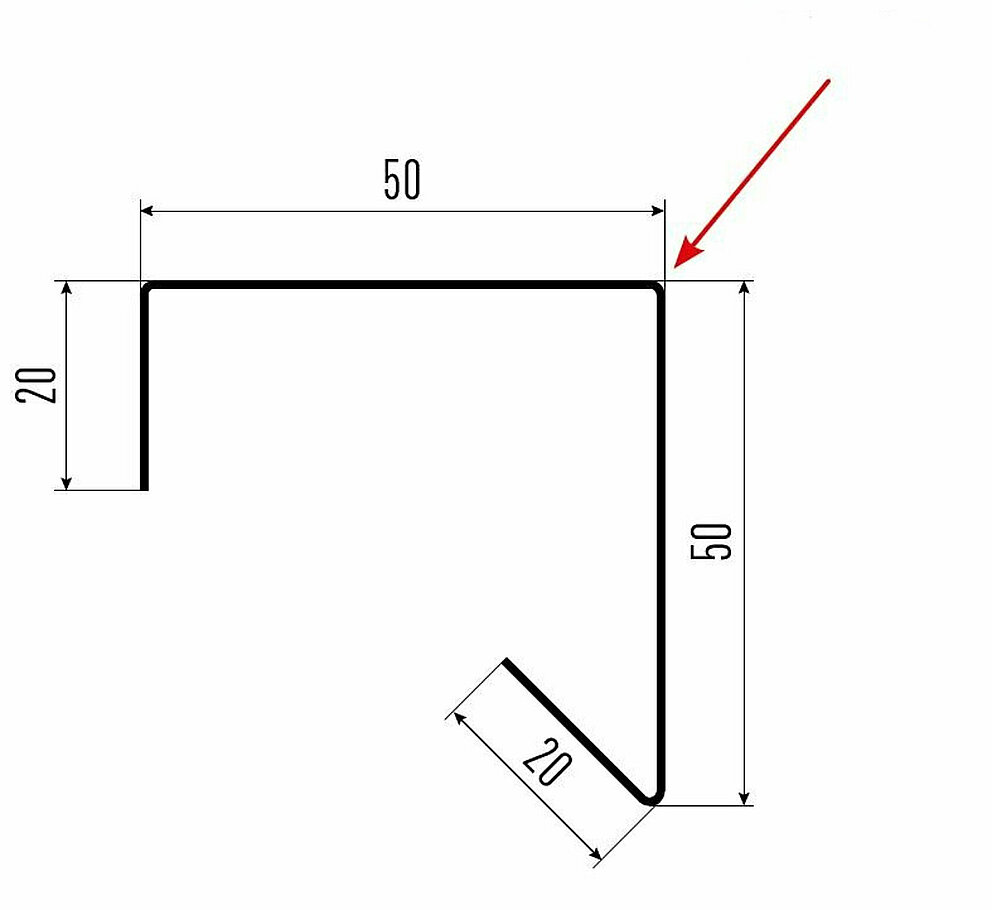

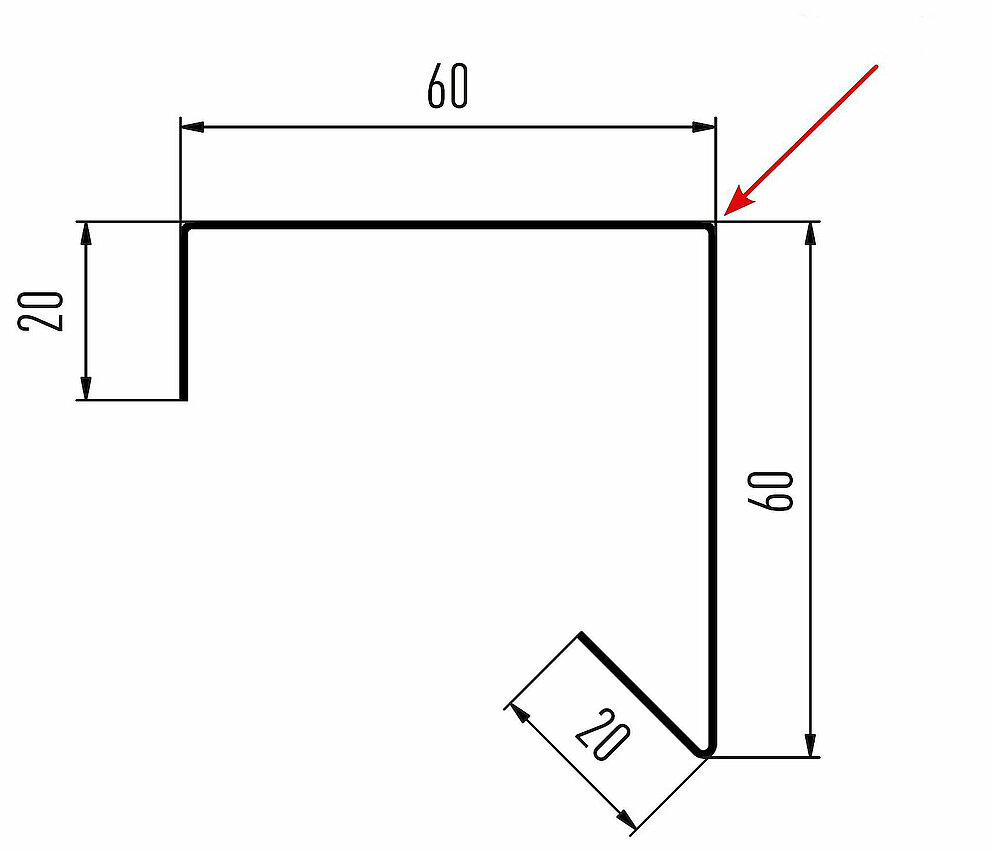

External corner (in several parts)

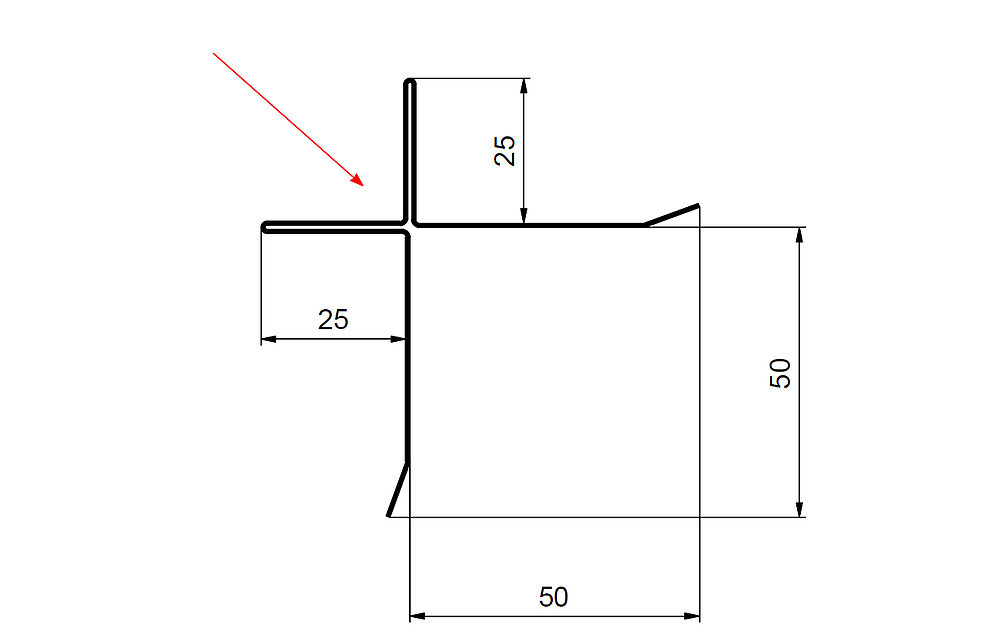

External corner (one-piece)

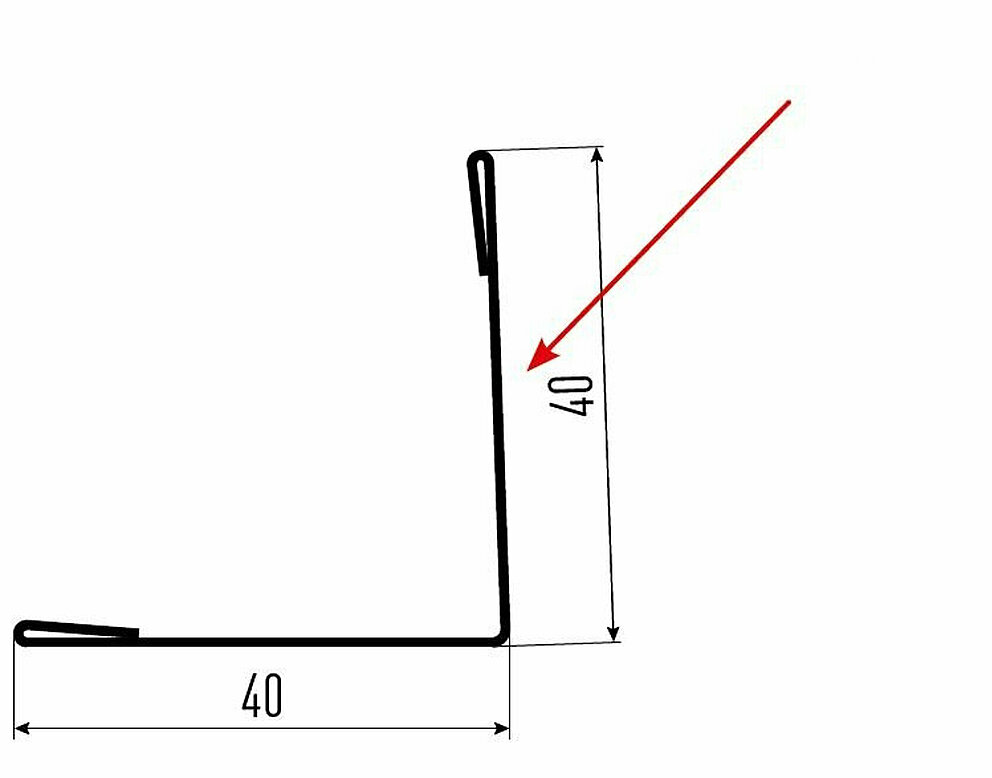

External corner bracket

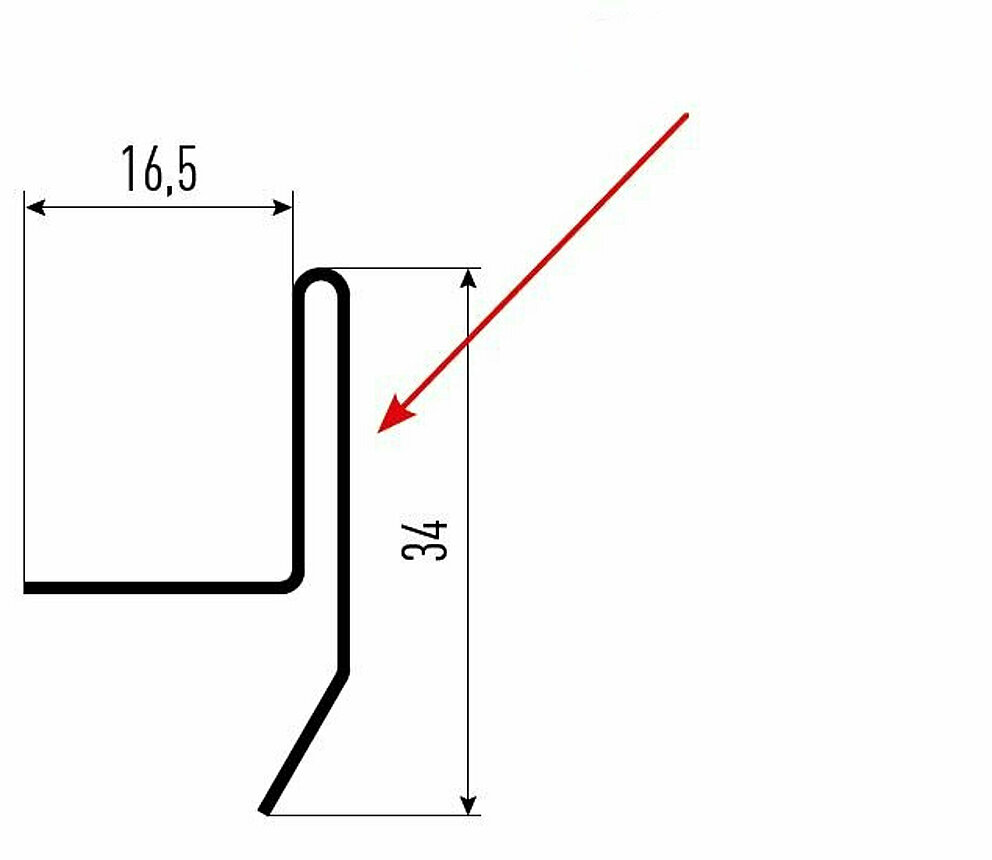

End profile

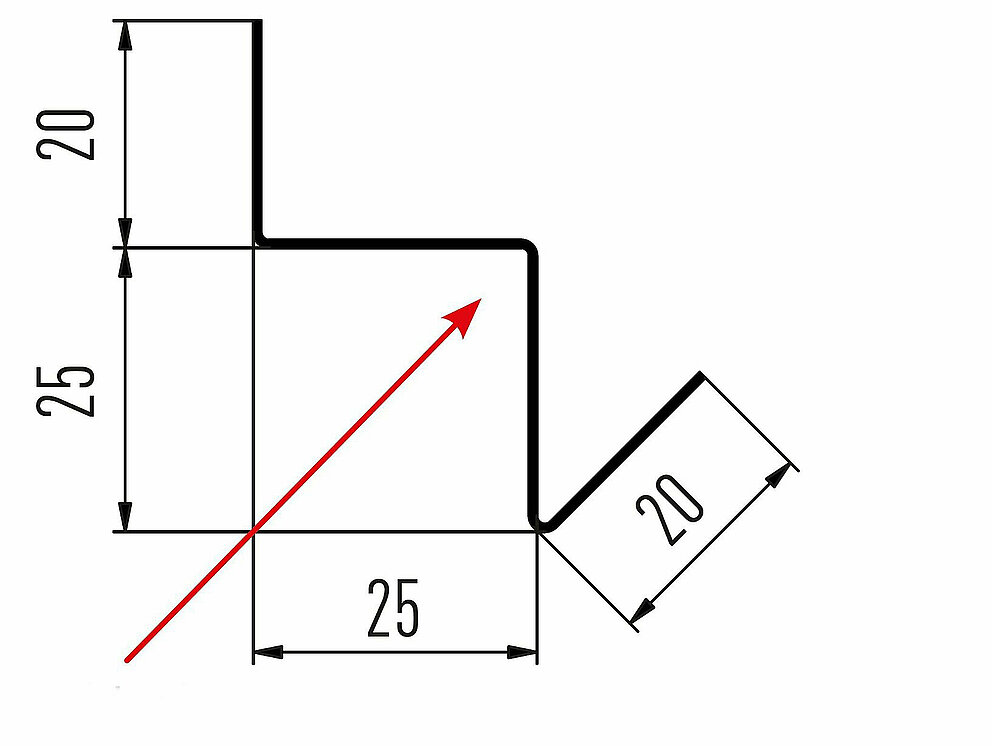

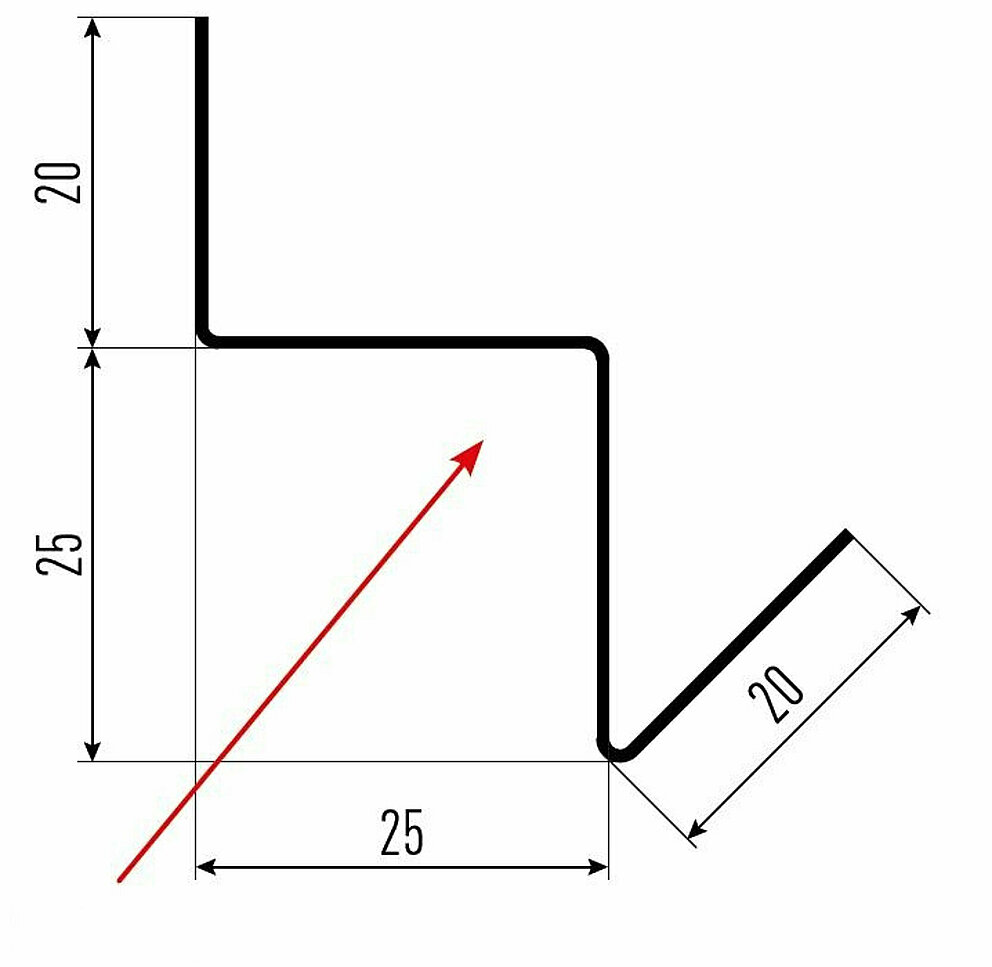

Internal corner (in several parts)
Channel profile (flashing strip)

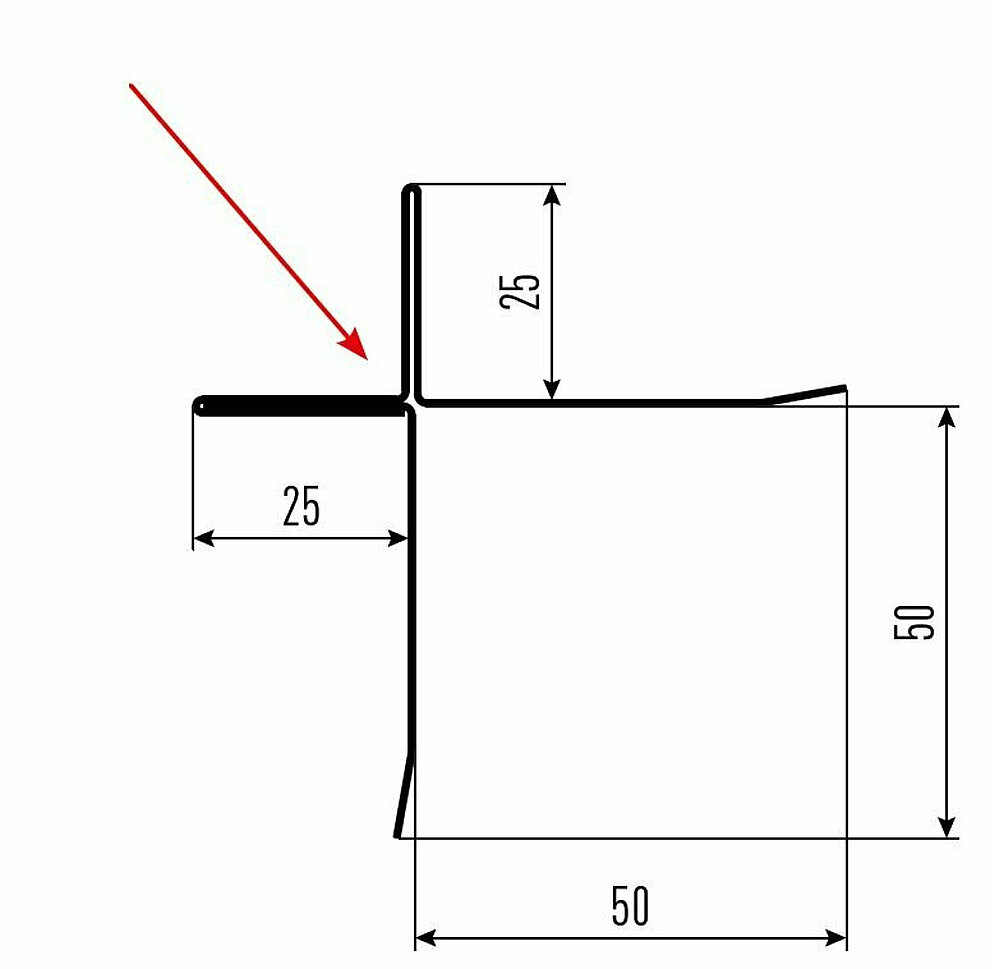

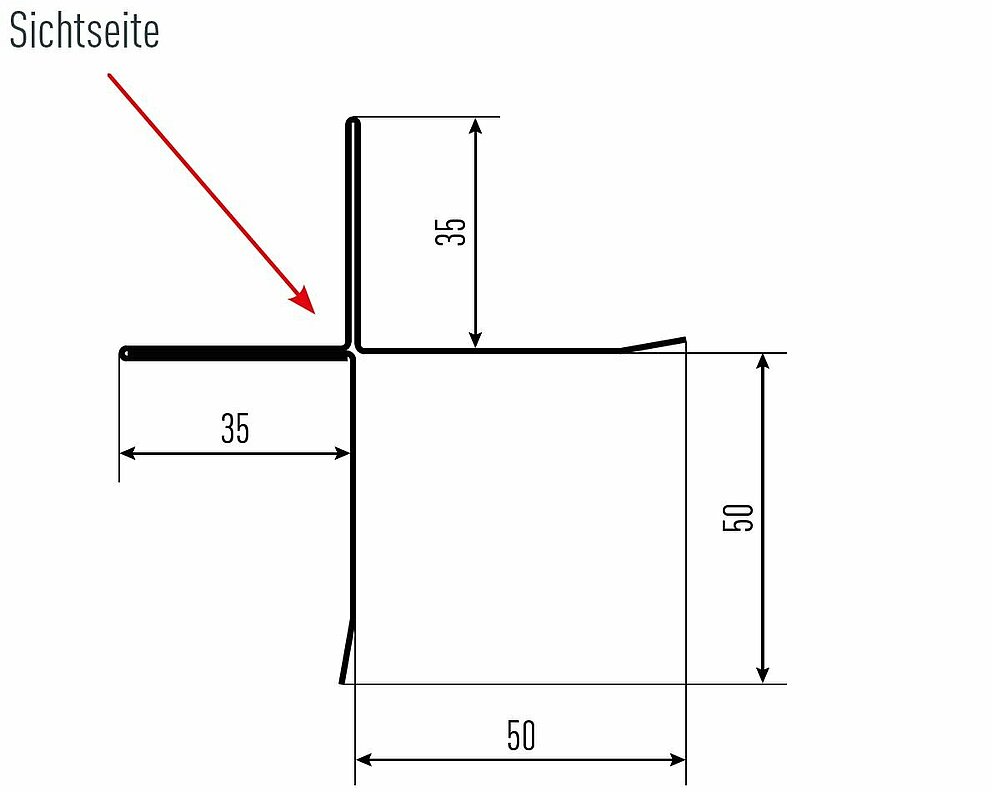

External corner (2 parts)

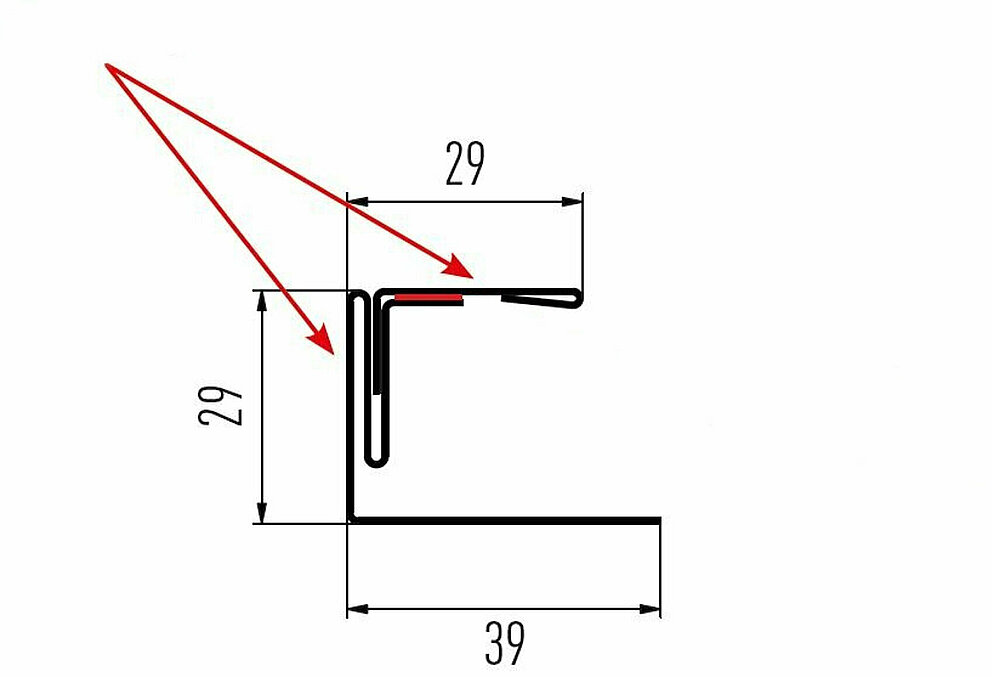

End profile glued (two parts)

Accessory profiles, profile depth 32 mm

The red arrow indicates the colour side of the accessory profiles in each case.

Starter profile
Pocket flashing

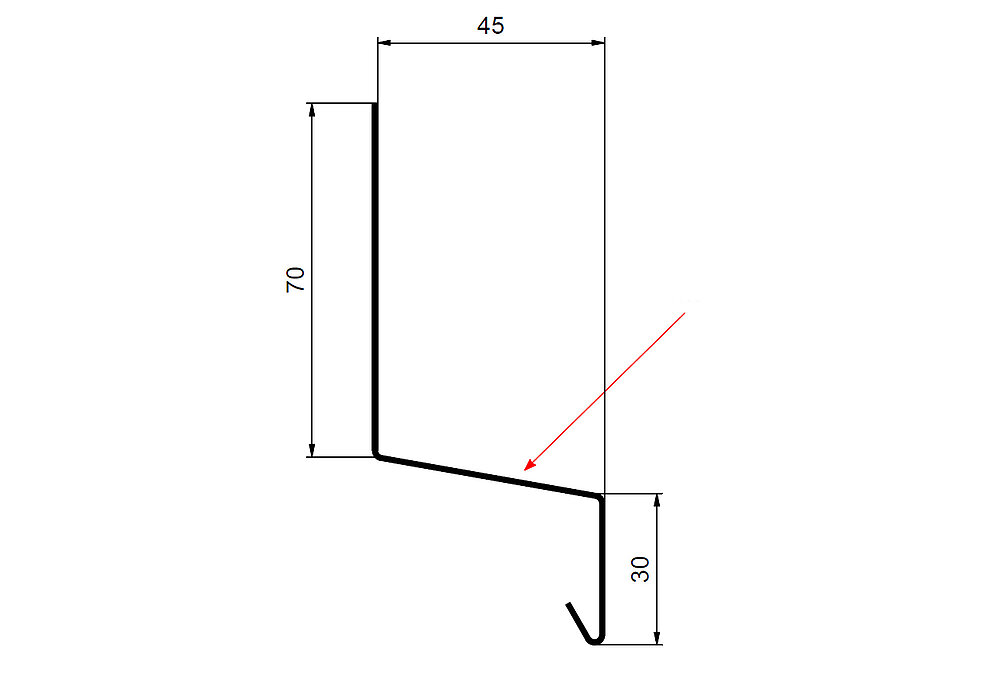

Drip
Joint connection
Perforated starter profile
Jamb flashing

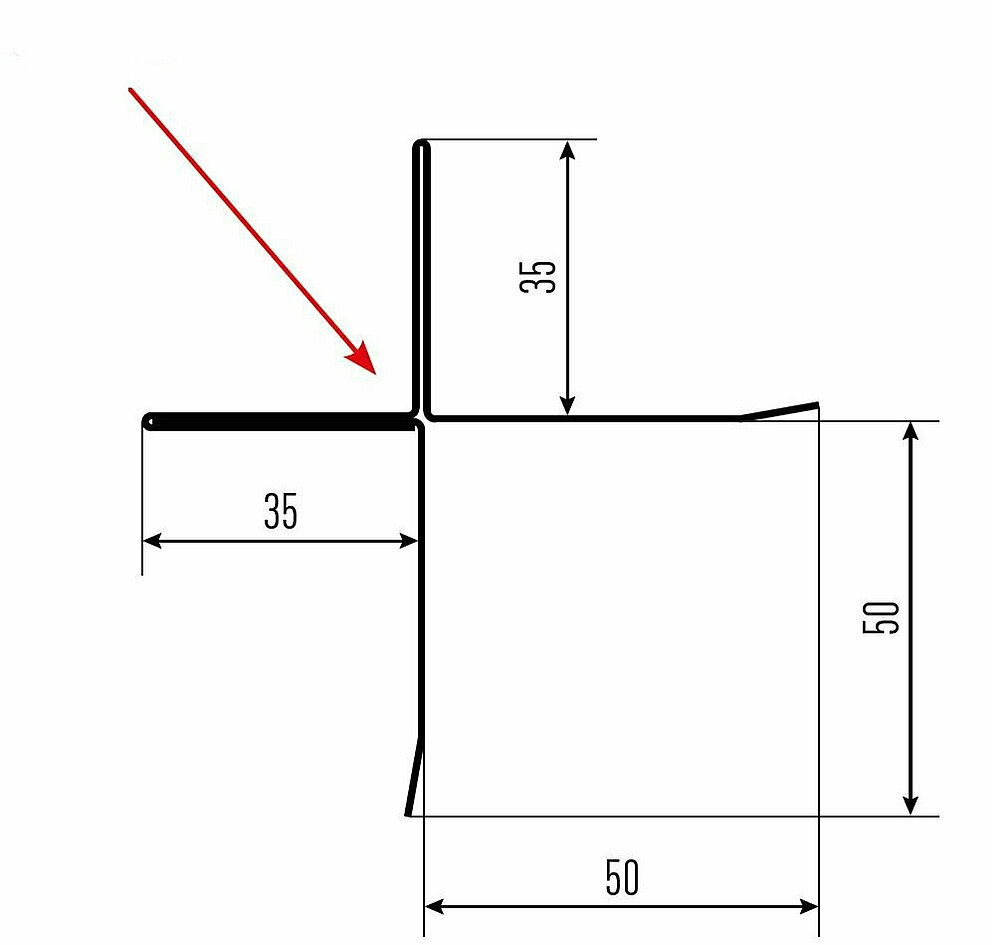

Internal corner (one-piece)
External corner (2 parts)
Channel profile (flashing strip)
External corner (in several parts)
Internal corner (in several parts)

Accessory profiles, regardless of profile depth

The red arrow indicates the colour side of the accessory profiles in each case.

Variant A
Variant B

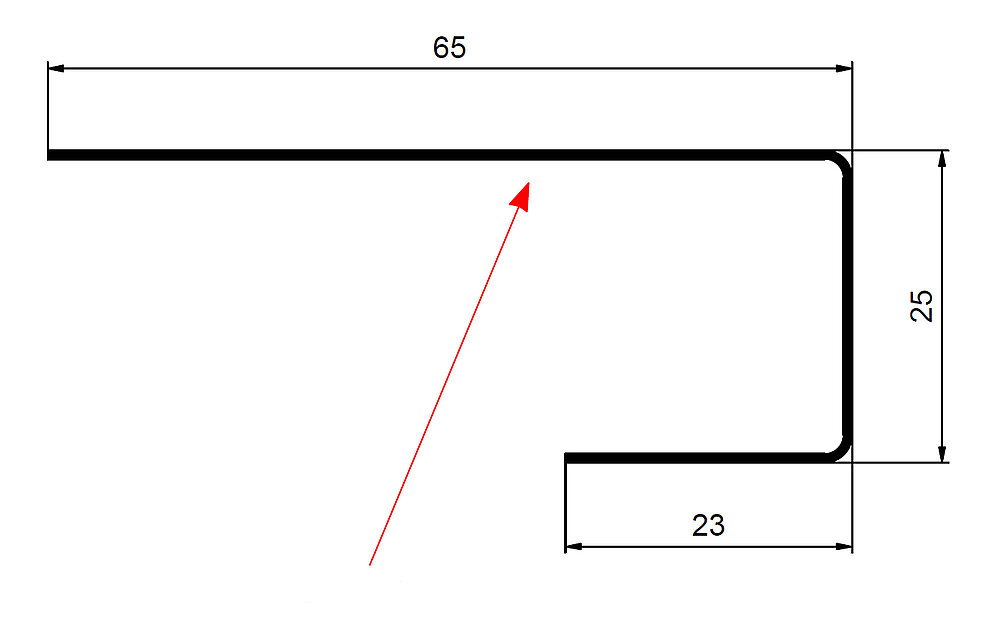

pocket flashing

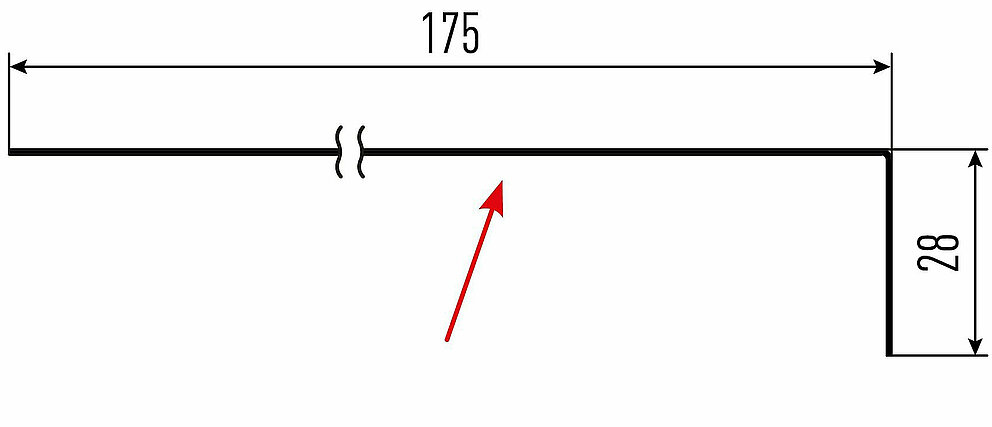

Base profile
