Installation guidelines
Installation guidelines
Please select one or more chapters to download.
Table of contents
Façade Siding, Siding.X & Perforated Siding Processing and installation Storm-proof clip

Storm-proof clip

Storm-proof clip for profile depth of 22 mm

Material: stainless steel
Requirement: Number of parts per m² depending
on the substructure spacing and
the siding.X installation pattern

Storm-proof clips must be installed for the following combinations of width and material strength:

  • Siding 400 × 1.2 mm
  • Perforated siding 400 × 1.2 mm
  • Siding.X 300 × 1.0 mm
  • Siding.X 400 × 1.0 mm

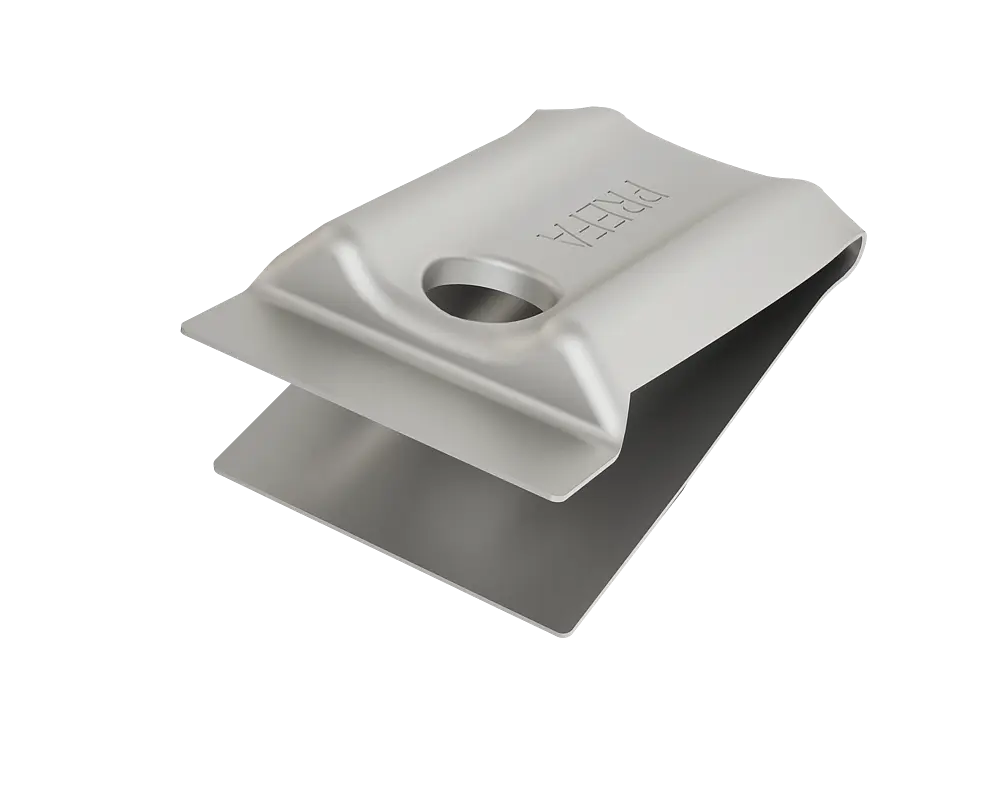

Storm-proof clip for profile depth of 32 mm

Material: stainless steel
Requirement: Number of parts per m² depending
on the substructure spacing

Storm-proof clips must be installed for the following combinations of width and material strength:

  • Siding 500 × 1.5 mm
  • Siding 600 × 1.5 mm
previous next

Note

You can only download content from one product category. If you require content from multiple categories, please create a separate download for each product area.
