Installation guidelines
Installation guidelines
Please select one or more chapters to download.
Table of contents
Façade Siding, Siding.X & Perforated Siding Processing and installation Replacing siding, siding.X and perforated siding

Replacing siding, siding.X and perforated siding

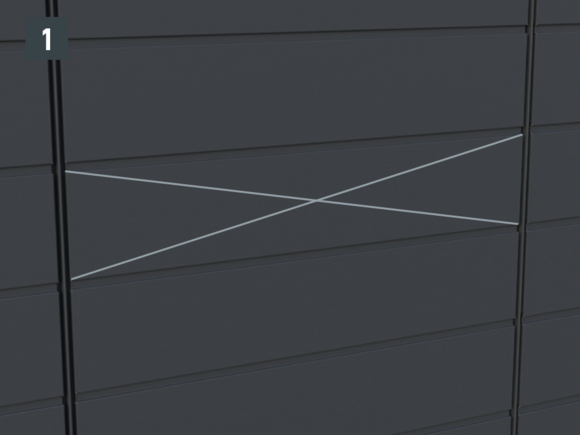

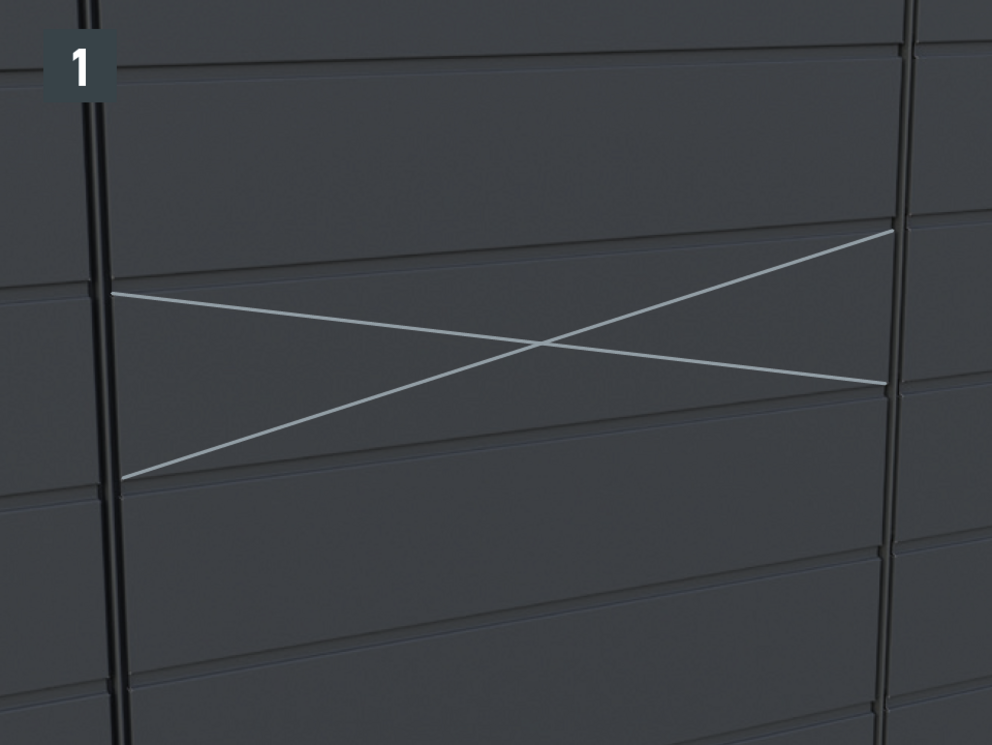

To replace a damaged siding (Fig. 1), proceed as follows:

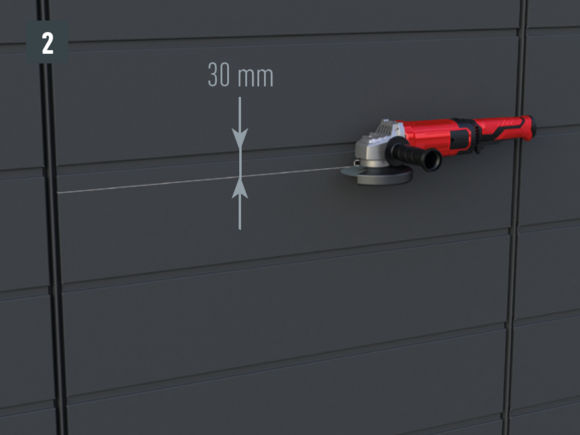

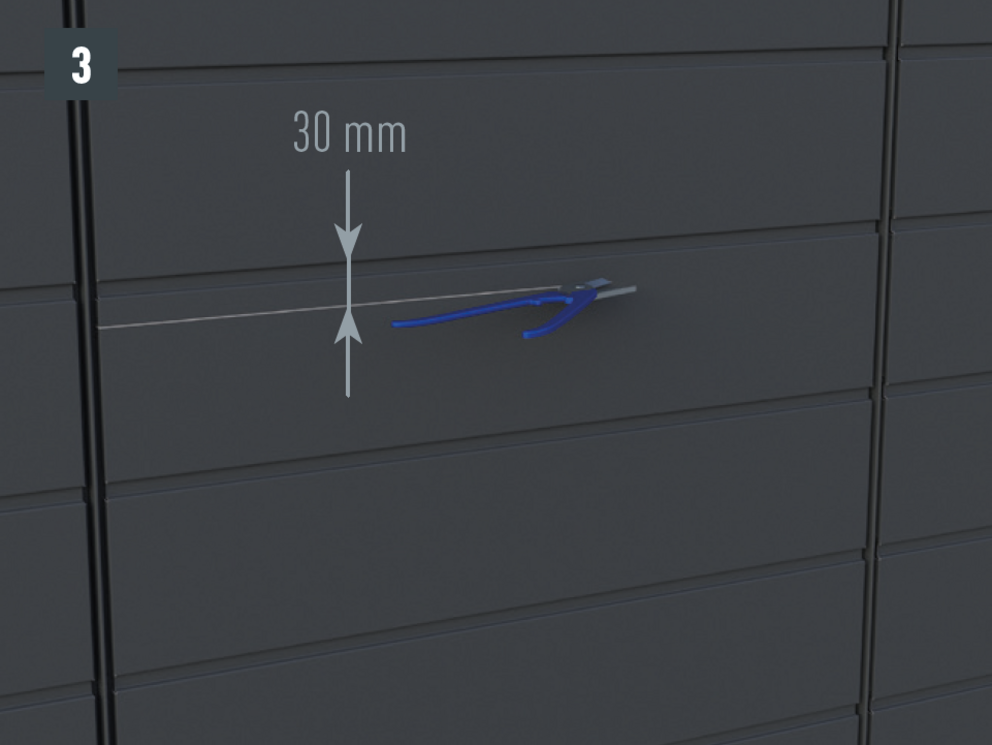

  • Cut out the damaged siding using an angle grinder or pelican snips. Keep a strip of metal, measuring approx. 30 mm, below the shadow gap to support the new panel (Fig. 2 and 3).

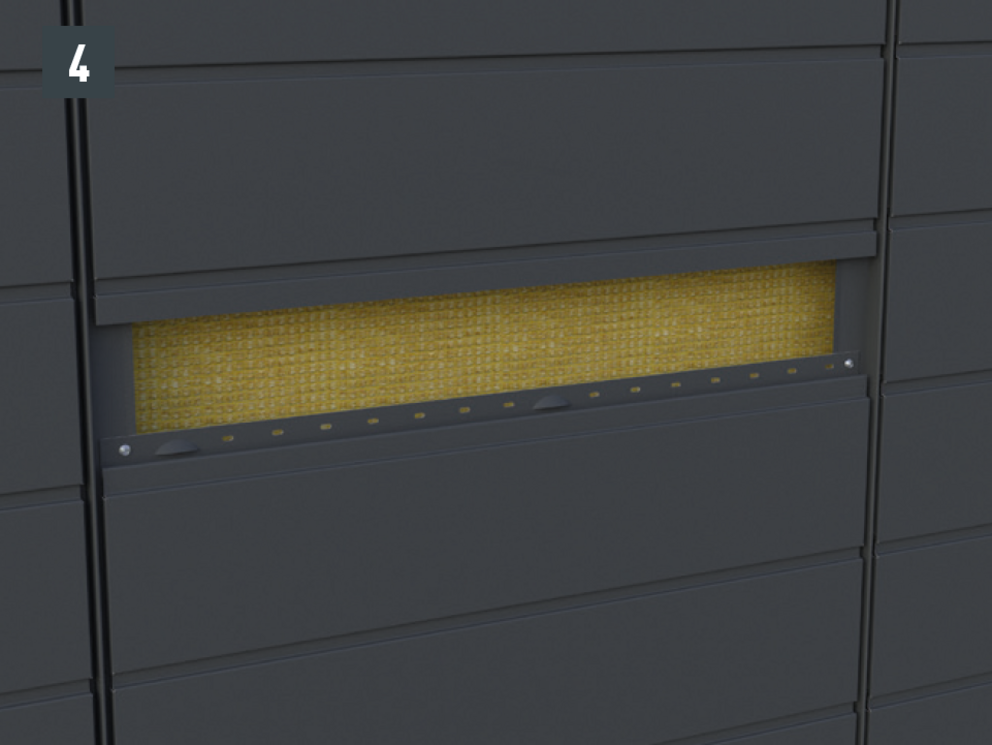

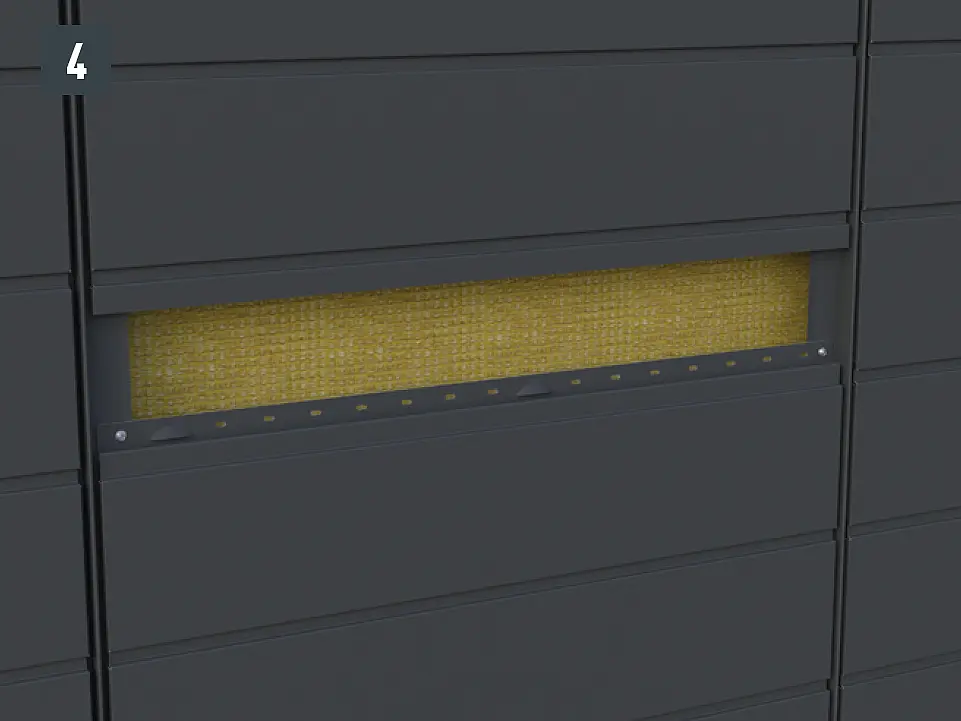

  • Then remove the damaged siding from the groove/tongue catch (Image 4).

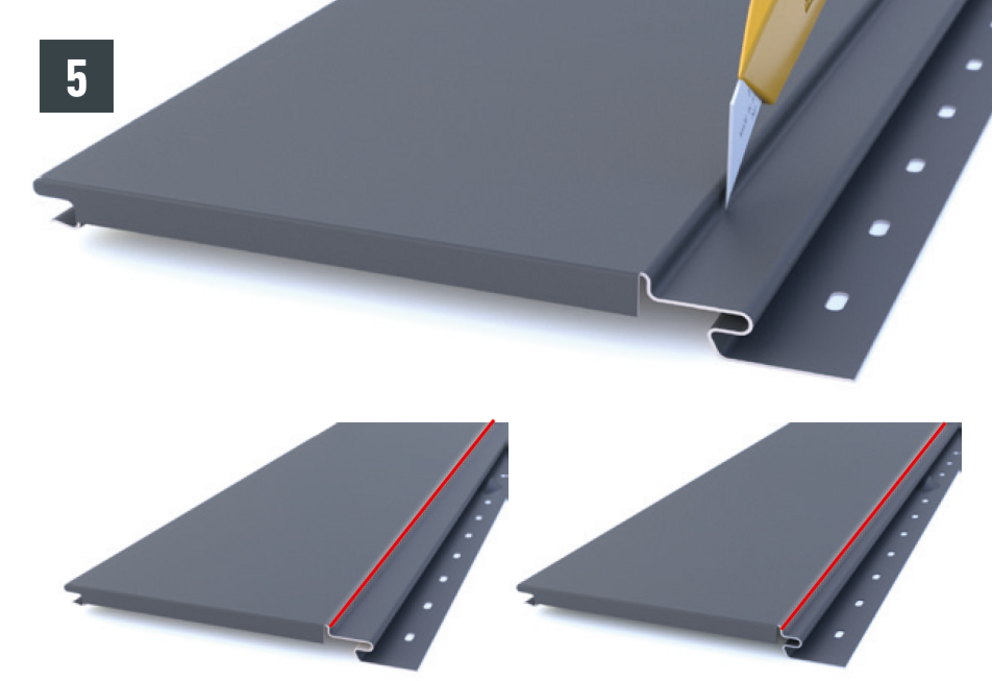

  • For the next step, cut along the bending line a few times as shown in image 5, using a sharp blade to get a straight break line. In this way, you will get a perfect breaking point (Image 5).

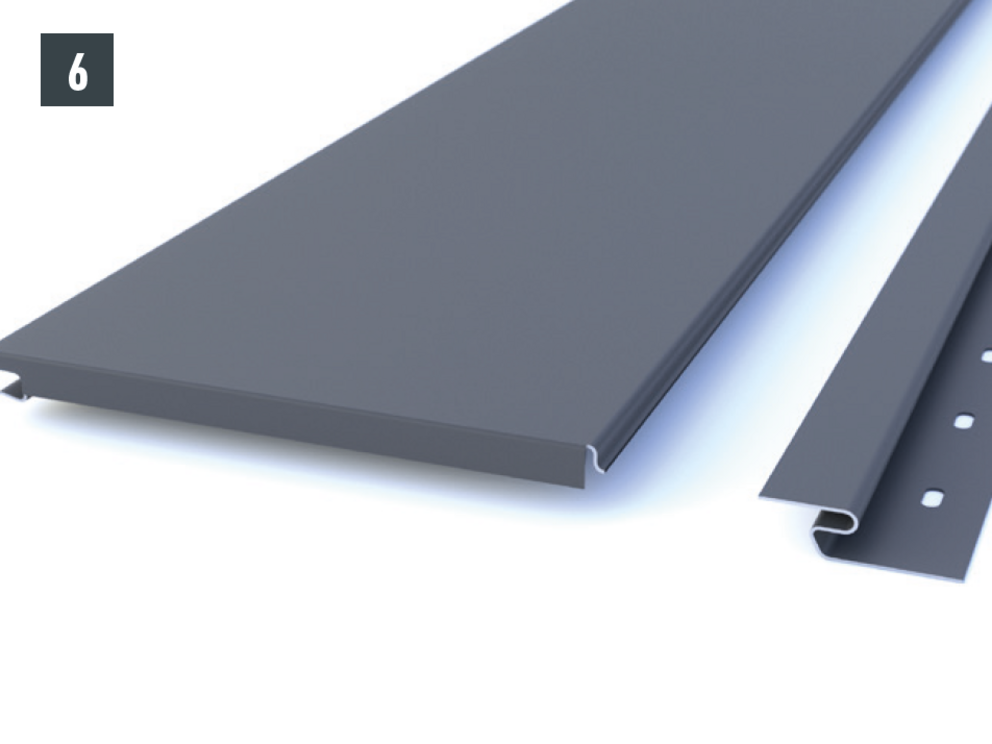

  • Break off the metal when bending it forwards and backwards (Image 6).

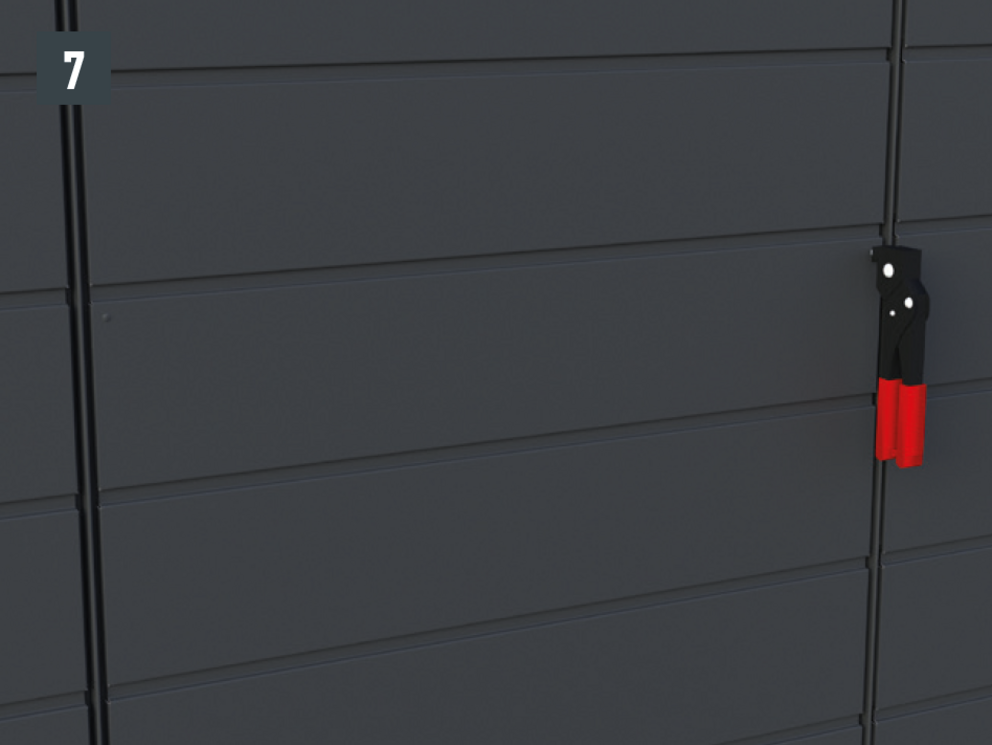

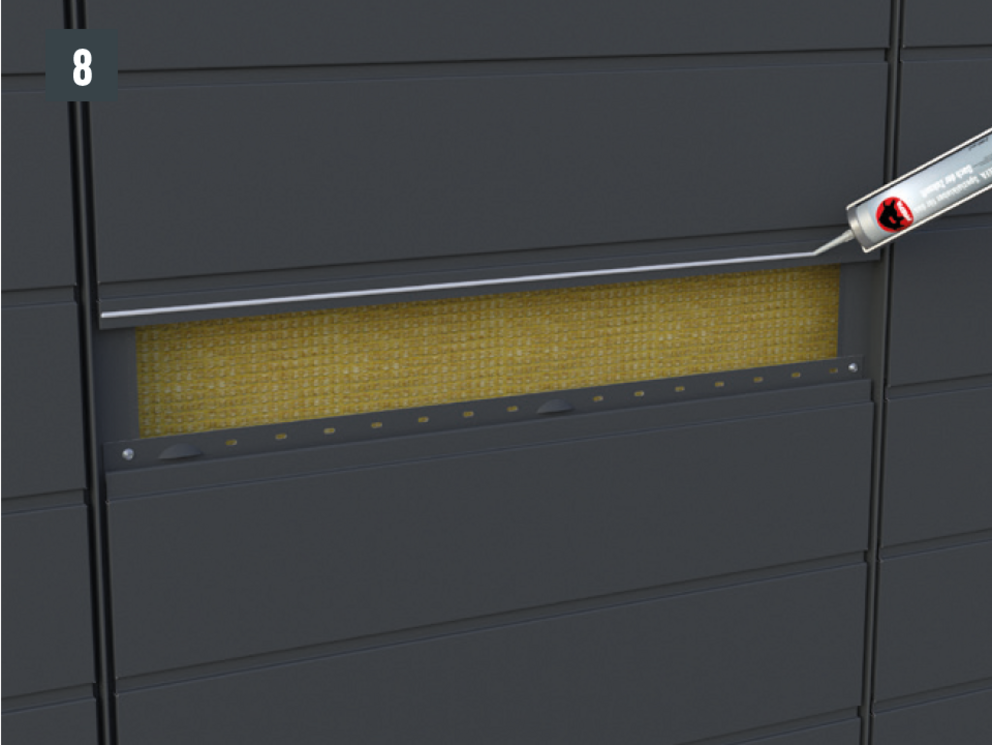

  • Finally, to replace the siding you could either use rivets for visible fixing or glue for hidden fixing. If using the bonding method, it is beneficial to apply pressure to the panel and keep it in place with tape until the glue has cured (observe gluing instructions, Fig. 7 and 8).
