Corner Siding

Note

Internal corner sidings are only possible for sidings without a shadow gap.

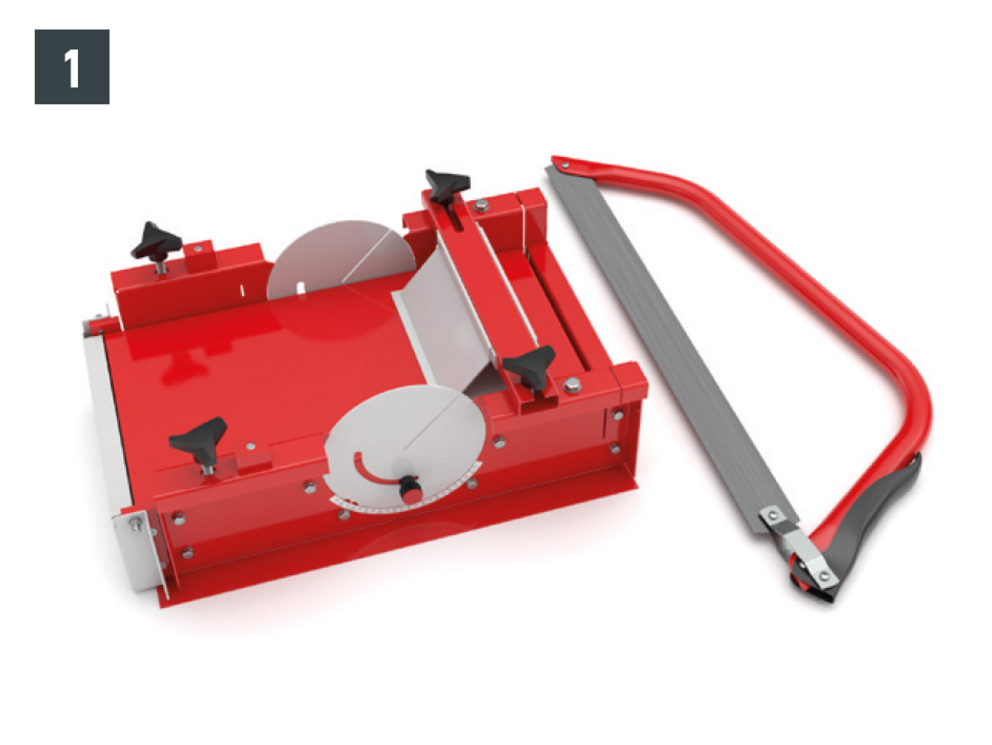

  • To manufacture a corner siding by hand, you need a cutting box with a miter saw (Image 1).

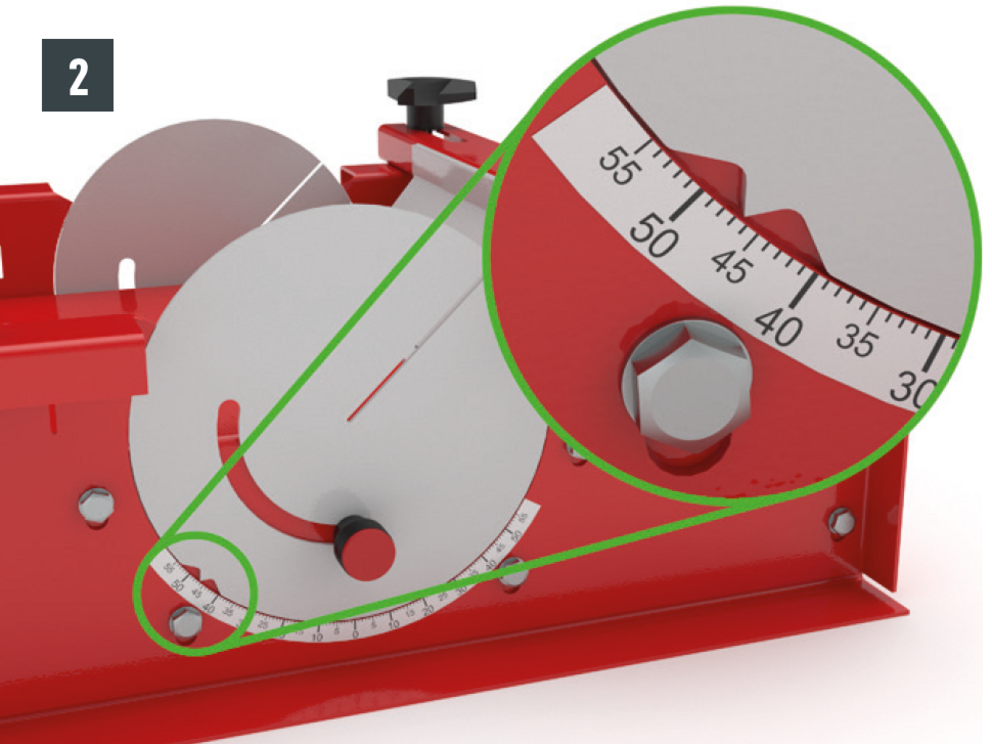

  • For a 90° corner, place the guide rail at approx. 46-47° on both sides (watch out for the handle springing back when bending (Image 2).

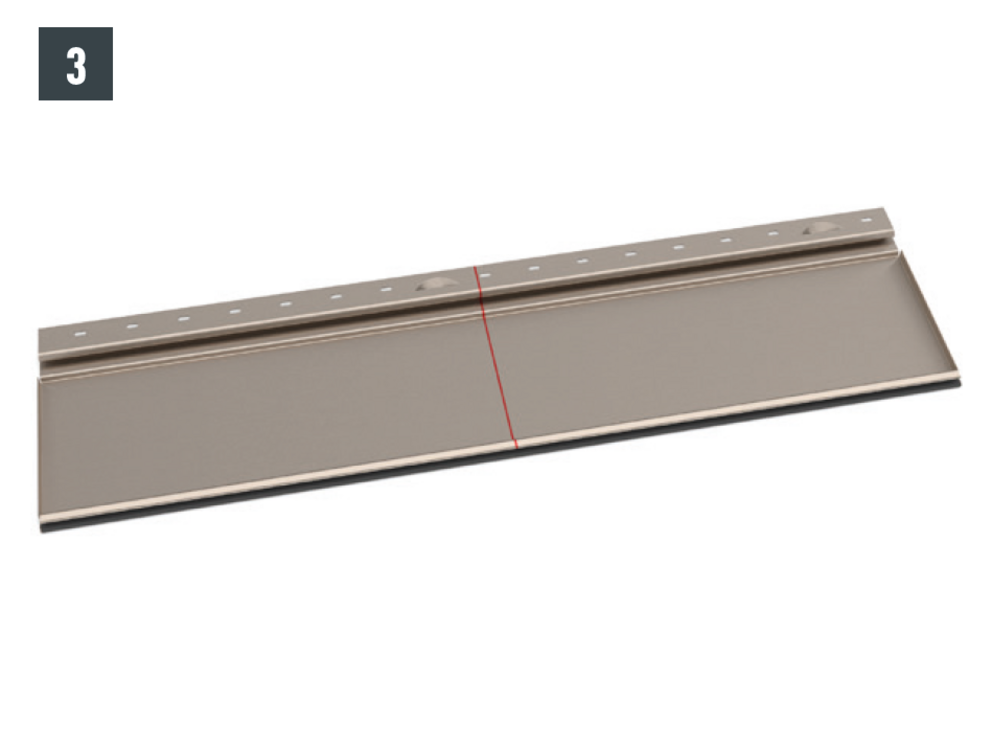

  • Then mark the bend line on the back of the siding (Image 3).

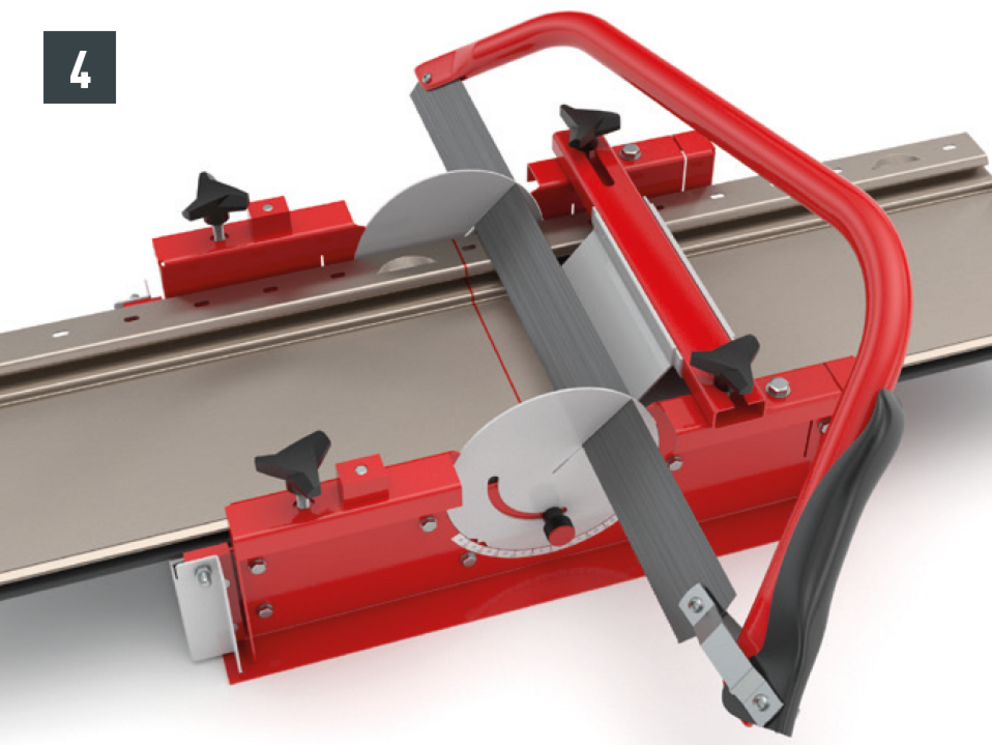

  • Next, fix the siding in the cutting box and cut along the guide rail (Image 4).

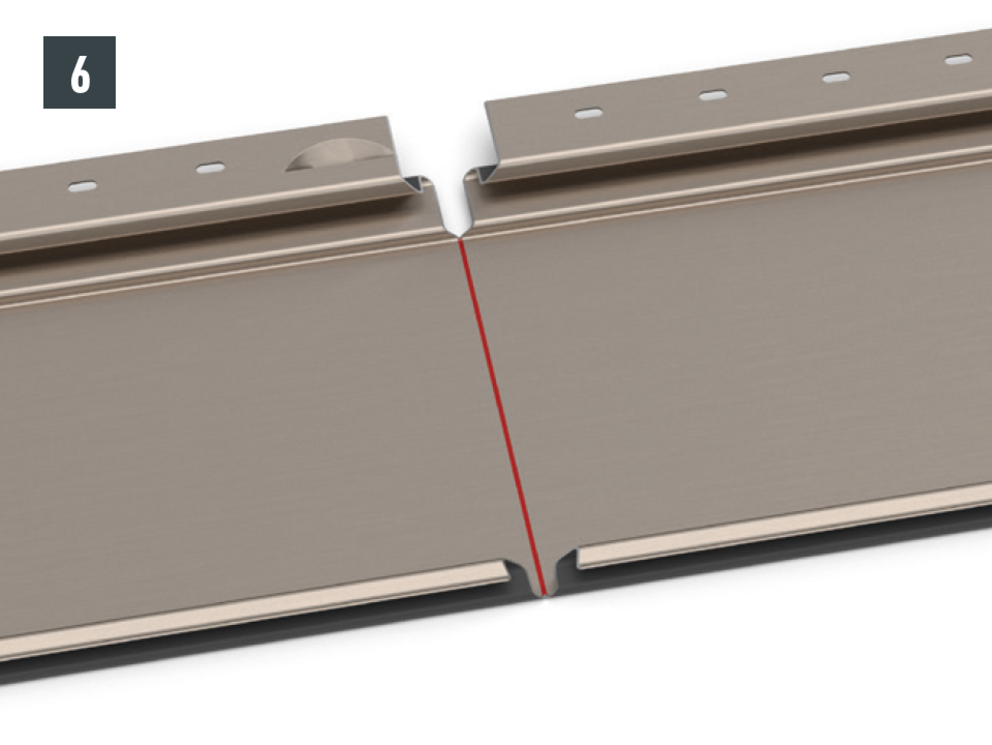

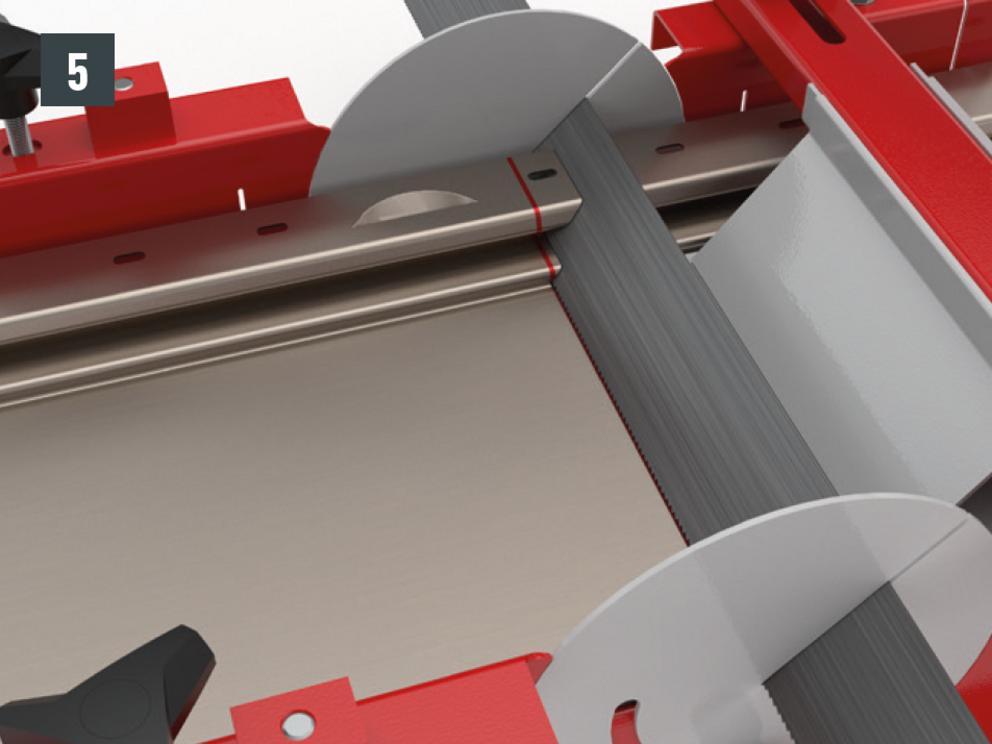

  • Do not saw too deep, as you will saw into the back of the siding otherwise. (Hold the saw at an angle to avoid sawing into it.) Otherwise there would be a paint crack on the visible side when bending (Image 5 and 6).

Note

Be particularly careful with siding.X due to the uneven visible surface.

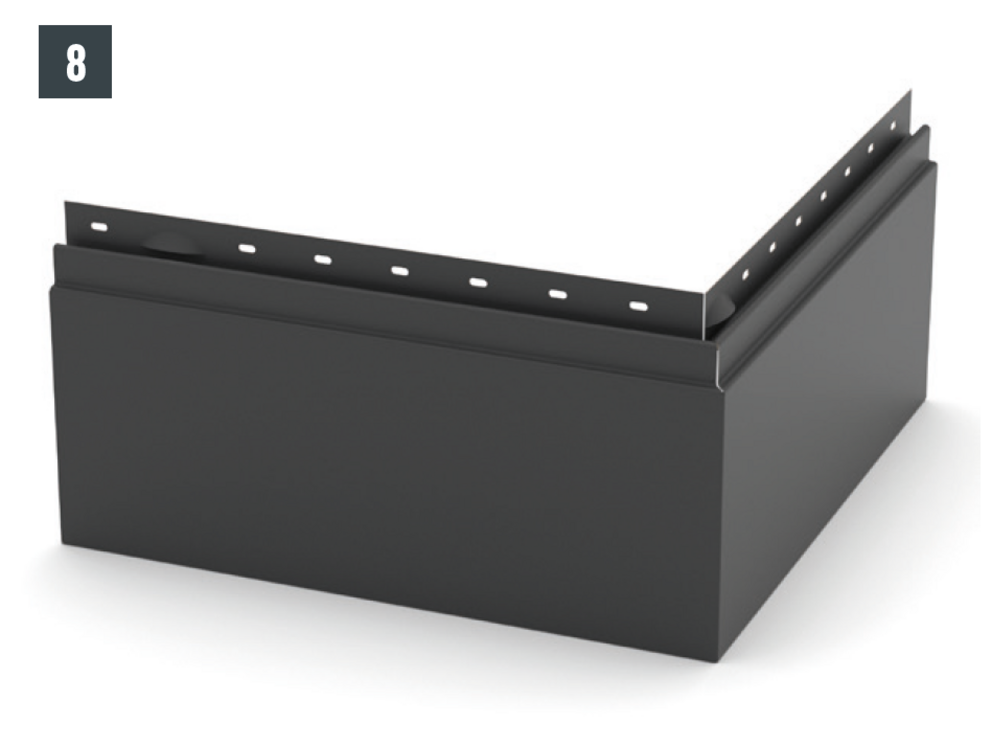

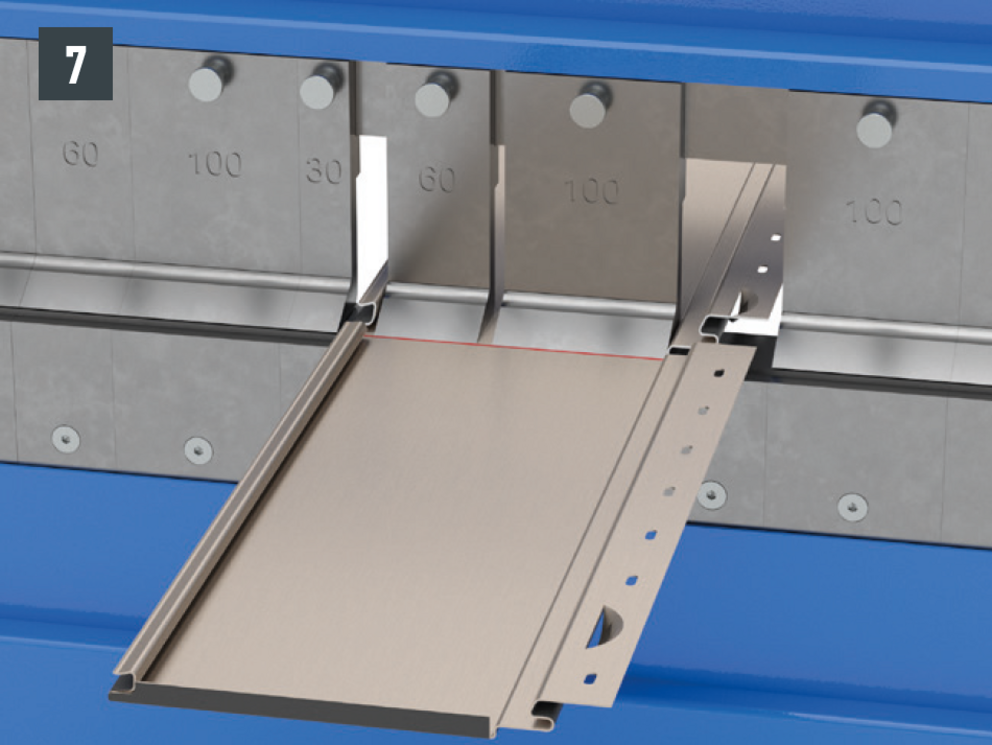

  • In the last processing step, edge the siding with a box folder to a 90° edge ((Fig. 7 and 8).
