Quantity determination

Step 1:

Measuring the façade surfaces to be clad:

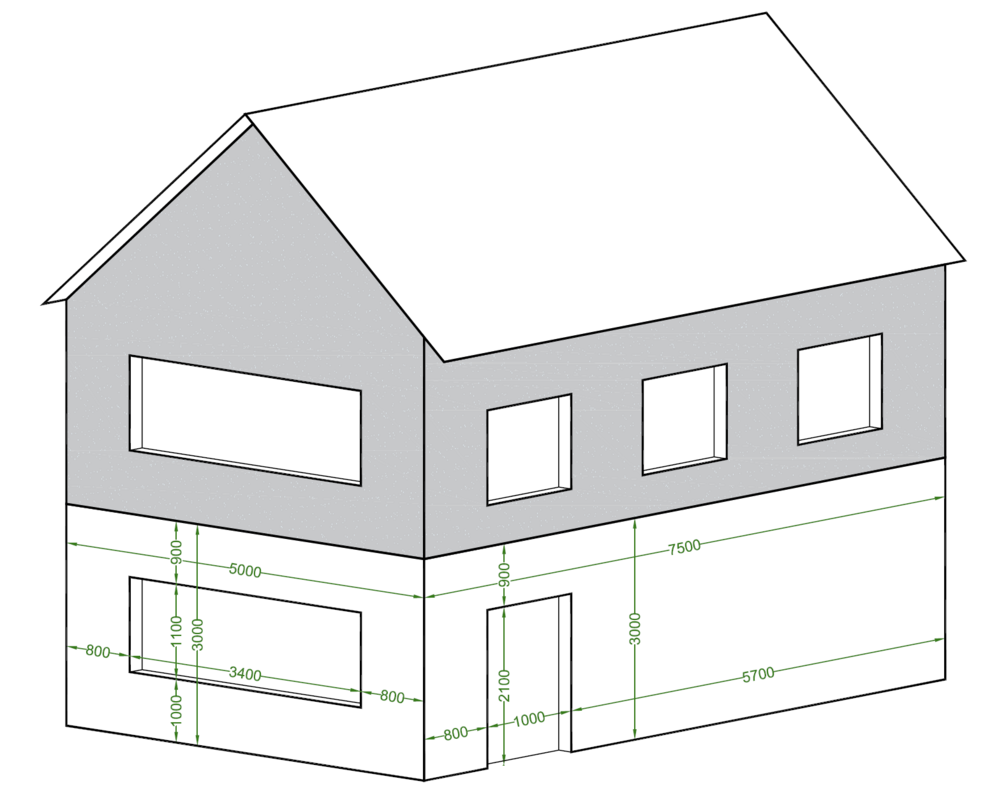

Dimensions required for façade surface quantity determination

Step 2:

You can determine the separation of the individual profile lengths, and thus also the design of the façade, depending on the direction of the profiles on the façade (horizontal, vertical or diagonal).

When doing so, please pay attention to the max. profile length of 6,200 mm and ensure that the profile joints are formed in such a way that they can expand.

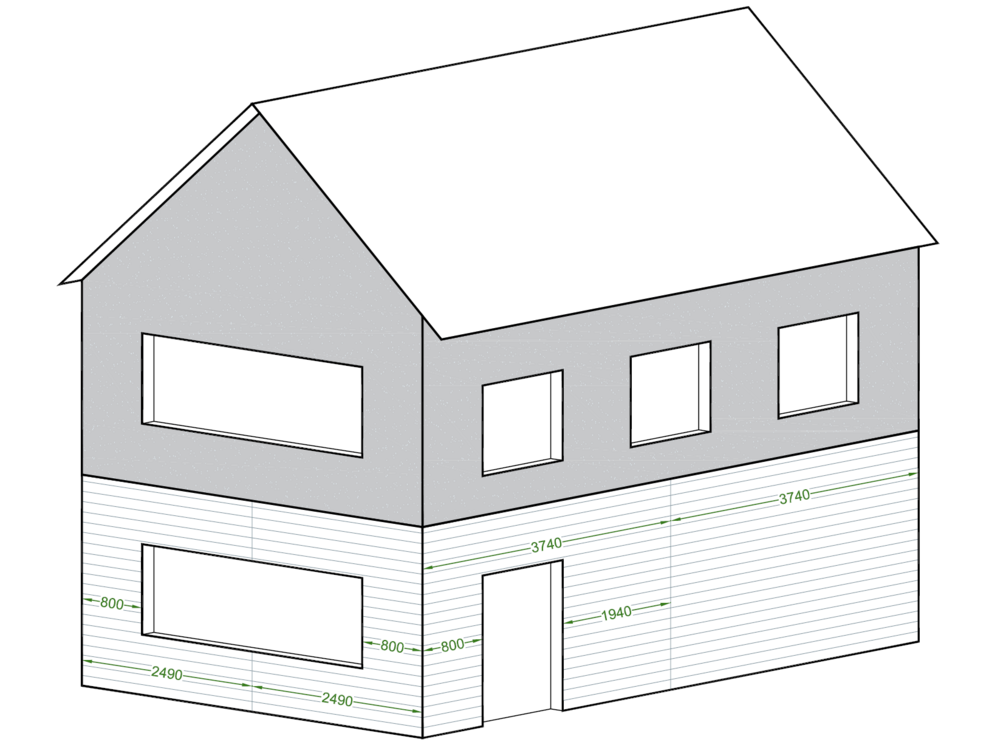

Façade design

Step 3:

Openings, such as for doors and windows, that partially intrude into a profile should be ignored during material take-off and adapted on-site (areas marked in red).

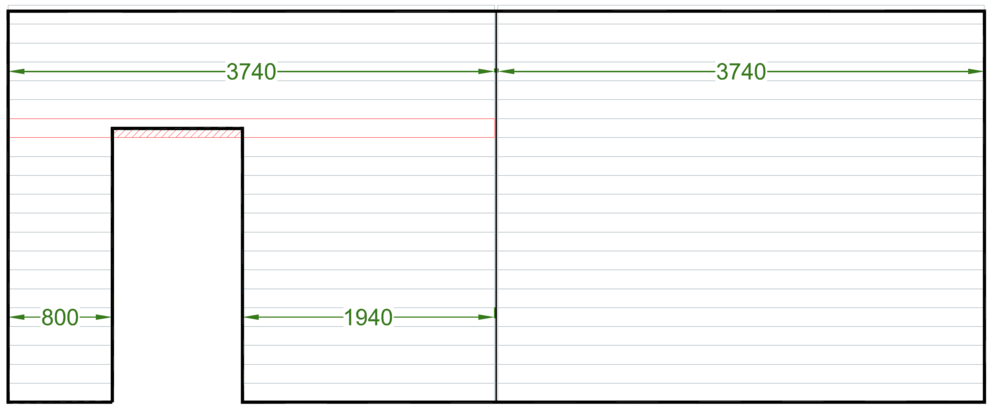

Cut-outs to be adapted on-site

Step 4:

You should also calculate the linear metre for the starter profile and the number of sliding clips required (4 - 5 pcs./m² – depending on the substructure spacing).
