ROOF SYSTEMS R.16 ROOF TILE

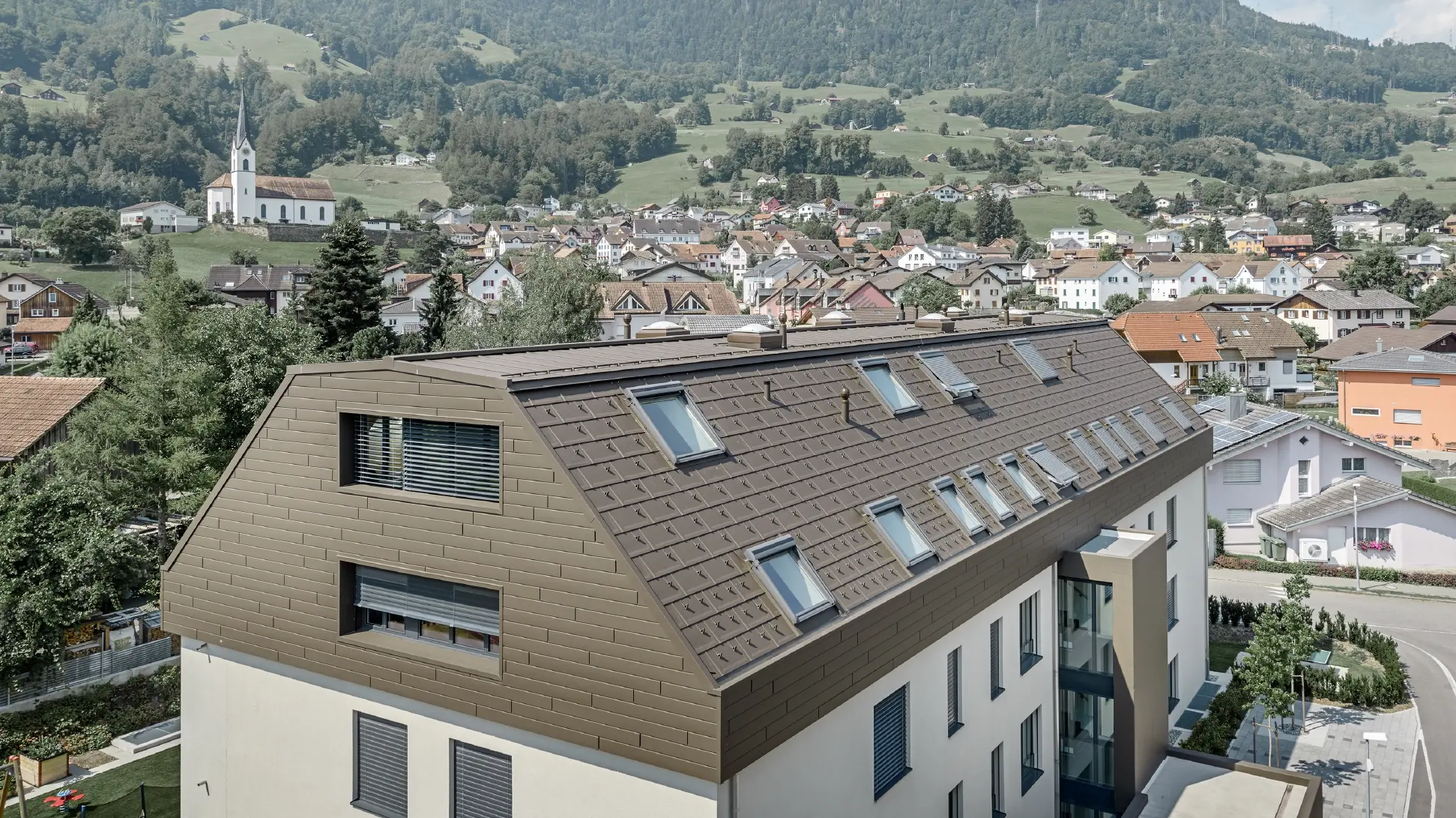

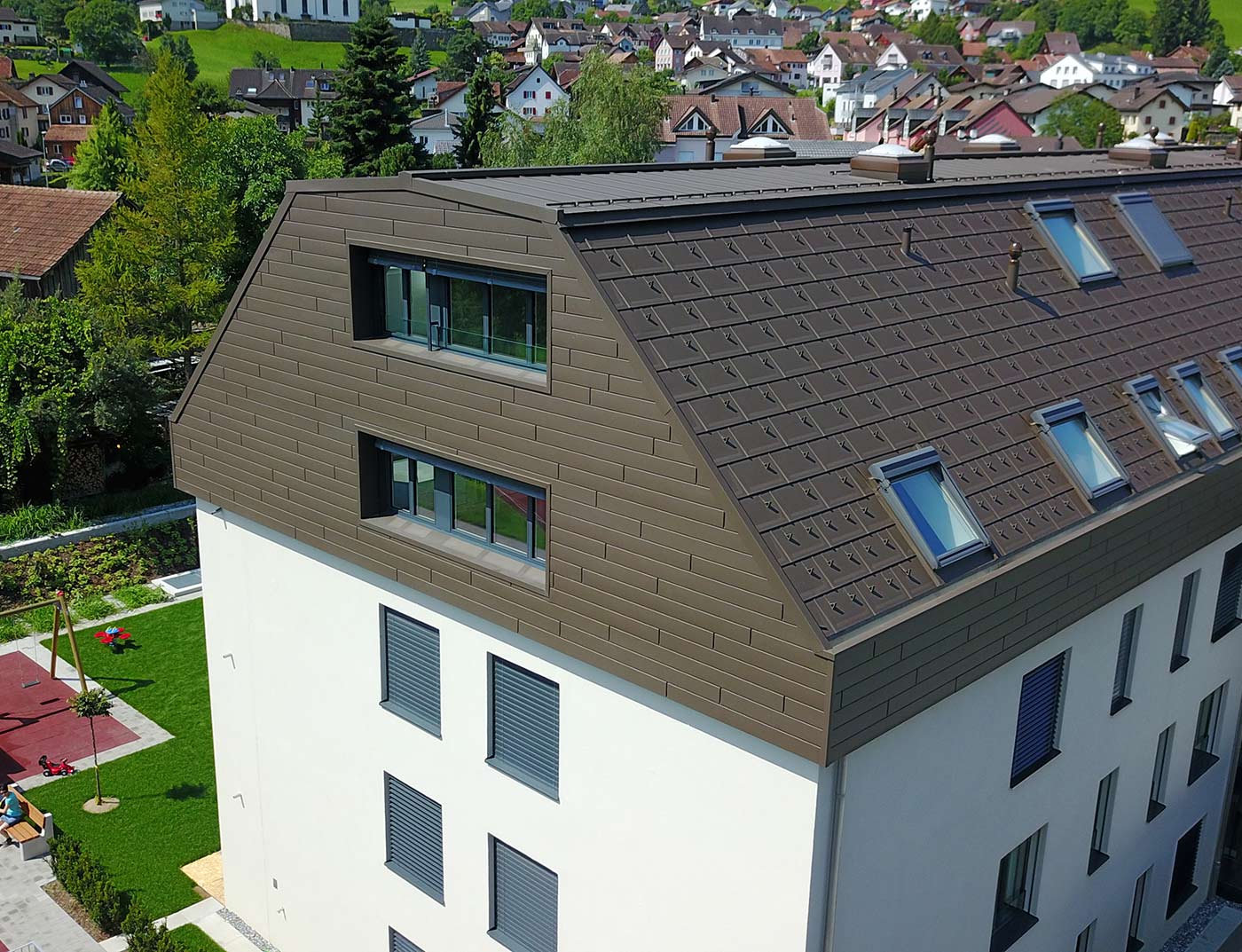

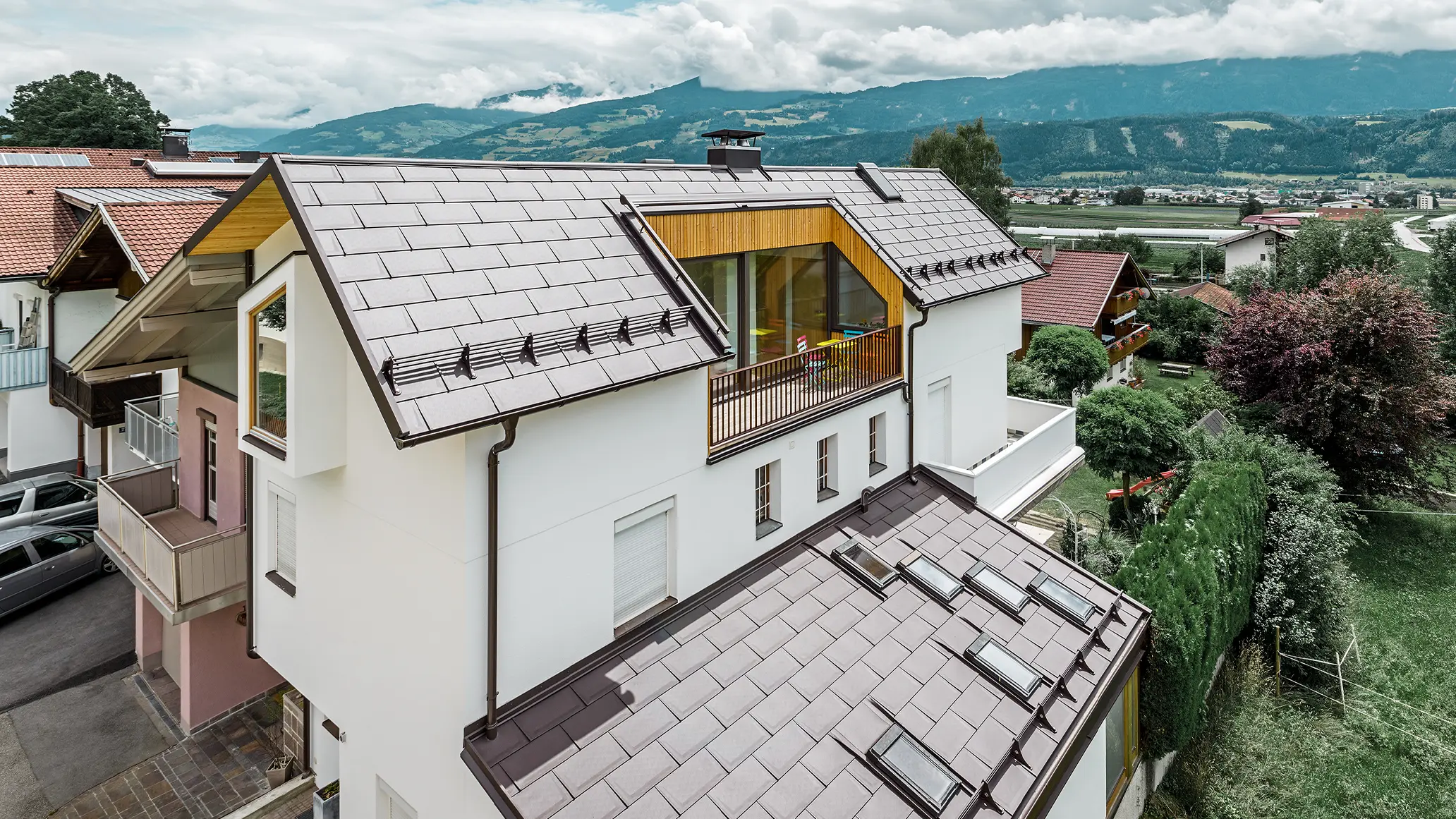

Wohnhaus mit großer Balkonfläche und einem neuen PREFA Aludach, eingedeckt mit der PREFA Dachplatte R.16 in braun

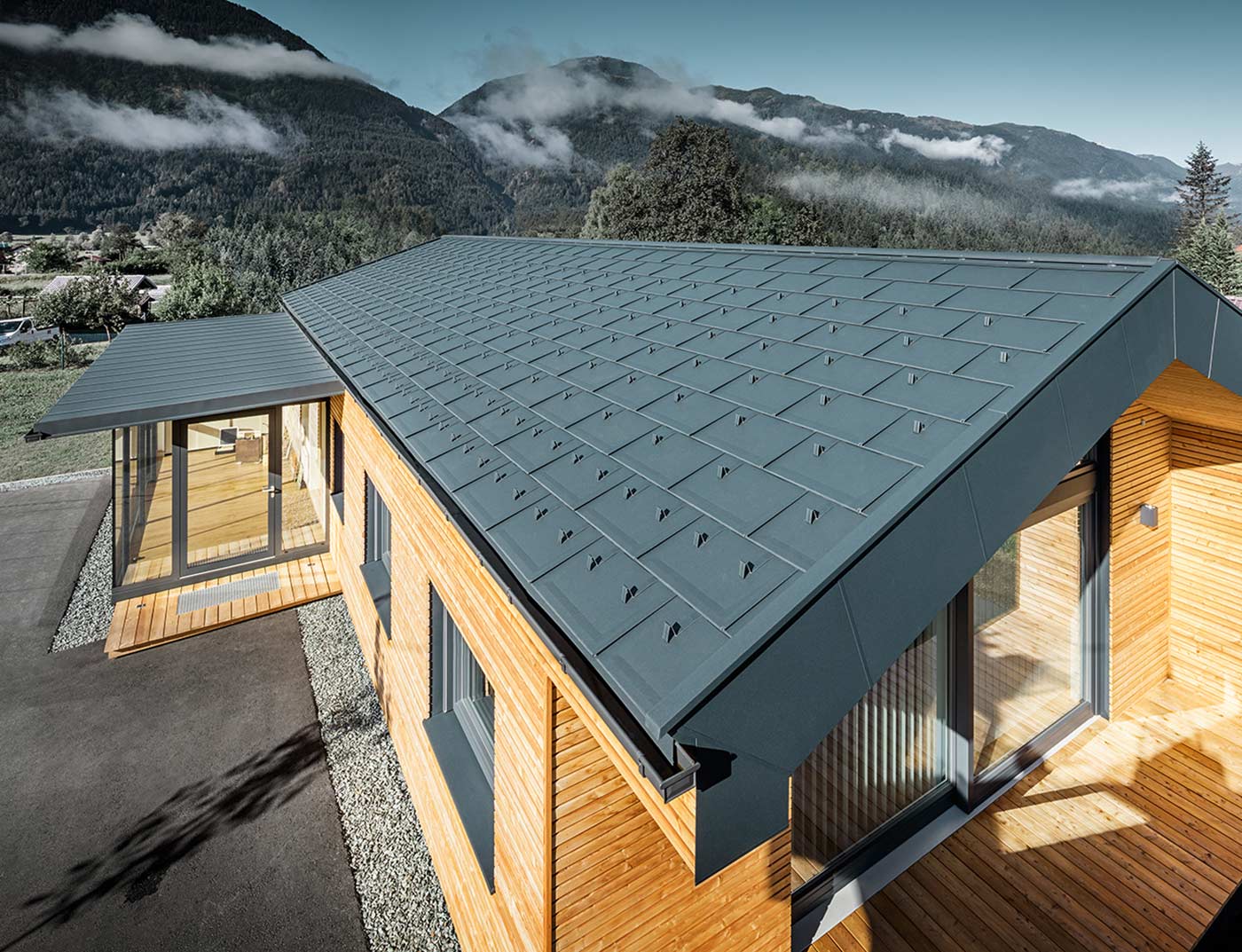

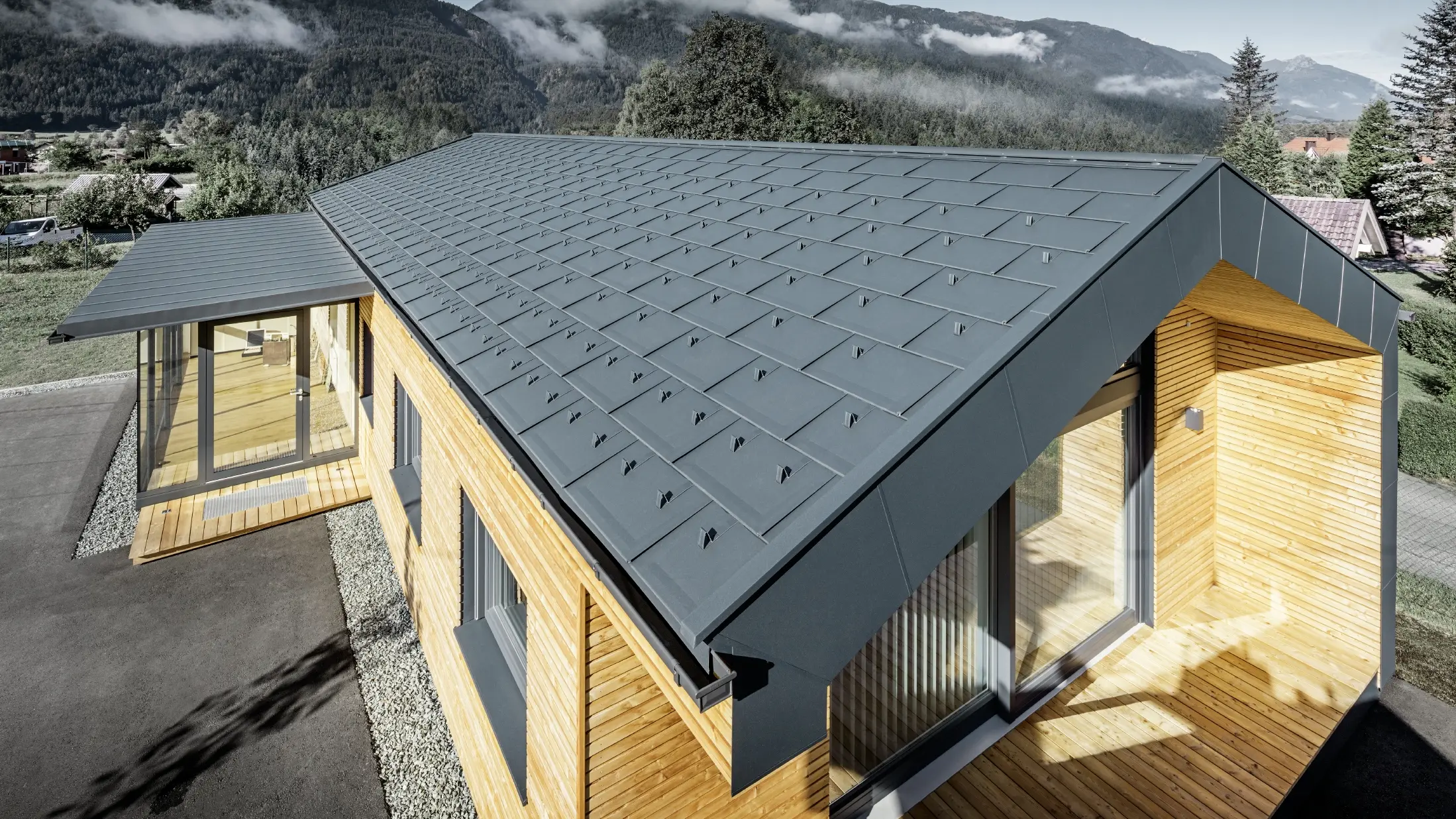

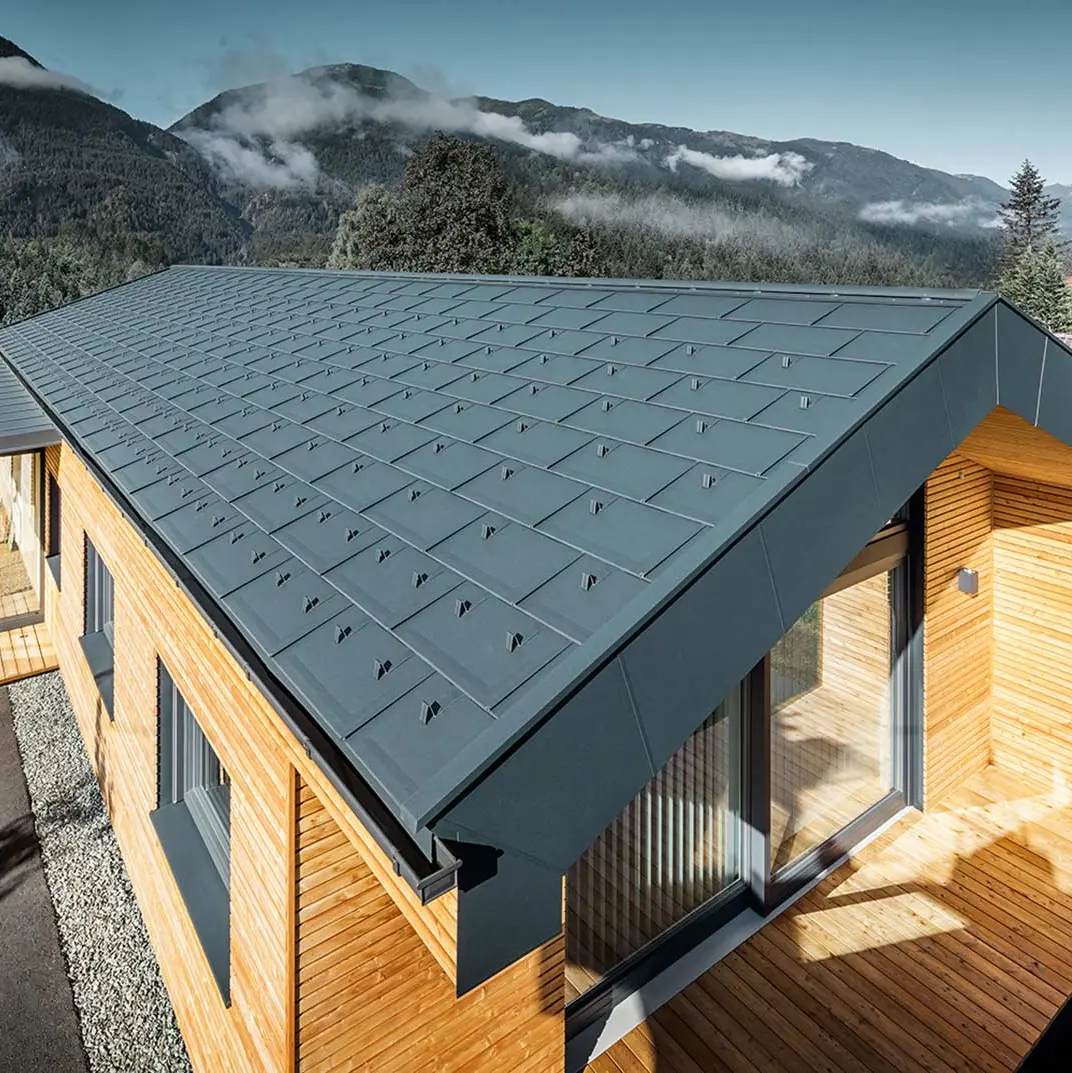

Das neue Firmengebäude der Holzbauer Faltheiner ist mit der PREFA Aludachplatte R. 16 in anthrazit eingedeckt, auch die Verblechungen wurden in Anthrazit ausgeführt. Für die Fassade wurde eine Lärchenfassade gewählt.

Reference buildings PREFA Roof systems R.16 roof tile 03 black (own colour)

Reference buildings PREFA Roof systems R.16 roof tile 04 brick red (similar to RAL 8004)

Reference buildings PREFA Roof systems R.16 roof tile 05 oxide red (similar to RAL 3009)

Reference buildings PREFA Roof systems R.16 roof tile 06 moss green (similar to RAL 6005)

Reference buildings PREFA Roof systems R.16 roof tile 07 light grey (similar to RAL 7005)

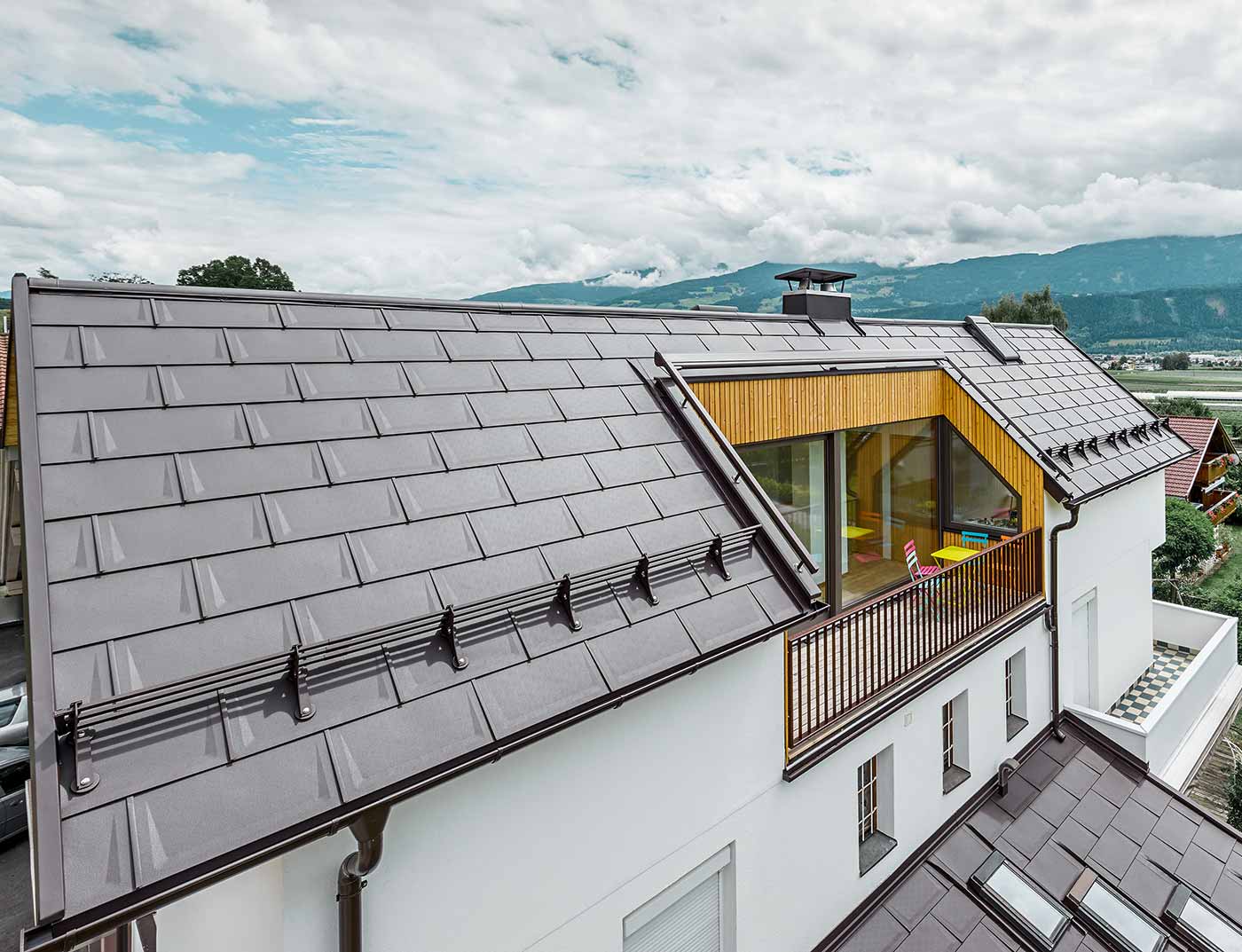

Reference buildings PREFA Roof systems R.16 roof tile 11 nut brown (own colour)

Reference buildings PREFA Roof systems R.16 roof tile 13 plain aluminium

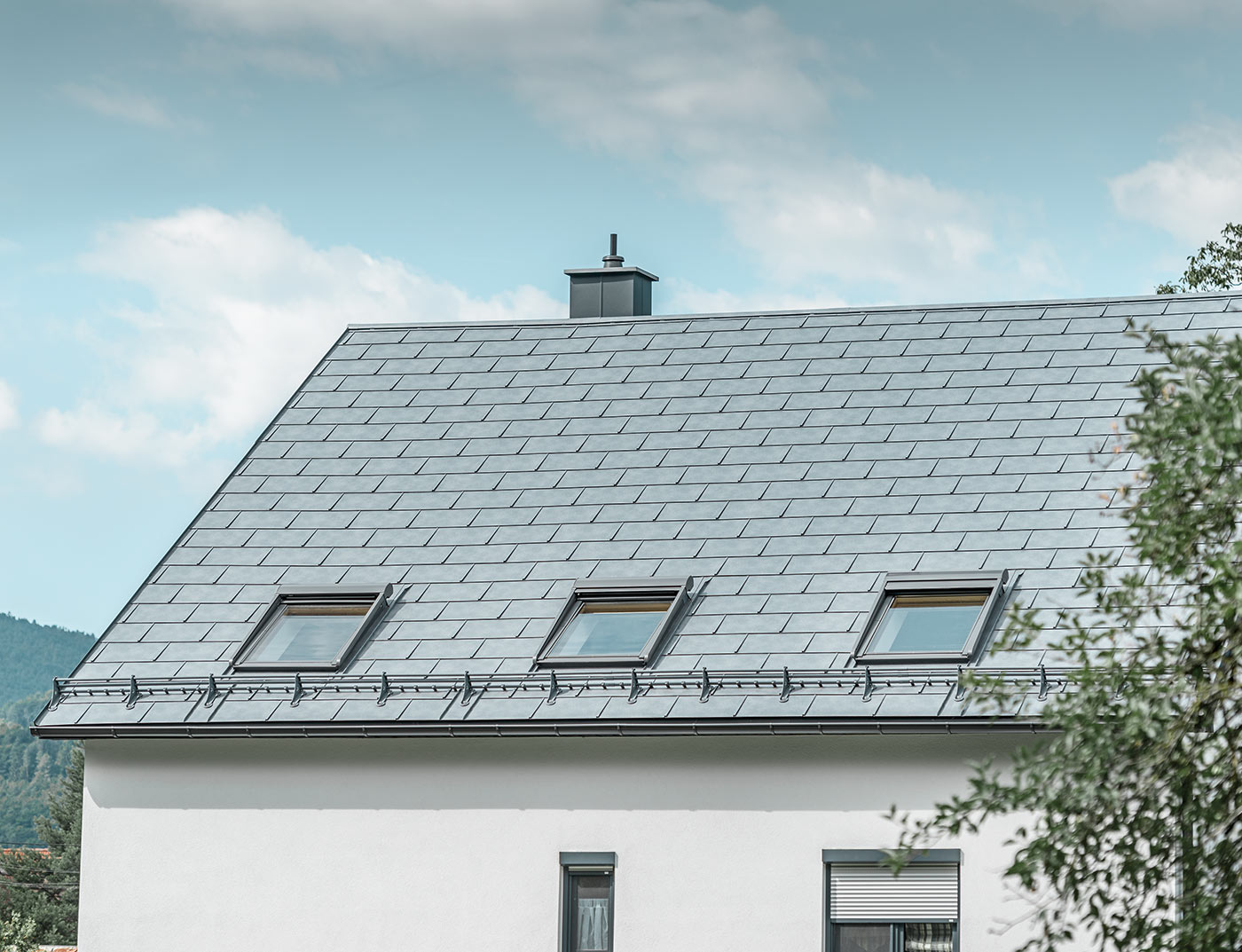

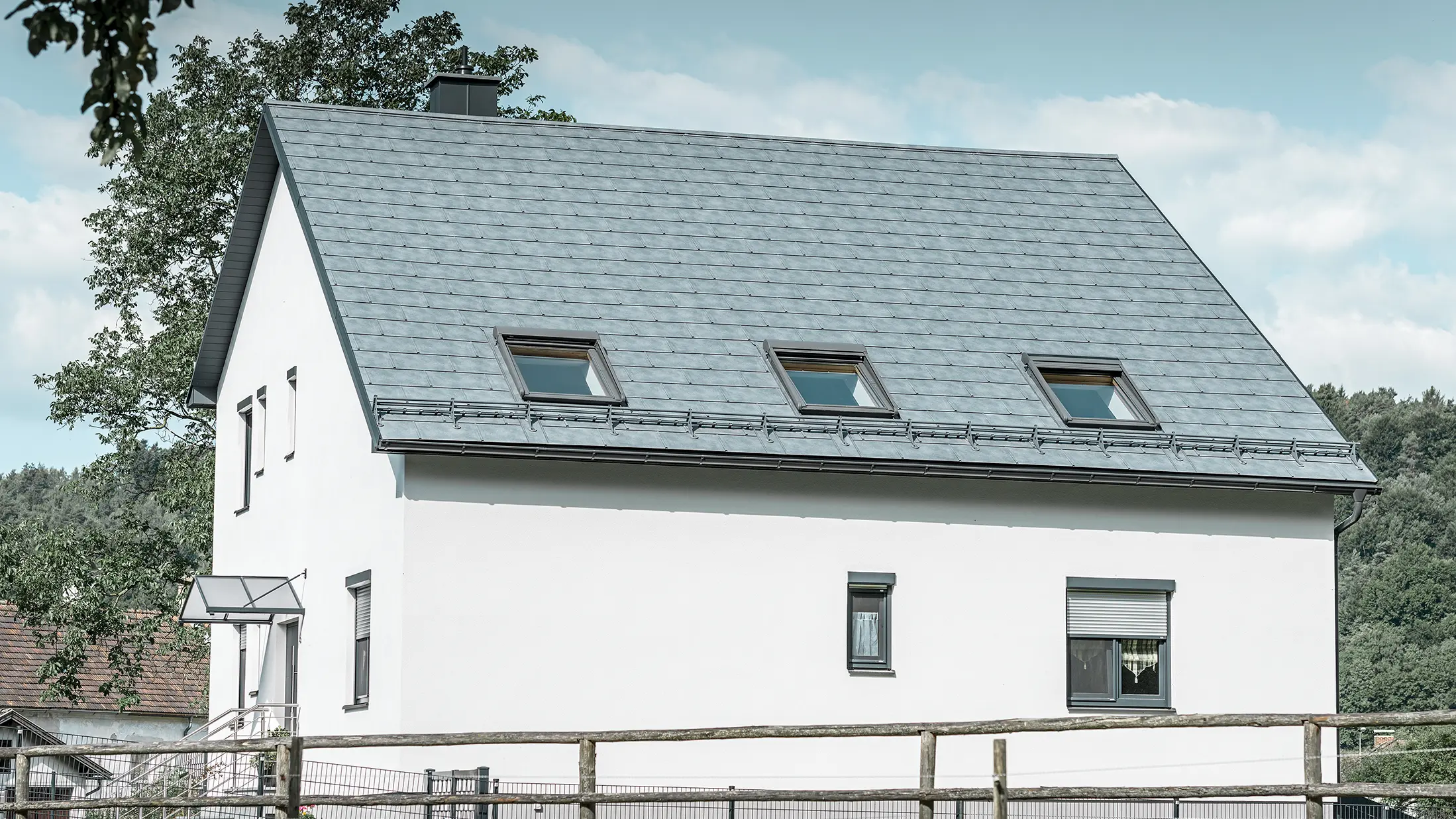

Klassisches Einfamilienhaus mit Satteldach und drei Dachfenstern, eingedeckt mit der Dachplatte R.16 in Steingrau und einer weißen Putzfassade

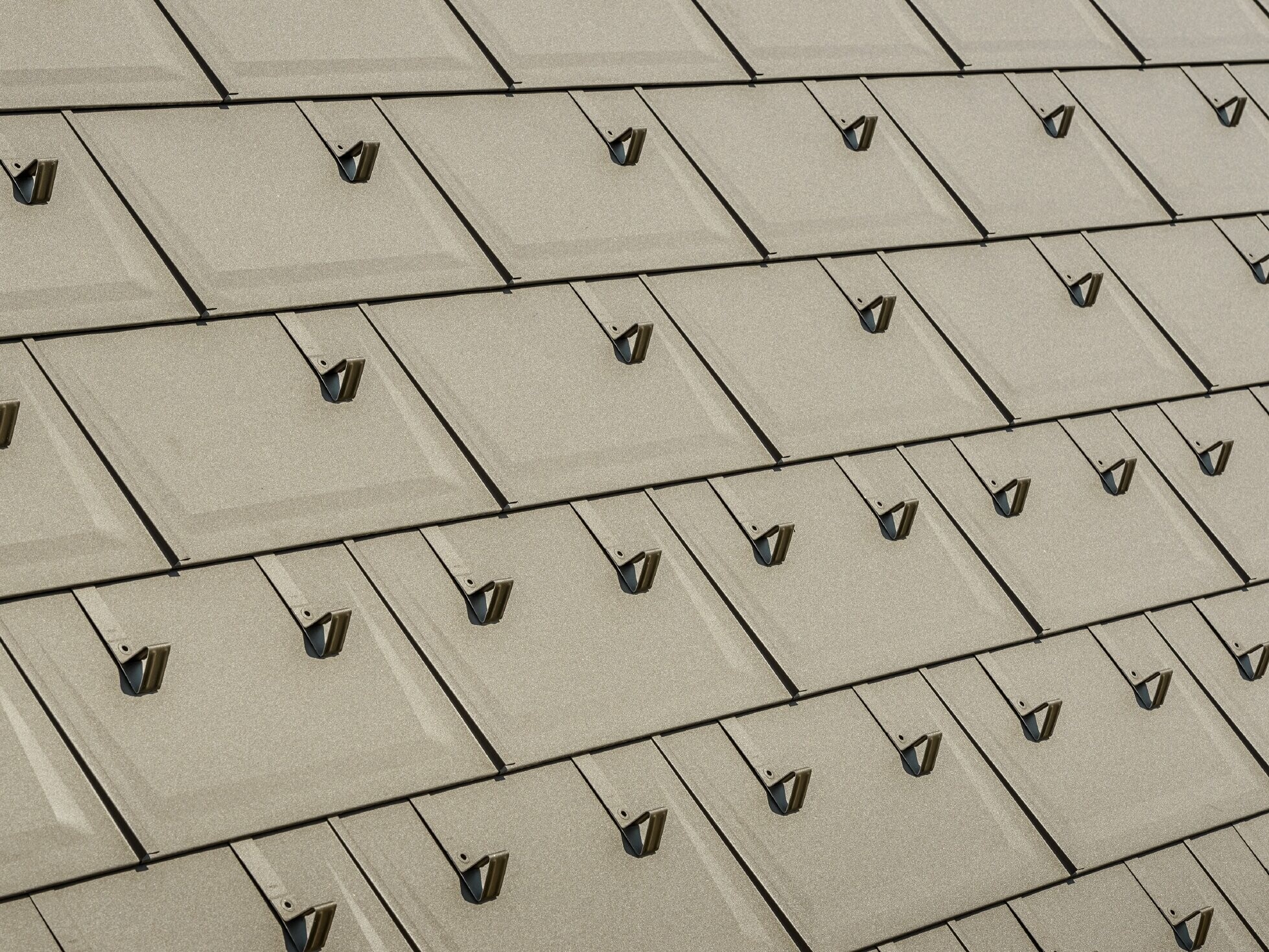

Product catalogue PREFA Roof systems R.16 roof tile 01 brown (own colour) P.10

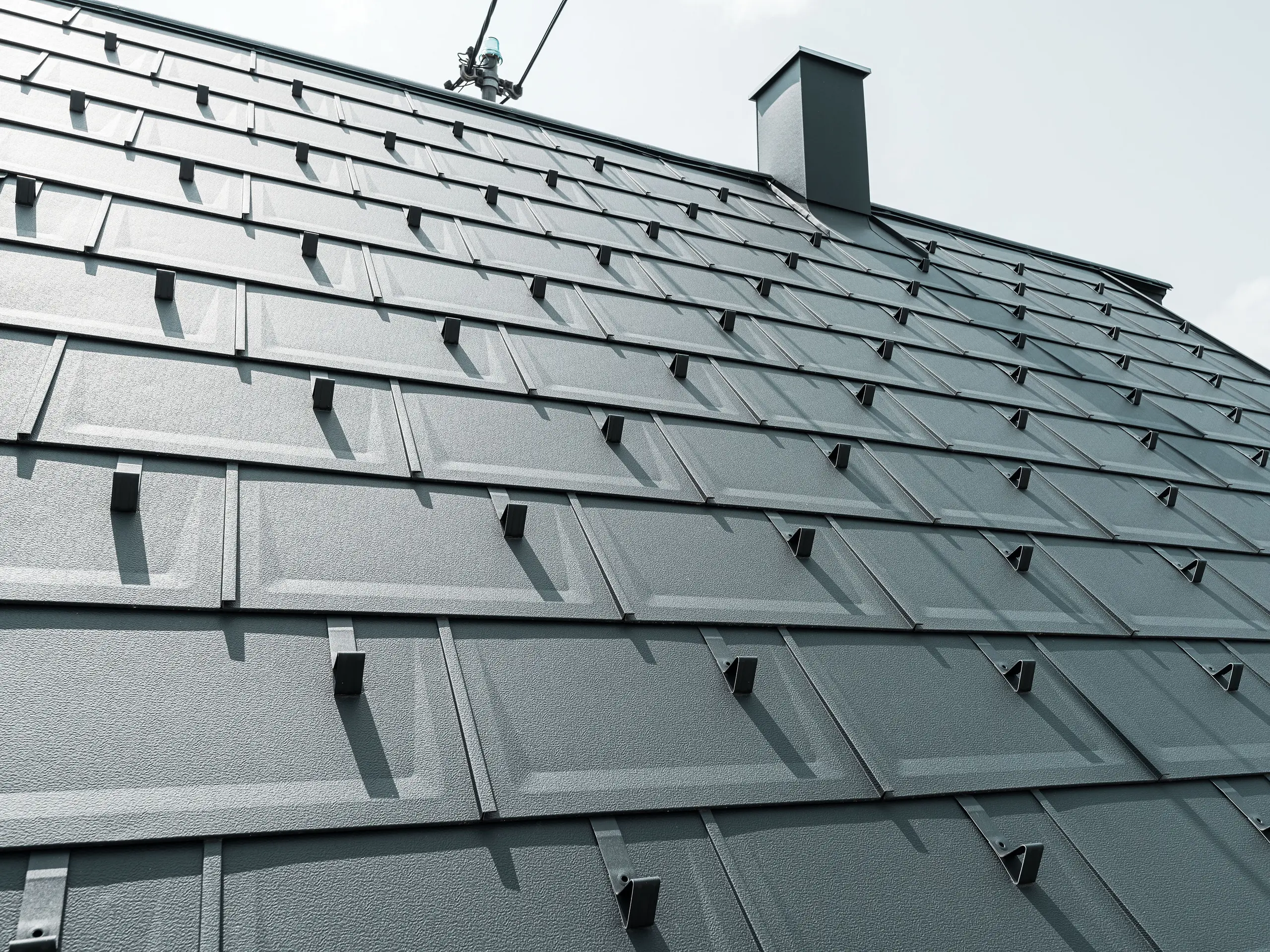

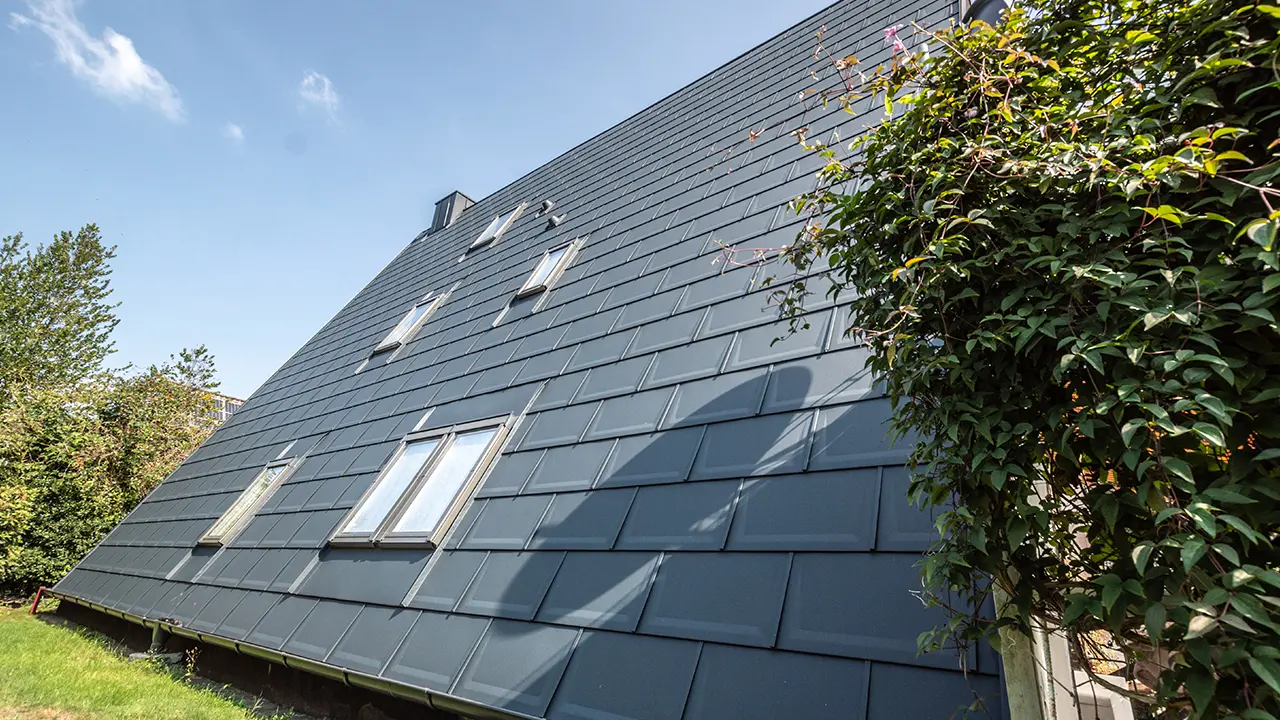

Product catalogue PREFA Roof systems R.16 roof tile 02 anthracite (similar to RAL 7016) P.10

Product catalogue PREFA Roof systems R.16 roof tile 03 black (own colour) P.10

Product catalogue PREFA Roof systems R.16 roof tile 04 brick red (similar to RAL 8004) P.10

Product catalogue PREFA Roof systems R.16 roof tile 05 oxide red (similar to RAL 3009) P.10

Product catalogue PREFA Roof systems R.16 roof tile 06 moss green (similar to RAL 6005) P.10

Product catalogue PREFA Roof systems R.16 roof tile 07 light grey (similar to RAL 7005) P.10

Product catalogue PREFA Roof systems R.16 roof tile 11 nut brown (own colour) P.10

Product catalogue PREFA Roof systems R.16 roof tile 13 plain aluminium

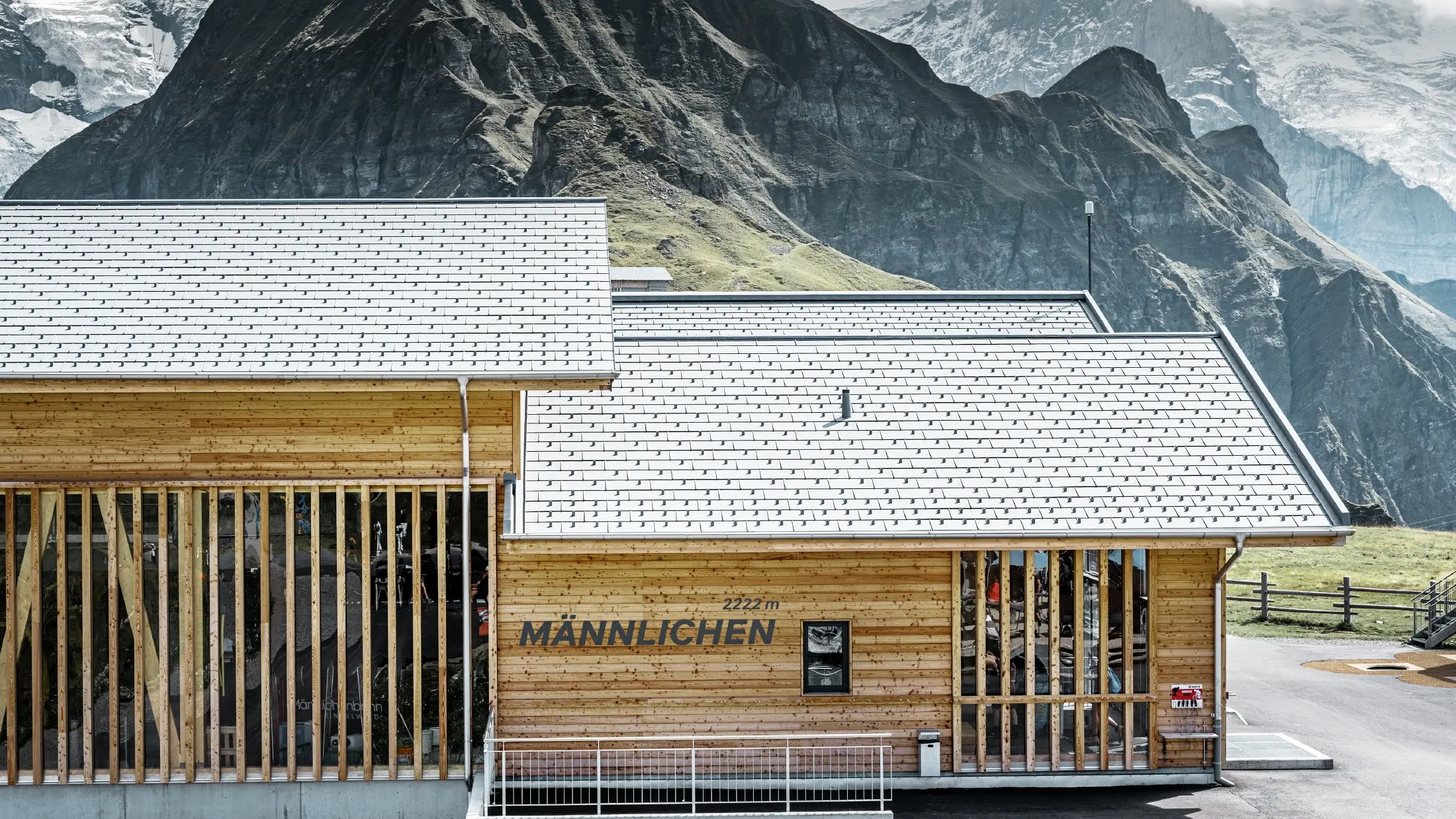

Product catalogue PREFA Roof systems R.16 roof tile 43 stone grey (own colour) P.10

AVAILABLE COLOURS

COLOUR 01 BROWN (OWN COLOUR) SURFACE P.10

COLOUR 02 ANTHRACITE (SIMILAR TO RAL 7016) SURFACE P.10

COLOUR 03 BLACK (OWN COLOUR) SURFACE P.10

COLOUR 04 BRICK RED (SIMILAR TO RAL 8004) SURFACE P.10

COLOUR 05 OXIDE RED (SIMILAR TO RAL 3009) SURFACE P.10

COLOUR 06 MOSS GREEN (SIMILAR TO RAL 6005) SURFACE P.10

COLOUR 07 LIGHT GREY (SIMILAR TO RAL 7005) SURFACE P.10

COLOUR 11 NUT BROWN (OWN COLOUR) SURFACE P.10

COLOUR 13 PLAIN ALUMINIUM

COLOUR 43 STONE GREY (OWN COLOUR) SURFACE P.10

PREFA aluminium roof tiles represent the highest quality standards in stability and durability, in conjunction with a timeless, clear-cut architectural style. With the new R.16 roof tile, PREFA has developed a minimalist roof design which allows the greatest possible scope for realising distinctive architecture: thanks to the large format of 70 cm in length, it is now possible to cover the roof with 3.4 roof tiles per square metre, while at the same time, achieving exceptional aesthetic effects.

Available in 9 standard colours
Complete range of accessories
40-year guarantee
Alloy according to EN 1396
Surface treatment in a coil-coating procedure

Colour range: 9 standard colours – stucco surface
Also available with a smooth finish upon request (delivery time: 10 days); plain aluminium available on request

MATERIAL:: aluminium 0.7 mm thick
VISIBLE SIDE:: made of powder-coated aluminium alloy
REAR:: protective paint
SIZE:: 700 × 420 mm (cover)
WEIGHT:: 1 m² = approx. 2.5 kg = 3.4 tiles
PACKAGING UNIT:: box containing 28 pc. = 8.24 m²
ROOF PITCH:: from 17°

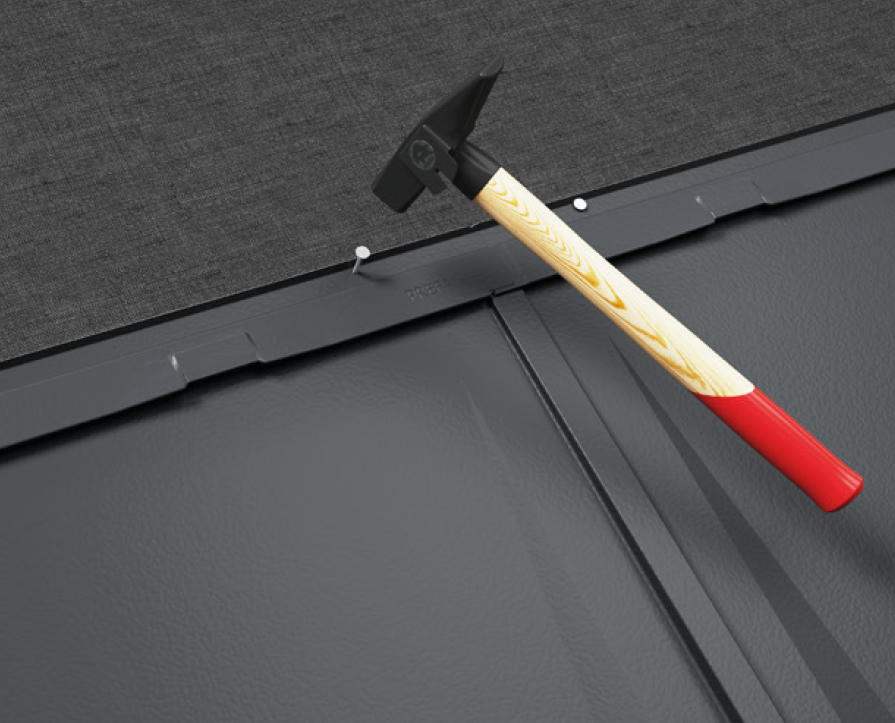

INSTALLATION:: on solid sheathing (at least 24 mm thick)
FASTENING:: direct, using 3 PREFA ring nails 28/25

The attic can also be used as living space

The attic is not used as living space

01 P.10 BROWN: own colour
02 P.10 ANTHRACITE: similar to RAL 7016
03 P.10 BLACK: own colour
04 P.10 BRICK RED: similar to RAL 8004
05 P.10 OXIDE RED: similar to RAL 3009
06 P.10 MOSS GREEN: similar to RAL 6005
07 P.10 LIGHT GREY: similar to RAL 7005
11 P.10 NUT BROWN: own colour
43 P.10 STONE GREY: own colour
13 PLAIN ALUMINIUM

PREFA EDGE CLEAT STRIP FOR SHINGLES, RHOMBOID ROOF TILES, FX.12 AND R.16

1,800 × 158 × 1.00 mm, pre-drilled

PREFA BIRD SCREEN

125 × 2,000 × 0.7 mm; round perforations (⌀ 5 mm)

PREFA EAVES APRON ICE STRIP

230 × 2,000 × 0.70 mm

PREFA VERGE FLASHING

95 × 2,000 × 0.70 mm; with cleat strip

PREFA SAFETY VALLEY

3,000 mm; with double lock standing seam (canted)

PREFA FROG-MOUTH VENT COVER

for riveting; air intake section: approx. 30 cm²

PREFA HIP AND RIDGE CAP

500 × 1.00 mm

PREFA HIP AND RIDGE CAP | END PIECE

PREFA RIDGE VENT

3,000 × 1.00 mm; 1,200 × 1.00 mm; for cold roofs; suitable for all rafter lengths

PREFA RIDGE VENT END PIECE

PREFA ROOF HATCH

Inside dimensions: 600 × 600 mm; from roof pitches of 12°, complete with wooden frame, opening restrictor with cotter pin and 6 mm twinwall clear sheet

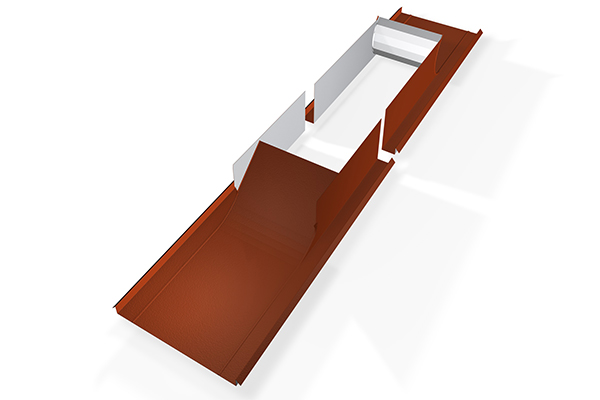

PREFA FLASHING FOR VELUX ROOF WINDOWS

55 × 78 – CK02 / 55 × 98 – CK04 / 55 × 118 – CK06 / 66 × 98 – FK04 / 66 × 118 – FK06 / 66 × 140 – FK08 / 78 × 98 – MK04 / 78 × 118 – MK06 / 78 × 140 – MK08 / 78 × 160 – MK10 / 78 × 180 – MK12 / 94 × 98 – PK04 / 94 × 118 – PK06 / 94 × 140 – PK08 / 94 × 160 – PK10 / 114 × 118 – SK06 / 114 × 140 – SK08 / 114 × 160 – SK10 / 134 × 98 – UK04 / 134 × 140 – UK08 / 134 × 160 – UK10 /

PREFA FLASHING FOR ROTO ROOF WINDOWS

54 × 78 – 05/07 / 54 × 98 – 05/09 / 54 × 118 – 05/11 / 65 × 98 – 06/09 / 65 × 118 – 06/11 / 65 × 140 – 06/14 / 74 × 78 – 07/07 / 74 × 98 – 07/09 / 74 × 118 – 07/11 / 74 × 140 – 07/14 / 74 × 160 – 07/16 / 94 × 78 – 09/07 / 94 × 98 – 09/09 / 94 × 118 – 09/11 / 94 × 140 – 09/14 / 94 × 160 – 09/16 / 114 × 78 – 11/07 / 114 × 98 – 11/09 / 114 × 118 – 11/11 / 114 × 140 – 11/14 / 114 × 160 – 11/16 / 134 × 98 – 13/09 / 134 × 78 – 13/07 / 134 × 140 – 13/14

PREFA SAFETY TREAD

composed of safety tread and two mounts with surface sealant, including fixing material, adjustable for roof pitches between 12° and 60° According to DIN EN 516-1-A

PREFA WALKWAY SUPPORT

250 mm; roof pitch: 5°–55°

PREFA WALKWAY

250 × 1200 mm, 250 × 800 mm, 250 × 600 mm, 250 × 420 mm

PREFA CONNECTOR FOR WALKWAYS

PREFA ROOF ANCHOR HOOK ACCORDING TO EN 517 B

PREFA ROOF ANCHOR HOOK ACCORDING TO EN 517 B (ON MOUNTS) SDH 41

PREFA FLASHING PLATE FOR SHINGLE, FX.12 AND R.16 ROOF TILE

for pipe openings of ⌀ 80–125 mm and roof pitches between 17° and 52°

PREFA FLASHING PLATE (FOR SEAMING)

roof pitch: 12°–52°; Ø 80–125 mm

PREFA UNIVERSAL FLASHING

for pipes with a diameter of 40–120 mm; roof pitch: 12°–52°

PREFA VENTILATION CAP

roof pitch from 12°; ⌀ 100 mm

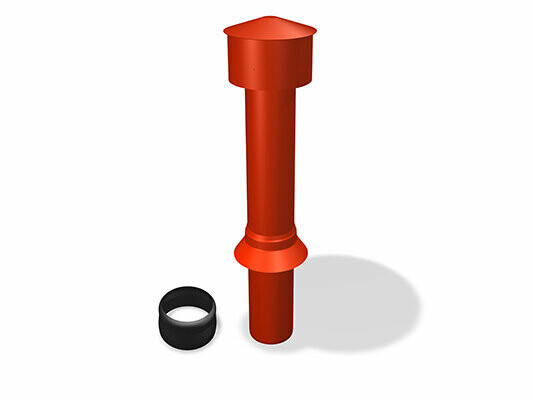

PREFA VENT PIPE

⌀ 100 mm, ⌀ 120 mm, flashing plates

PREFA FLEXIBLE PIPE COLLAR 100

⌀ 100 mm, permanently flexible EPDM pipe collar for roof openings

PREFA SNOW GUARD FOR R.16 ROOF TILE AND FX.12

including fixing material

PREFA BASE PLATE

PREFA PIPE-STYLE SNOW GUARD BRACKET

Opening height: 135 mm; bracket height: 165 mm

PREFA PIPE

for pipe-style snow guard brackets; 15 × 3,000 mm

END PIECE FOR PREFA PIPE-STYLE SNOW GUARD

PREFA PIPE-STYLE SNOW GUARD SYSTEM

with 3 pipe openings

PREFA REMOVABLE PIPE FOR PIPE-STYLE SNOW GUARD SYSTEM

3,000 mm 25/25

PREFA ICE-RETENTION BRACKET FOR PIPE-STYLE SNOW GUARD SYSTEM

removable pipe including fixing material for pipe-style snow guard system

PREFA END PIECE FOR PIPE-STYLE SNOW GUARD SYSTEM

PREFA ALUMINIUM MOUNTAIN SNOW GUARD BRACKET

300 × 246 mm; for logs (⌀ 140 mm)

PREFA CHIMNEY CAP

700 × 700 mm, 800 × 800 mm, 1000 × 700 mm, 1100 × 800 mm, 1500 × 800 mm

PREFA FLAT PROFILE

PREFA VENTILATION SCREEN

square perforations (6 mm); colours brown/anthracite and light grey/light grey; dimensions: 1.00 × 250 mm and 1.00 × 333 mm

Note: download DWG and DXF format files by right-clicking and selecting “Save link as”.

7 MB PREFA_Details_roof_tile_R.16_2017_Q4_EN.dwg 26 MB PREFA_Details_roof_tile_R.16_2017_Q4_EN.dxf

703 KB PREFA_Tender_Texts_Roof_R.16_Roof_Tile_2018-06_-_EN.pdf 65 KB PREFA_Tender_Texts_Roof_R.16_Roof_Tile_2018-06_-_EN.docx
