Advantages of the PREFA FX.12 roof panel
Large choice of colours
available in many standard colours
Multiple design options
2 formats (short and long) and variable joint offset for irregular appearance
40-year guarantee
Large choice of colours
available in many standard colours
Multiple design options
2 formats (short and long) and variable joint offset for irregular appearance
40-year guarantee

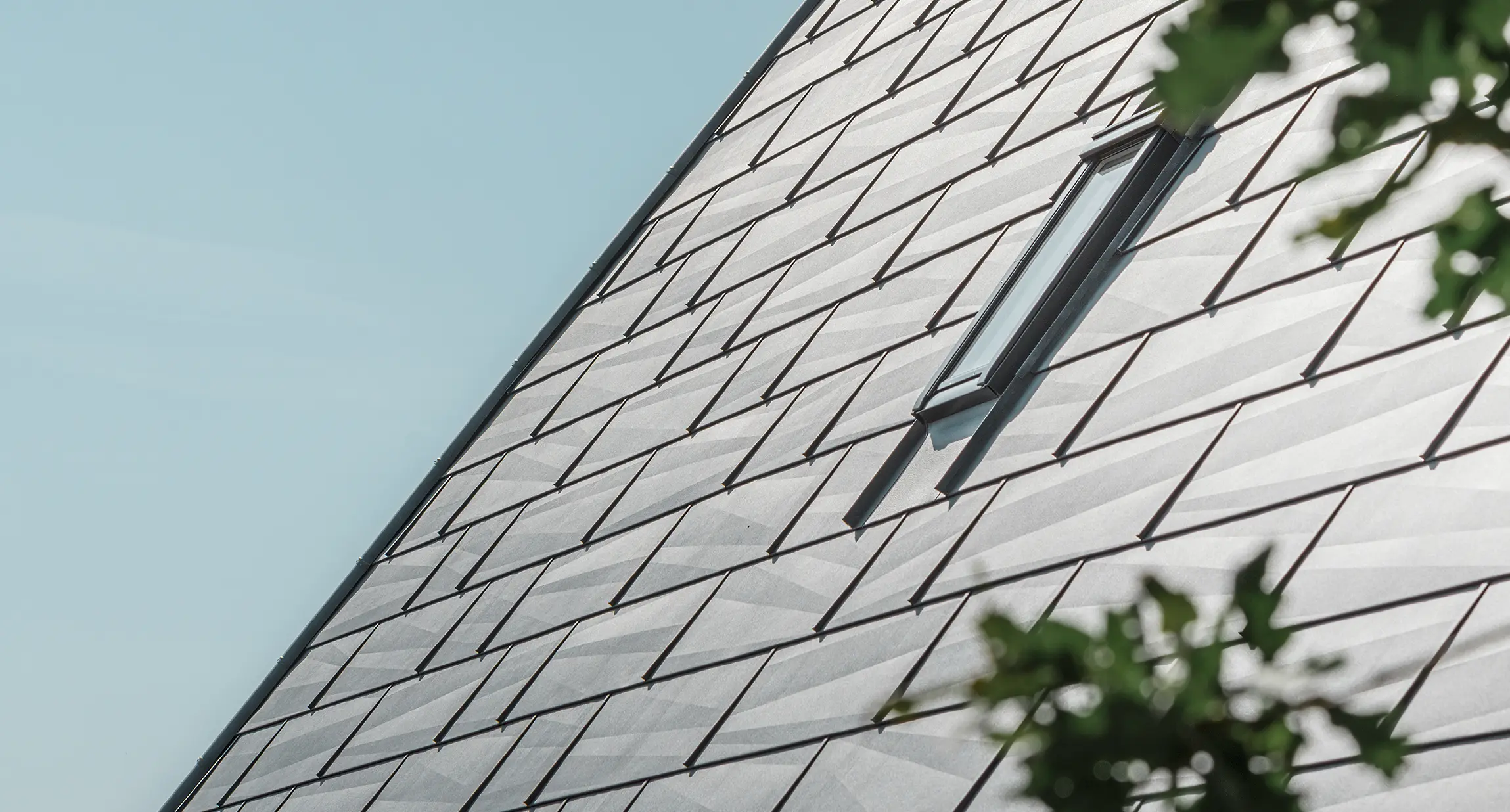

Unique appearance & high resistance
The irregular edges create a lively interplay between light and shadow and further reinforce the panels.
Quick installation

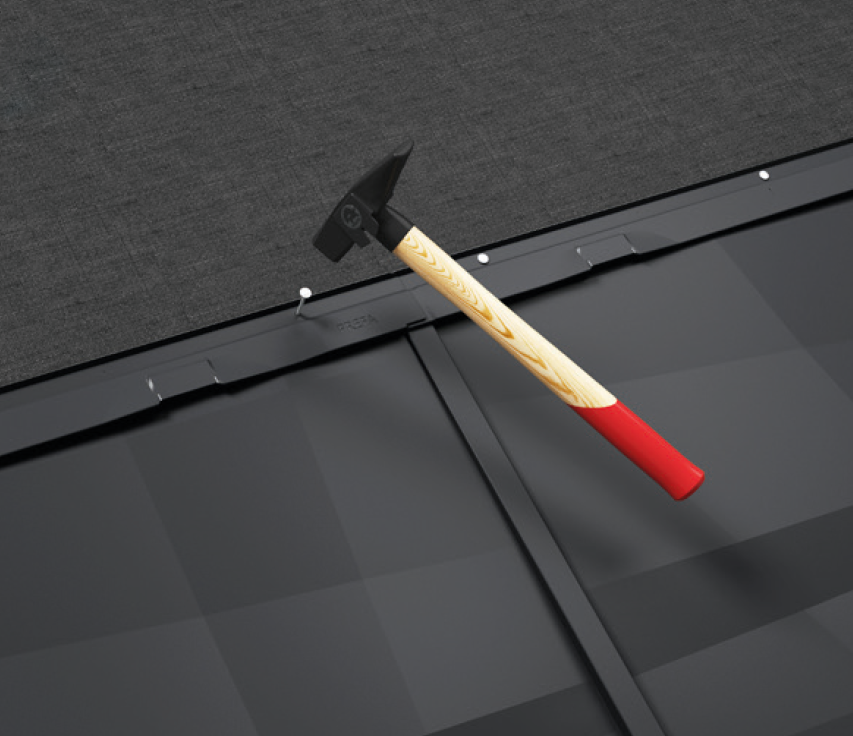

Can be mounted directly on the substructure without clips.
Unique appearance & high resistance
The irregular edges create a lively interplay between light and shadow and further reinforce the panels.
Quick installation
Can be mounted directly on the substructure without clips.
Makes the installer's life easier.
In addition to its individual look, FX.12 also offers many practical advantages in processing – and thus meets all the requirements of both the modern and the traditional tinsmith craft. FX.12 is extremely quick to install due to its direct mounting on the integrated fastening strip. Furthermore, due to their large format, only a few panels are needed to cover 1 m² of roof surface.
Colour range of the PREFA FX.12 roof panel
The colour palette of the PREFA FX.12 roof panel ranges from classic brick red via modern shades of grey up to brown tones. The following PREFA roof colours are available as standard:
Colour overview (10)
Colour |
Code |
~ RAL |
|
P.10 brown |
7013 |
|
P.10 anthracite |
7016 |
|
P.10 black |
9005 |
|

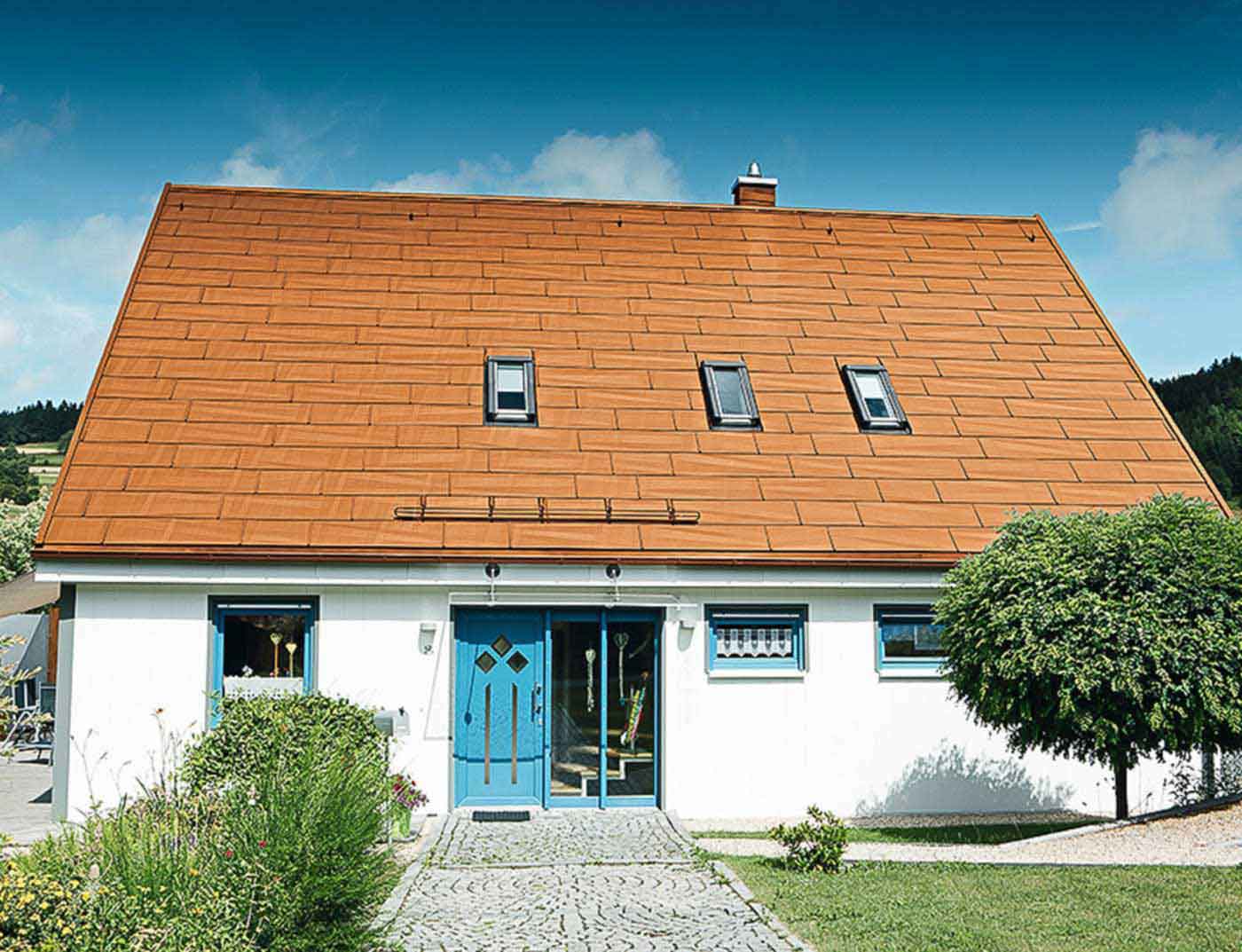

P.10 brick red |
8004 |
|
P.10 oxide red |
3009 |
|
P.10 moss green |
6005 |
|
P.10 light grey |
7005 |
|
P.10 nut brown |
8019 |
|
P.10 dark grey |
7043 |
|
P.10 stone grey |
7031 |
Notes
- The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
- Above all for colour quality P.10, it is almost impossible to define values due to the surface structure. In addition, the PREFA Siding colours P.10 stone grey, P.10 sand brown, P.10 patina green, natural oak, patina grey, walnut and grey oak are based on natural colours made up of several different shades.
- Coils and metal sheets plain aluminium: The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.
- Metallic colours may vary in shade.
- To identify exact colours for complementary components please consult original samples.
Be inspired by reference properties that have already been implemented.

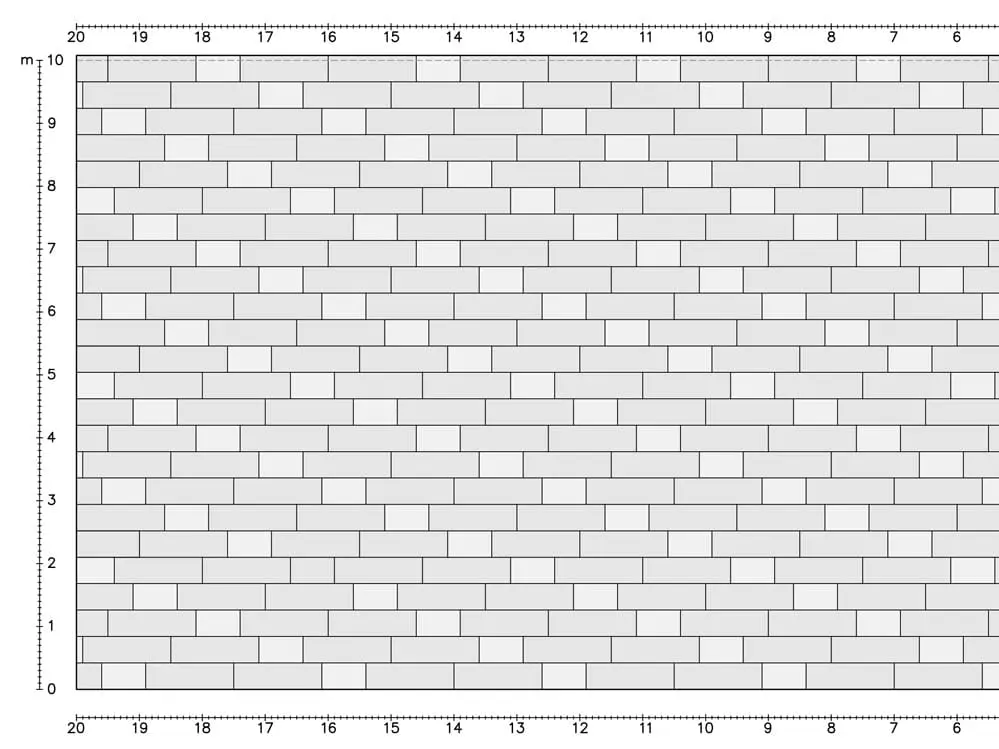

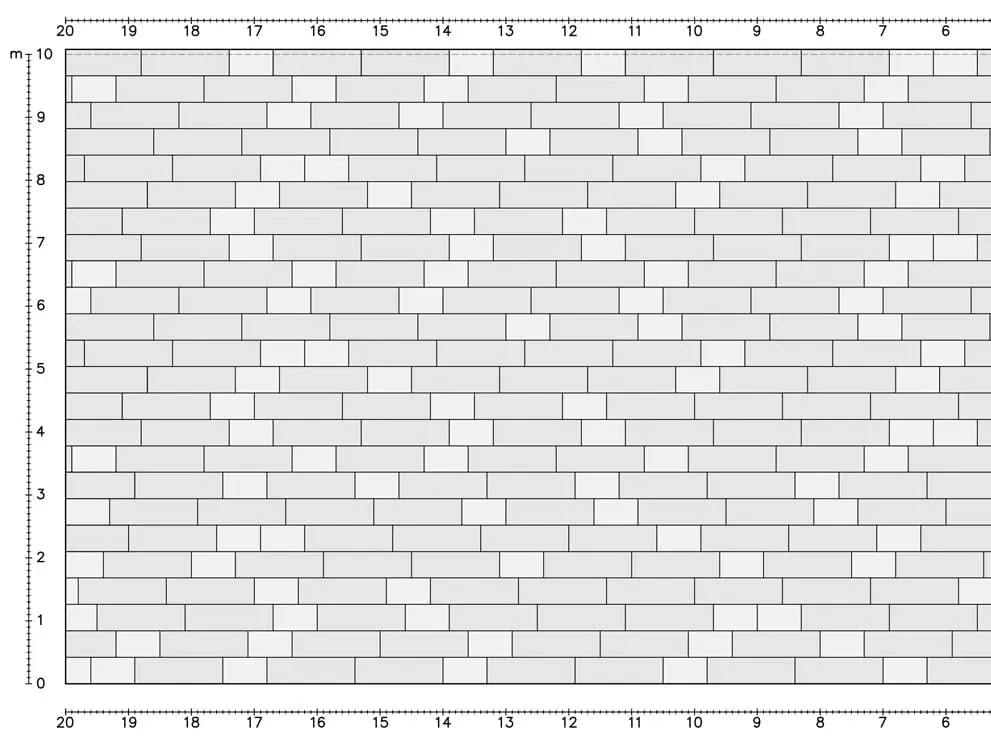

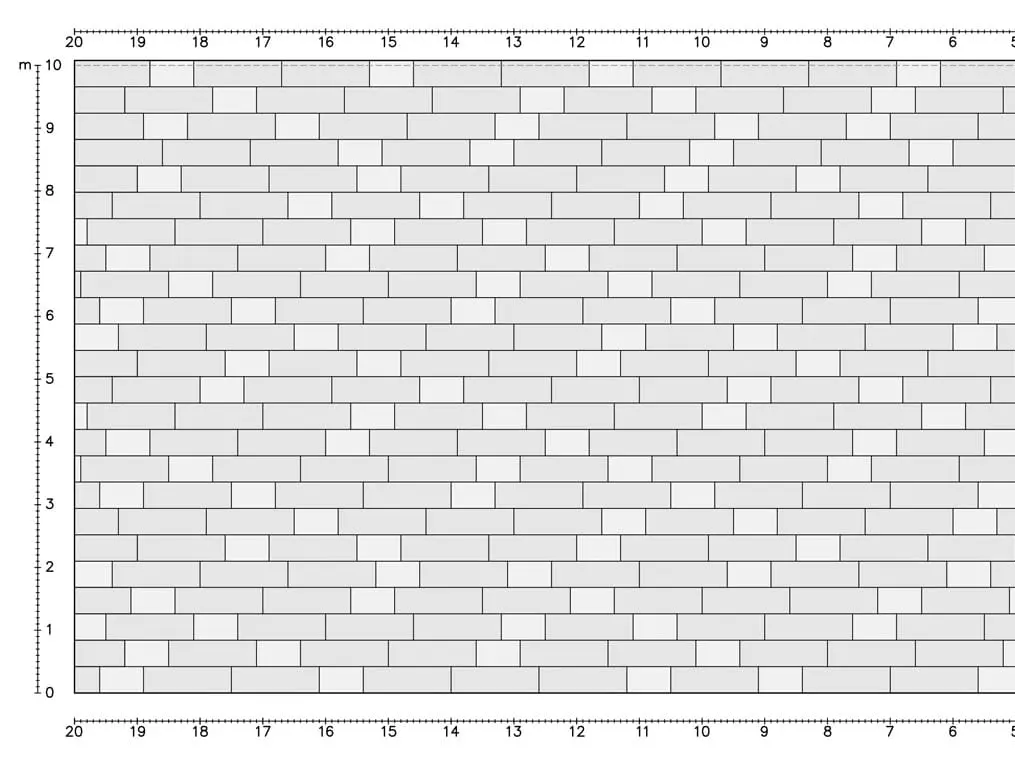

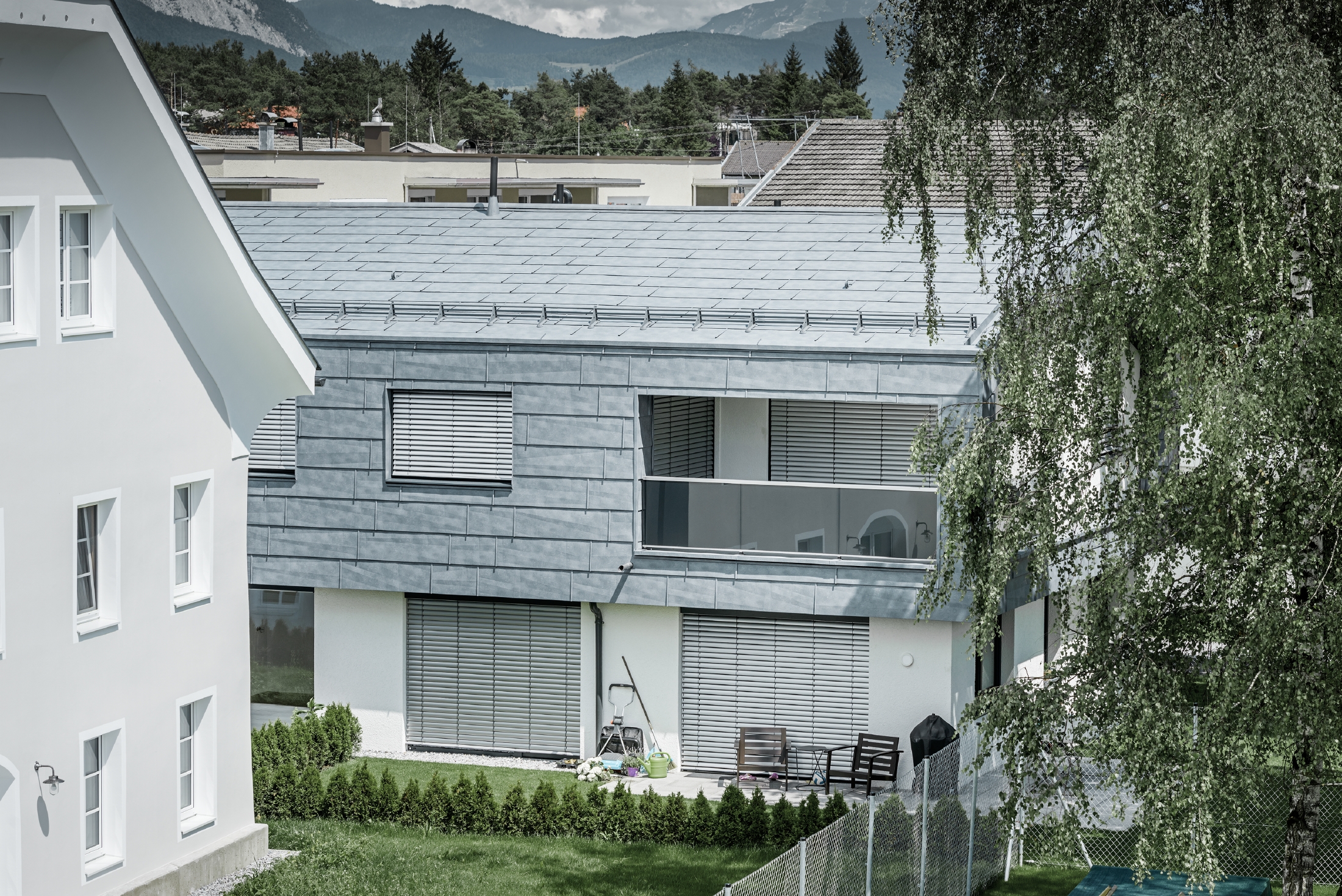

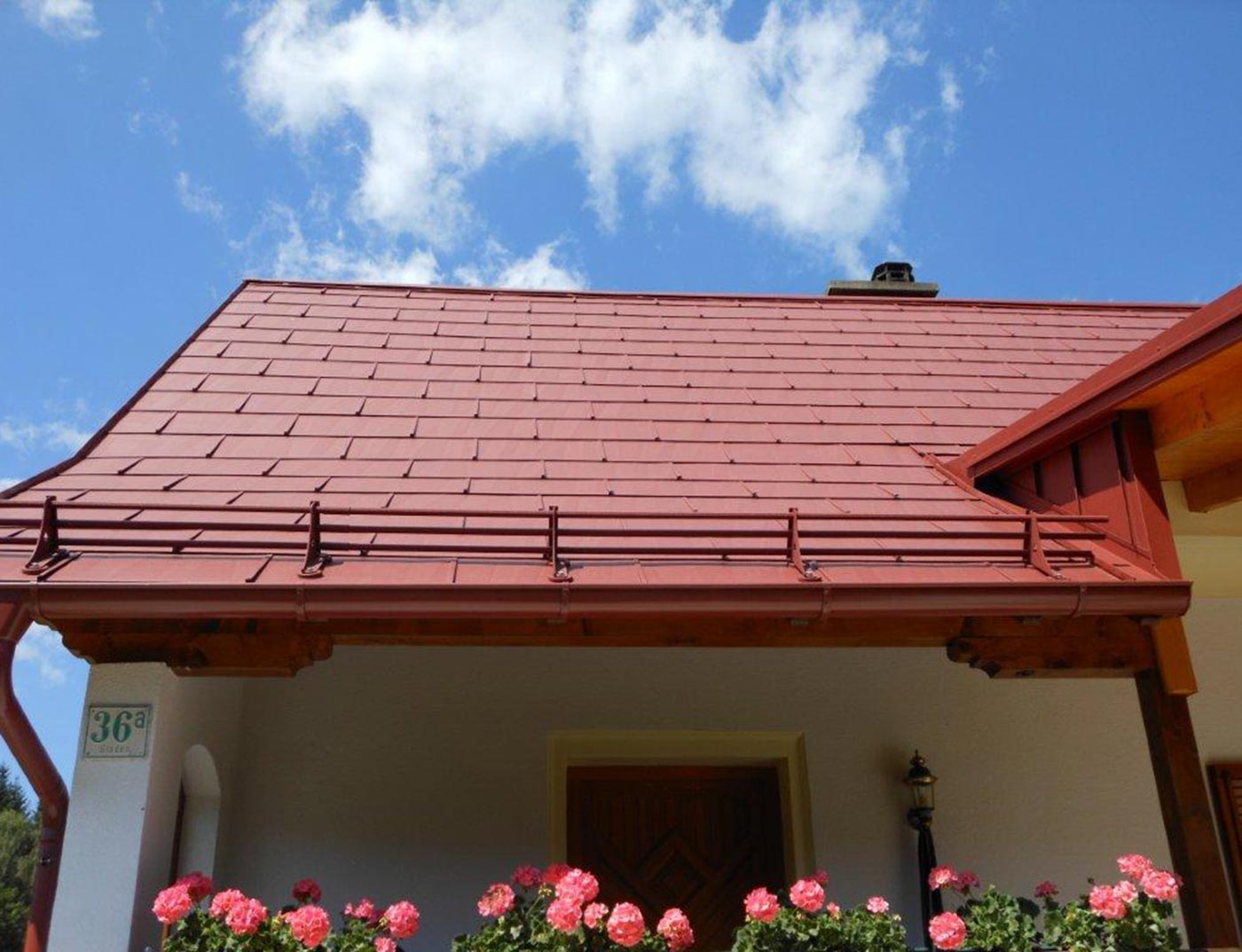

Not only the irregular edges and the resulting lighting effects ensure a visual highlight. Two different panel formats (short and long) also enable the appearance of the roof to be further shaped. We have developed three laying examples for the FX.12 roof panel for you – of course, other variants are also possible.

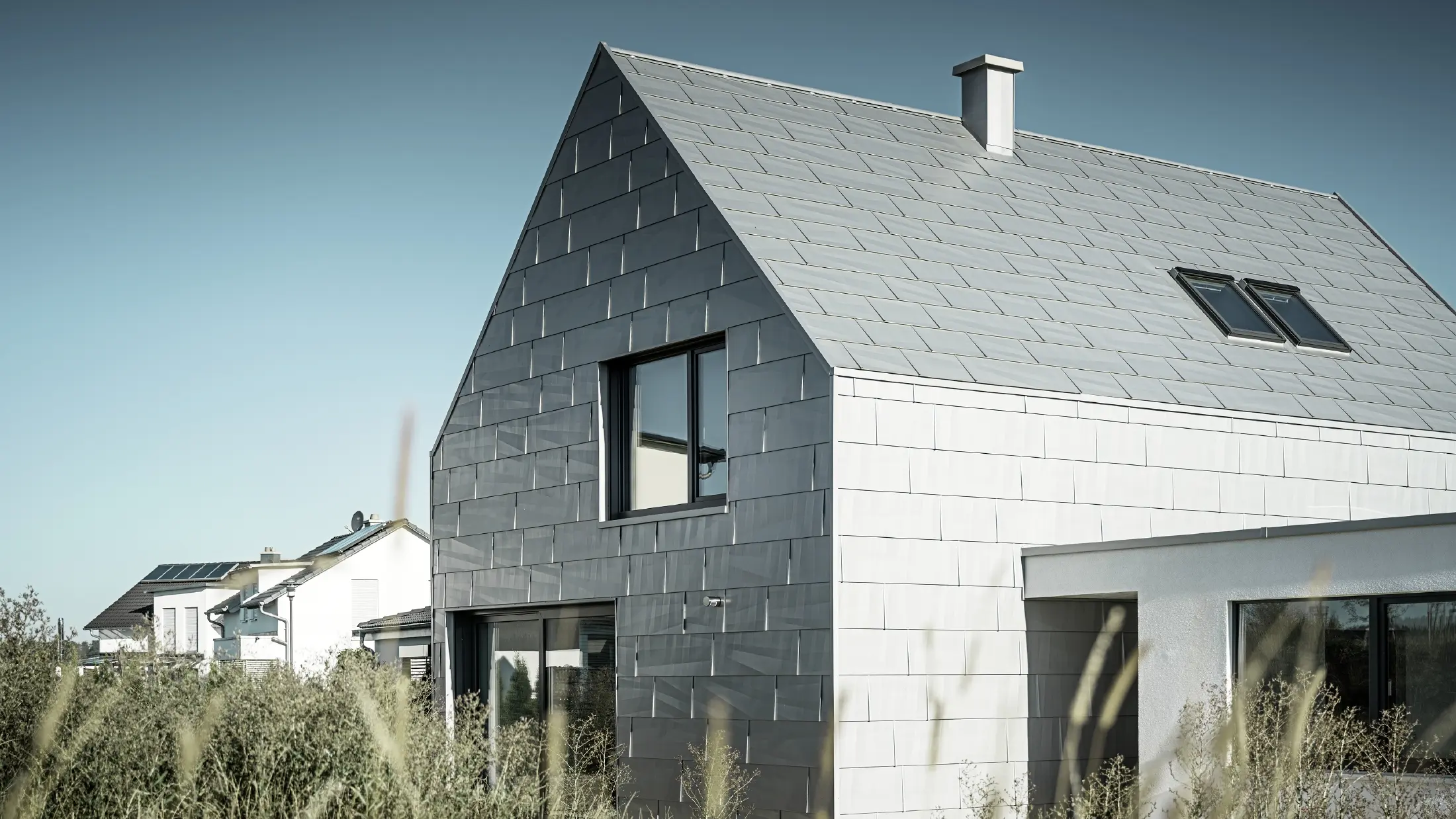

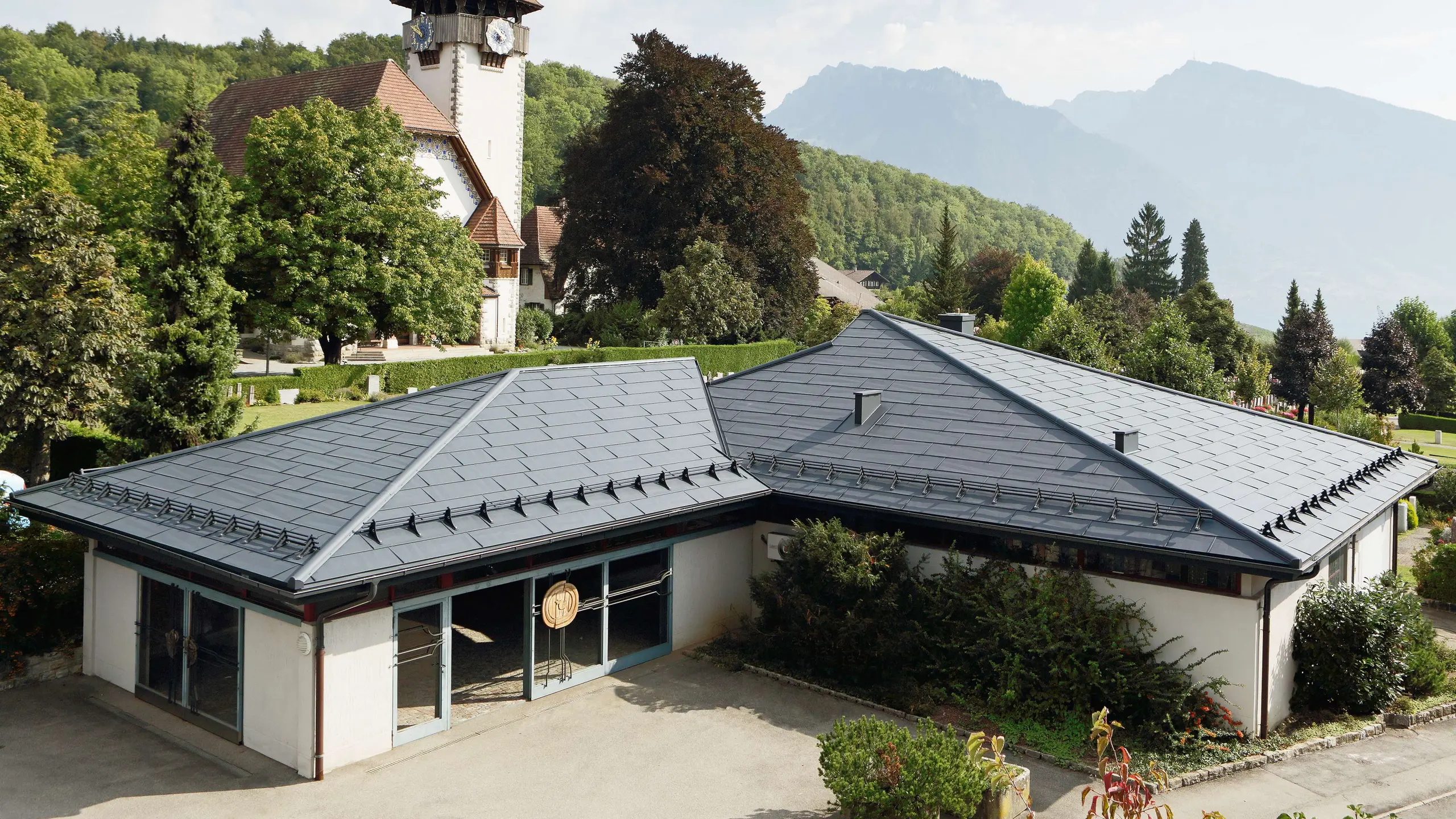

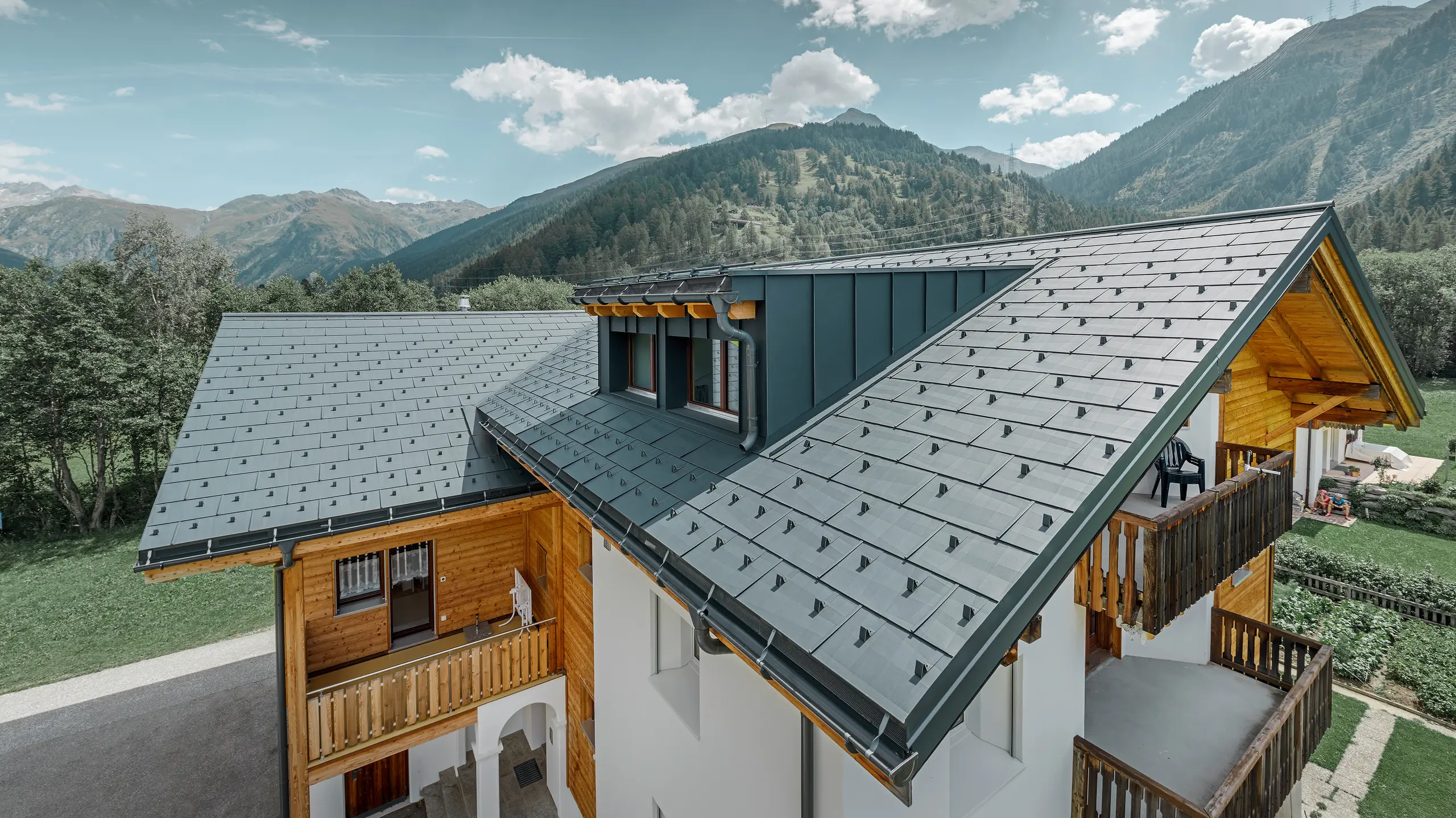

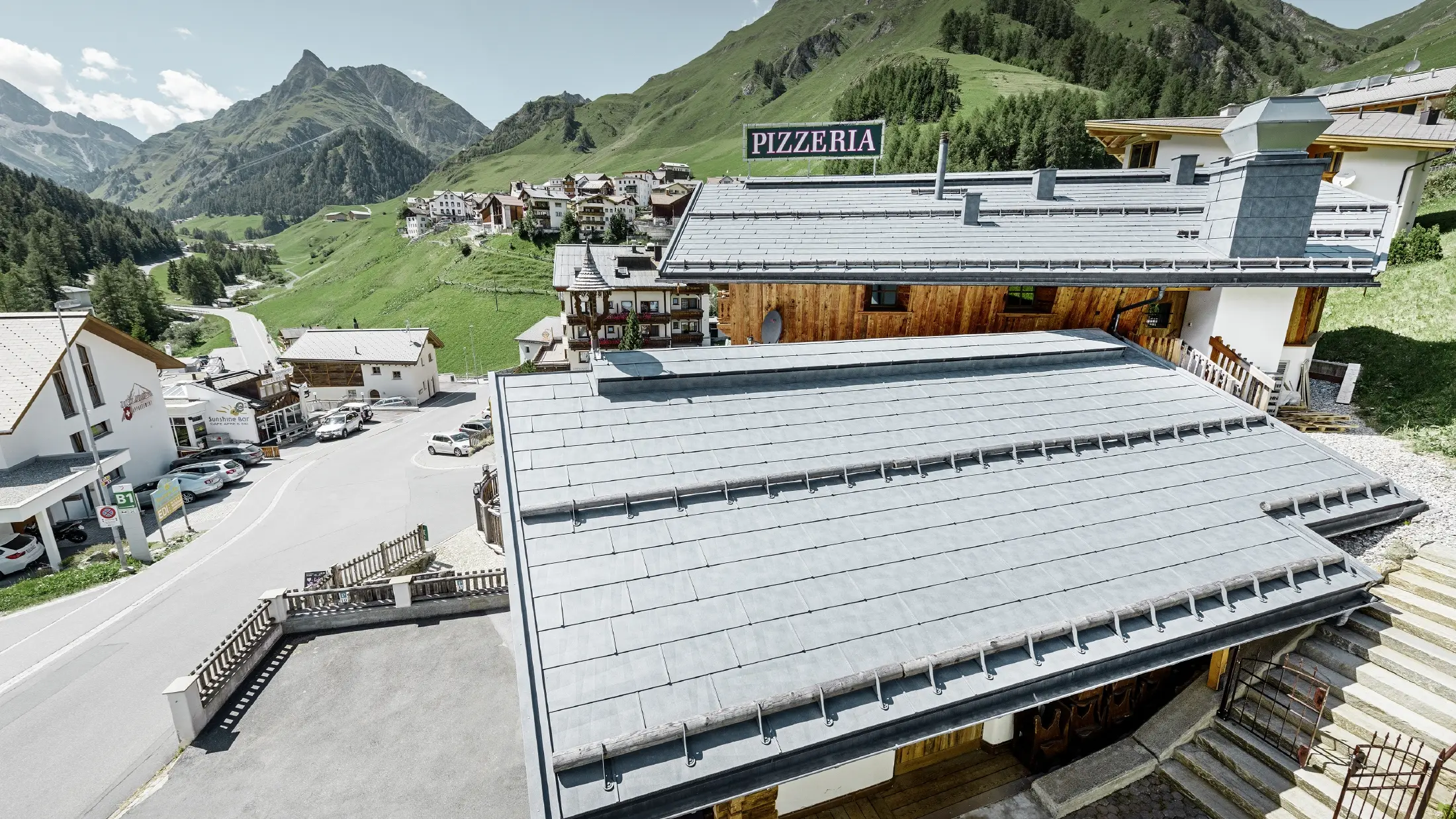

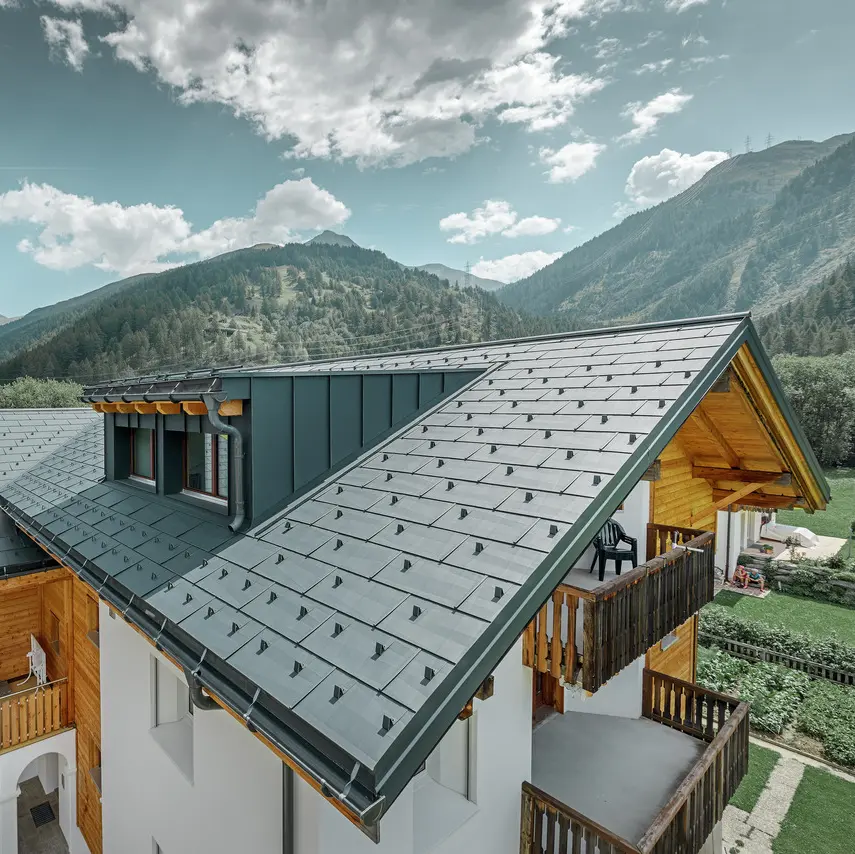

Whether you’re re-laying your roof from scratch or renovating your old roof, you’ll find tons of inspiring projects using aluminium roof panels from PREFA in our Reference Gallery and Renovation Gallery. Check out a few examples here:

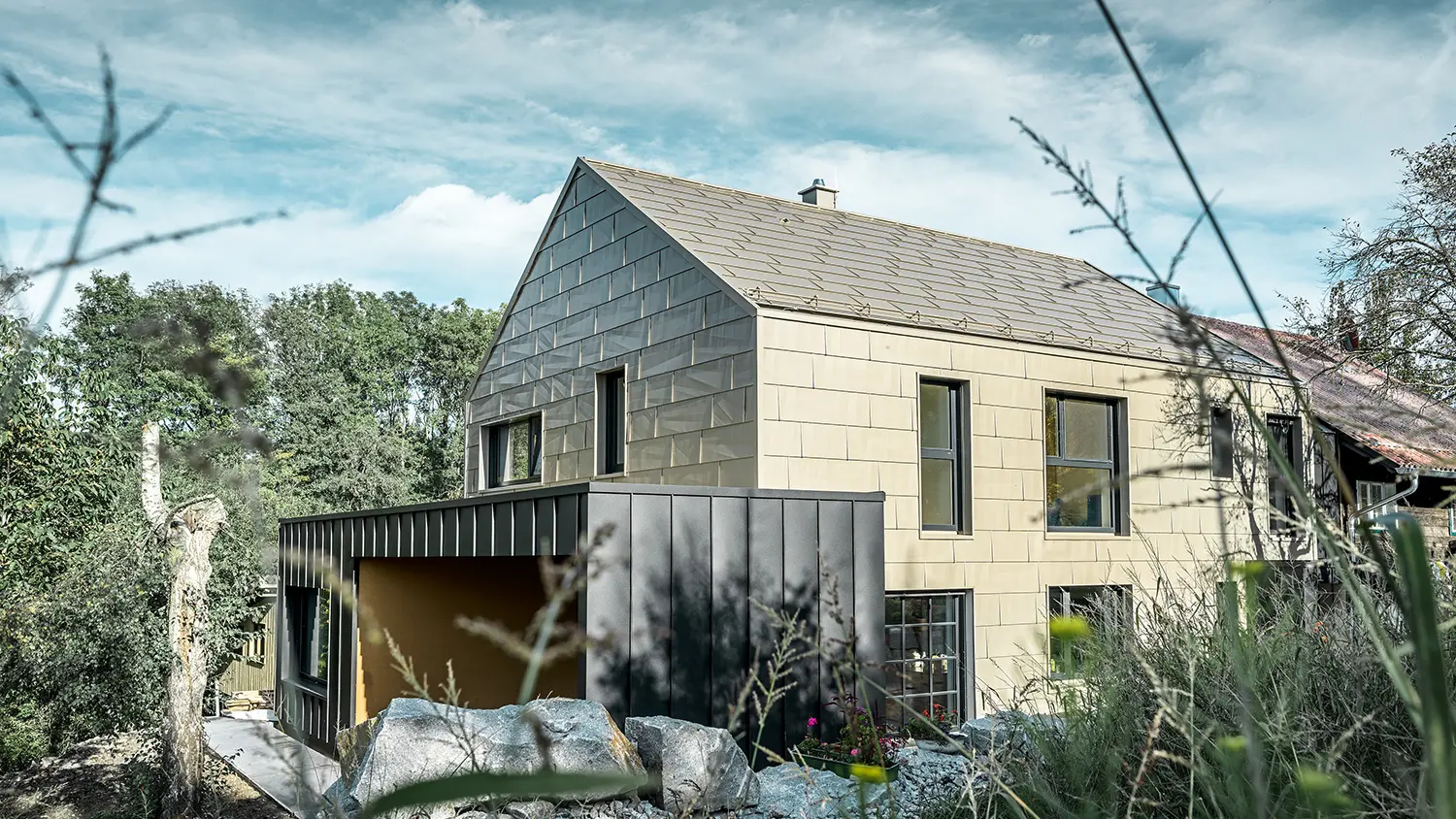

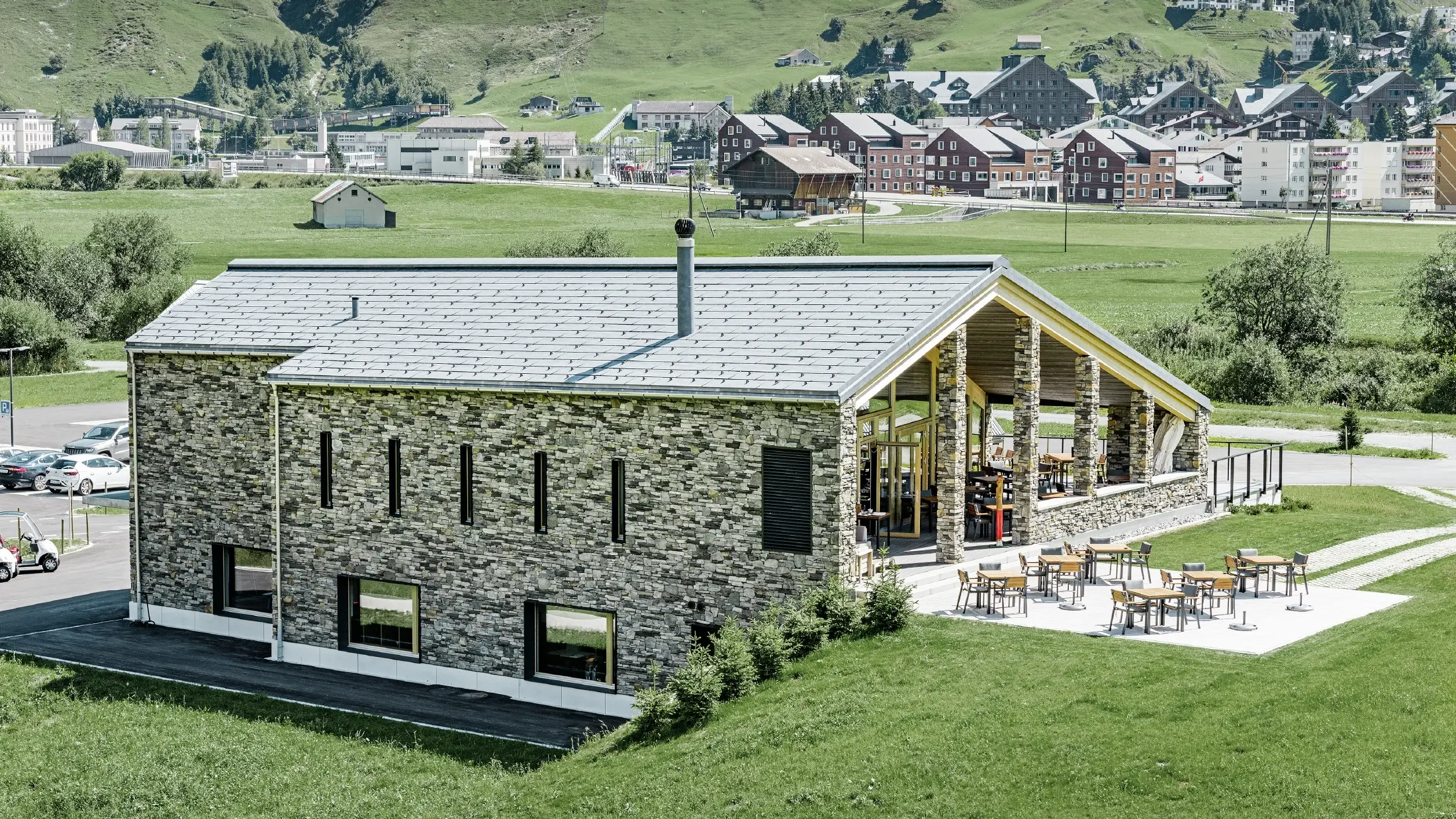

Apartment complex complete with FX.12 roof and façade panels in bronze with extension

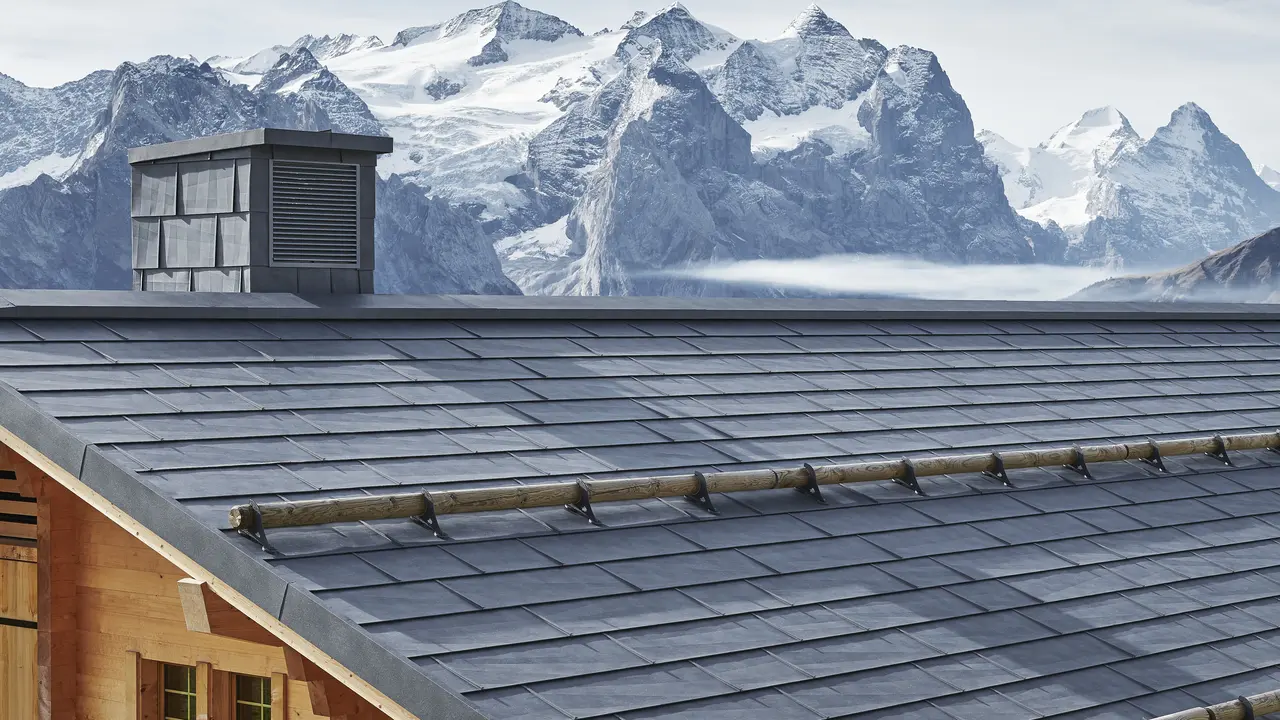

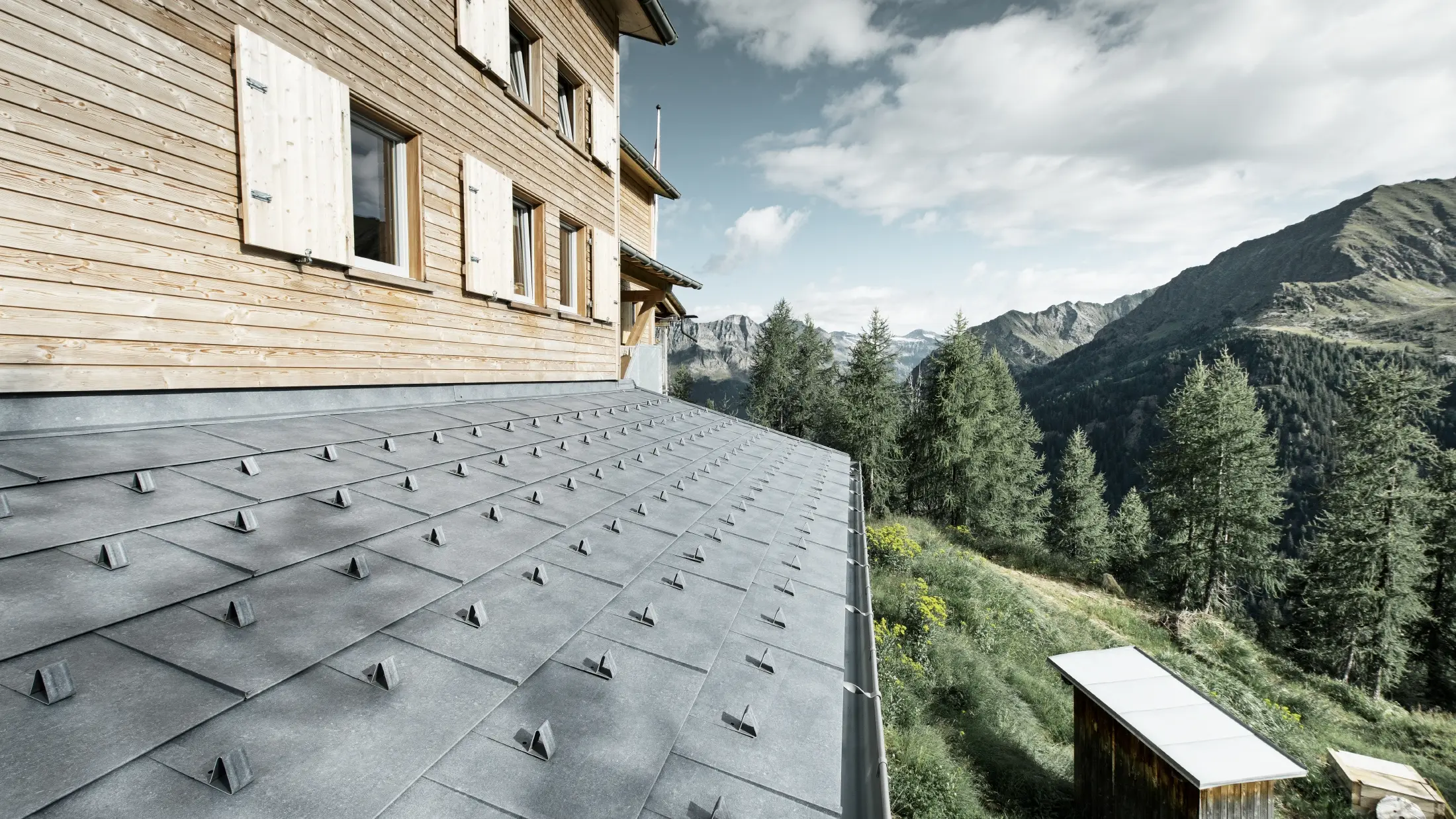

The Reuti hotel and Käserstatt mountain restaurant were constructed with lots of wood and stone. For the Managing Director of Bergbahnen Meiringen-Hasliberg, Hanspeter Wenger, these two new buildings in the region are particularly important, and he commissioned the architectural firm Amstutz Abplanalp Birri from Meiringen and the architect Jost Zumstein for this purpose. The high-quality PREFA products can withstand these conditions and protect the building from damage.
At Käserstatt, at 1850 metres above sea level, the snow is sometimes up to three metres deep and the winds can be up to 150 kilometres per hour.
Still got questions about the PREFA FX.12 roof panel?
Metal roofs can be integrated into the exterior lightning protection system in accordance with the standard ÖVE/ÖNORM EN 62305-3. PREFA flat band roof panels (Prefalz and Falzonal) are therefore permitted as a natural part of the arrester and PREFA small format components (roof tiles, shingle, roof panels, rhomboid roof tiles) as natural components of the conductor (installation of an additional arrester and connection to the earth). Some standards stipulate exceptions according to which, for example, property at increased risk (e.g. potentially explosive premises) must be specially designed. The integration of PREFA roof and façade systems in the exterior lightning protection system must therefore be planned depending on the specifics of property in question. Information on the necessity and type of lightning protection on a property can be obtained from a lightning protection system engineer or approved electrician. Find out more about lightning protection here.
Technical information
Material |
coil-coated aluminium, 0.7 mm thick |
|---|---|
Dimensions |
700×420 mm (cover), i.e. 3.4 pc./m² |
Weight |
approx. 2.4–2.5 kg/m² |
Minimum roof pitch |
17° (approx. 31%) |
Supporting substrate and separation layer* |
On fully boarded substrate (at least 24 mm), a separation layer is required for roof pitches between 17° and 25°; with snow loads greater than 3.25 kN/m² or in terrain categories 0, I or II, fully boarded substrate with a separation layer is required. * Observe country-specific standards and specialist guidelines. |
Standard fastening |
direct, with 3 PREFA ring nails per small FX.12 roof panel, with 5 PREFA ring nails per large FX.12 roof panel (i.e. 8–10 PREFA ring nails per m²) |
PREFA aluminium roofs are preferably executed with a vetilated build up, whre the substrate and thermal insulation layer is separated by a ventilated gap. This means any occasional condensation can be wicked away.
It is mostly the roof membrane that is ventilated, as shown in the first picture. However, the whole attic space can also be ventilated (second picture).
Planning & Application
Our installers and architects can download specification documents and information on the PREFA FX.12 roof panel here. Installation partners will find installation manuals and tips for laying roofs, along with planning guidelines, the roof data entry form, and a wide range of panel installation videos in our Service Area. (Only for partner companies – please have your log-in details ready. Not received your log-in details yet? Please contact your Local Sales Manager).
Special note for our architecture and design studios: 3D and BIM data, as well as textures for our products can also be found here: digital planning
Accessories
Below you will find a list of suitable accessories for the PREFA FX.12 roof panel – from verge trim and ridge vents to roof safety products like snow guards and walkways. Gutters and drainpipes in matching colours can be found under “Roof drainage”. The PREFA range also includes façade systems, flood protection, and photovoltaic products.
For a complete, detailed list of accessory products, see our price list (only for processors).
Strater strip for shingles, DS.19 shingle, rhomboid roof tiles, R.16 roof tile and FX.12 roof panel
1800 × 158 × 1,00 mm, pre-drilled
Ridge vent
3.000 × 1,00 mm, 1.200 × 1,00 mm, self-supporting ridge vent for ventilated roofs
Ridge vent end cap
-
Hip and ridge cap
500 × 1,00 mm
Hip cap end cap
-
Verge flashing
95 × 2.000 × 0,70 mm, with cleat strip
Safety valley
3.000 mm, with double lock standing seam (canted)
Bird screen
125 × 2.000 × 0,7 mm, with round perforations Ø 5/7 mm
Ventilation screen
with square perforations 6 mm, in the colours brown/anthracite and light grey/light grey, dimensions: 1,00 × 250 mm and 1,00 × 333 mm
Eaves drip edge
230 × 2.000 × 0,70 mm
Snow guard for R.16, FX.12 and DS.19
-
Bracket for pipe-style snow guard system
3 pipe openings
XL bracket for pipe-style snow guard system
with 5 pull-through openings, ideal for PV on-roof systems
Snow guard pipe
3.000 mm; 25/25
Ice-retention bracket
Suitable for removable pipe
end piece for pipe-style snow guard system
for removable pipe
End piece XL for pipe-style snow guard system
for insert profile
Mountain snow guard bracket
For 140 mm log diameter
Solar bracket with protective cap
length: 260 mm
Sunny solar bracket
suitable for all PREFA small format products and standing seam systems.
Fix solar bracket
Fixed installation of solar modules on PREFA small-format roof systems. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.
Vario solar bracket
Variable installation of solar modules on PREFA small-format roof systems. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.
Safety tread
Adjustable for roof pitches between 12° and 60°; tested according to EN 516-1-A
Walkway support on one mount
250 mm; r roof pitches between 12° and 55°; tested according to DIN EN 516-1-A
Walkway support on two mounts
360 mm; roof pitches between 12° and 55°; tested according to DIN EN 516-1-B
Walkway
250 × 420 mm, 250 × 600 mm, 250 × 800 mm, 250 × 1.200 mm, 360 × 800 mm, 360 × 1.200 mm; tested according to EN 516-1-A or rather EN 516-1-B
Walkway connector
-
Roof anchor hook
tested according to EN 517 – B
Roof anchor hook with mounts
tested according to EN 517 – B
Frog-mouth vent for FX.12 roof panel (small)
700 × 420 mm, air intake section: approx. 30 cm²
Frog-mouth vent for FX.12 roof panel (large)
1,400 × 420 mm, air intake section: approx. 60 cm²
Frog-mouth vent cover
for riveting, air intake section approx. 30 cm²
Ventilation cap
Ø 100 mm, roof pitch: from 12°
Vent pipe
Ø 100 mm, Ø 120 mm including EPDM seal and cover
Flexible pipe collar 100
Ø 100 – 130 mm, permanently flexible EPDM pipe collar for roof openings made in the roof underlay
Vent pipe cover for R.16 and FX.12
For pipe openings of ⌀ 80–125 mm and roof pitches between 17° and 52°
Vent pipe cover for seaming
roof pitches between 12° - 52°, Ø 80 - 125 mm
Universal vent pipe cover 2 parts
roof pitches between 12° - 52°; for pipe openings Ø 40 - 120 mm
Base plate
lenth: 540 mm, width: 125 mm
Vario flashing
width: 120 – 600 mm, 600 – 1.020 mm, variable length 150 – 980 mm, roof pitches bewteen 12° – 55°
Roof hatch
-
Window surrounds for Roto & Roto-Q-series
available in many dimensions
Velux window surroundings
available in many dimensions
Chimney cap
700 × 700 mm, 800 × 800 mm, 1000 × 700 mm, 1100 × 800 mm, 1500 × 800 mm
Roof conductor holder for lightning protection wire
clamping range: 2 – 8 mm; round wire mount: Ø 8 mm :
Special adhesive kit
Content: 1 cartridge of PREFA special adhesive 290 ml, 1 can of adhesive cleaner 60 ml, 1 piece of sandpaper, 1 cloth, 2 adapter nozzles
