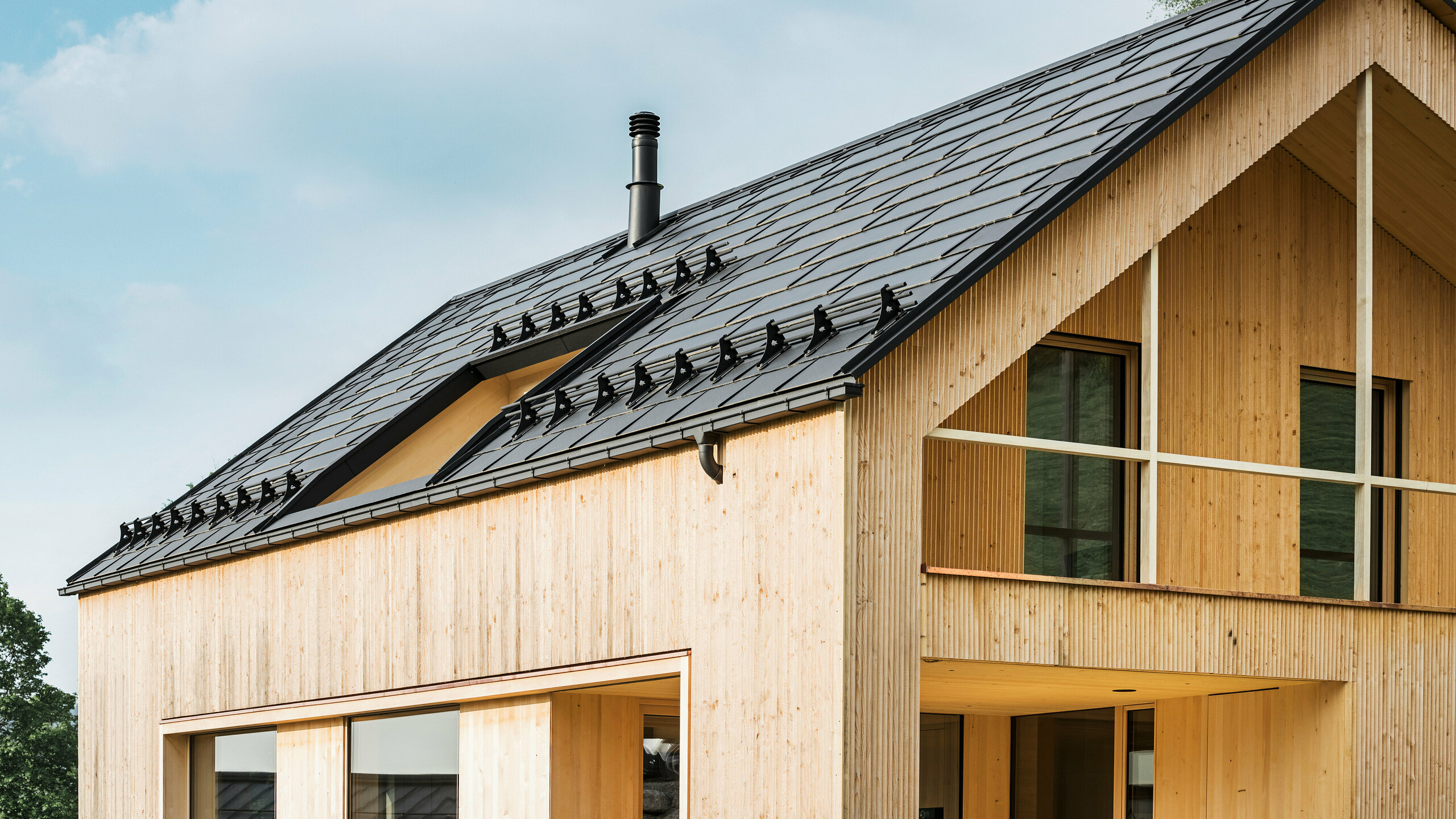

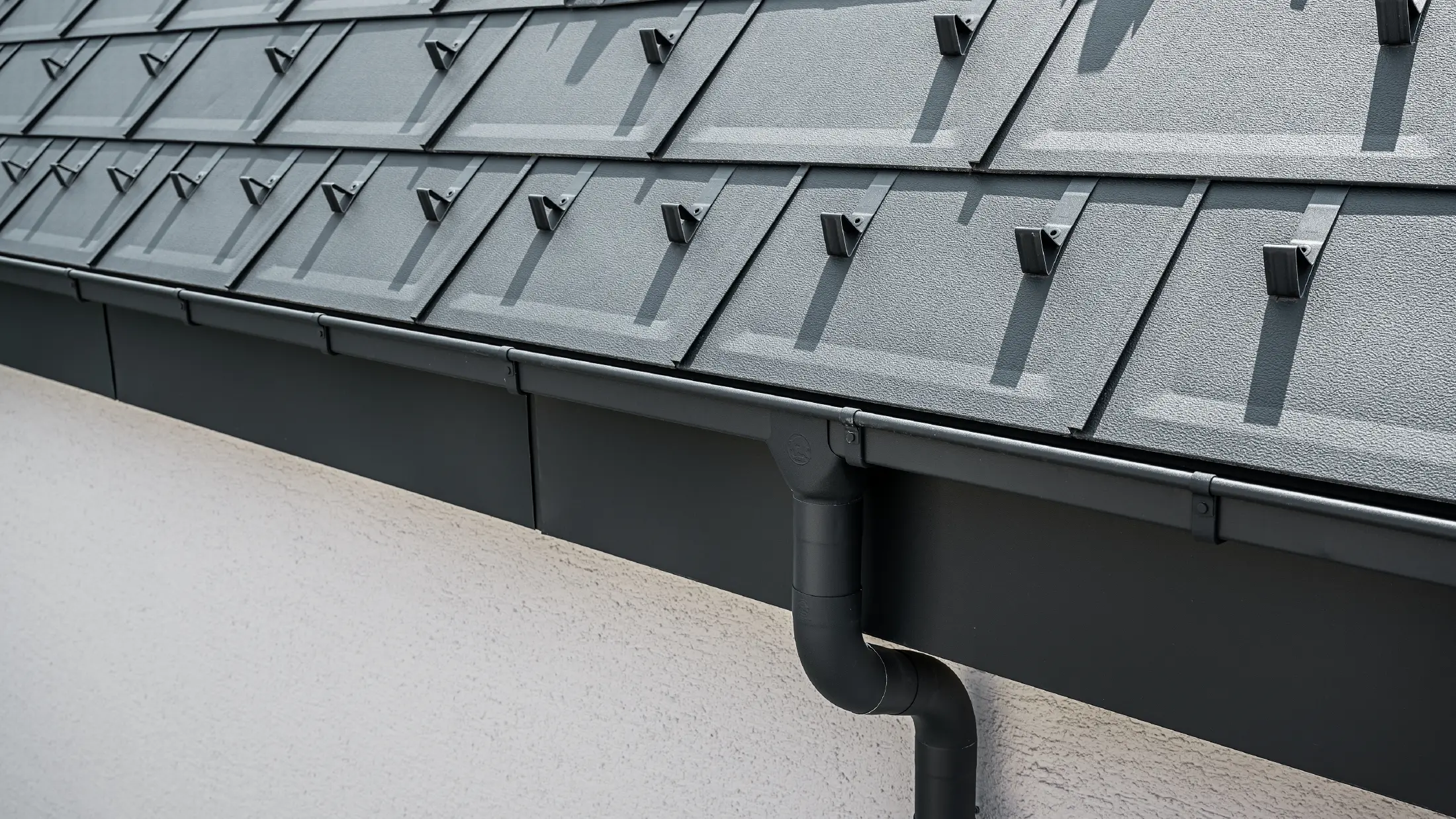

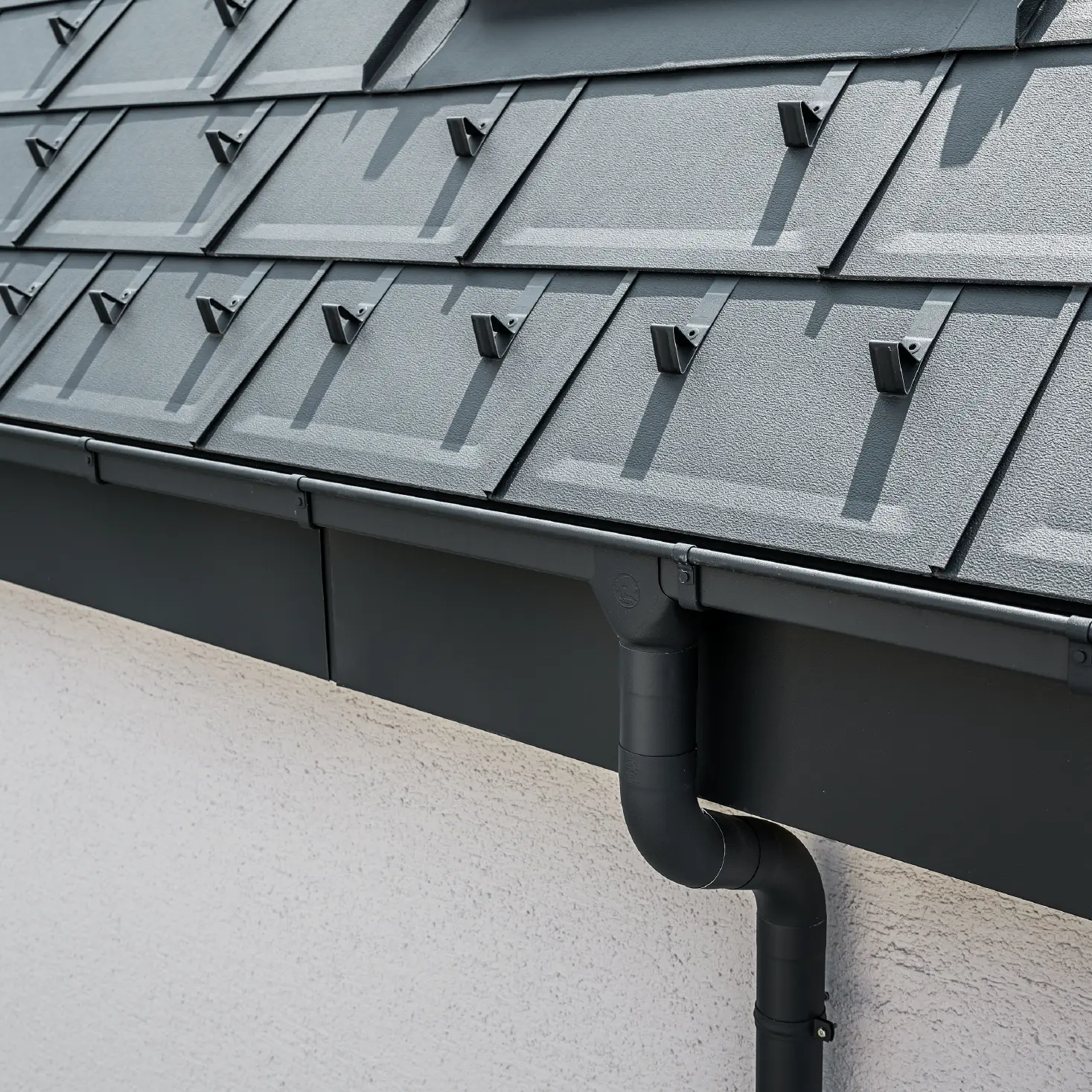

Steep roof surface covered with the roof tile R.16 with square PREFA box gutter with gutter outlet and downpipe in anthracite

Box gutter

The box gutter is a durable, robust and square roof drainage system with many colour variations.

+9
read more

PREFA box gutters have been tried and tested for decades and impress with their beautiful modern detailed solutions.

Thanks to the tried-and-tested surface treatment, they remain functional and beautiful even after many years. PREFA gutters are made of colour-coated aluminium strips. The basic materials for them are alloys according to ÖNORM EN 573-3.

The PREFA box gutter is available in 4 dimensions with a length of 3 or 6 m and complies with ÖNORM EN 612.

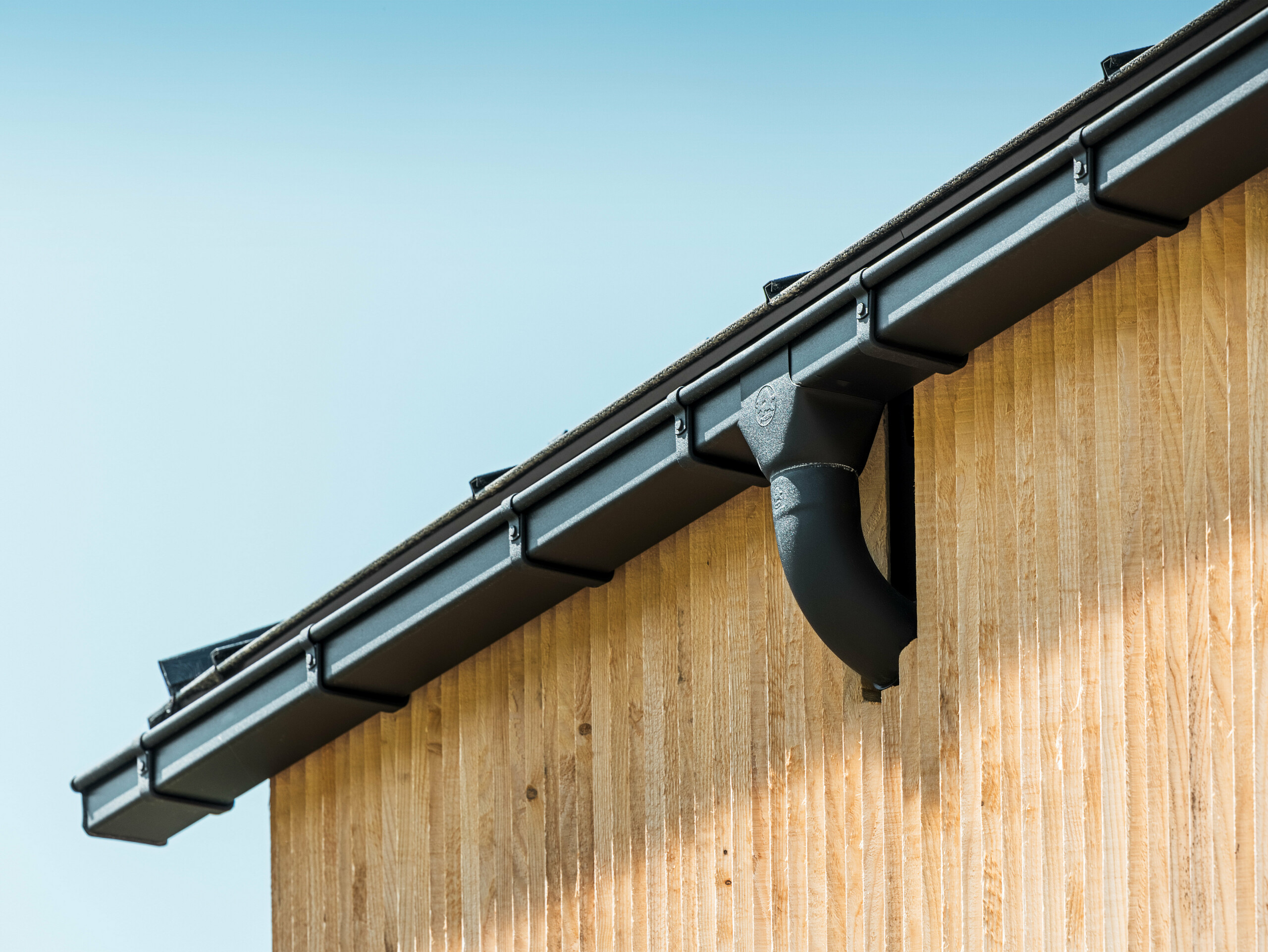

Corner of house with the PREFA box gutter in anthracite, fastened with the PREFA gutter brackets, while the façade is clad with PREFA Prefalz underneath.

With the (square) box gutter and the round PREFA downpipe or the equally square PREFA square downpipe (see image), rainwater is safely drained from your (PREFA) roof.

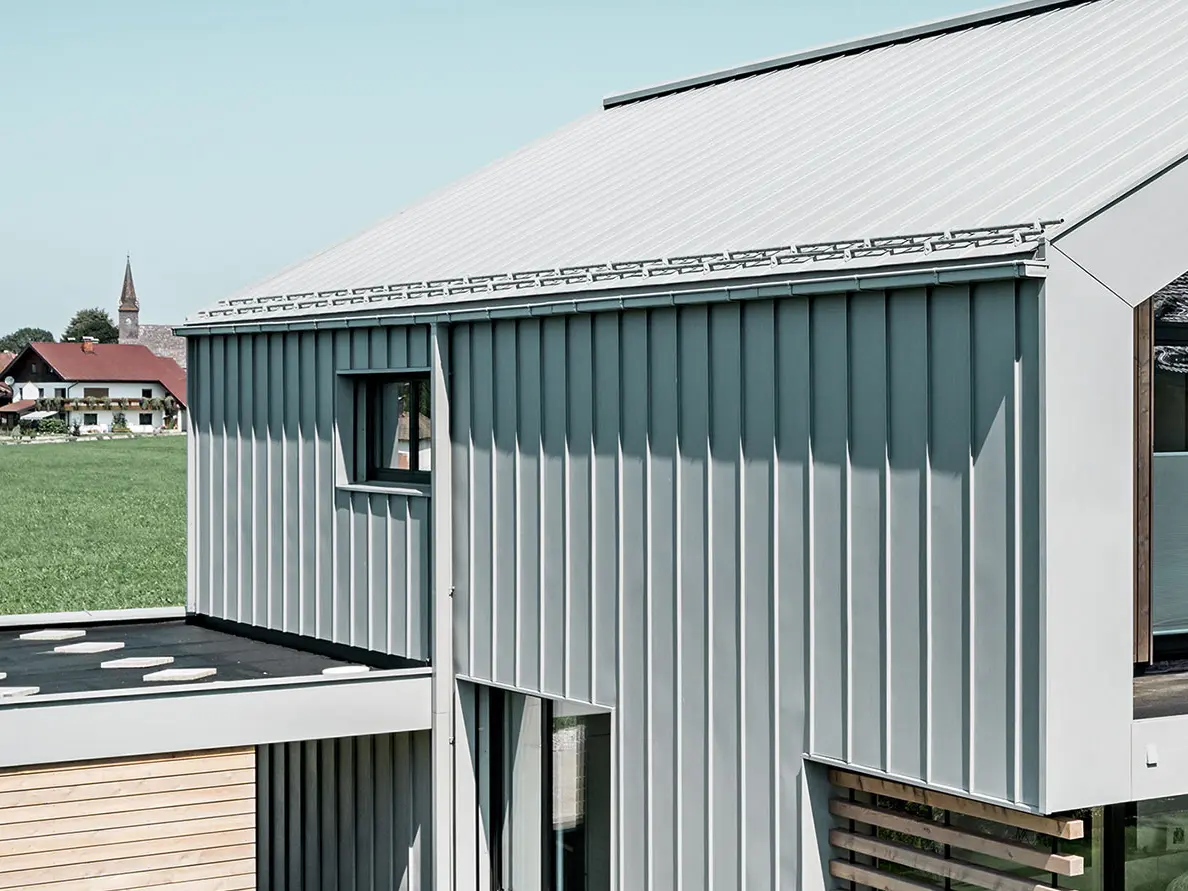

Detached house with gable roof, with PREFALZ on the roof and façade; for roof drainage, the PREFA box gutter is used with the PREFA square downpipe in the special colour patina grey.

Advantages of PREFA’s box gutter

Icon for advantages

Malleable coating layer

Due to the coating of the aluminum coils in the coil coating process, the coating layer remains malleable and does not peel off - no annoying repainting and touching up.

Icon for advantages

Free of harmful heavy metal ions

Aluminum gutters do not release harmful substances.

Icon for advantages

Durable

Non-corrosive – because aluminium does not rust

Icon for advantages

Malleable coating layer

Due to the coating of the aluminum coils in the coil coating process, the coating layer remains malleable and does not peel off - no annoying repainting and touching up.

Icon for advantages

Free of harmful heavy metal ions

Aluminum gutters do not release harmful substances.

Icon for advantages

Durable

Non-corrosive – because aluminium does not rust

Icon for advantages

40-year guarantee

Icon for advantages

Temperature-resistant

from -30°C to +80°C

Icon for advantages

Everything from one source

Complete system with a wide range of accessories – technically and colour-coordinated

Icon for advantages

40-year guarantee

Icon for advantages

Temperature-resistant

from -30°C to +80°C

Icon for advantages

Everything from one source

Complete system with a wide range of accessories – technically and colour-coordinated

Good for the environment

The PREFA aluminium drainage system is the best choice from an ecological point of view too. This is because aluminium does not release harmful heavy metal ions into the sewage water when gutters and pipes are constantly flushed out with rainwater, as is the case with conventional materials.

Colour range of PREFA’s box gutter

PREFA’s box gutter is available in the classic standard colours. The roof drainage system is part of PREFA’s complete aluminium system and is thus a perfect match for PREFA roof and façade systems, both visually and functionally.

Colour overview (13)

Colour

Code

~ RAL

250

333

400

500

01 Braun

P.10 brown

7013

02 Anthrazit

P.10 anthracite

7016

03 Schwarz

P.10 black

9005

07 Hellgrau

P.10 light grey

7005

10 Prefaweiß

P.10 prefa white

9002

11 Nussbraun

P.10 nut brown

8019

PREFA dunkelgrau ähnlich DB 703 oder RAL 7043

P.10 dark grey

7043

04 Ziegelrot

brick red

8004

06 Moosgrün

moss green

6005

08 Zinkgrau

zinc grey

7030

12 Silbermetallic

metallic silver

9006

13 naturblank

plain aluminium

47 Patina grau

patina grey

7042

Notes

  • The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
  • Above all for colour quality P.10, it is almost impossible to define values due to the surface structure. In addition, the PREFA Siding colours P.10 stone grey, P.10 sand brown, P.10 patina green, natural oak, patina grey, walnut and grey oak are based on natural colours made up of several different shades.
  • Coils and metal sheets plain aluminium: The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.
  • Metallic colours may vary in shade.
  • To identify exact colours for complementary components please consult original samples.

Be inspired by projects that have already been implemented with PREFA’s box gutter.

Here, we have compiled some reference buildings with PREFA’s box gutter. For more inspiration, see our Reference gallery.

The round gutter: You may also like the following option

The round alternative to the square box gutter is the PREFA half-round gutter. It is also available in 4 dimensions and 2 lengths (3 m and 6 m).

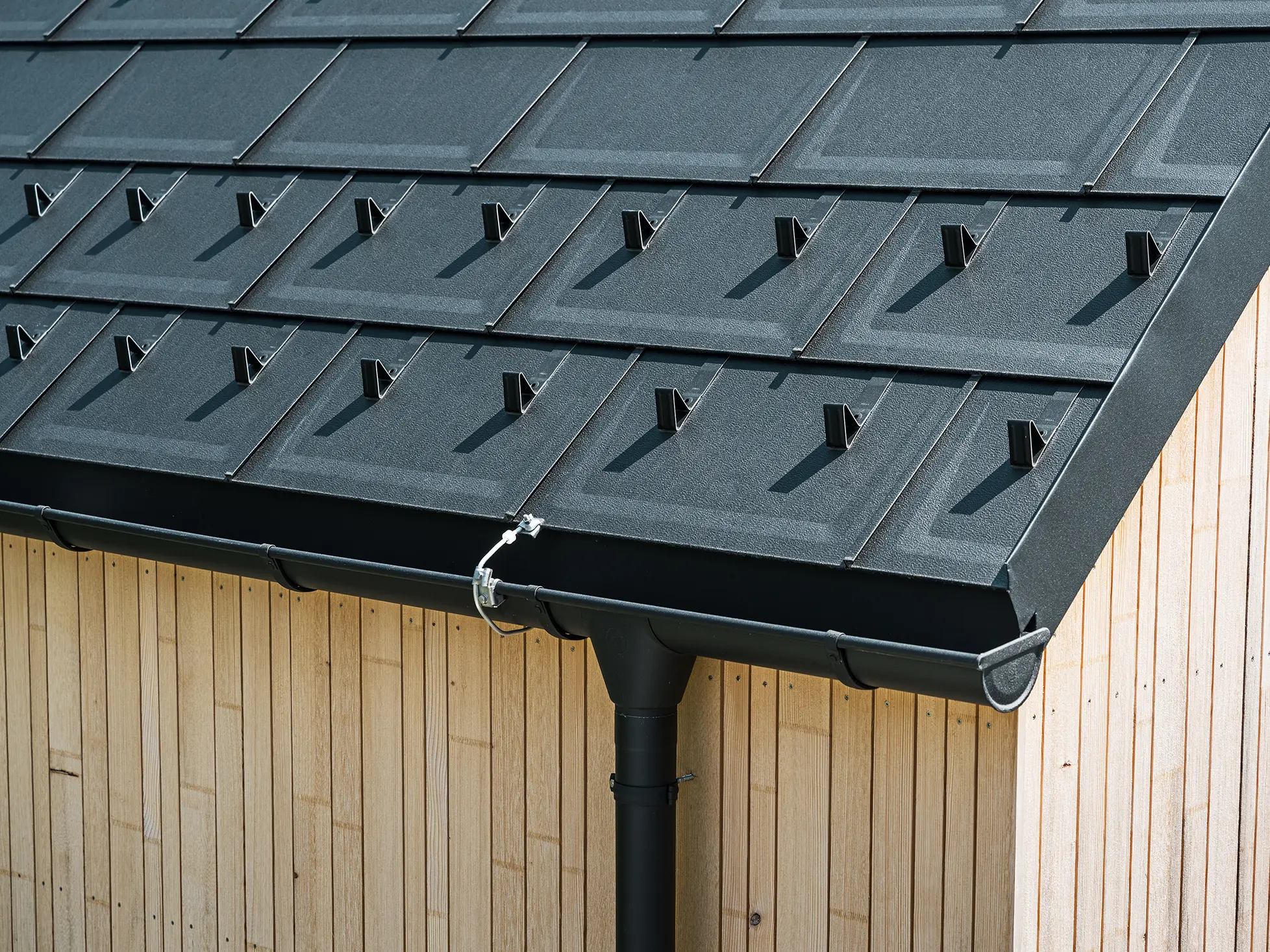

Close-up of PREFA roof tile R.16 with snow guards, gutter and downpipe in black P.10 incl. lightning protection and a vertical wooden façade

Think about your gutter after a storm or especially in autumn/winter.: Tip from the experts:

In autumn, but also after strong winds, rain or hail, leaves and branches may block the gutter. As a result, water can no longer drain off and may thus overflow. The accumulated water can also freeze in winter and damage the gutter and pipe. In any case, the rain barrel should be emptied and the rainwater collector should be closed and sealed with the corresponding plug in autumn to prevent frost damage.

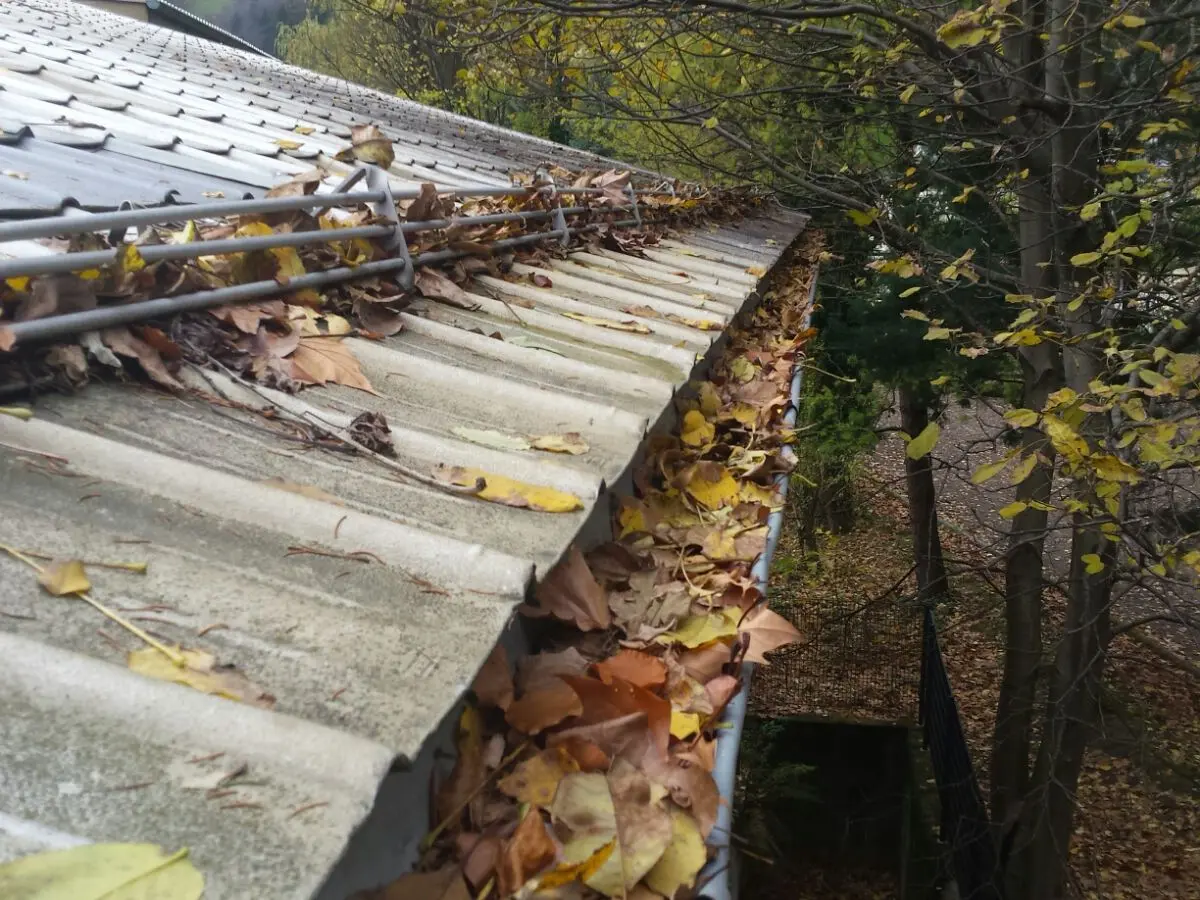

Gutter with a lot of autumn leaves, clean clogged gutters

Do you have any other questions about PREFA’s box gutter?

  1. Primary aluminium Aluminium is obtained from bauxite, an aluminium ore named after Les Baux – the place where it was discovered. Bauxit usually consists of up to 60% alumina, iron oxide and silica. It is mainly found in South America, Australia and Africa.
  2. Secondary aluminium Secondary aluminium consists of recycled aluminium and is recovered from scrap metal recycling. During preparation, only 5% of the extraction energy used to produce primary aluminium is used.

Depending on the product, we offer a 40-year guarantee on the base material against breakage, corrosion (rust) and frost damage, plus a 40-year colour guarantee against chipping, peeling, blistering and breaking.

Aluminium is compatible with most metals apart from copper. Therefore, it should not be used in flow paths underneath copper materials or installed next to copper.

Aluminium materials are largely corrosion-resistant.

Technical information

The coating layer is malleable and resistant to general chemicals and weather conditions. Coil coating production is accompanied by strict quality controls.

Temperature-resistant

from -30°C to +80°C

Box gutter dimensions (piece lengths 3 m and 6 m)

250, 333
Dimension 400 and 500 only available in 6 m
Dimension 500 only available in 3 m on request

Aluminum water downpipes (piece length 3 m)

Ø 60 mm, Ø 80 mm, Ø 100 mm, Ø 120 mm, Ø 150 mm

Planning & Use

Our metalworkers and architects can download Tender specifications for PREFA’s box gutter here. Installation guidelines and instructions for roof drainage, ÖNORM guidelines, information sheets on roof drainage and a calculation tool for the dimensioning of roof drainage are available to our installation partners in the Service area. (Only for metalworker and roofer partner companies: Please have your access data ready. You don't have access data yet? Then contact your local Area Sales Manager.)

Accessories

With a gutter system from PREFA, you are opting for a well-thought-out complete system with 100% original accessories. The PREFA roof and façade system comes with a colour-coordinated range of accessories – from gutter brackets to gutter outlets.

For a complete, detailed list of accessory products, see our price list (only for processors).

Box gutter bracket

250, 333, 400, 500

Fascia bracket for box gutter

250, 333

Box gutter end cap

250, 333, 400

Box gutter end cap 500

left/right

Box gutter corner 90° (external)

250, 333, 400, 500

box gutter corner 90° (internal)

250, 333, 400, 500

Box gutter outlet

250 × Ø 80, 333 × Ø 100, 400 × Ø 120, 500 × Ø 120, 500 × Ø 150

Square downpipe outlet

□ 80/250, □ 80/333, □ 100/333, □ 100/400

Box gutter expansion joint with bead and cover plate

280, 333, 400

Box gutter expansion joint without bead or cover plate

250, 333, 400

Eaves drip edge

230 × 2.000 × 0,70 mm
