FAÇADE SYSTEMS SIDING.X

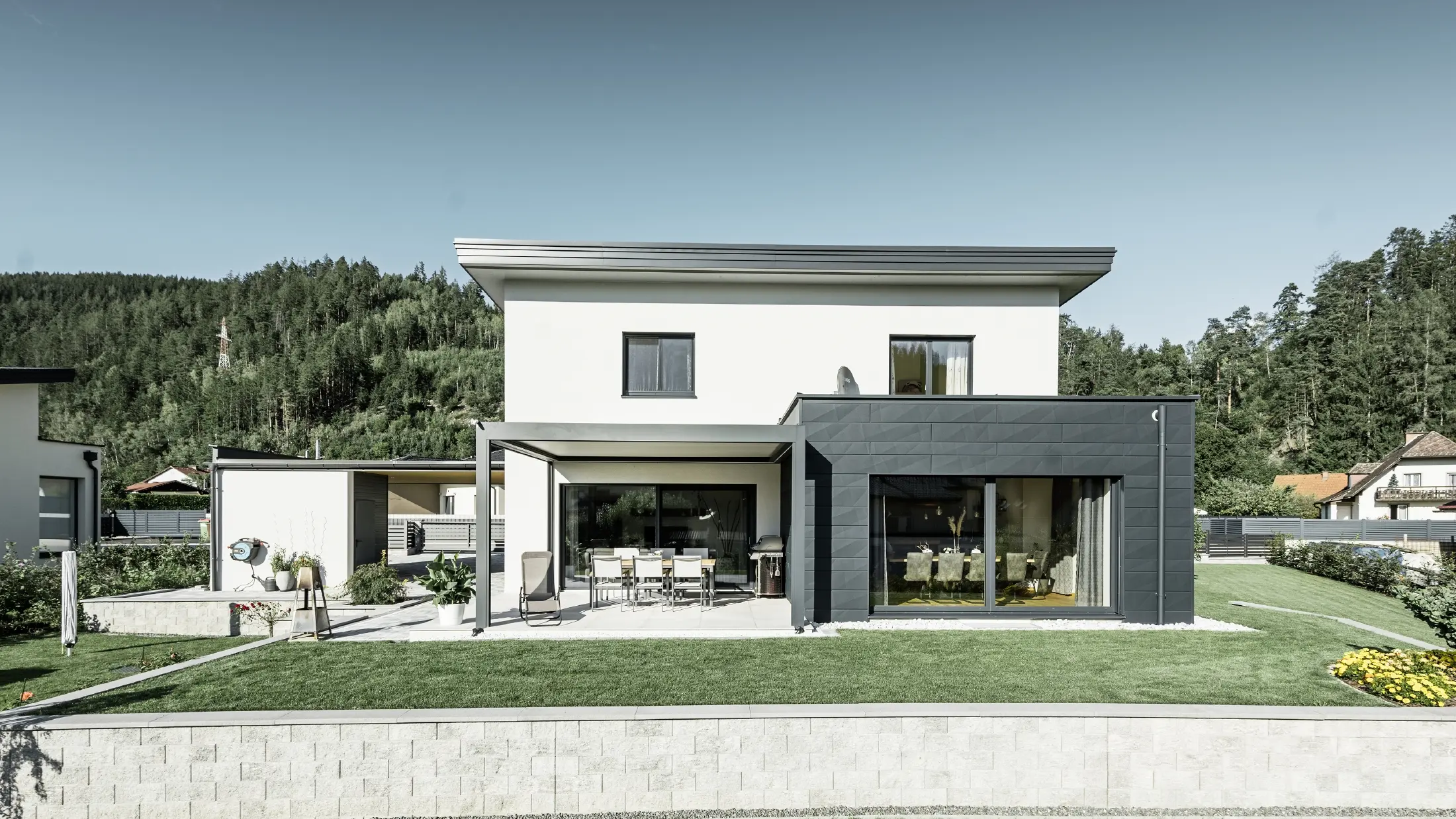

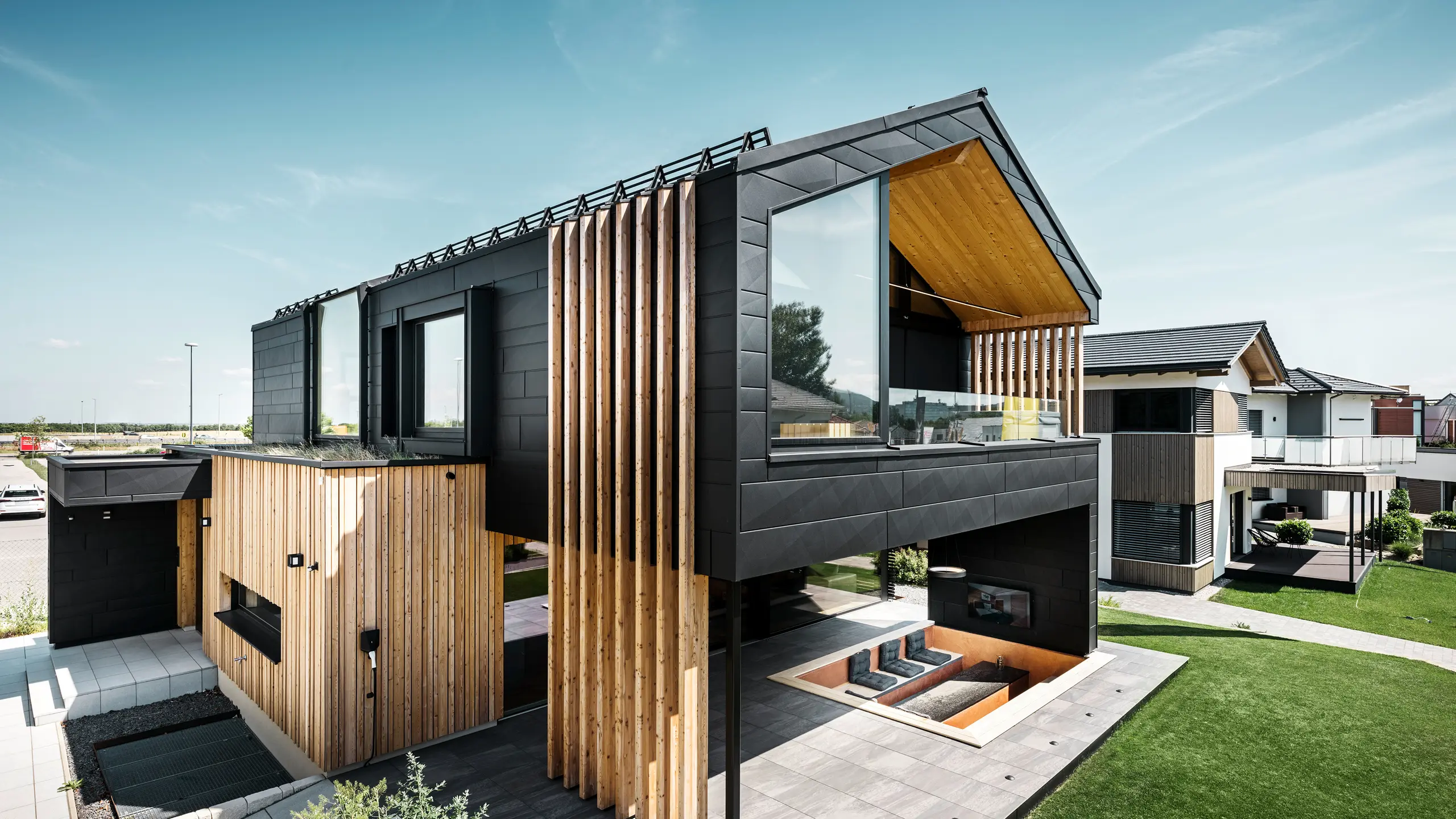

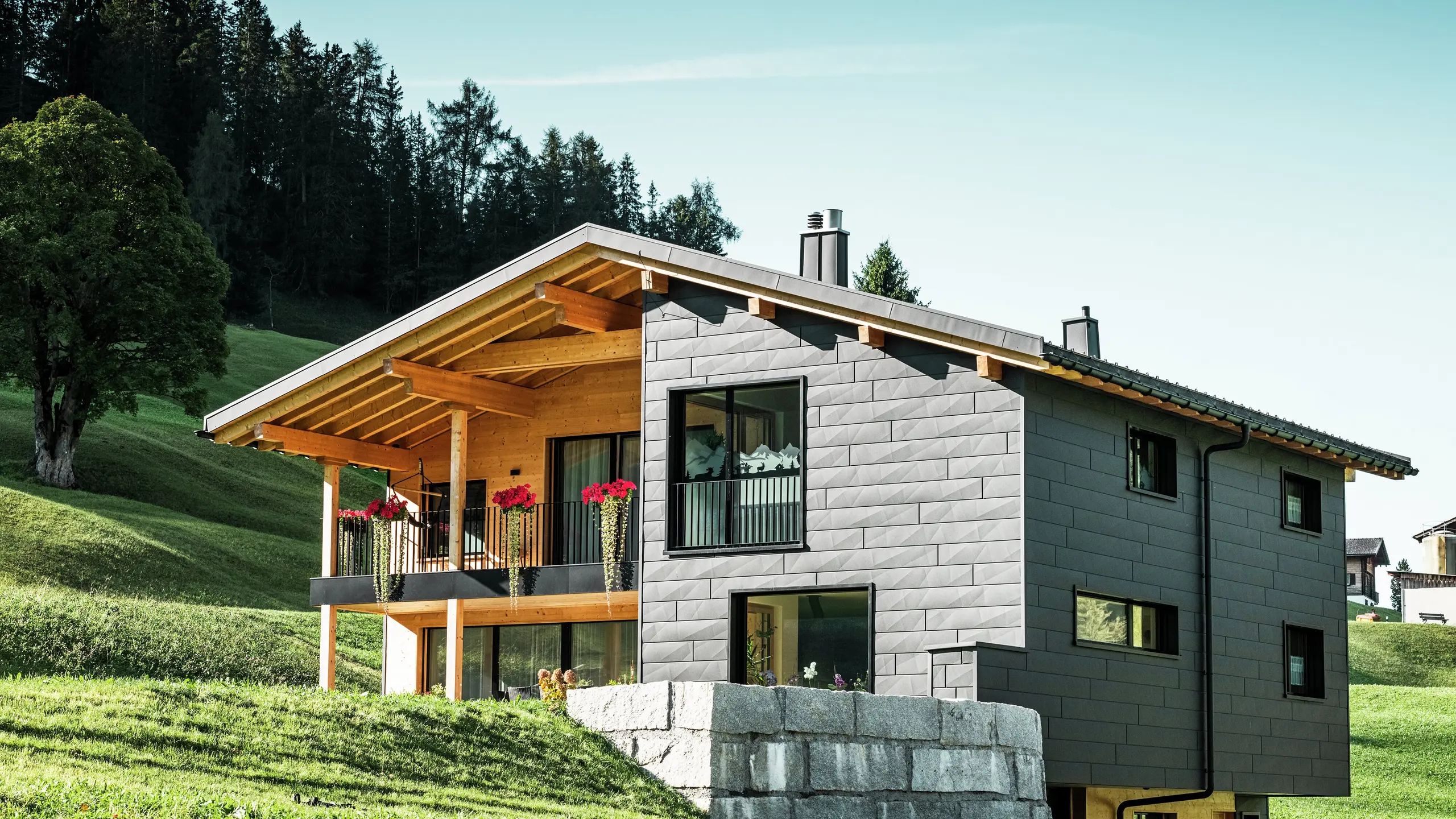

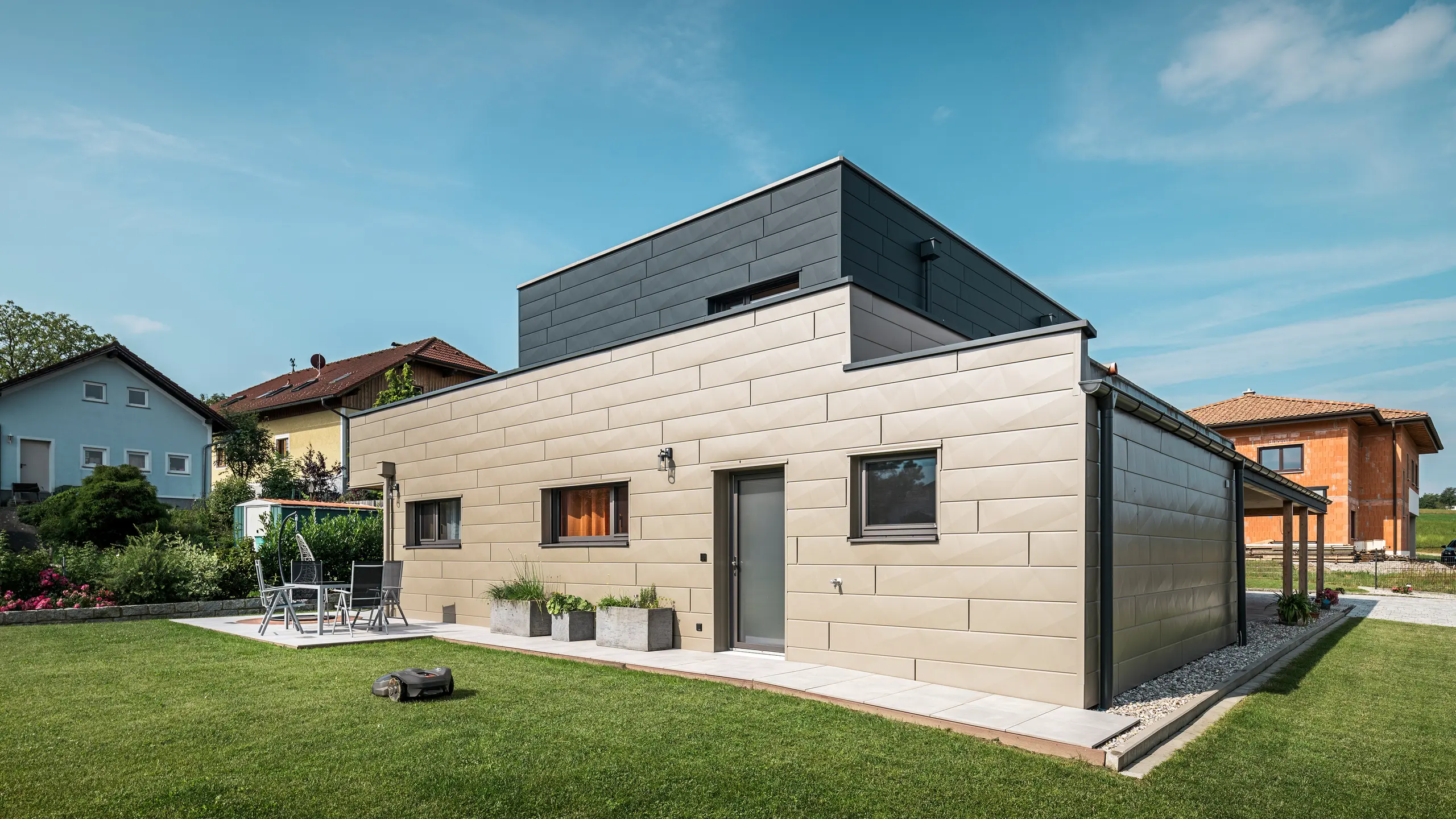

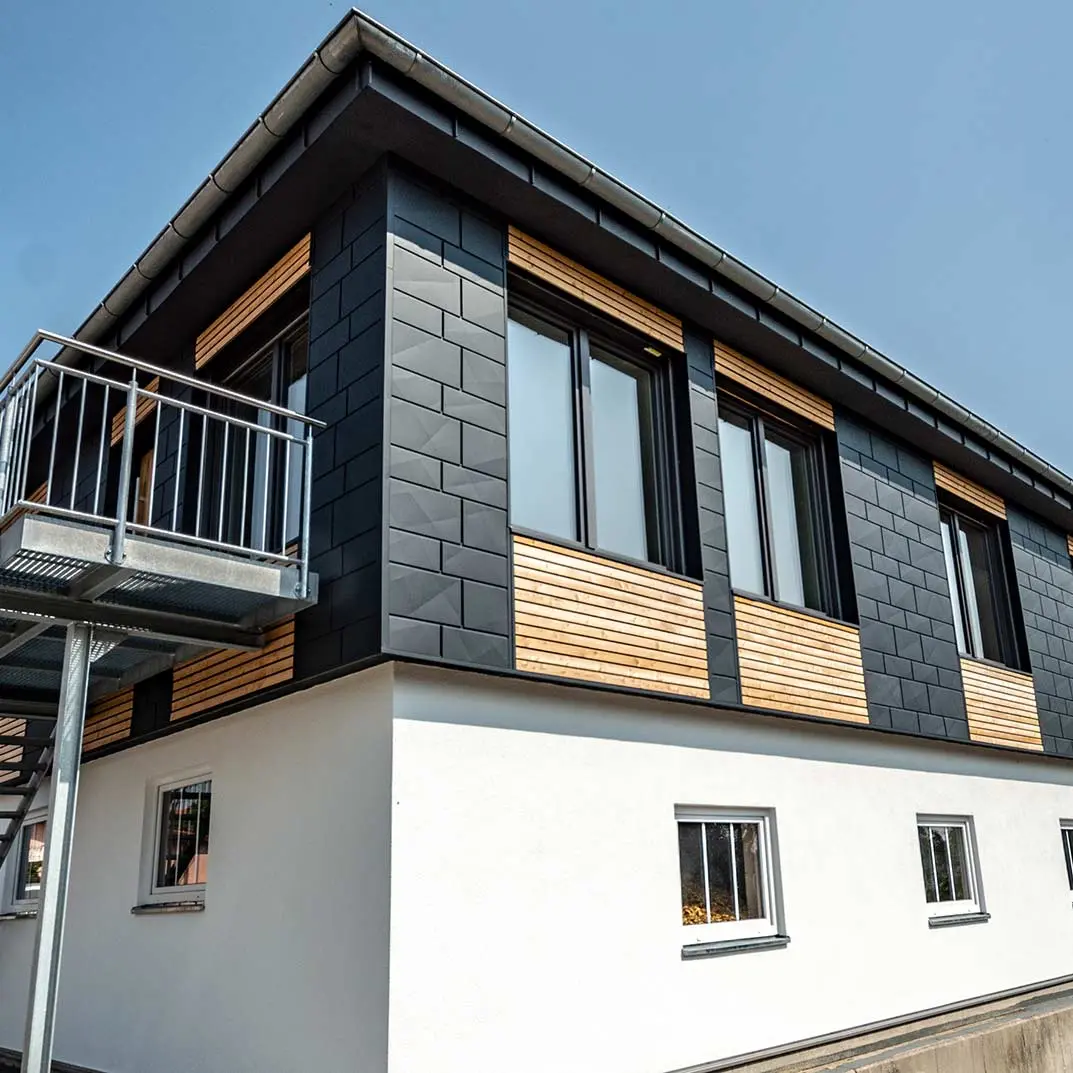

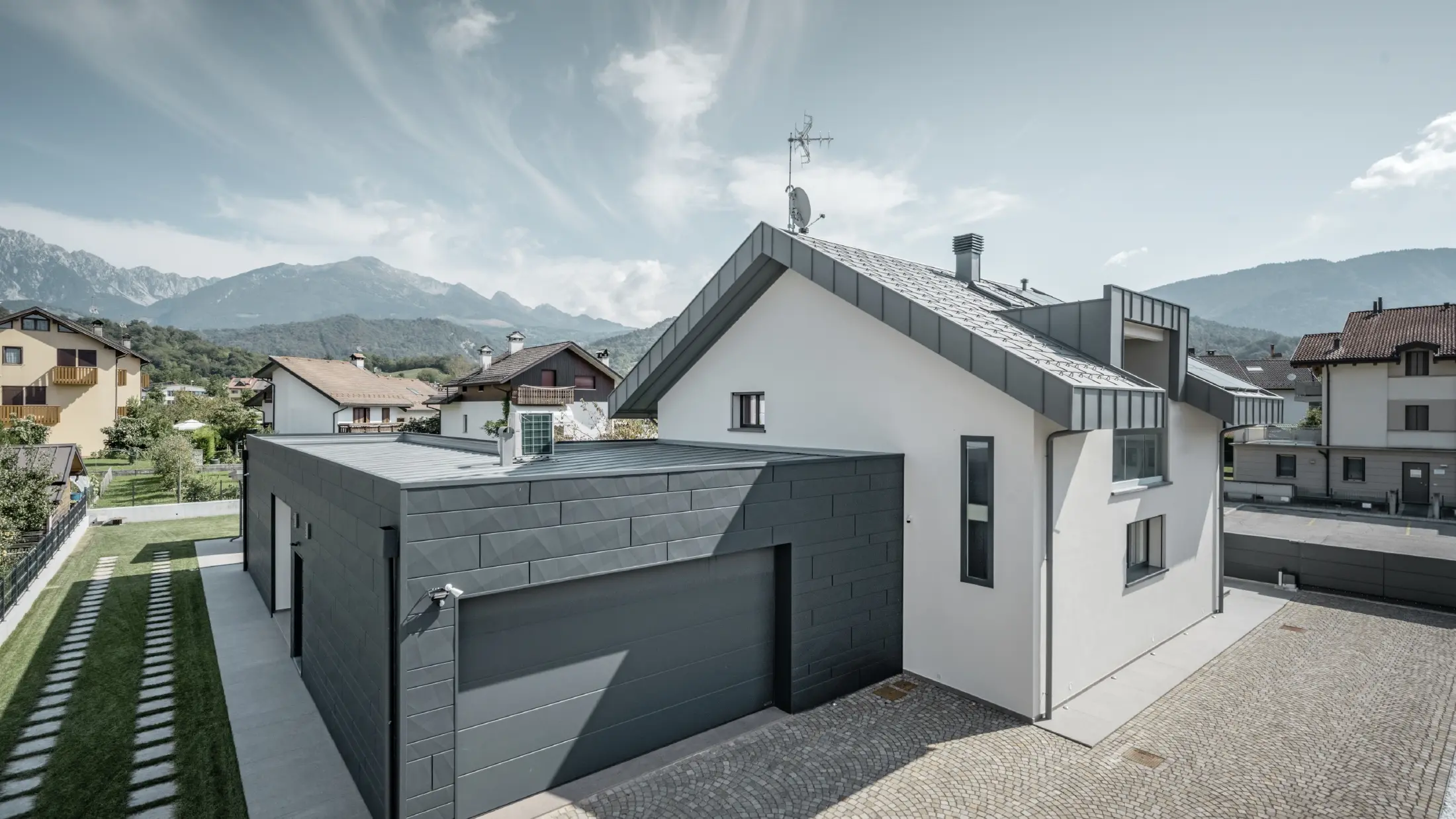

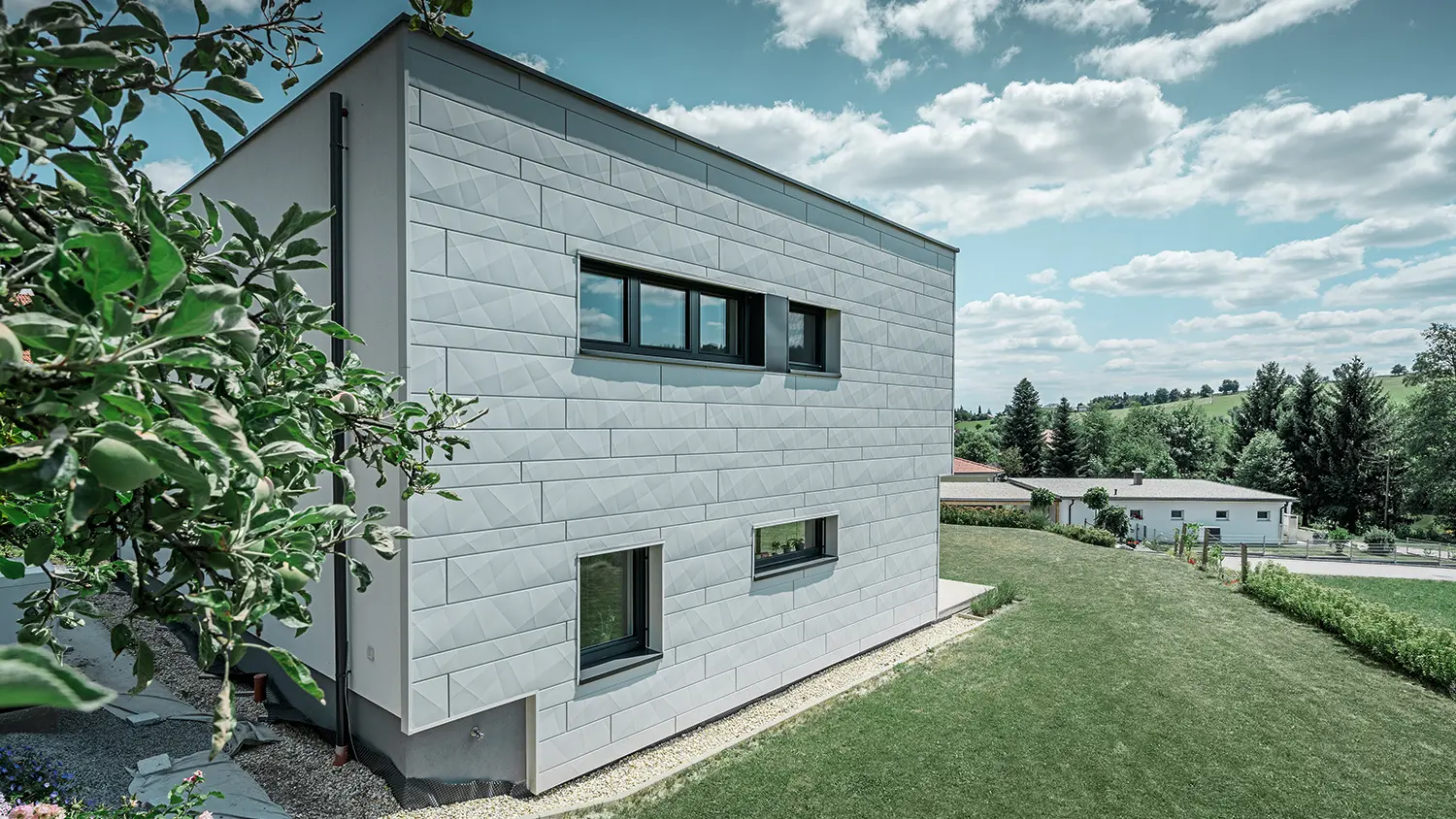

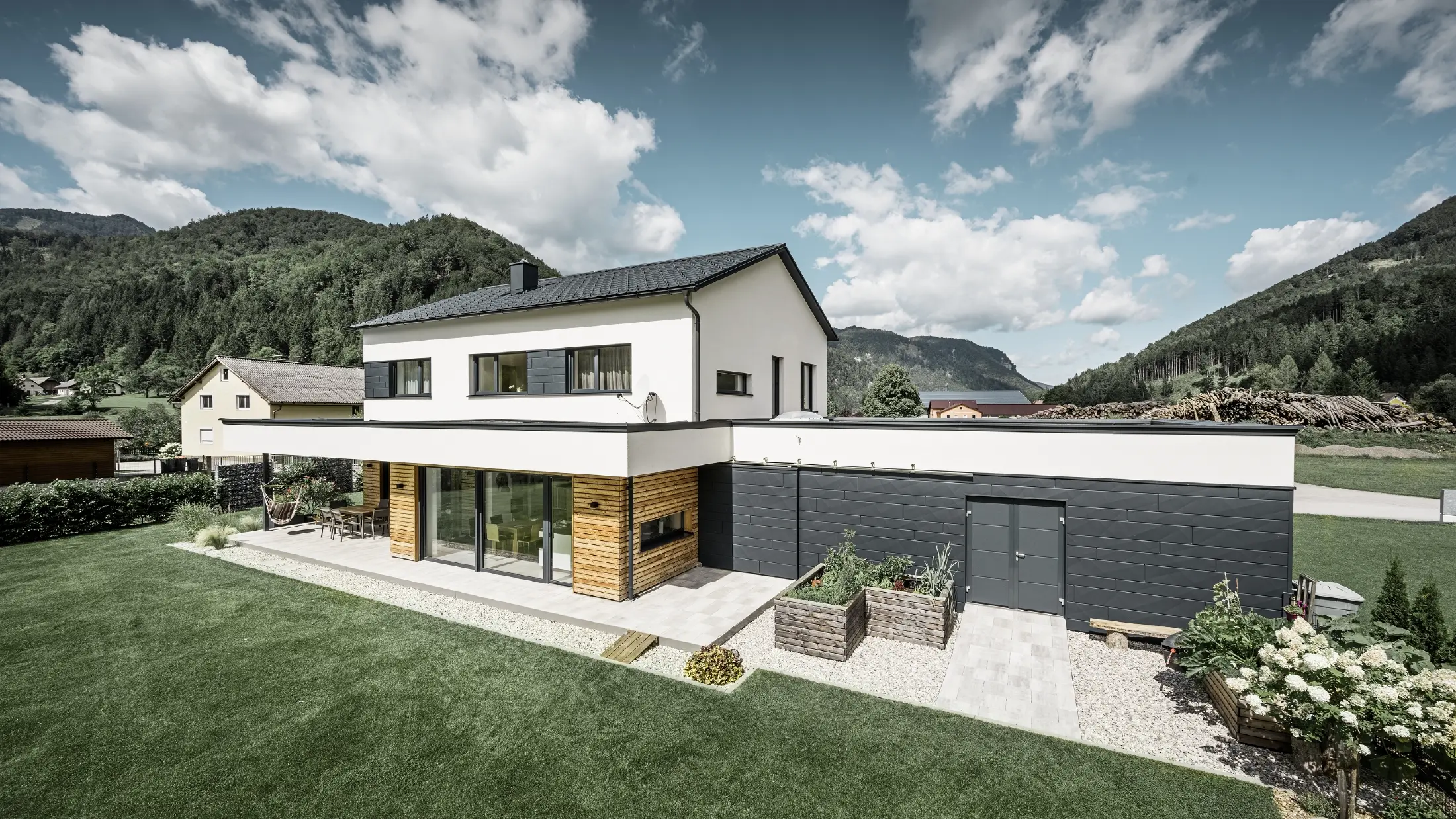

Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Der obere Gebäudeteil wurde mit einer Kombination aus horizontalen Lärchenholz-Paneelen sowie PREFA Siding.X Paneelen aus Aluminium in Anthrazit verkleidet. Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Façade renovation with the new PREFA Siding.X façade panels in stone grey. Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels Modern detached house with generous glass elements and a PREFA aluminium façade made of Siding.X façade panels
Product catalogue PREFA Façade systems Siding.X 01 P.10 brown P.10 Product catalogue PREFA Façade systems Siding.X 02 P.10 anthracite P.10 Product catalogue PREFA Façade systems Siding.X 03 P.10 black P.10 Product catalogue PREFA Façade systems Siding.X 04 P.10 brick red P.10 Product catalogue PREFA Façade systems Siding.X 05 P.10 oxide red P.10 Product catalogue PREFA Façade systems Siding.X 06 P.10 moss green P.10 Product catalogue PREFA Façade systems Siding.X 07 P.10 light grey P.10 Product catalogue PREFA Façade systems Siding.X 10 P.10 prefa white P.10 Product catalogue PREFA Façade systems Siding.X 11 P.10 nut brown P.10 Product catalogue PREFA Façade systems Siding.X 17 P.10 pure white P.10 Fassadenfläche mit den PREFA Fassadenpaneelen Siding.X in Dunkelgrau P.10 - DB 703 Product catalogue PREFA Façade systems Siding.X 41 P.10 rust brown P.10 Product catalogue PREFA Façade systems Siding.X 42 P.10 sand brown P.10 Product catalogue PREFA Façade systems Siding.X 43 P.10 stone grey P.10 Product catalogue PREFA Façade systems Siding.X 12 metallic silver DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding.X 20 smoke silver DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding.X 21 ruby red DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding.X 23 black grey DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding.X 25 ivory PP99 Product catalogue PREFA Façade systems Siding.X 45 bronze DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding.X 47 patina grey DURAGLOSS 5000
AVAILABLE COLOURS

PREFA SIDING.X

Like PREFA Siding, PREFA Siding.X is also a façade element used in the construction of ventilated façades.

The new PREFA Siding.X façade product gives your building a distinctive look and distinguishes itself with its outstanding constructive and functional characteristics.

ADVANTAGES OF THE PREFA SIDING.X:

  • Available in 21 standard colours from 500 to 6,200 mm in length.
  • Special widths (from 138 to 400 mm) available on request
  • Tested according to EN 13501-1 and ÖNORM B 3800-5
  • many design possibilities thanks to the combination of different visible widths

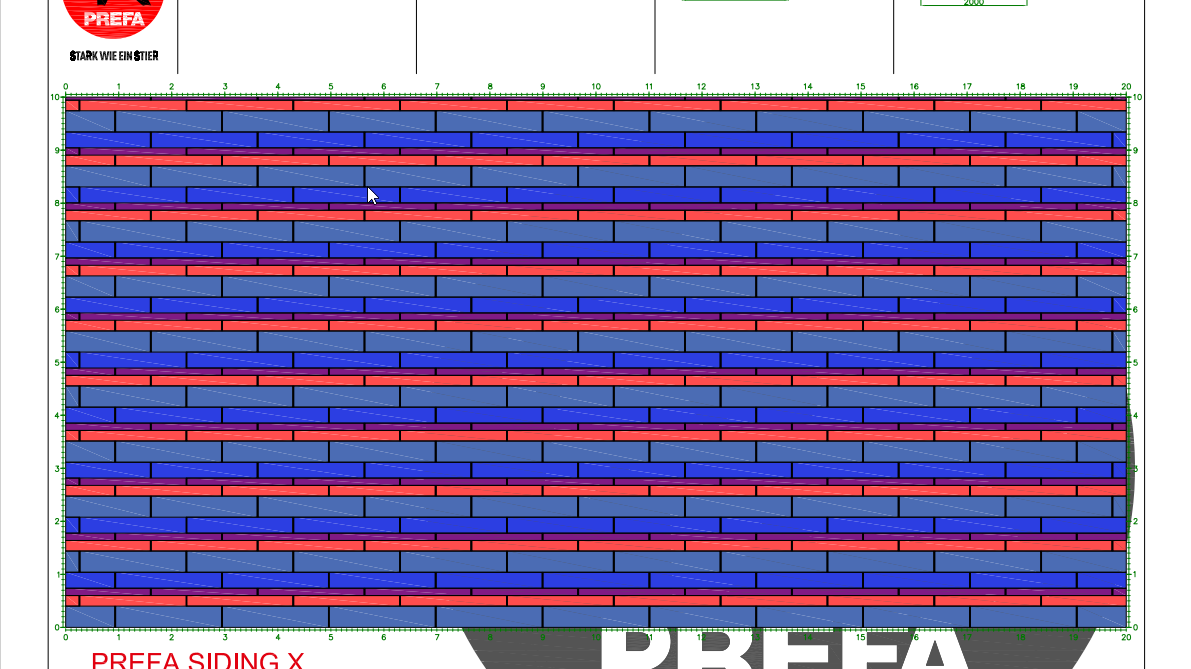

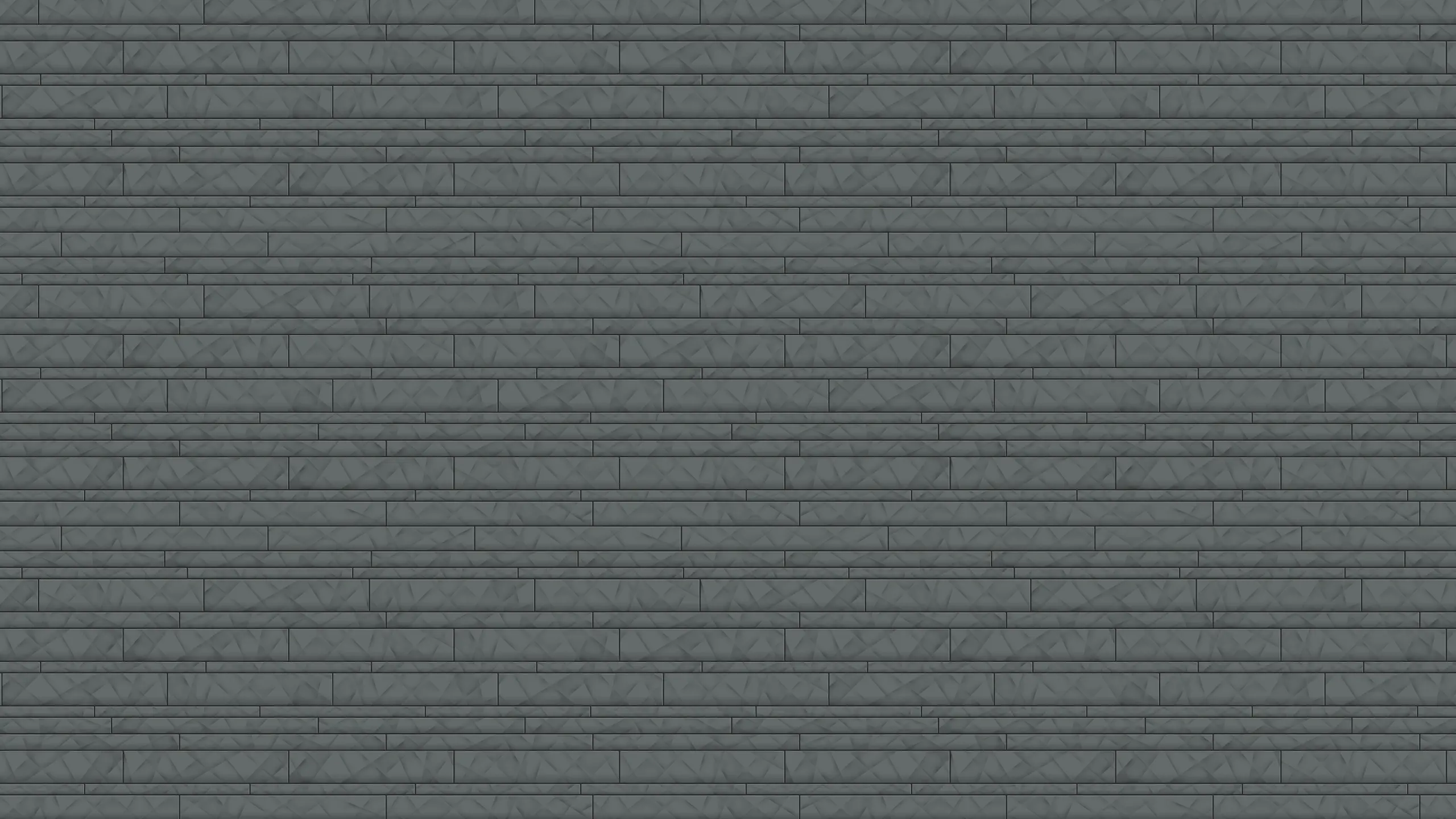

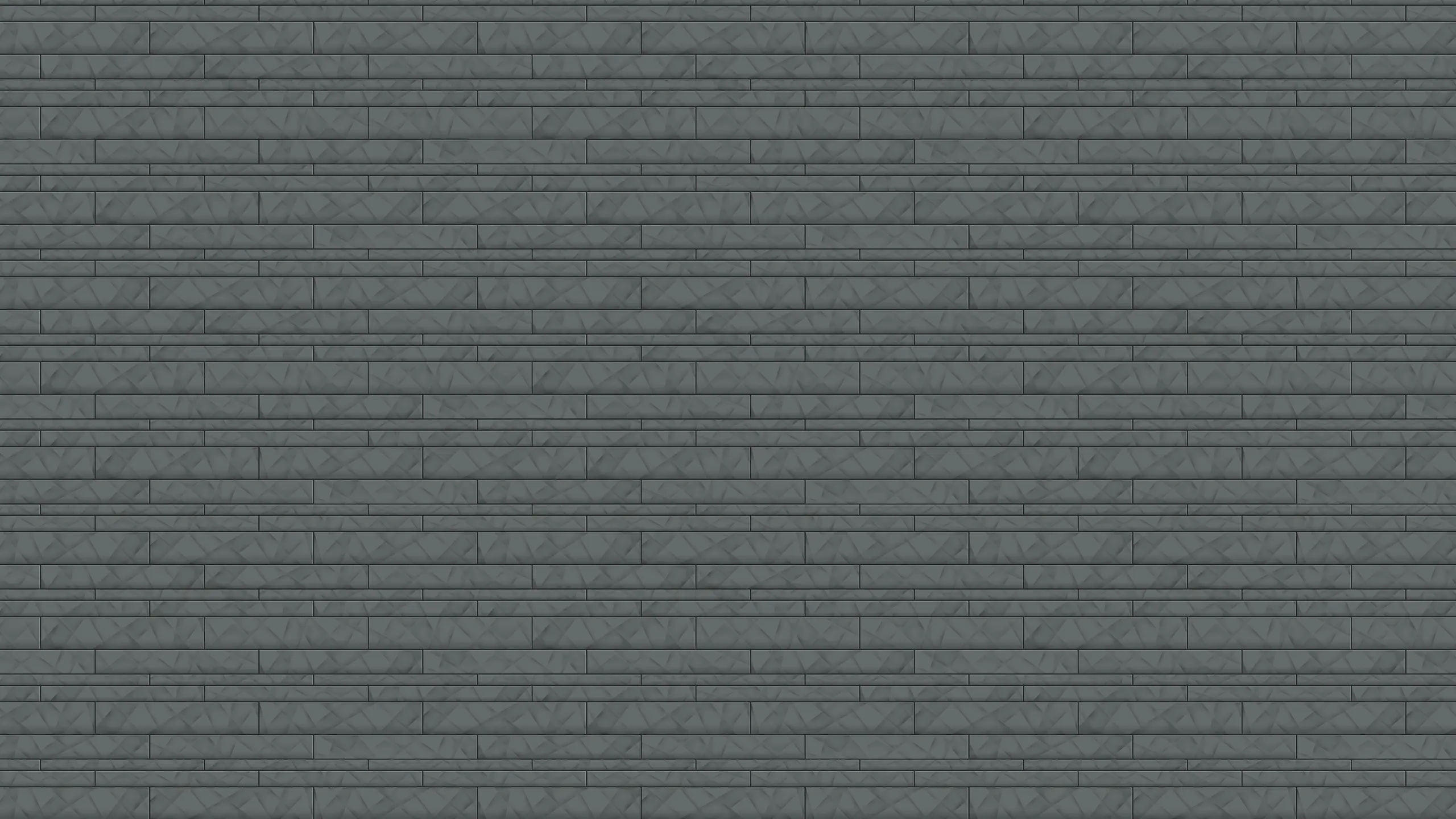

SIDING.X INSTALLATION DIAGRAMS

Through the combination of different siding.X lengths and widths, you can customize your façades as you wish. We have created the following four installation diagrams for you:

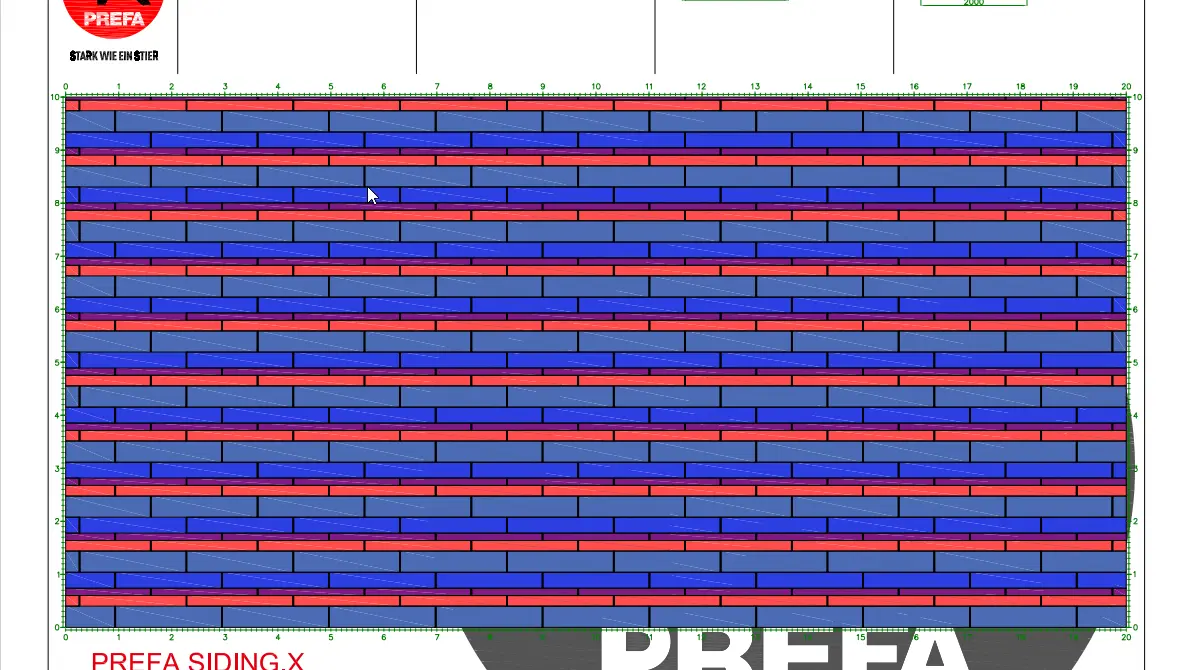

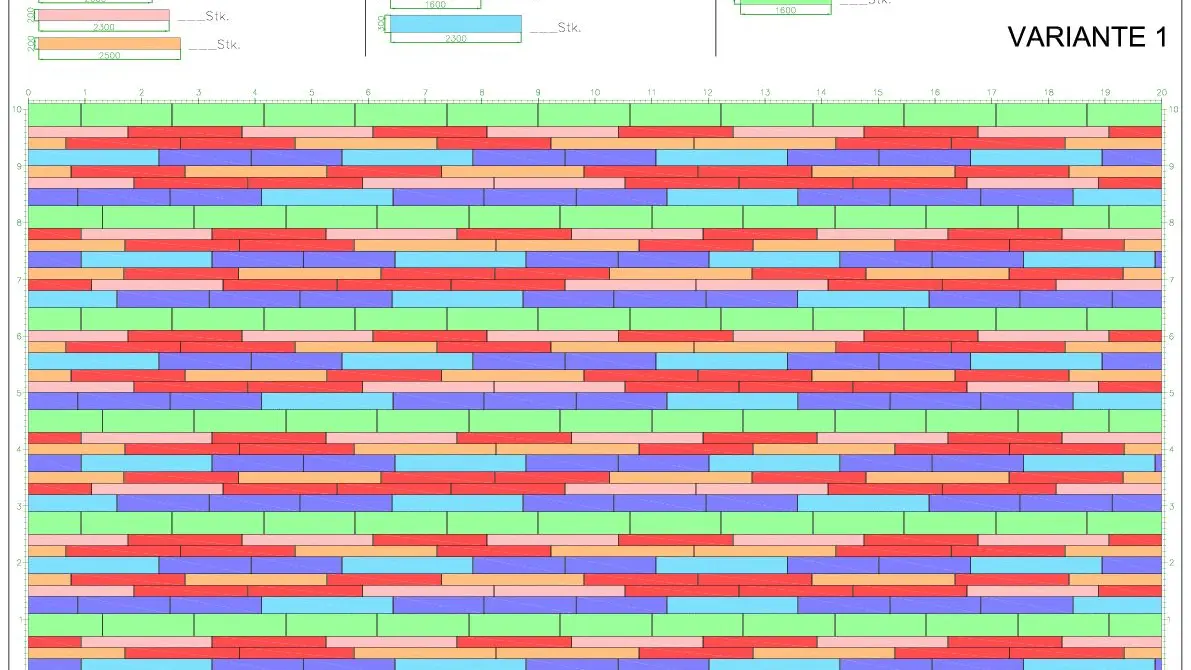

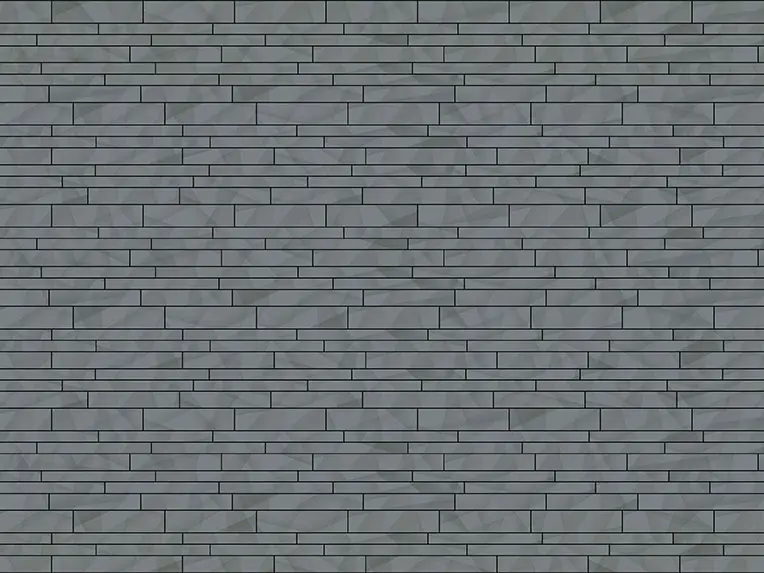

INSTALLATION DIAGRAM 1

Siding.X installation diagram 1

Siding.X installation diagram1

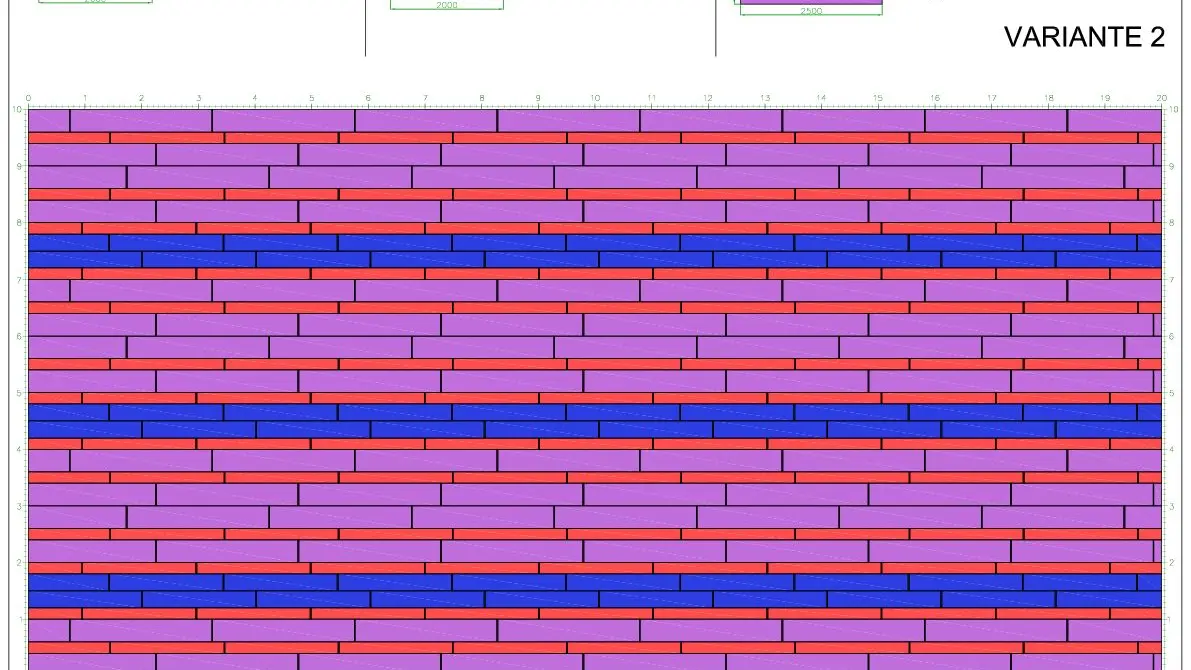

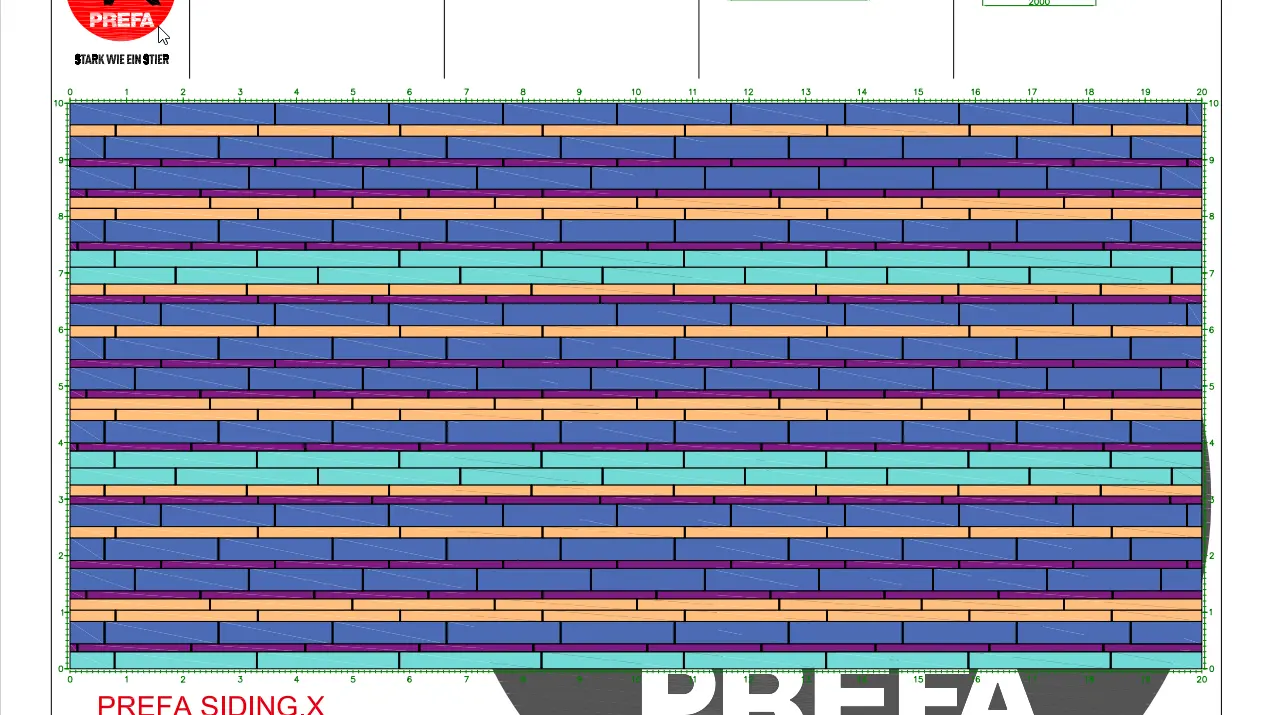

INSTALLATION DIAGRAM 2

Siding.X installation diagram 2

Siding.X installation diagram 2

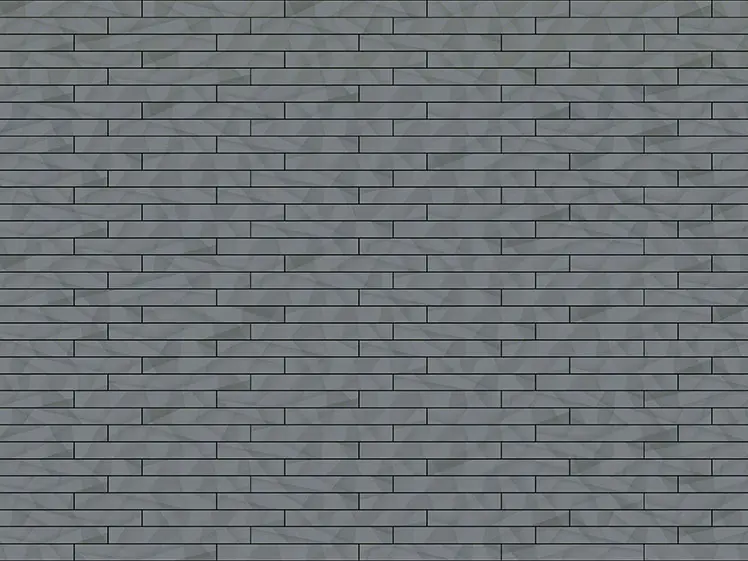

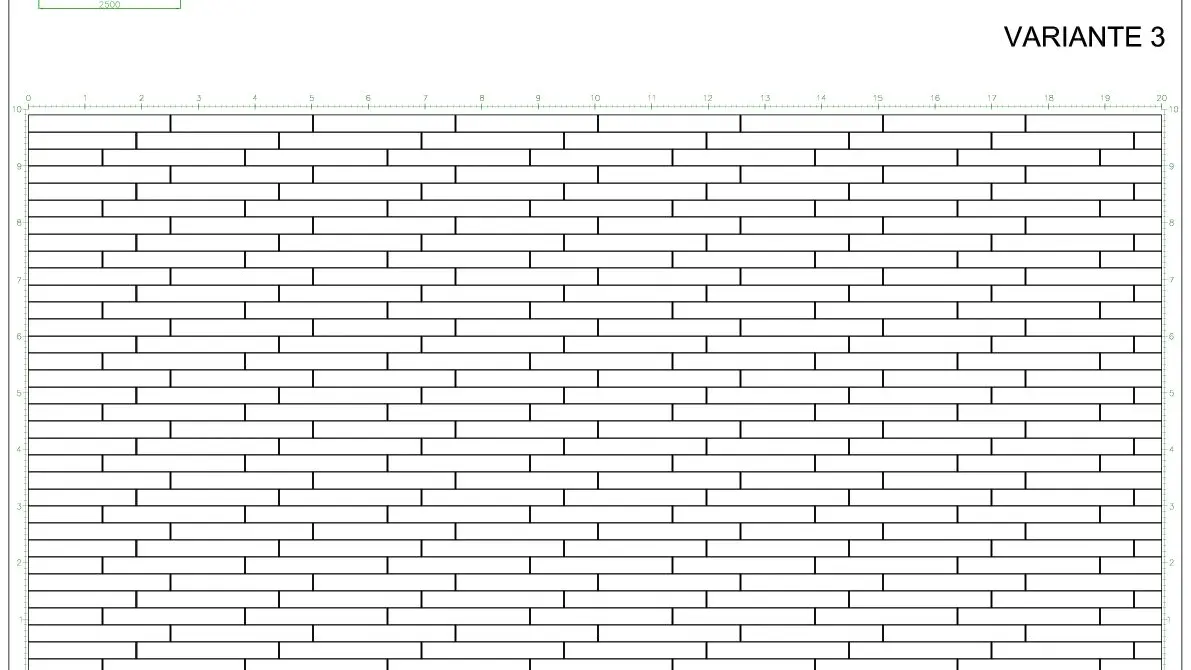

INSTALLATION DIAGRAM 3

Siding.X installation diagram 3

Siding.X installation diagram 3

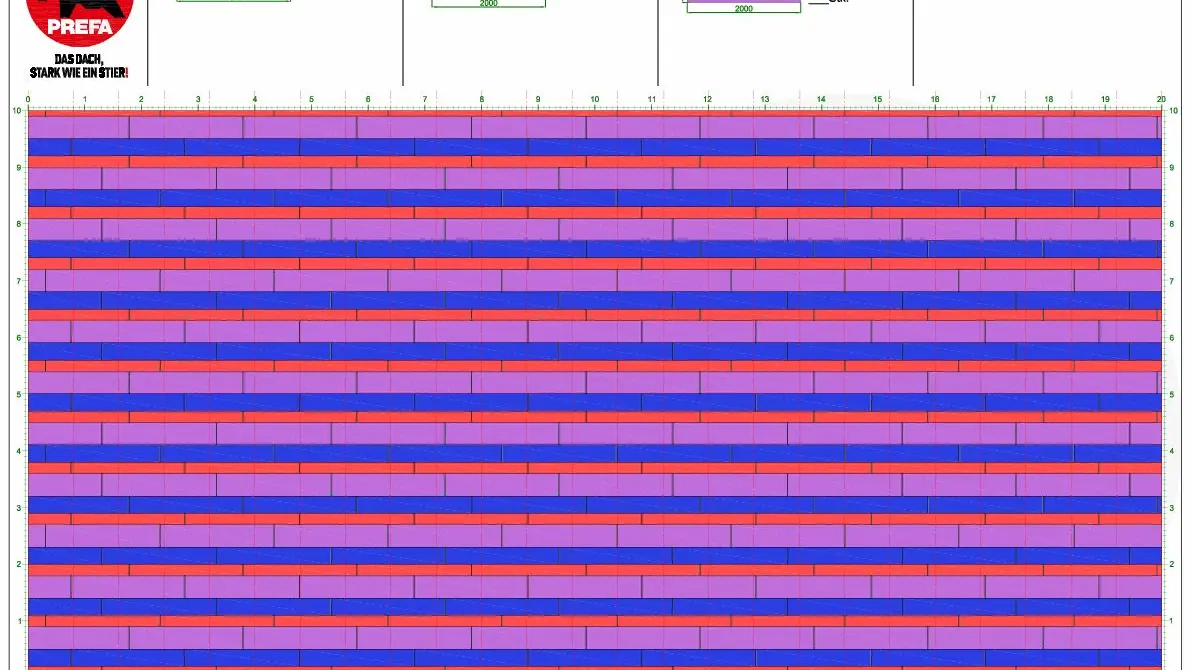

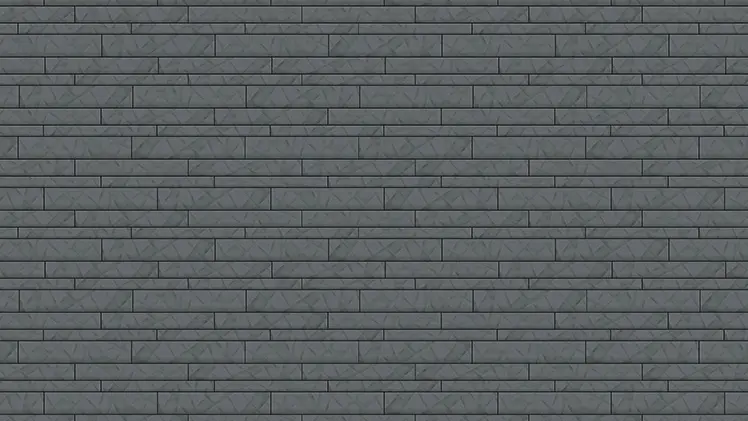

INSTALLATION DIAGRAM 11

Siding.X installation diagram 11

Siding.X installation diagram 11

SIDING.X FAÇADE ELEMENTS — TECHNICAL INFORMATION

TECHNICAL INFORMATION ABOUT THE PRODUCT AND TECHNICAL DRAWINGS

COATING:

Coil coating

STANDARD MATERIAL:

1.0 × 200 mm (thickness/visible width)
1.0 × 300 mm (thickness/visible width), (installation with storm-proof clip)
1.0 × 400 mm (thickness/visible width), (installation with storm-proof clip)

Special visible widths on request (138 to 400 mm)

ENDS:
with or without edge downstand (11 mm)
SHADOW GAP:
with or without shadow gap; shadow gap: 15 mm wide, 7 mm deep
WEIGHT:
approx. 3.30–4.30 kg/m² depending on the visible width
LENGTH:

500–2,500 mm for all visible widths (with PREFA joint)

500–6,200 mm for all visible widths (without PREFA joint)

MINIMUM QUANTITY

10 m² for each colour and width

PREFA SIDING.X – COLOUR RANGE (SPECIAL COLOURS AVAILABLE ON REQUEST)

THE PRODUCT IS AVAILABLE IN THE FOLLOWING COLOURS

COLOUR ~ RAL ~ NCS
01 P.10 brown 7013 S 8005-Y20R
02 P.10 anthracite 7016 S 8502-B
03 P.10 black 9005 S 9000-N
04 P.10 brick red 8004 S 4550-Y60R
05 P.10 oxide red 3009 S 0530-Y90R
06 P.10 moss green 6005 S 7020-G
07 P.10 light grey 7005 S 6000-N
10 P.10 prefa white 9002 S 1200-N
11 P.10 nut brown 8019 S 8005-Y80R
12 metallic silver³ 9006 S 3502-B
17 P.10 pure white 9010 S 0502-Y
19 P.10 dark grey 7043 S 7500-N
20 smoke silver³ 9007 S 5500-N
21 ruby red 3003 S 2570-R
23 black grey 7022 S 8000-N
25 ivory 1015 S 1010-Y30R
41 P.10 rust brown¹ 8015 S 7010-Y70R
42 P.10 sand brown¹ 1019 S 4020-Y20R
43 P.10 stone grey¹ 7031 S 6005-R80B
45 bronze³ 7048 S 6005-R80B
47 patina grey¹ 7042 S 5000-N
01 P.10 BROWN
7013
S 8005-Y20R
02 P.10 ANTHRACITE
7016
S 8502-B
03 P.10 BLACK
9005
S 9000-N
04 P.10 BRICK RED
8004
S 4550-Y60R
05 P.10 OXIDE RED
3009
S 0530-Y90R
06 P.10 MOSS GREEN
6005
S 7020-G
07 P.10 LIGHT GREY
7005
S 6000-N
10 P.10 PREFA WHITE
9002
S 1200-N
11 P.10 NUT BROWN
8019
S 8005-Y80R
12 METALLIC SILVER³
9006
S 3502-B
17 P.10 PURE WHITE
9010
S 0502-Y
19 P.10 DARK GREY
7043
S 7500-N
20 SMOKE SILVER³
9007
S 5500-N
21 RUBY RED
3003
S 2570-R
23 BLACK GREY
7022
S 8000-N
25 IVORY
1015
S 1010-Y30R
41 P.10 RUST BROWN¹
8015
S 7010-Y70R
42 P.10 SAND BROWN¹
1019
S 4020-Y20R
43 P.10 STONE GREY¹
7031
S 6005-R80B
45 BRONZE³
7048
S 6005-R80B
47 PATINA GREY¹
7042
S 5000-N

¹ The colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, patina grey and natural blank reflect natural colouring and are therefore subject to minimal variation, which gives the products their unmistakable character.

² The warranty does not cover changes to the surface appearance due to processing and environmental influences. Please refer to information sheet.

³ Metallic colours may vary in shade.

Notes

  • The RAL and NCS values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
  • Above all for colour quality P.10, it is almost impossible to define values due to the surface structure. Furthermore, the colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, and patina grey reflect natural colourings that are composed of several colour tones.
  • To identify exact colours for complementary components please consult original samples.
COLOUR DETAILS

SIDING.X — ACCESSORIES

YOU CAN FIND A LIST OF ACCESSORIES FOR THE PRODUCT HERE.

PREFA joint.200/300/400

PREFA JOINT.200/300/400

Smooth surface, joint width of 15 mm, for sidings with a visible width of 200 mm, 300 mm and 400 mm,
with shadow gap, maximum siding length of 2,500 mm

PREFA storm-proof clip

PREFA STORM-PROOF CLIP

made of stainless steel, 6–9 pc./m²; according to visible width and wind-drag loads

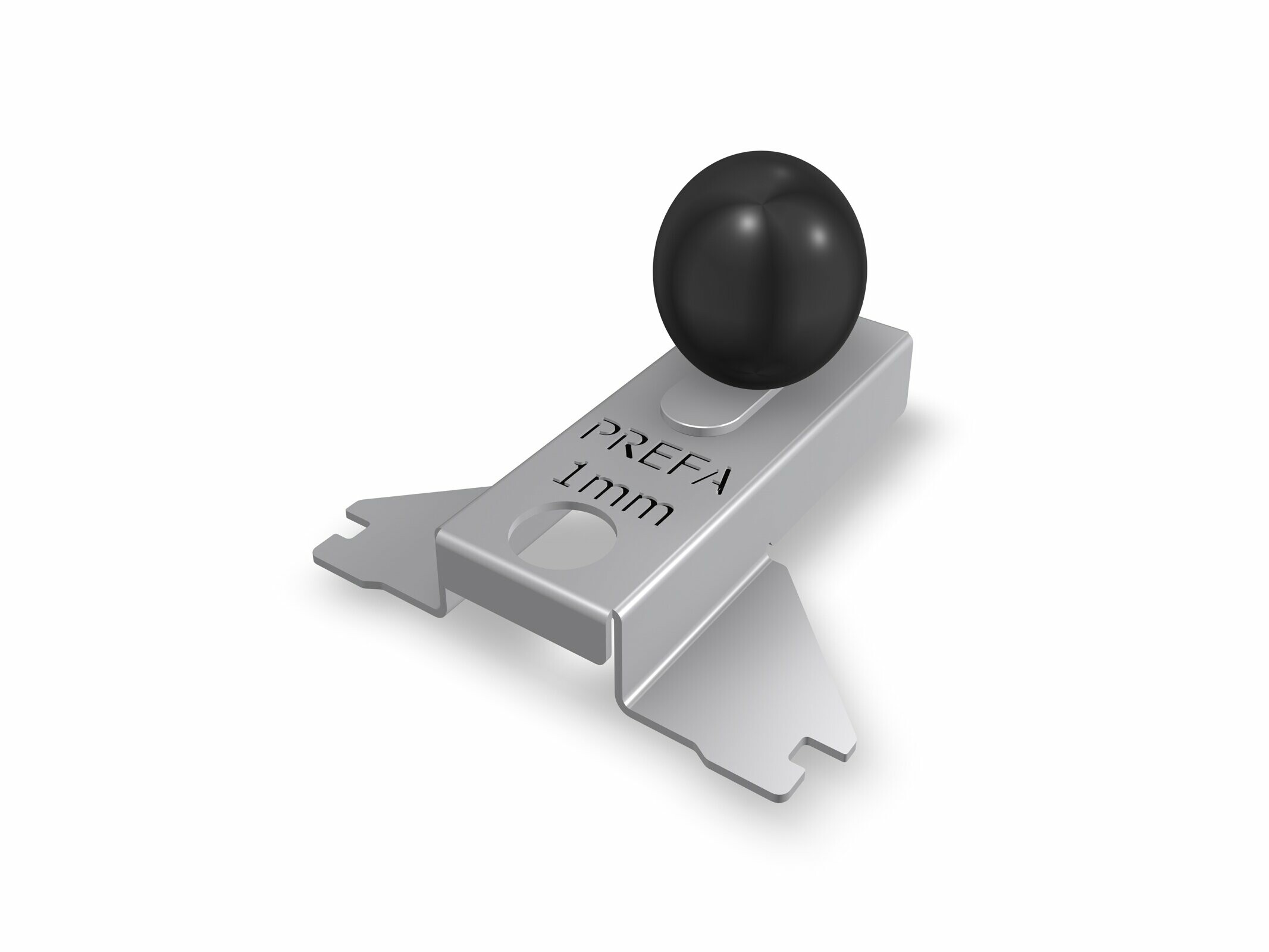

PREFA storm-proof clip mounting aid

PREFA STORM-PROOF CLIP MOUNTING AID

made of stainless steel

fastener siding wood substructure

FASTENER SIDING WOOD SUBSTRUCTURE

for fastening sidings to wood substructures Requirement: 6–8 pc./m²

fastener siding aluminium substructure

FASTENER SIDING ALUMINIUM SUBSTRUCTURE

for fastening sidings to aluminium support profiles (L- or T-profiles), Super Saphir JT3-FR-2H-4.8 × 19 incl. 1 bit T25 W-¼″ × 25. Requirement: 6–8 pc./m²

PREFA mounting hole cover

PREFA MOUNTING HOLE COVER

for covering bore holes and small repairs

PREFA patent rivets for siding flashing strip

PREFA PATENT RIVETS FOR SIDING FLASHING STRIP

made of aluminium with stainless steel cap, clamping range 1–6.5 mm

PREFA drip

PREFA DRIP

PREFA joint connector plate

PREFA JOINT CONNECTOR PLATE

made of embossed aluminium, PREFA design wave (transverse, 5 mm), for PREFA drip

PREFA perforated plate

PREFA PERFORATED PLATE

PREFA channel profile (canted)

PREFA CHANNEL PROFILE (CANTED)

PREFA hemmed flashing

PREFA HEMMED FLASHING

PREFA starter profile

PREFA STARTER PROFILE

PREFA external corner flashing

PREFA EXTERNAL CORNER FLASHING

PREFA reveal flashing

PREFA REVEAL FLASHING

PREFA closing profile

PREFA CLOSING PROFILE

for reinforcing the ends, e.g. diagonal cuts

PREFA protruding corner (2 elements)

PREFA PROTRUDING CORNER (2 ELEMENTS)

PREFA joint connection

PREFA JOINT CONNECTION

PREFA recessed corner

PREFA RECESSED CORNER

PREFA base profile

PREFA BASE PROFILE
