FAÇADE SYSTEMS SIDING

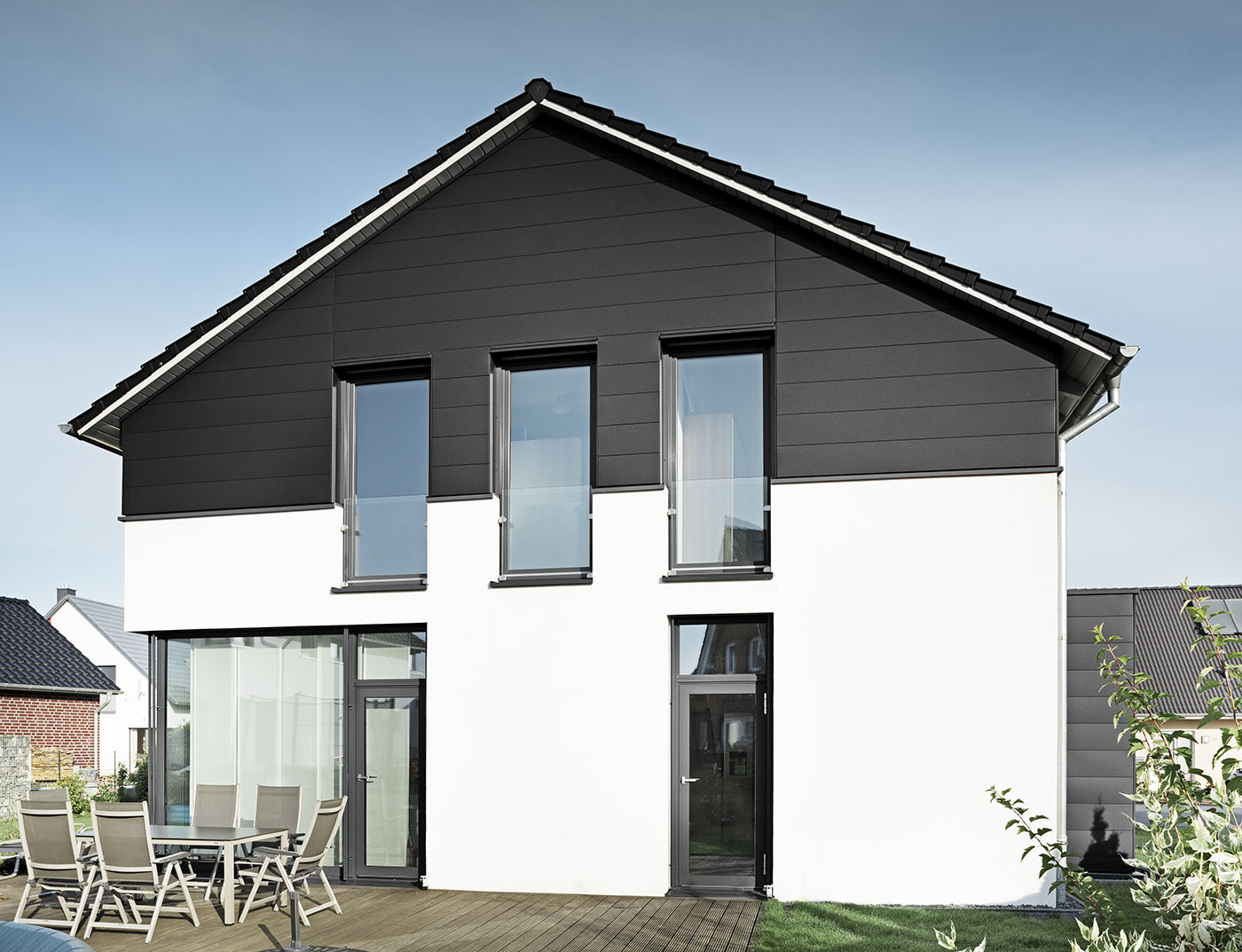

Reference buildings PREFA Façade systems Siding 03 P.10 black

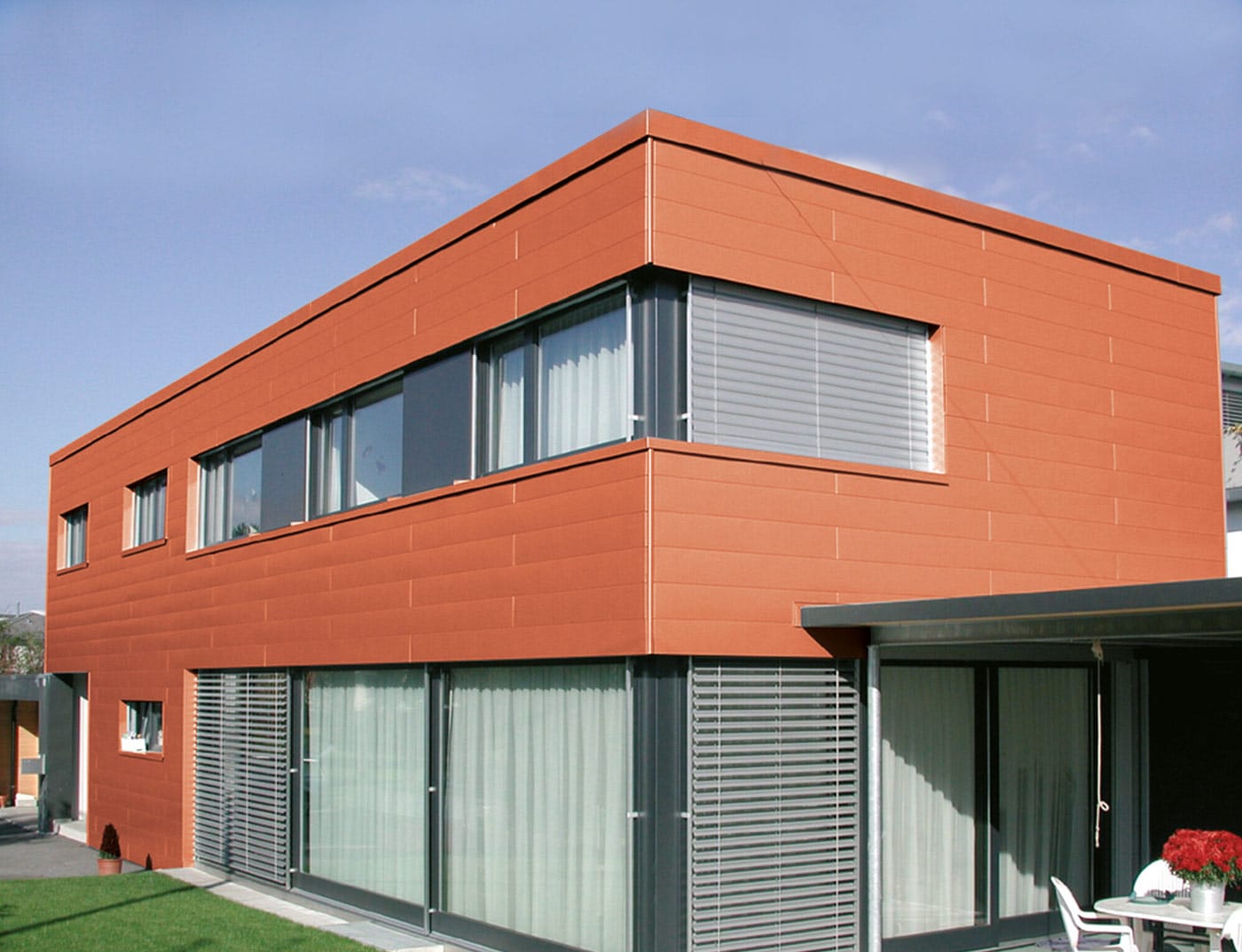

Reference buildings PREFA Façade systems Siding 04 P.10 brick red

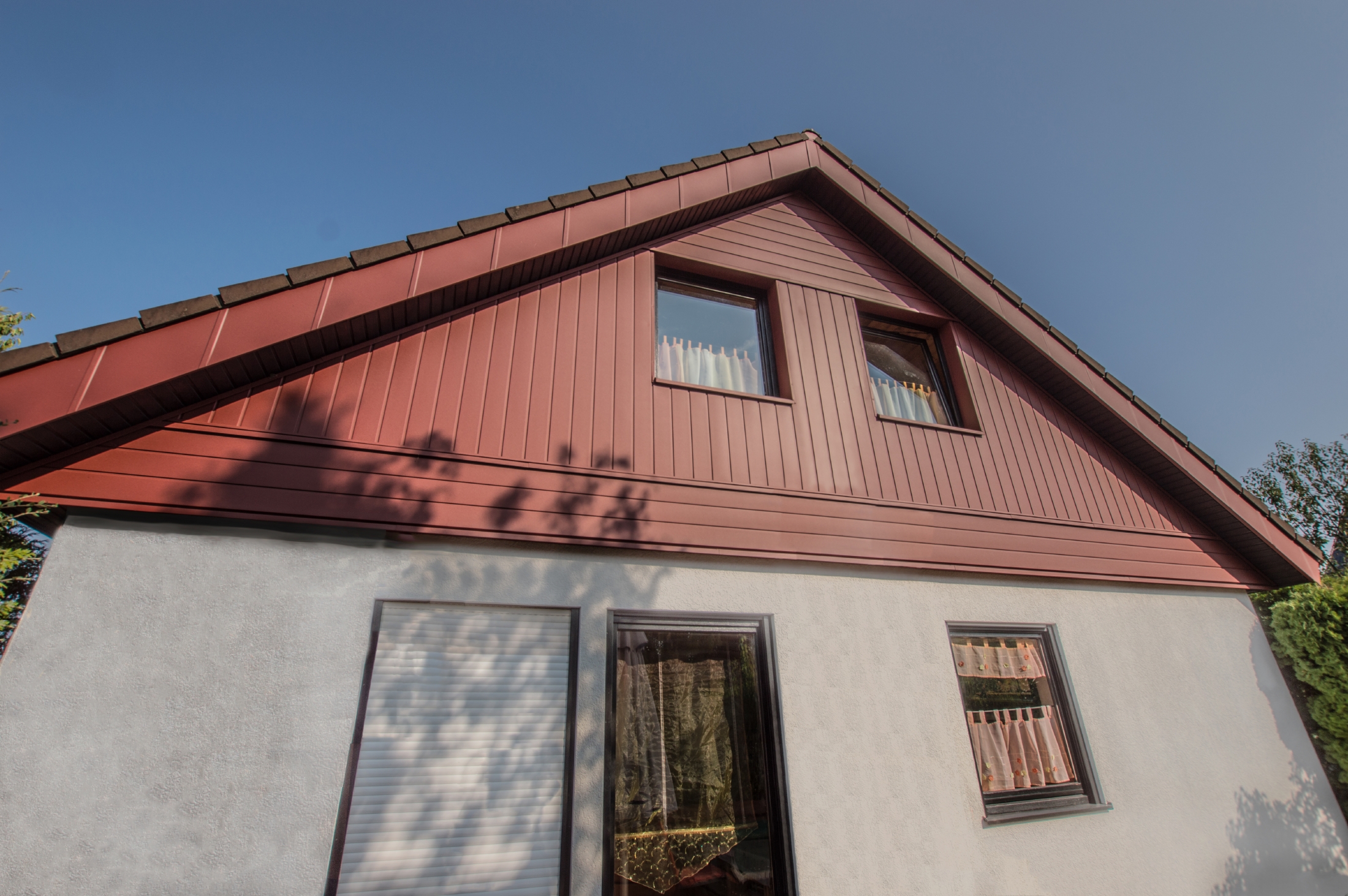

Reference buildings PREFA Façade systems Siding 05 P.10 oxide red

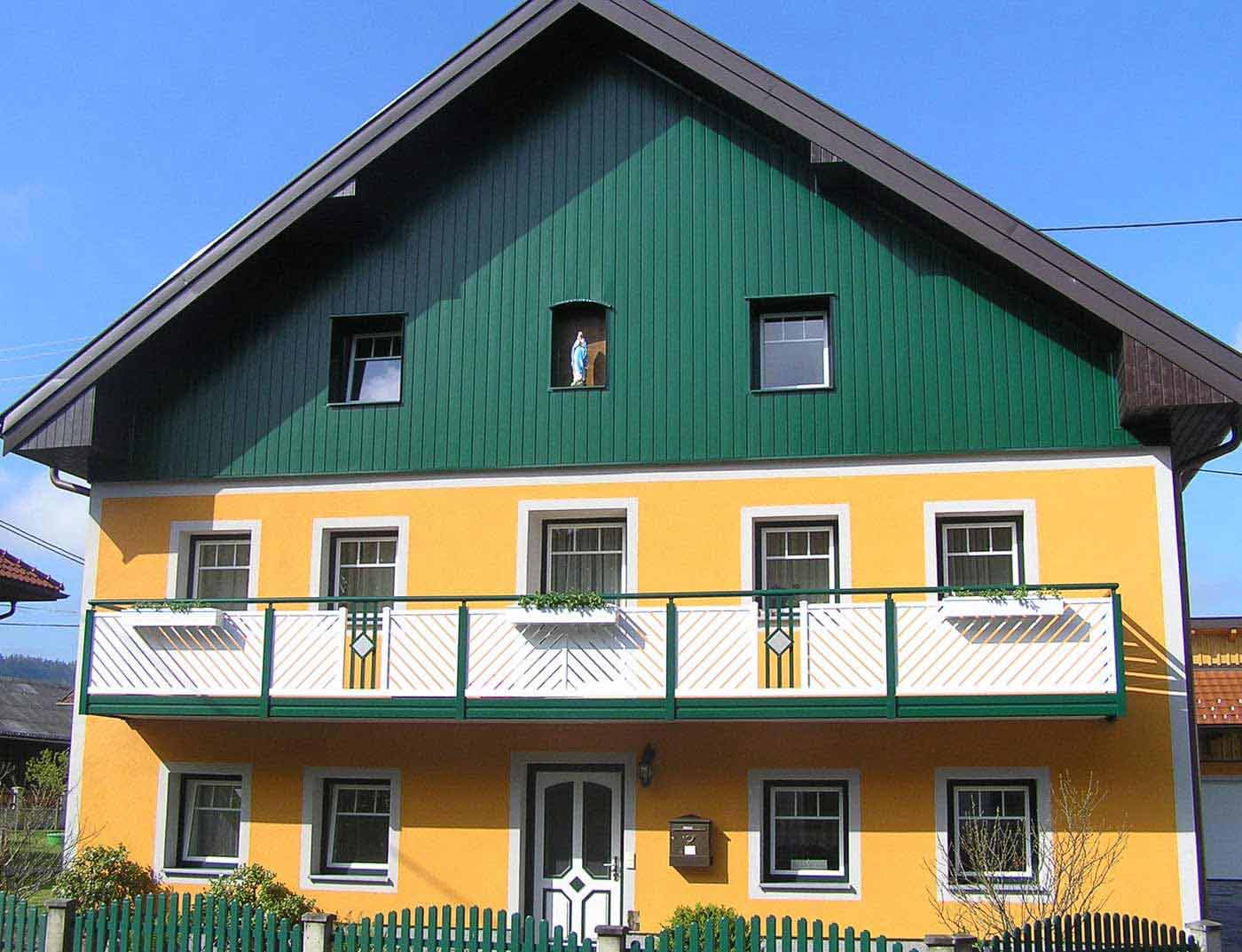

Reference buildings PREFA Façade systems Siding 06 P.10 moss green

Reference buildings PREFA Façade systems Siding 07 P.10 light grey

Reference buildings PREFA Façade systems Siding 10 P.10 prefa white

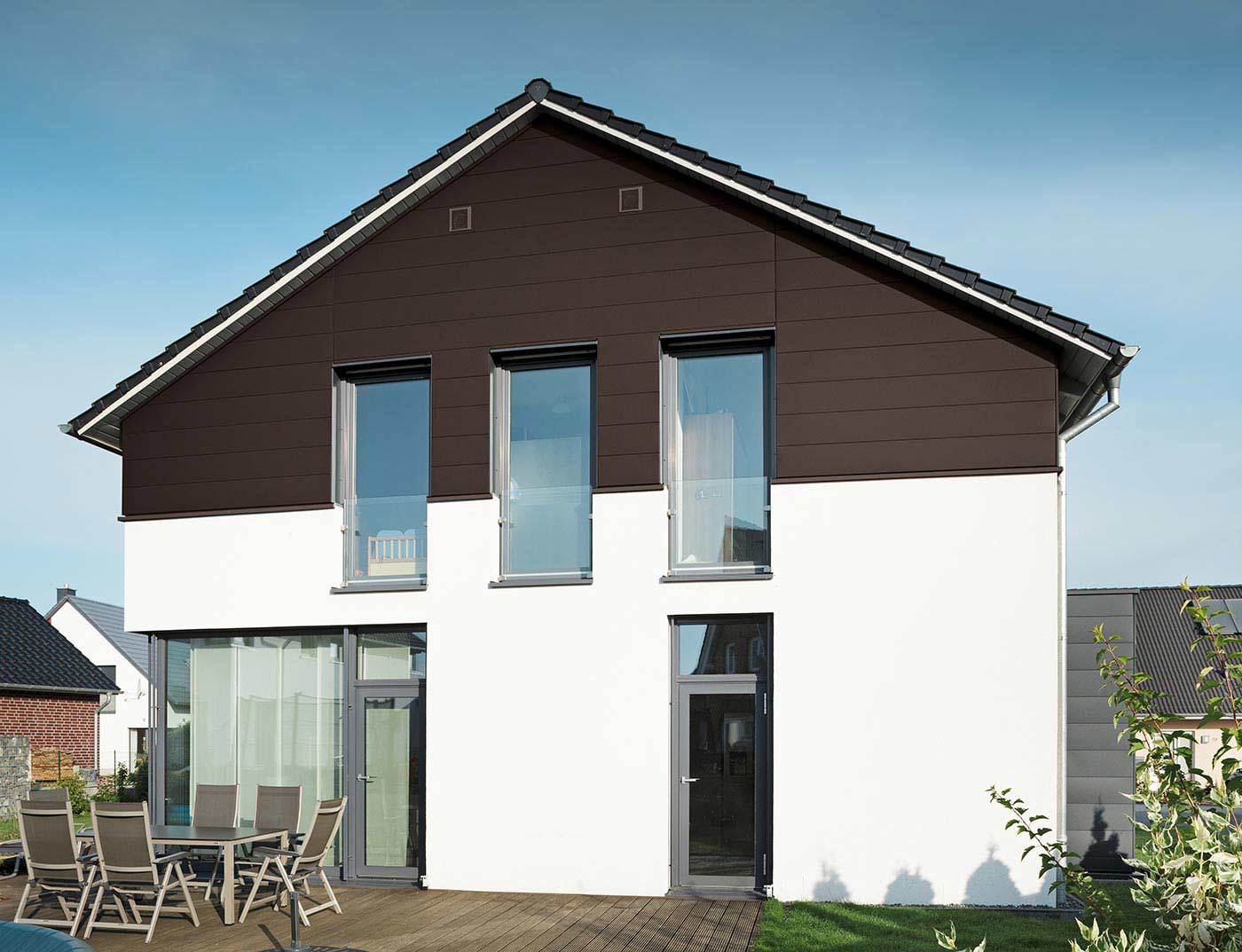

Reference buildings PREFA Façade systems Siding 11 P.10 nut brown

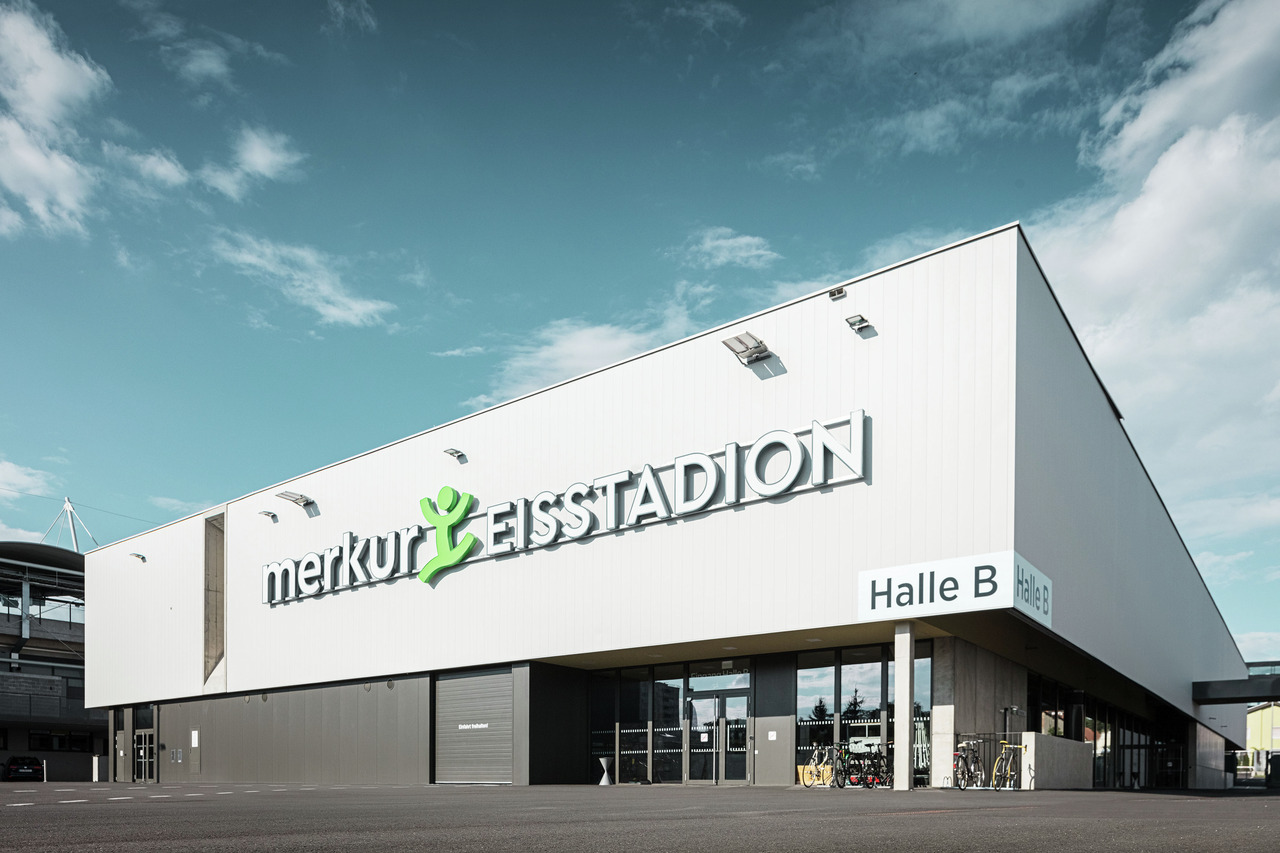

Reference buildings PREFA Façade systems Siding 17 P.10 pure white

Moderner Zubau – die Fassade wurde mit den PREFA Sidings in Dunkelgrau verkleidet.

Reference buildings PREFA Façade systems Siding 41 P.10 rust brown

Reference buildings PREFA Façade systems Siding 42 P.10 sand brown

Façade design with aluminium panels, sidings in stone grey, from PREFA.

Reference buildings PREFA Façade systems Siding 12 metallic silver

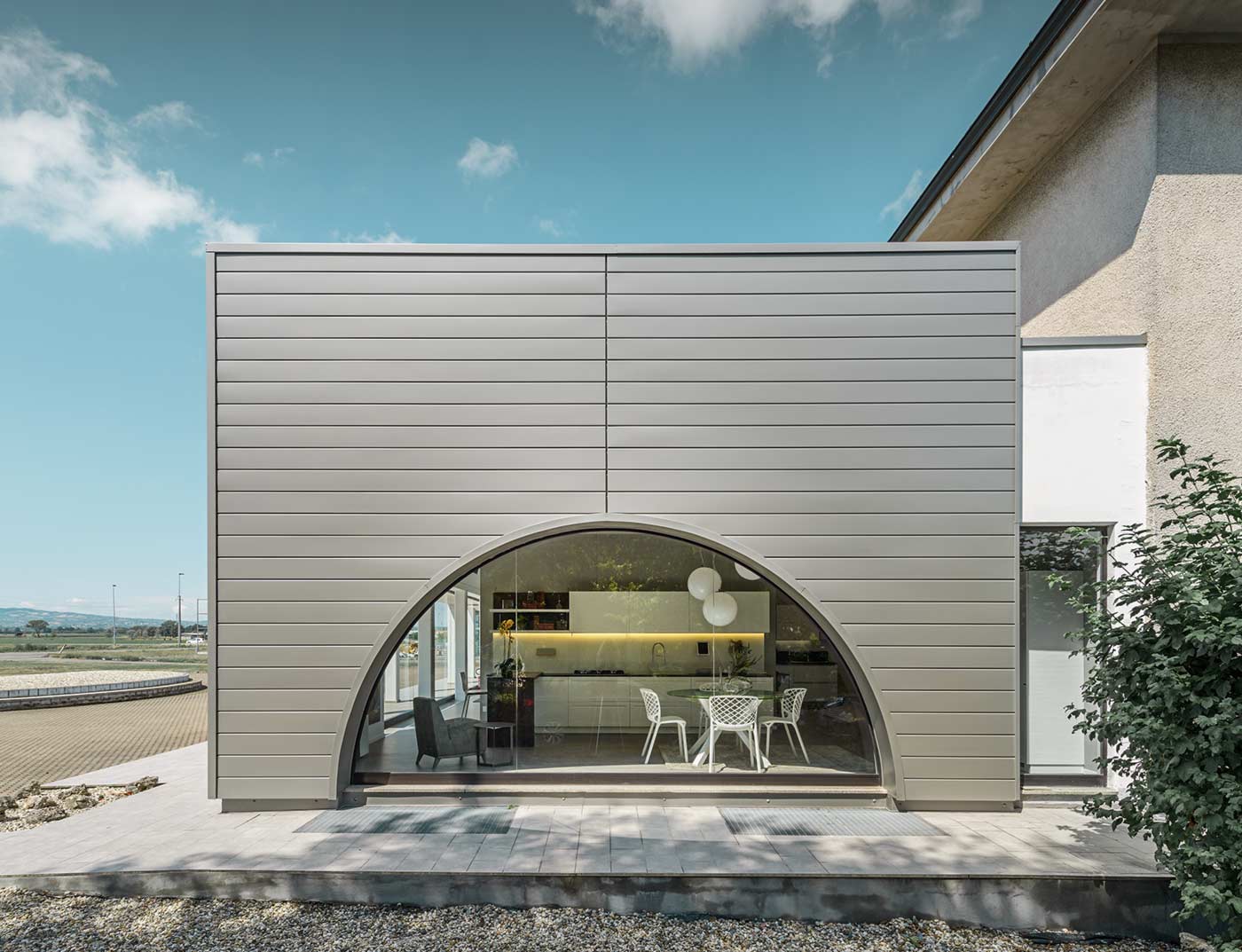

Flat-roof extension with a curved window façade, the façade is clad with horizontal aluminium panels, the PREFA sidings in smoke silver.

Reference buildings PREFA Façade systems Siding 21 ruby red

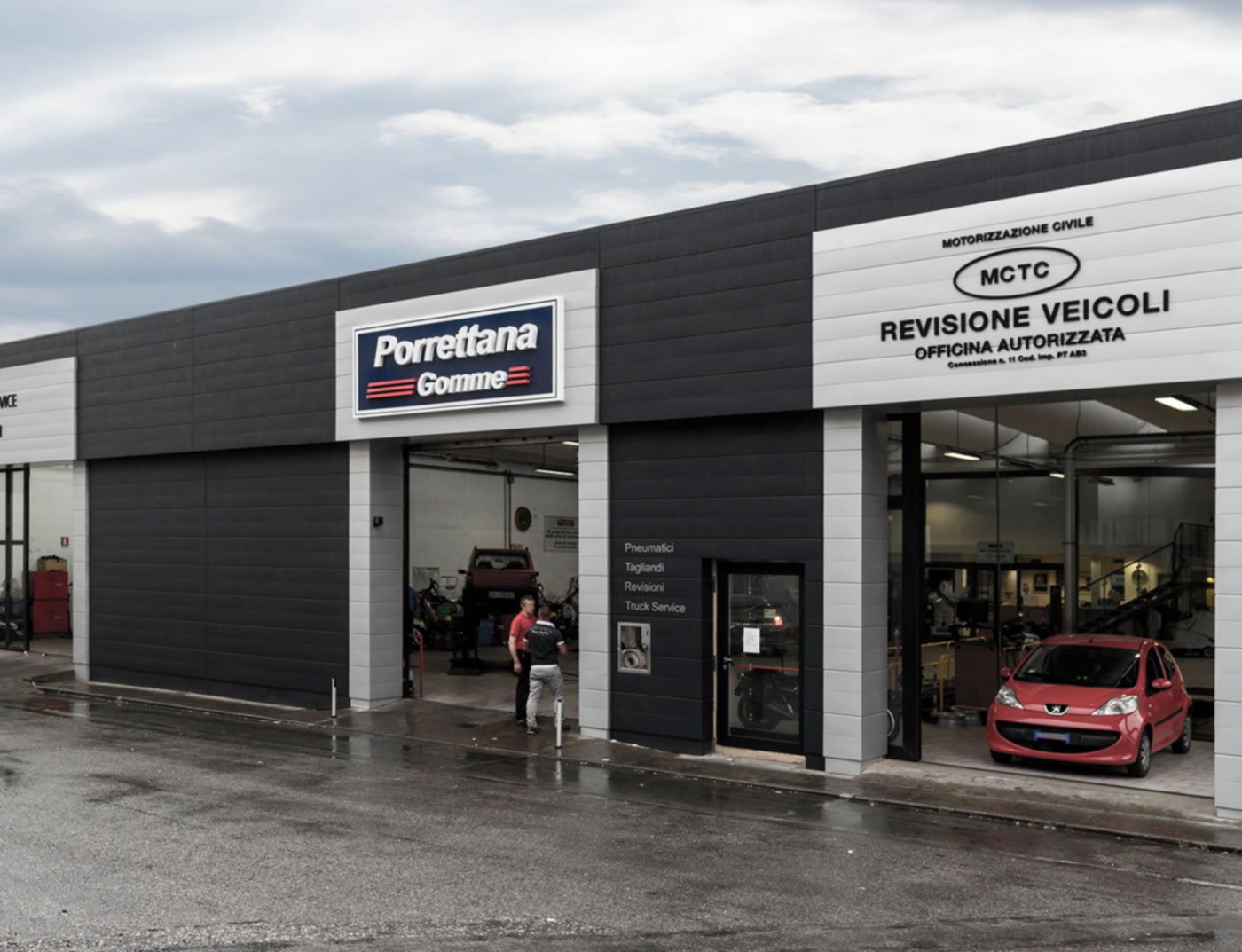

Car dealer with an aluminium façade with PREFA sidings in black grey.

Reference buildings PREFA Façade systems Siding 25 ivory

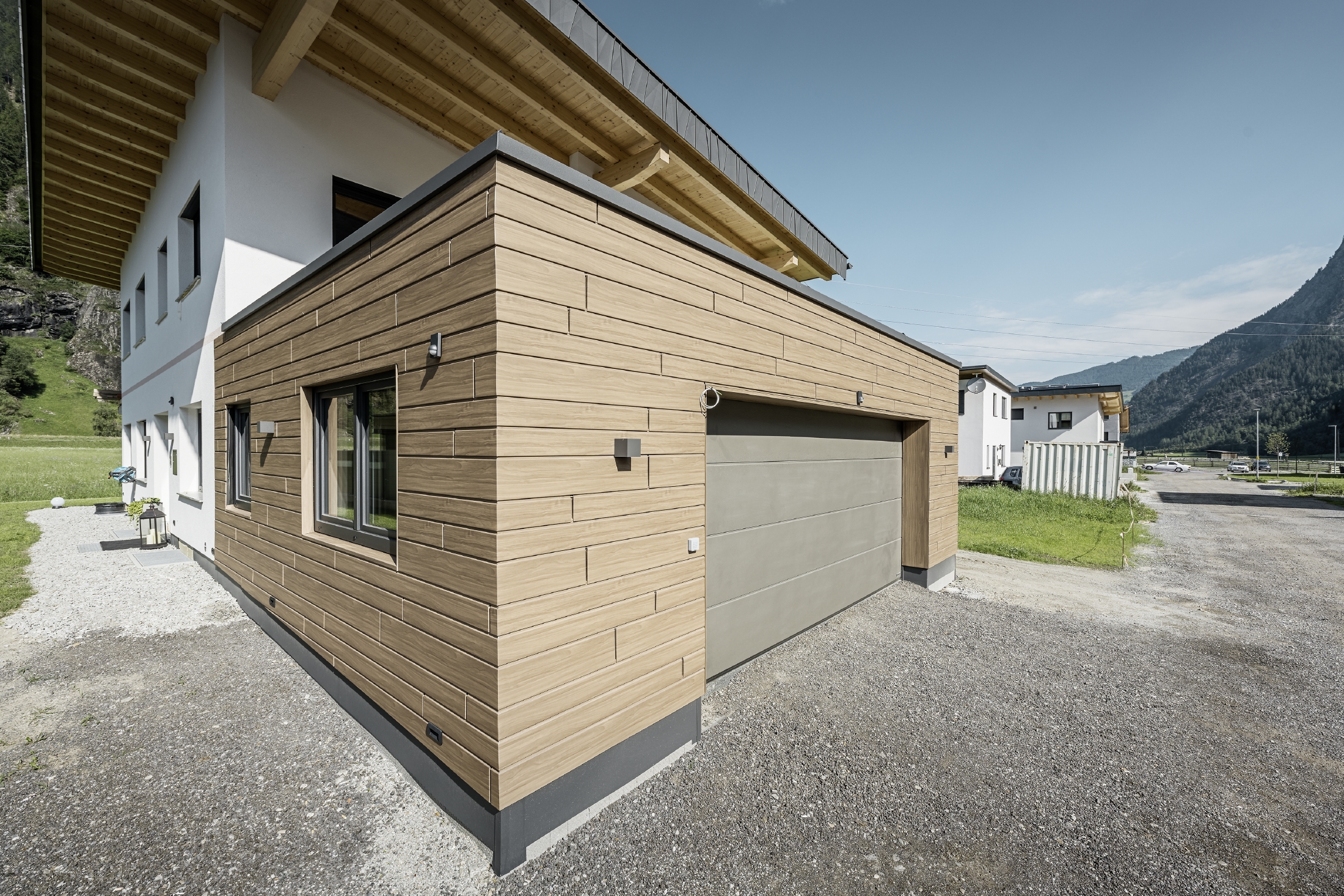

Reference buildings PREFA Façade systems Siding 38 walnut

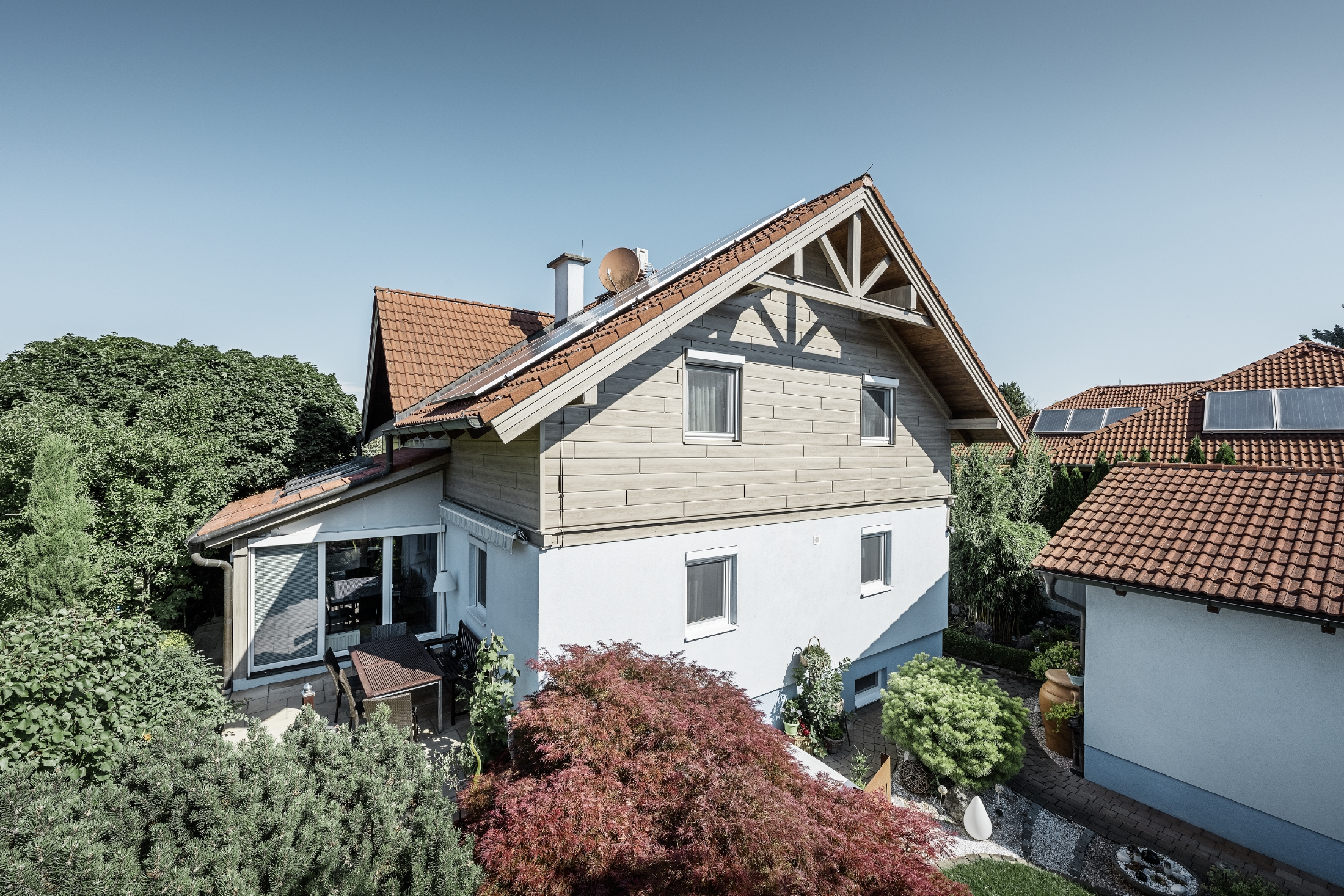

Reference buildings PREFA Façade systems Siding 39 grey oak

Conservatory extension with façade cladding in PREFA aluminium sidings in a natural oak look.

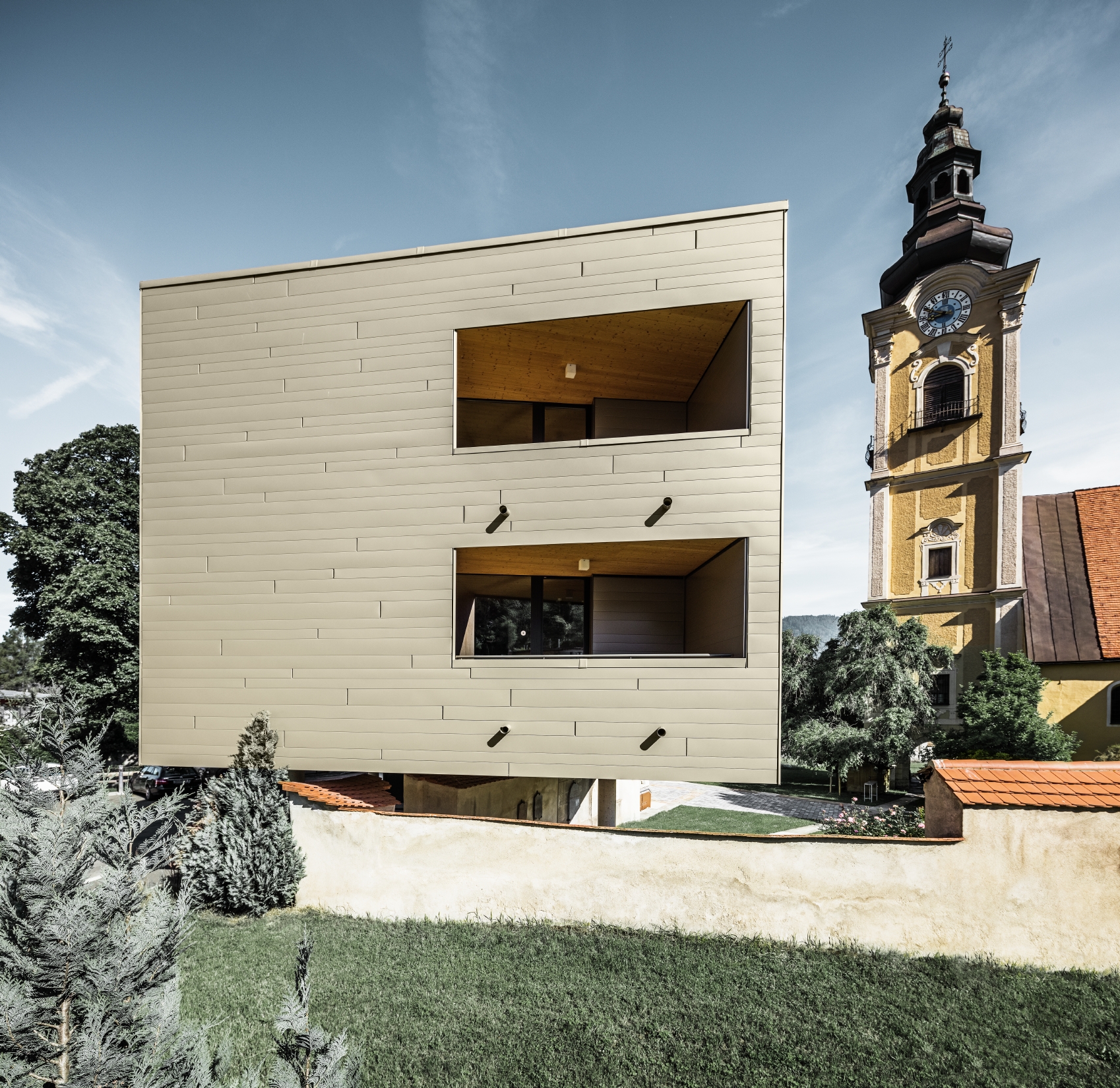

EMA commercial building, the façade is clad with PREFA aluminium bonded tiles in bronze and anthracite.

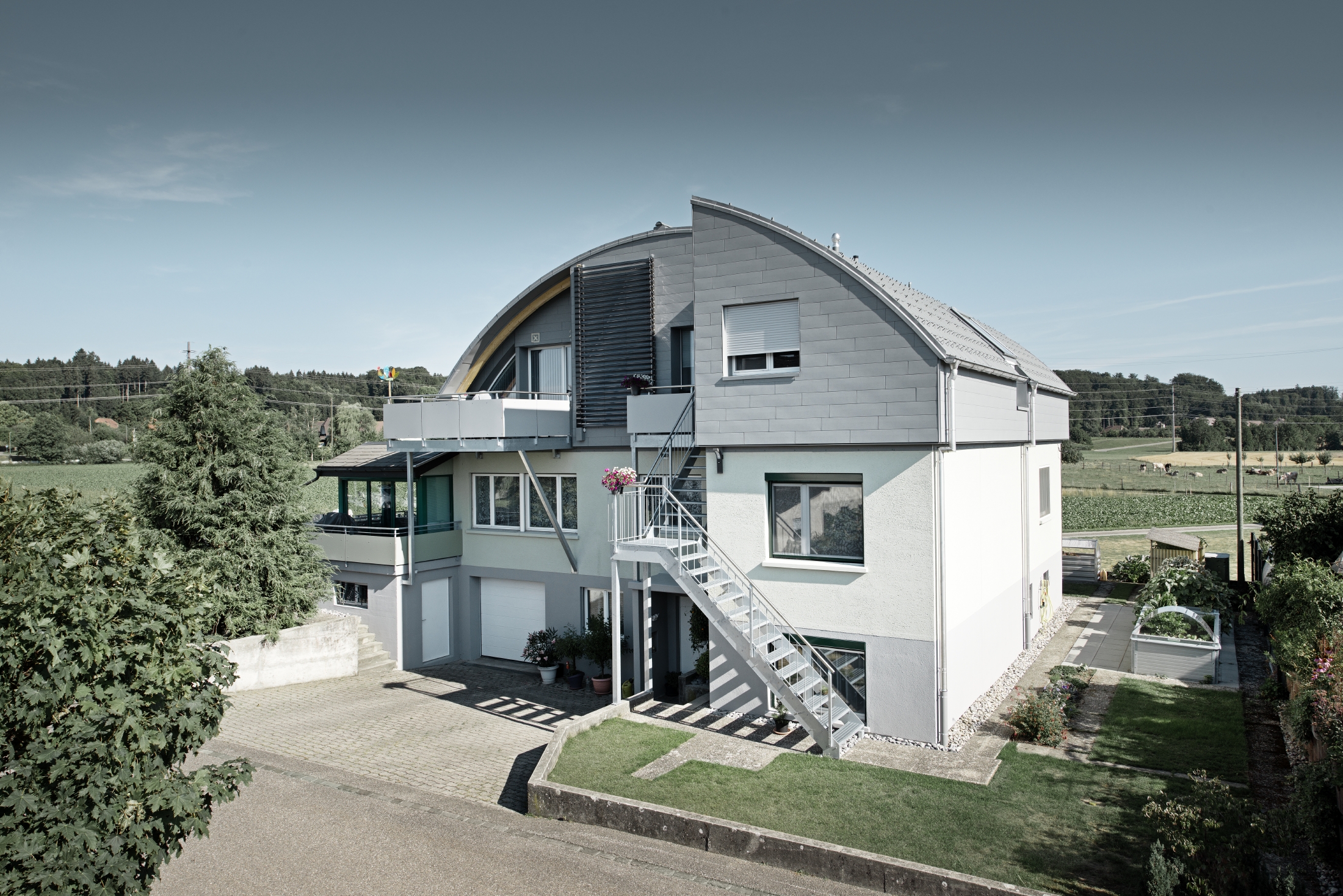

Einfamilienhaus mit PREFA Siding in patina grau und Dachplatte in hellgrau

Products PREFA Façade systems Siding 01 P.10 brown P.10

Products PREFA Façade systems Siding 02 P.10 anthracite P.10

Products PREFA Façade systems Siding 03 P.10 black P.10

Products PREFA Façade systems Siding 04 P.10 brick red P.10

Products PREFA Façade systems Siding 05 P.10 oxide red P.10

Products PREFA Façade systems Siding 06 P.10 moss green P.10

Products PREFA Façade systems Siding 07 P.10 light grey P.10

Products PREFA Façade systems Siding 10 P.10 prefa white P.10

Products PREFA Façade systems Siding 11 P.10 nut brown P.10

Products PREFA Façade systems Siding 17 P.10 pure white P.10

Fassadengestaltung mit den PREFA Fassadenpaneelen Sidings in P.10 Dunkelgrau - ähnlich DB 703 oder RAL 7043

Products PREFA Façade systems Siding 41 P.10 rust brown P.10

Products PREFA Façade systems Siding 42 P.10 sand brown P.10

Products PREFA Façade systems Siding 43 P.10 stone grey P.10

Products PREFA Façade systems Siding 12 metallic silver DURAGLOSS 5000

Products PREFA Façade systems Siding 20 smoke silver DURAGLOSS 5000

Products PREFA Façade systems Siding 21 ruby red DURAGLOSS 5000

Products PREFA Façade systems Siding 23 black grey DURAGLOSS 5000

Products PREFA Façade systems Siding 25 ivory PP99

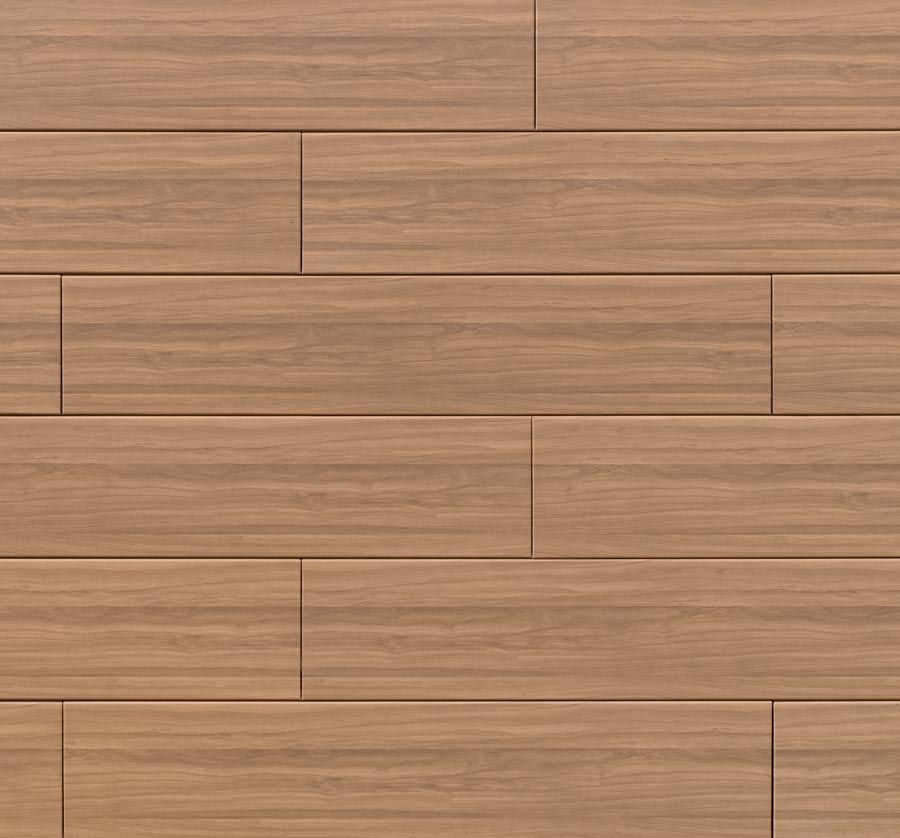

Products PREFA Façade systems Siding 38 walnut DURAGLOSS 5000

Products PREFA Façade systems Siding 39 grey oak DURAGLOSS 5000

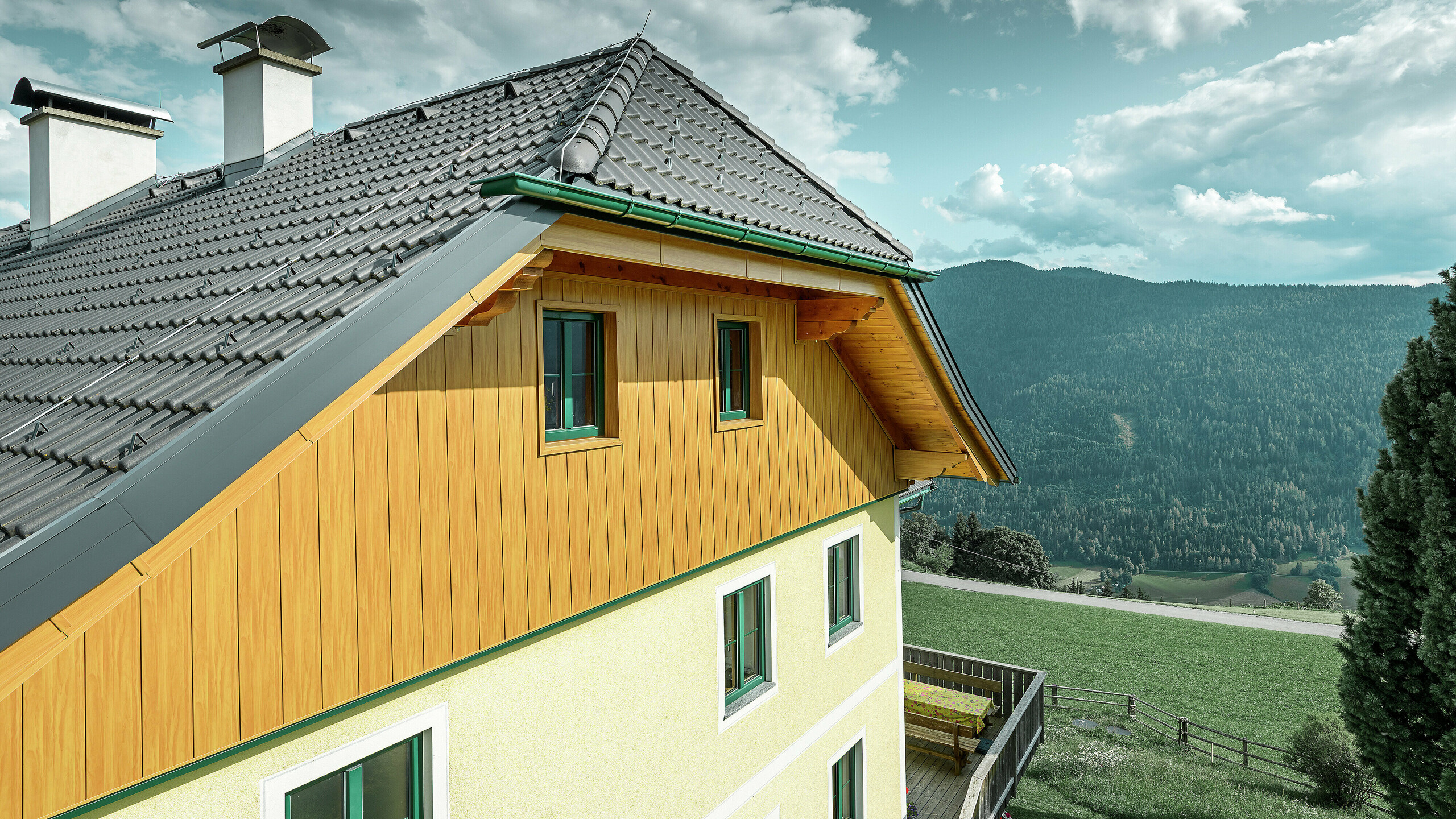

Products PREFA Façade systems Siding 40 natural oak DURAGLOSS 5000

Products PREFA Façade systems Siding 45 bronze DURAGLOSS 5000

Products PREFA Façade systems Siding 47 patina grey DURAGLOSS 5000

AVAILABLE COLOURS

COLOUR 01 P.10 BROWN

COLOUR 02 P.10 ANTHRACITE

COLOUR 03 P.10 BLACK

COLOUR 04 P.10 BRICK RED

COLOUR 05 P.10 OXIDE RED

COLOUR 06 P.10 MOSS GREEN

COLOUR 07 P.10 LIGHT GREY

COLOUR 10 P.10 PREFA WHITE

COLOUR 11 P.10 NUT BROWN

COLOUR 17 P.10 PURE WHITE

COLOUR 19 DARK GREY (SIMILAR TO DB 703/RAL 7043)

COLOUR 41 P.10 RUST BROWN

COLOUR 42 P.10 SAND BROWN

COLOUR 43 P.10 STONE GREY

COLOUR 12 METALLIC SILVER

COLOUR 20 SMOKE SILVER

COLOUR 21 RUBY RED

COLOUR 23 BLACK GREY

COLOUR 25 IVORY

COLOUR 38 WALNUT

COLOUR 39 GREY OAK

COLOUR 40 NATURAL OAK

COLOUR 45 BRONZE

COLOUR 47 PATINA GREY

PREFA aluminium sidings are façade elements from our façade range. PREFA sidings are used in a variety of ways, both indoors and out, as wall and ceiling coverings. Their concealed fastening (via a tongue and groove system) guarantees an attractive appearance. PREFA sidings can be installed horizontally or vertically, with or without a shadow gap, enable building façades to be ingeniously enhanced, maintained and modernised for decades to come.

Can be safely installed: diagonally, vertically or horizontally
23 colours to choose from
many design possibilities thanks to the combination of different visible widths

COATING:

Coil coating

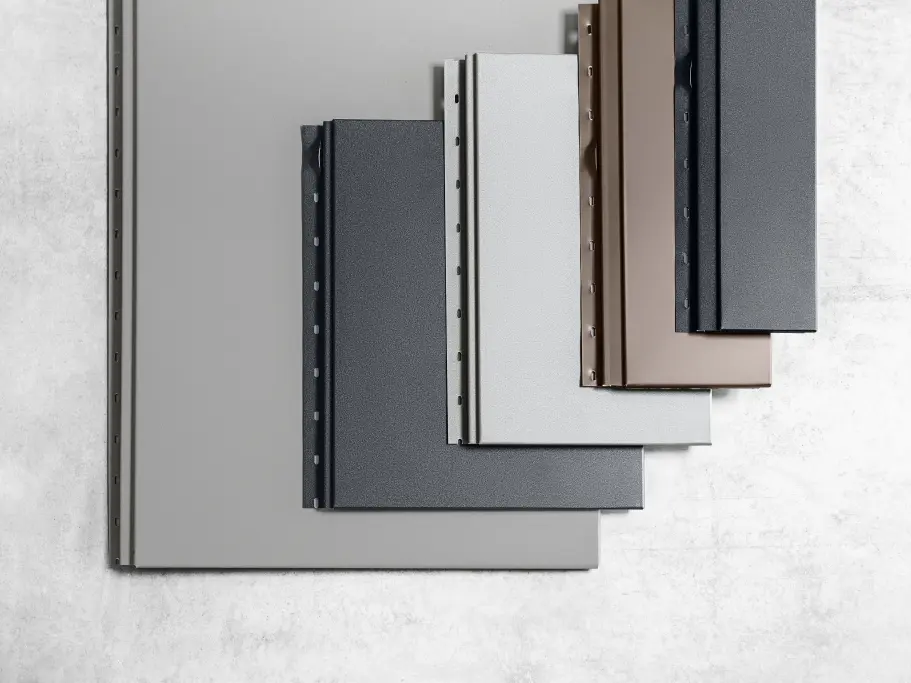

STANDARD MATERIAL:

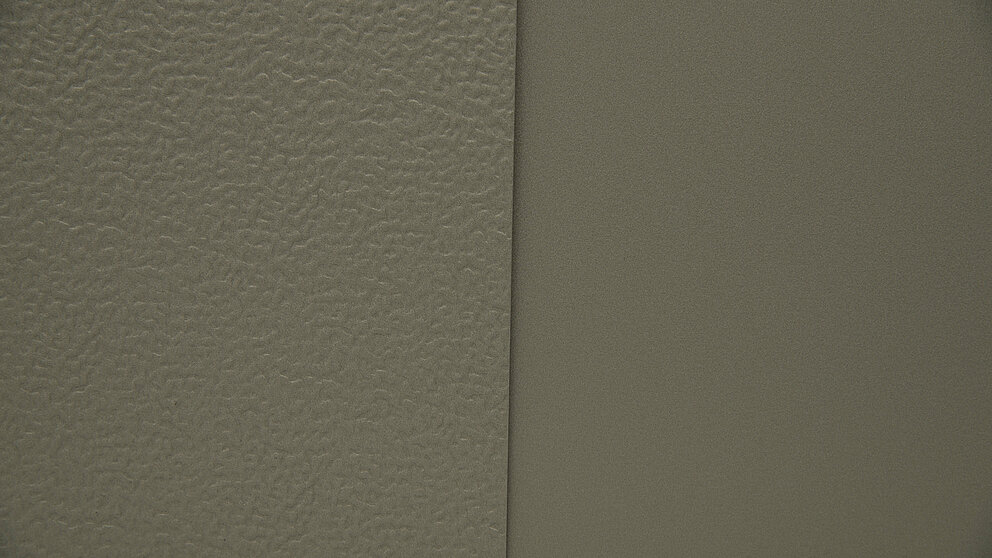

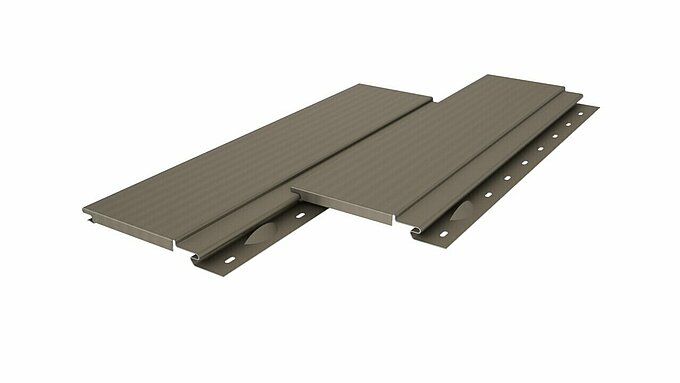

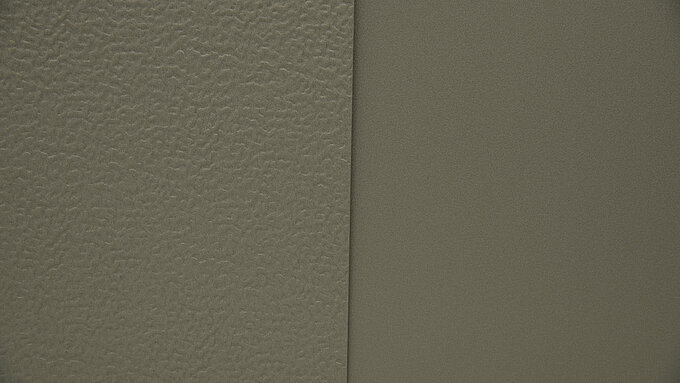

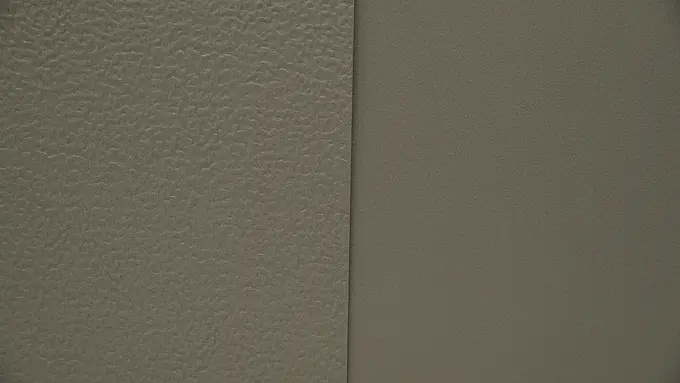

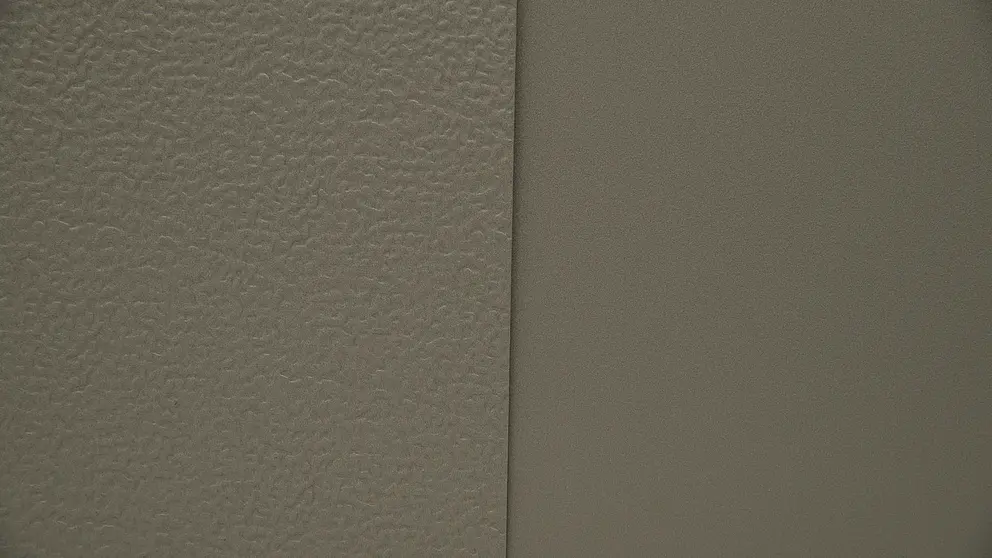

0.7 × 138 mm (thickness/visible side), stucco, lined with shadow gap option (also smooth for P.10)
1.0 × 200 mm (thickness/visible side), smooth, lined or stucco, with shadow gap option
1.2 × 300 mm (thickness/visible side), smooth, with shadow gap option
1.2 × 400 mm (thickness/visible side), smooth, with shadow gap option (installation with storm-proof clip)

special visible widths (120 to 400 mm) upon request

ENDS:

with or without edge downstand (11 mm)

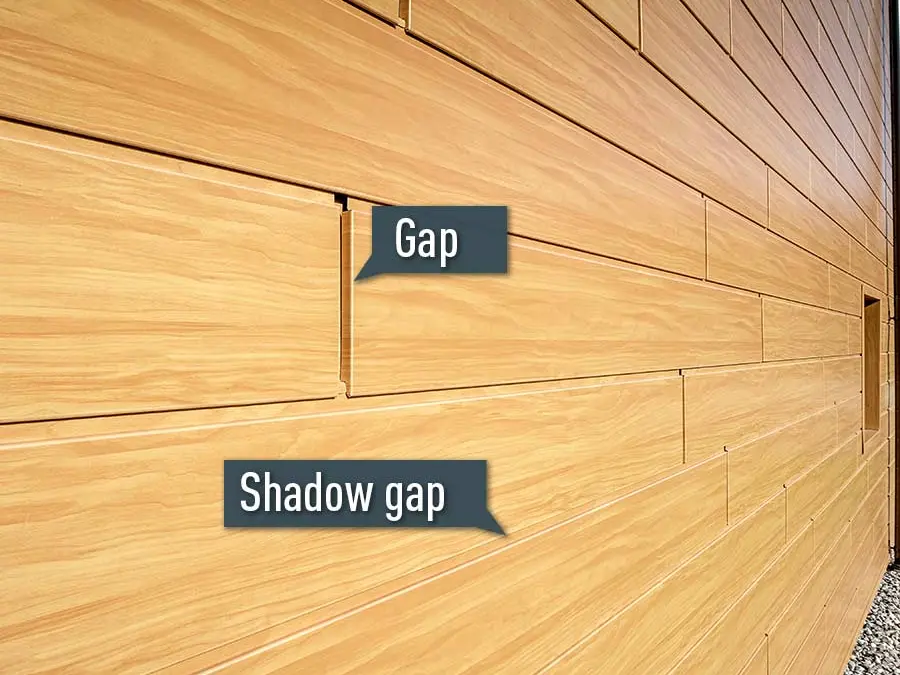

SHADOW GAP:

with or without shadow gap; shadow gap: 15 mm wide, 7 mm deep

WEIGHT:

approx. 3.30–4.30 kg/m² depending on the visible width

LENGTH:

500–2,500 mm for all visible widths (with PREFA joint)

500–6,200 mm for all visible widths (without PREFA joint)

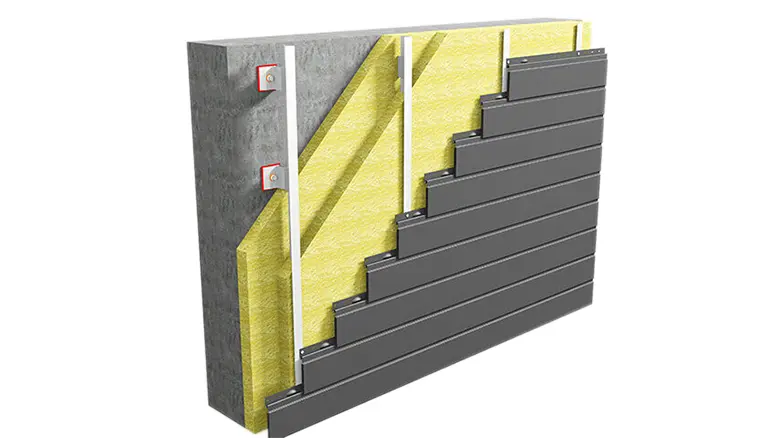

Wall structure with PREFA sidings (installed horizontally) on aluminium substructure

Façade – Horizontal siding

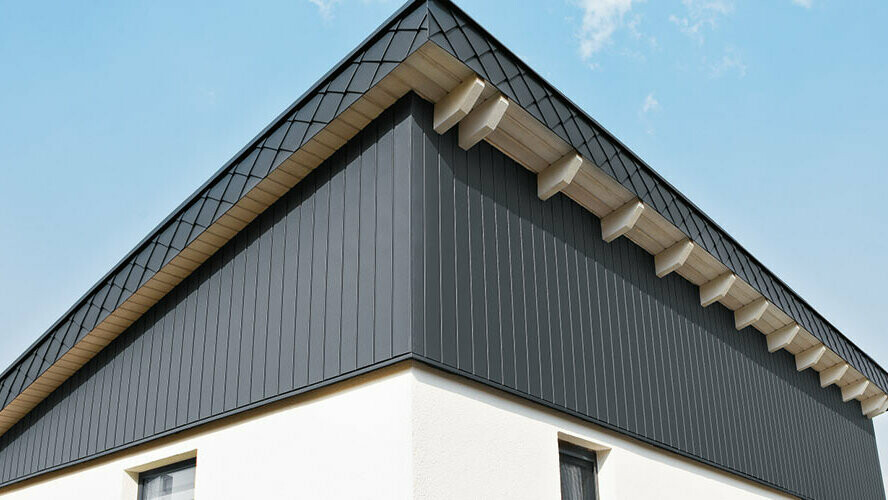

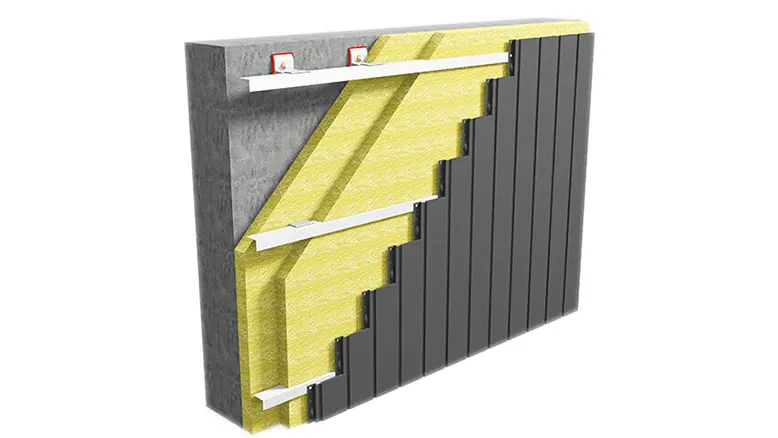

Wall structure with PREFA sidings (installed vertically) on aluminium substructure

Façade – Vertical siding

COLOUR	~ RAL	DETAILS
01 P.10 brown	7013	138 × 0,70 mm smooth, stucco, lined 200 × 1,00 mm smooth, stucco, lined 300 × 1,20 mm smooth 400 × 1,20 mm smooth
02 P.10 anthrcite	7016	138 × 0,70 mm smooth, stucco, lined 200 × 1,00 mm smooth, stucco, lined 300 × 1,20 mm smooth 400 × 1,20 mm smooth
03 P.10 black	9005	138 × 0,70 mm smooth, stucco, lined 200 × 1,00 mm smooth, stucco, lined 300 × 1,20 mm smooth 400 × 1,20 mm smooth
04 P.10 brick red	8004	138 × 0,70 mm smooth, stucco, lined 200 × 1,00 mm smooth, stucco, lined
05 P.10 oxide red	3009	138 × 0,70 mm smooth, stucco, lined 200 × 1,00 mm smooth, stucco, lined
06 P.10 moss green	6005	138 × 0,70 mm smooth, stucco, lined 200 × 1,00 mm smooth, stucco, lined
07 P.10 light grey	7005	138 × 0,70 mm smooth, stucco, lined 200 × 1,00 mm smooth, stucco, lined 300 × 1,20 mm smooth 400 × 1,20 mm smooth
10 P.10 prefa white	9002	138 × 0,70 mm smooth, stucco, lined 200 × 1,00 mm smooth, stucco, lined
11 P.10 nut brown	8019	138 × 0,70 mm smooth, stucco, lined 200 × 1,00 mm smooth, stucco, lined
12 mitallic silver³	9006	138 × 0,70 mm stucco, lined 200 × 1,00 mm smooth, stucco, lined 300 × 1,20 mm smooth 400 × 1,20 mm smooth
17 P.10 pure white	9010	138 × 0,70 mm smooth, stucco, lined 200 × 1,00 mm smooth, stucco, lined 300 × 1,20 mm smooth 400 × 1,20 mm smooth
19 P.10 dark grey	7043	138 × 0,70 mm smooth, stucco, lined 200 × 1,00 mm smooth, stucco, lined 300 × 1,20 mm smooth 400 × 1,20 mm smooth
20 smoke silver³	9007	200 × 1,00 mm smooth, stucco, lined
21 ruby red	3003	200 × 1,00 mm smooth, stucco, lined
23 black grey	7022	200 × 1,00 mm smooth, stucco, lined 300 × 1,20 mm smooth 400 × 1,2 mm smooth
25 ivory	1015	138 × 0,7 mm stucco, lined 200 × 1,00 mm smooth, stucco, lined
26 dark wood¹	8015	138 × 0,70 mm smooth 200 × 1,00 mm smooth
40 licht wood¹	1011	200 × 1,00 mm smooth
41 P.10 rust brown¹	8015	138 × 0,70 mm smooth, stucco, lined 200 × 1,00 mm smooth, stucco, lined
42 P.10 sand brown¹	1019	138 × 0,70 mm smooth, stucco, lined 200 × 1,00 mm smooth, stucco, lined
43 P.10 stone grey¹	7031	138 × 0,70 mm smooth, stucco, lined 200 × 1,00 mm smooth, stucco, lined 300 × 1,20 mm smooth 400 × 1,20 mm smooth
45 bronze³	7048	200 × 1,00 mm smooth, stucco, lined
47 patina grey¹	7042	138 × 0,70 mm smooth, stucco, lined 200 × 1,00 mm smooth, stucco, lined

COLOUR: 01 P.10 brown
~ RAL: 7013
DETAILS: 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth

COLOUR: 02 P.10 anthrcite
~ RAL: 7016
DETAILS: 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth

COLOUR: 03 P.10 black
~ RAL: 9005
DETAILS: 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth

COLOUR: 04 P.10 brick red
~ RAL: 8004
DETAILS: 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined

COLOUR: 05 P.10 oxide red
~ RAL: 3009
DETAILS: 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined

COLOUR: 06 P.10 moss green
~ RAL: 6005
DETAILS: 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined

COLOUR: 07 P.10 light grey
~ RAL: 7005
DETAILS: 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth

COLOUR: 10 P.10 prefa white
~ RAL: 9002
DETAILS: 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined

COLOUR: 11 P.10 nut brown
~ RAL: 8019
DETAILS: 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined

COLOUR: 12 mitallic silver³
~ RAL: 9006
DETAILS: 138 × 0,70 mm stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth

COLOUR: 17 P.10 pure white
~ RAL: 9010
DETAILS: 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth

COLOUR: 19 P.10 dark grey
~ RAL: 7043
DETAILS: 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth

COLOUR: 20 smoke silver³
~ RAL: 9007
DETAILS: 200 × 1,00 mm smooth, stucco, lined

COLOUR: 21 ruby red
~ RAL: 3003
DETAILS: 200 × 1,00 mm smooth, stucco, lined

COLOUR: 23 black grey
~ RAL: 7022
DETAILS: 200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,2 mm smooth

COLOUR: 25 ivory
~ RAL: 1015
DETAILS: 138 × 0,7 mm stucco, lined
200 × 1,00 mm smooth, stucco, lined

COLOUR: 26 dark wood¹
~ RAL: 8015
DETAILS: 138 × 0,70 mm smooth
200 × 1,00 mm smooth

COLOUR: 40 licht wood¹
~ RAL: 1011
DETAILS: 200 × 1,00 mm smooth

COLOUR: 41 P.10 rust brown¹
~ RAL: 8015
DETAILS: 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined

COLOUR: 42 P.10 sand brown¹
~ RAL: 1019
DETAILS: 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined

COLOUR: 43 P.10 stone grey¹
~ RAL: 7031
DETAILS: 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth

COLOUR: 45 bronze³
~ RAL: 7048
DETAILS: 200 × 1,00 mm smooth, stucco, lined

COLOUR: 47 patina grey¹
~ RAL: 7042
DETAILS: 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined

¹ The colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, patina grey and natural blank reflect natural colouring and are therefore subject to minimal variation, which gives the products their unmistakable character.

² The warranty does not cover changes to the surface appearance due to processing and environmental influences. Please refer to information sheet.

³ Metallic colours may vary in shade.

Notes

The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
Above all for colour quality P.10, it is almost impossible to define values due to the surface structure. Furthermore, the colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, and patina grey reflect natural colourings that are composed of several colour tones.
To identify exact colours for complementary components please consult original samples.

COLOUR DETAILS

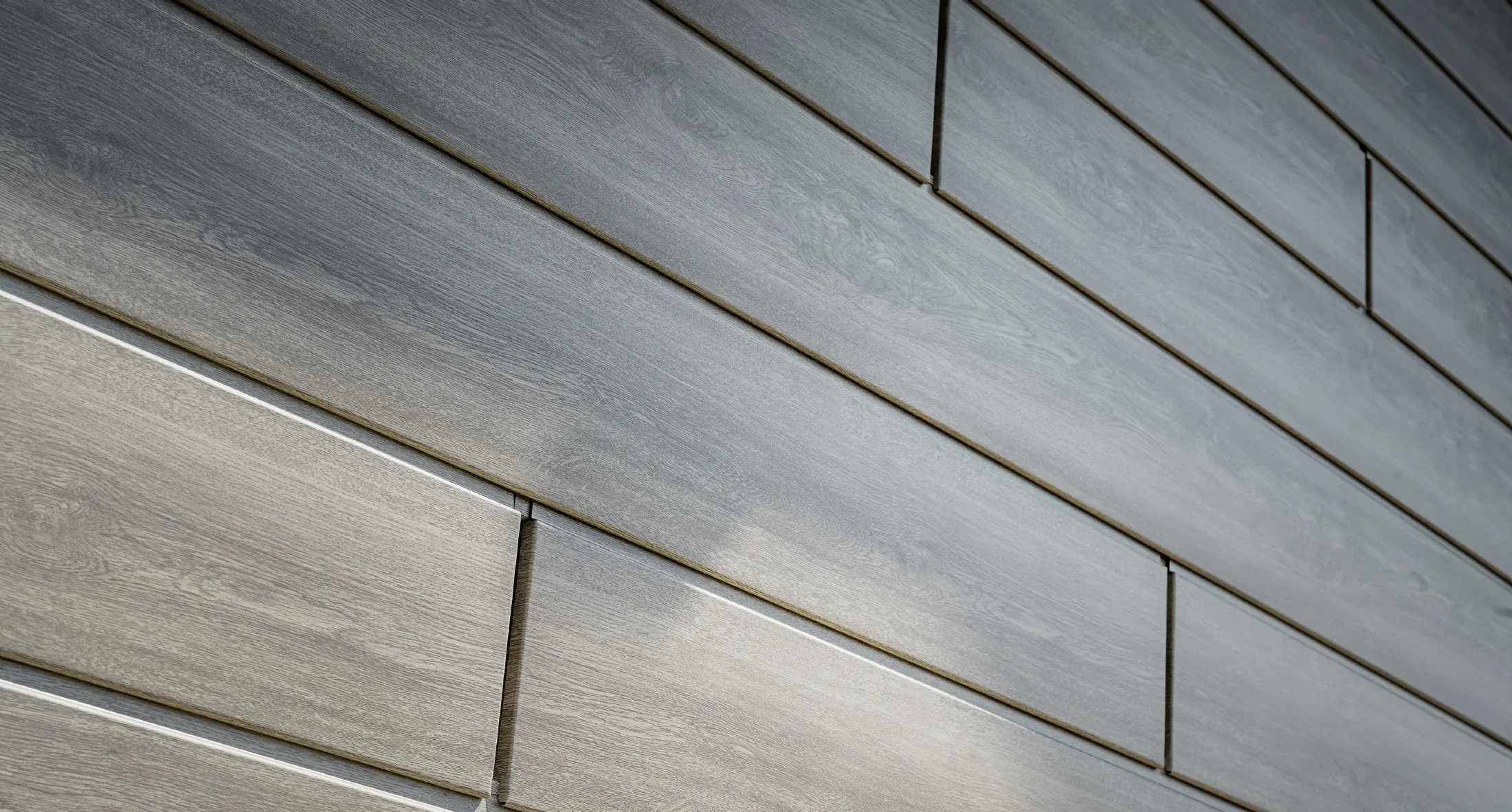

PREFA JOINT.138/200/300/400

Joint width of 15 mm, for sidings with a visible width of 138 mm, 200 mm, 300 mm and 400 mm
with shadow gap
maximum siding length of 2,500 mm

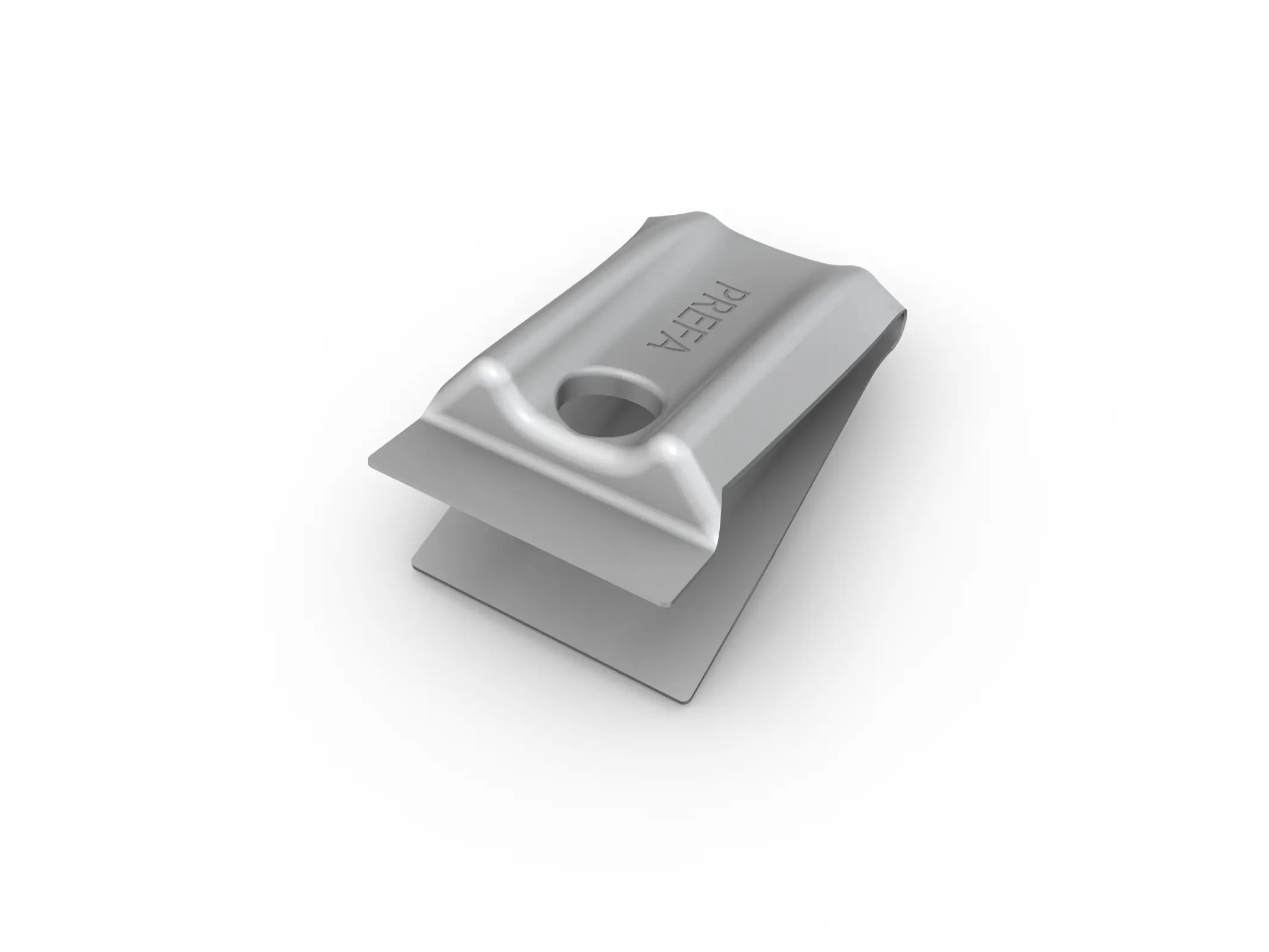

PREFA STORM-PROOF CLIP

made of stainless steel, 6–9 pc./m²; according to visible width and wind-drag loads

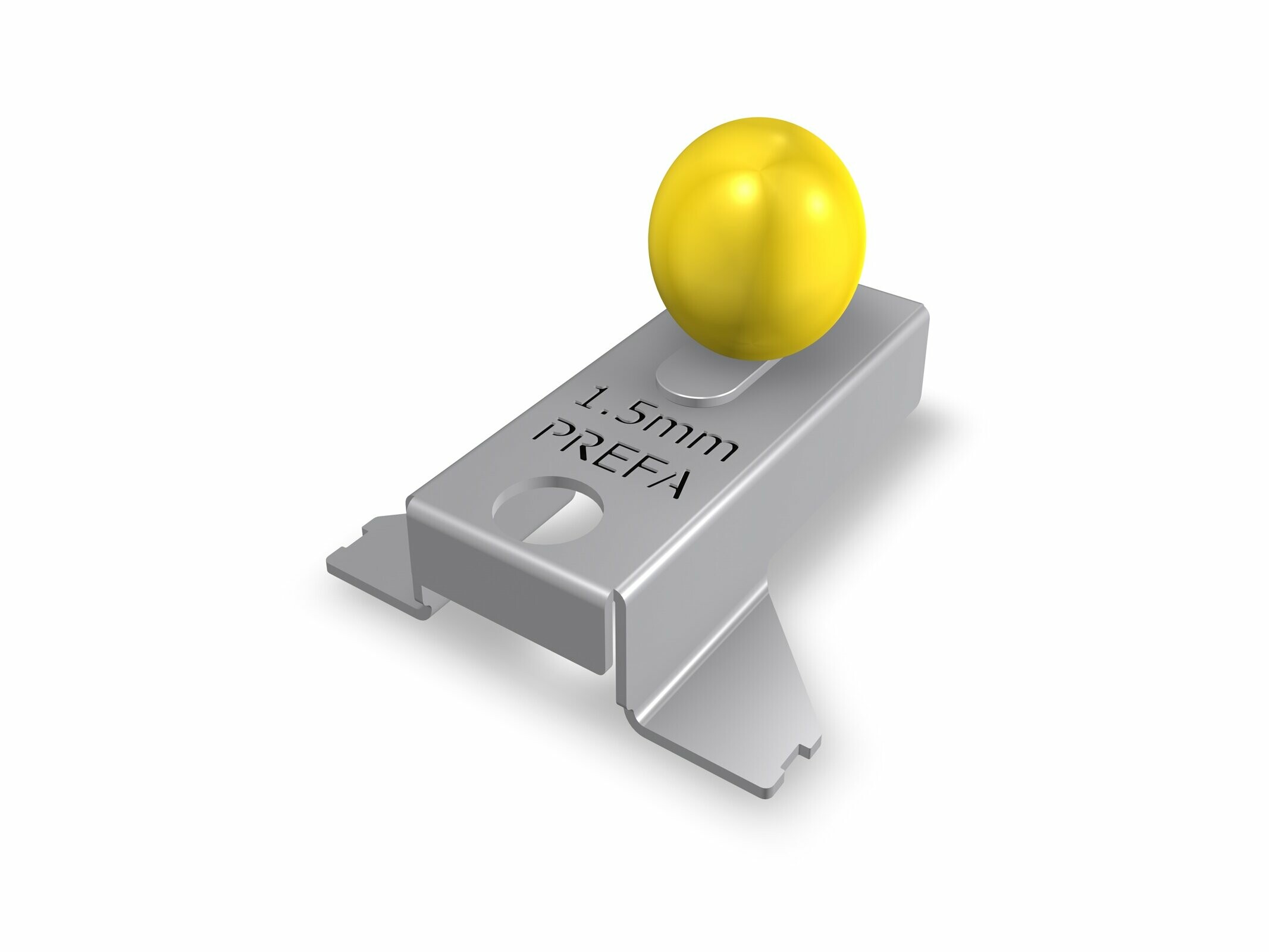

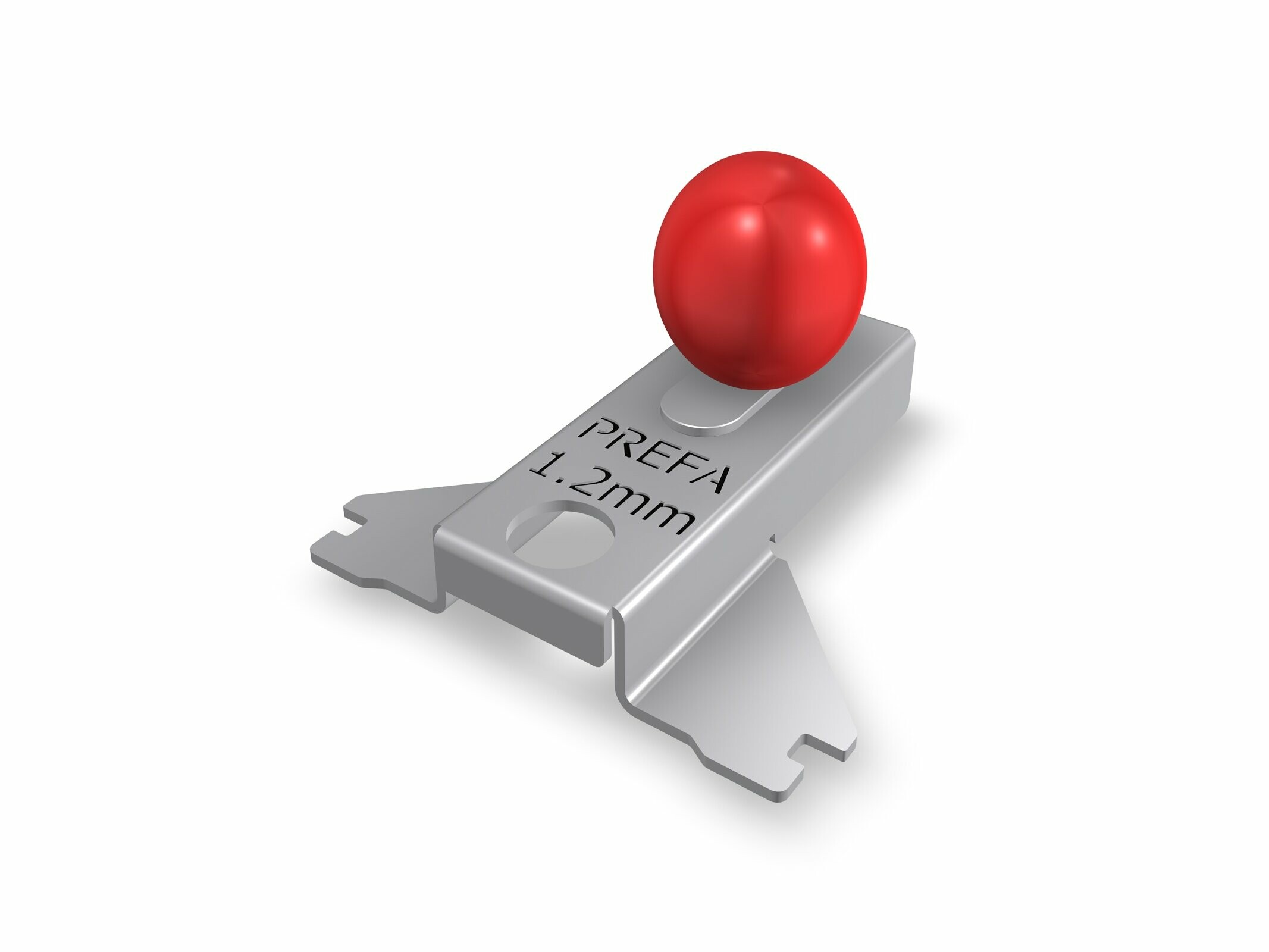

PREFA STORM-PROOF CLIP MOUNTING AID

made of stainless steel

PREFA CORNER SIDING

500 mm side length on both sides (inside dimensions), 521 mm side length on both sides (external dimensions), 1,042 mm in the cross-section

PREFA DRIP

PREFA JOINT CONNECTOR PLATE

made of embossed aluminium, PREFA design wave (transverse, 5 mm), for PREFA drip

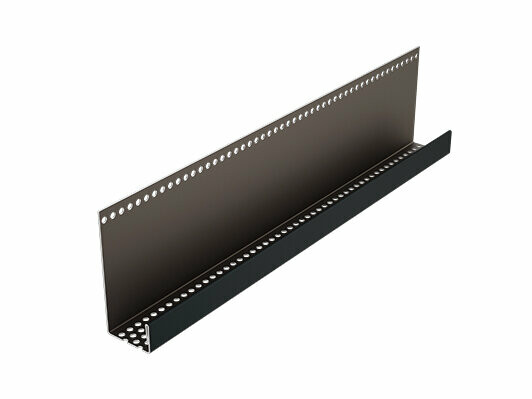

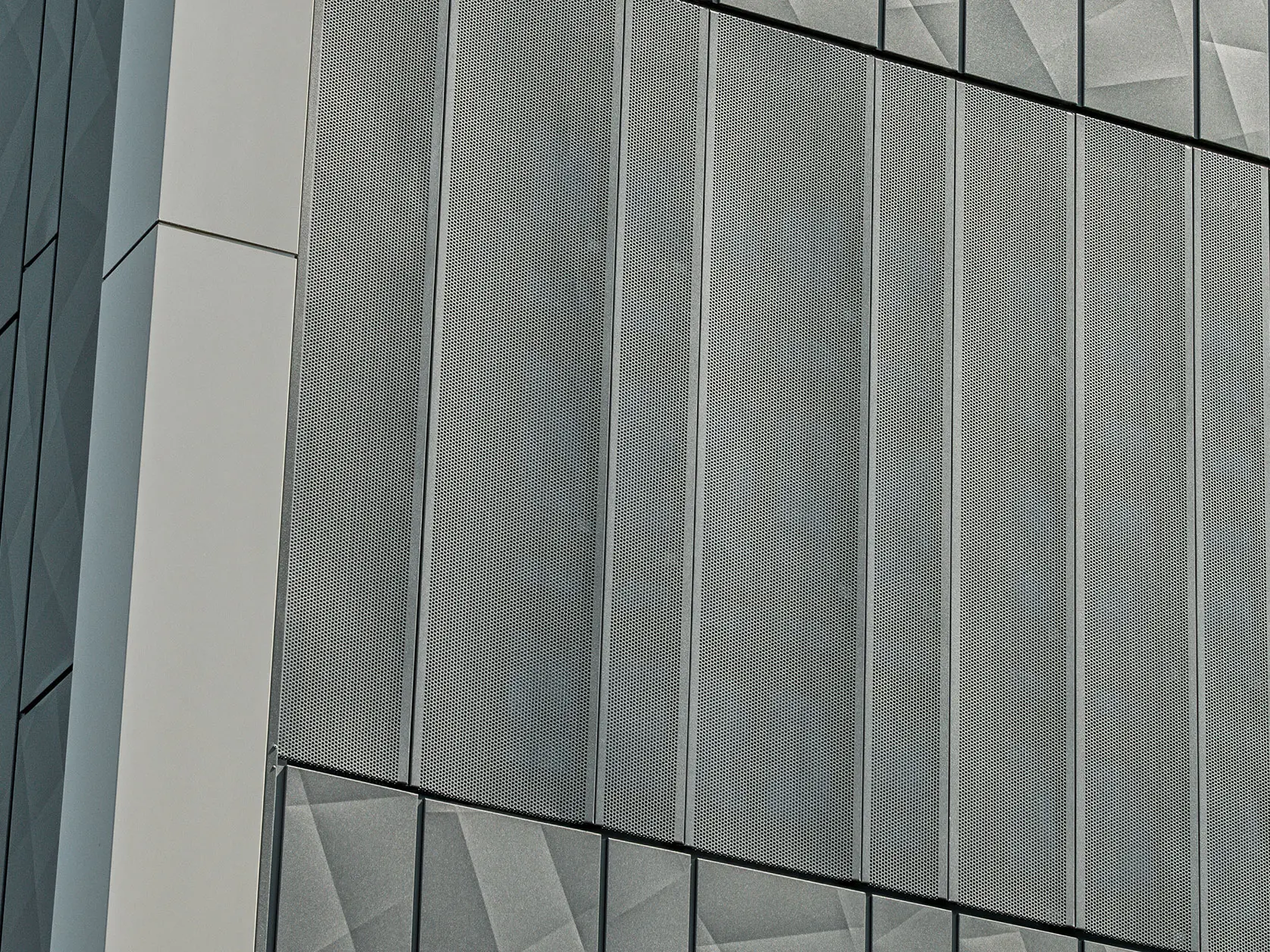

PREFA PERFORATED PLATE

PREFA CHANNEL PROFILE (CANTED)

PREFA HEMMED FLASHING

PREFA STARTER PROFILE

PREFA EXTERNAL CORNER FLASHING

PREFA REVEAL FLASHING

PREFA CLOSING PROFILE

for reinforcing the ends, e.g. diagonal cuts

PREFA PROTRUDING CORNER (2 ELEMENTS)

PREFA JOINT CONNECTION

PREFA RECESSED CORNER

PREFA BASE PROFILE

FASTENERS FOR WOODSIDING – WOODEN SUBSTRUCTURE

FASTENERS FOR ALUMINIUMSIDING – ALUMINIUM SUBSTRUCTURE

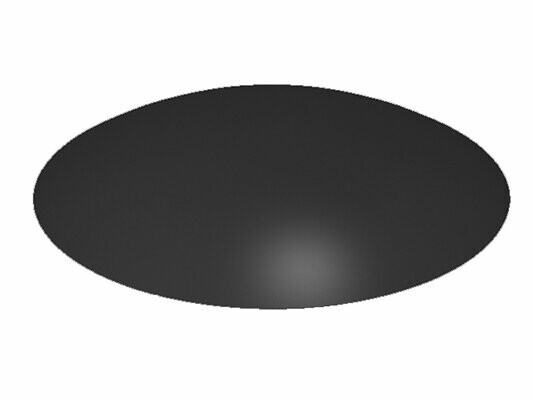

PREFA MOUNTING HOLE COVER

for covering bore holes and small repairs

PREFA PATENT RIVETS FOR SIDING FLASHING STRIP

with stainless steel pin, splash-proof

Note: download DWG and DXF format files by right-clicking and selecting “Save link as”.

56 KB PREFA_Tender_Texts_Facade_Siding_2018-06_-_EN.docx 554 KB PREFA_Tender_Texts_Facade_Siding_2018-06_-_EN.pdf

7 MB PREFA_Details_Fassade_Siding_horizontal_2018_Q1.dwg 3 MB PREFA_Details_Fassade_Siding_horizontal_2018_Q1.pdf 22 MB PREFA_Details_Fassade_Siding_horizontal_2018_Q1.dxf 3 MB PREFA_Details_Fassade_Siding_vertikal_2018_Q1.pdf 7 MB PREFA_Details_Fassade_Siding_vertikal_2018_Q1.dwg 22 MB PREFA_Details_Fassade_Siding_vertikal_2018_Q1.dxf

LOGIN FOR INSTALLERS AND ARCHITECTS

Eine Hand hält ein Smartphone mit einem Foto von einem Haus mit dem PREFA Fotoservice - man erkennt das Haus mit und ohne PREFA Dach.

YOUR PREFA PHOTO SERVICE

YOUR HOUSE WITH THE PREFA LOOK

Our photo montage shows you how attractive your house would look with a PREFA roof or PREFA façade.

TO THE PHOTO SERVICE

Order a brochure – aluminium roof systems -–PREFA, the roof as strong as a bull!

Information material

ORDER FREE BROCHURES

We’ll be sending your information out soon: we’ll send you free brochures containing watertight information directly to your home or to your email inbox.

ORDER FOR FREE

FAÇADE SYSTEMS SIDING

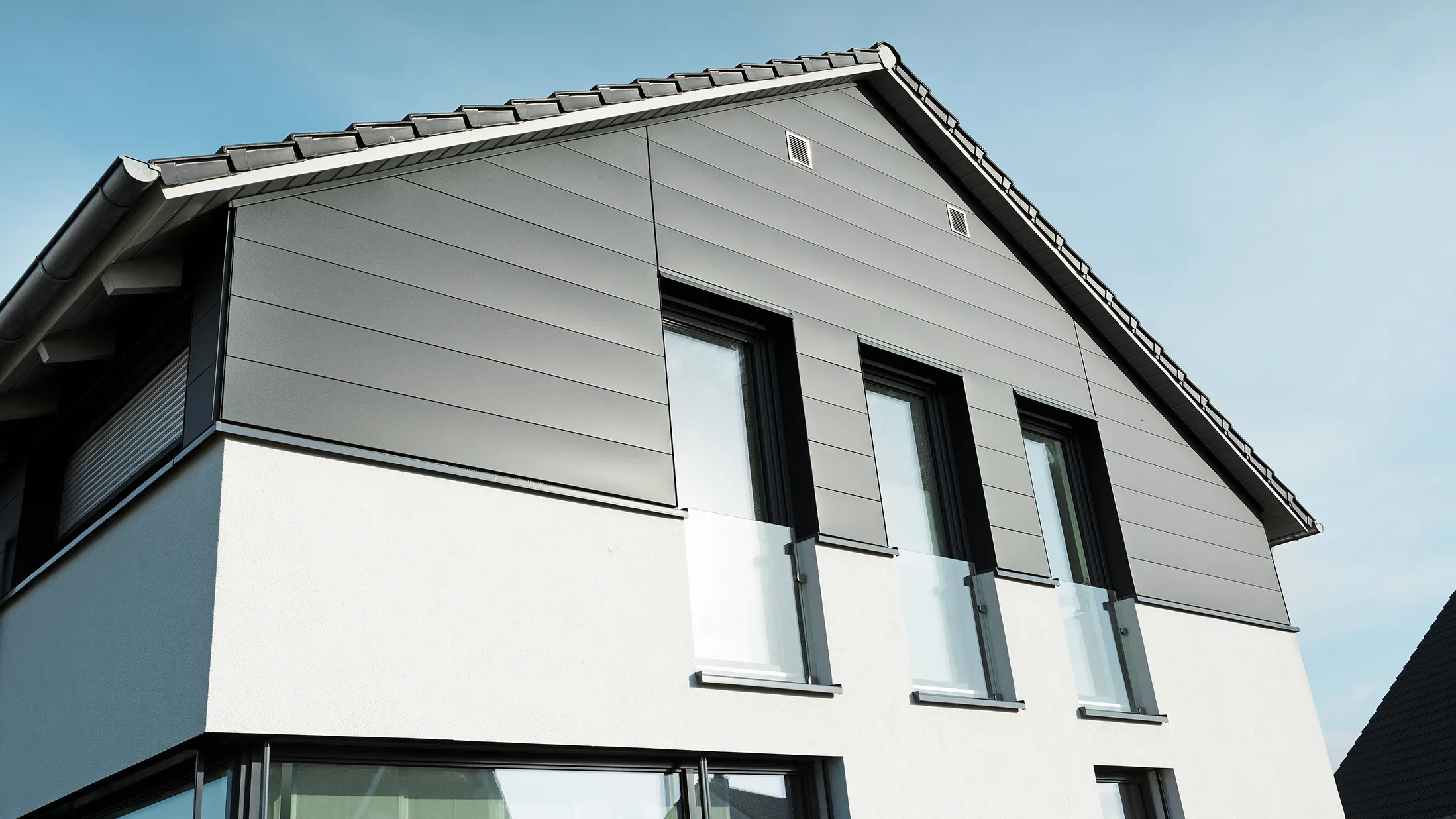

PREFA SIDING

SIDING FAÇADE ELEMENTS – TECHNICAL INFORMATION

TECHNICAL INFORMATION ABOUT THE PRODUCT AND TECHNICAL DRAWINGS

SIDING FAÇADE ELEMENTS – TECHNICAL DRAWING

PREFA SIDING – COLOUR RANGE (SPECIAL COLOURS AVAILABLE ON REQUEST)

THE PRODUCT IS AVAILABLE IN THE FOLLOWING COLOURS
