FAÇADE SYSTEMS FAÇADE SHINGLE

Reference buildings PREFA Façade systems Façade shingle 03 black (own colour)

Reference buildings PREFA Façade systems Façade shingle 04 brick red (similar to RAL 8004)

Reference buildings PREFA Façade systems Façade shingle 05 oxide red (similar to RAL 3009)

Reference buildings PREFA Façade systems Façade shingle 06 moss green (similar to RAL 6005)

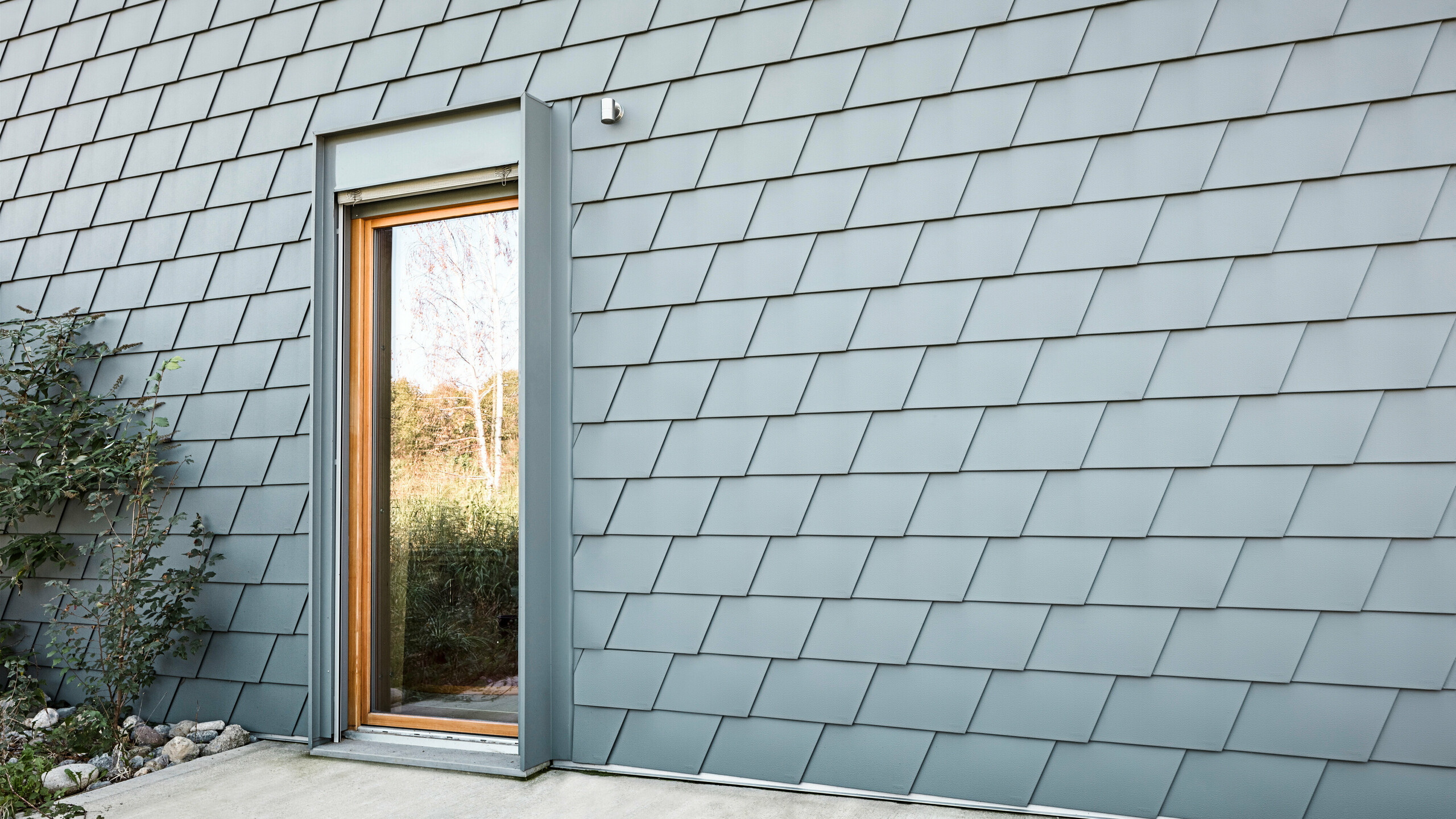

Reference buildings PREFA Façade systems Façade shingle 07 light grey (similar to RAL 7005)

Reference buildings PREFA Façade systems Façade shingle 11 nut brown (own colour)

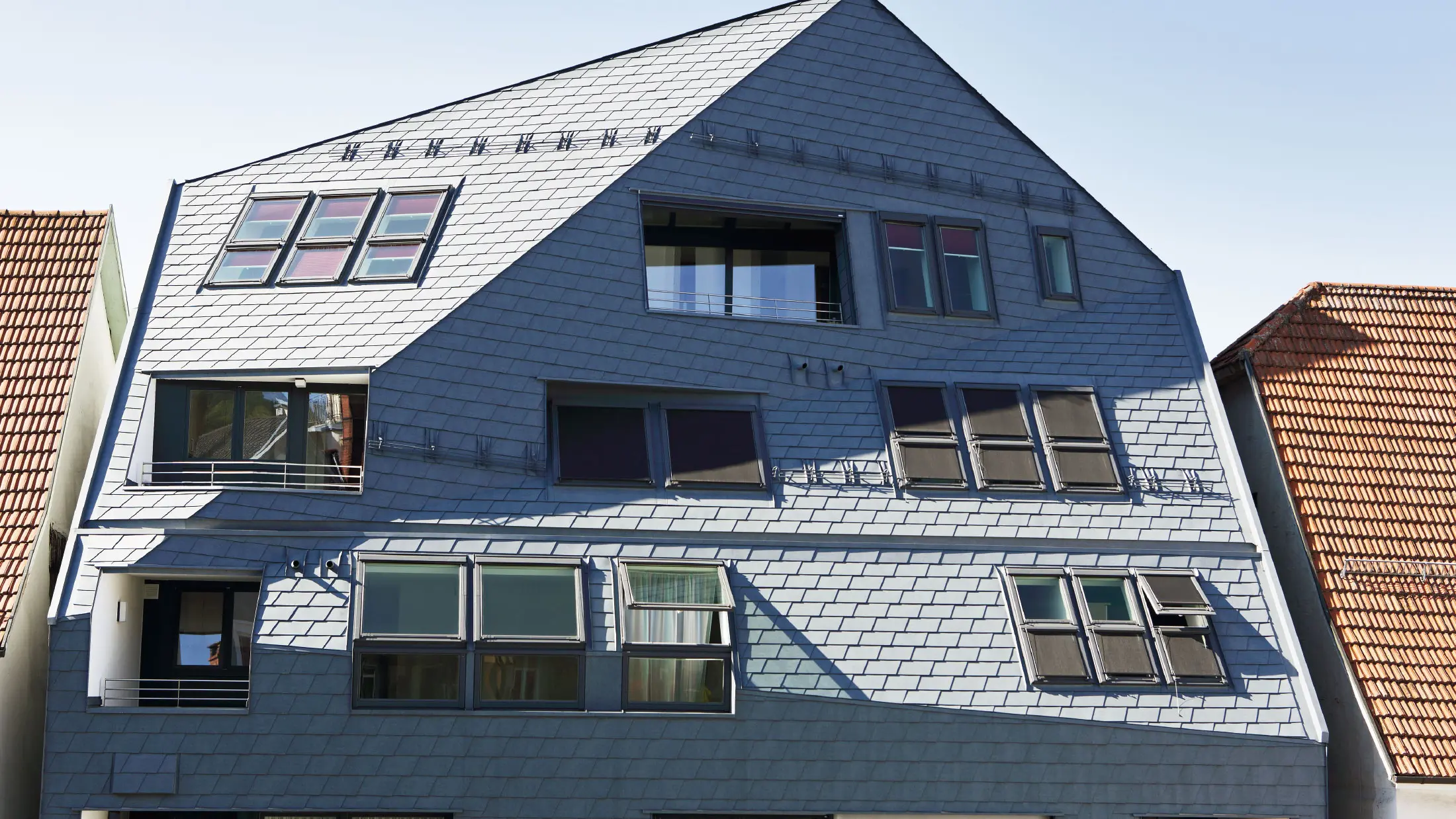

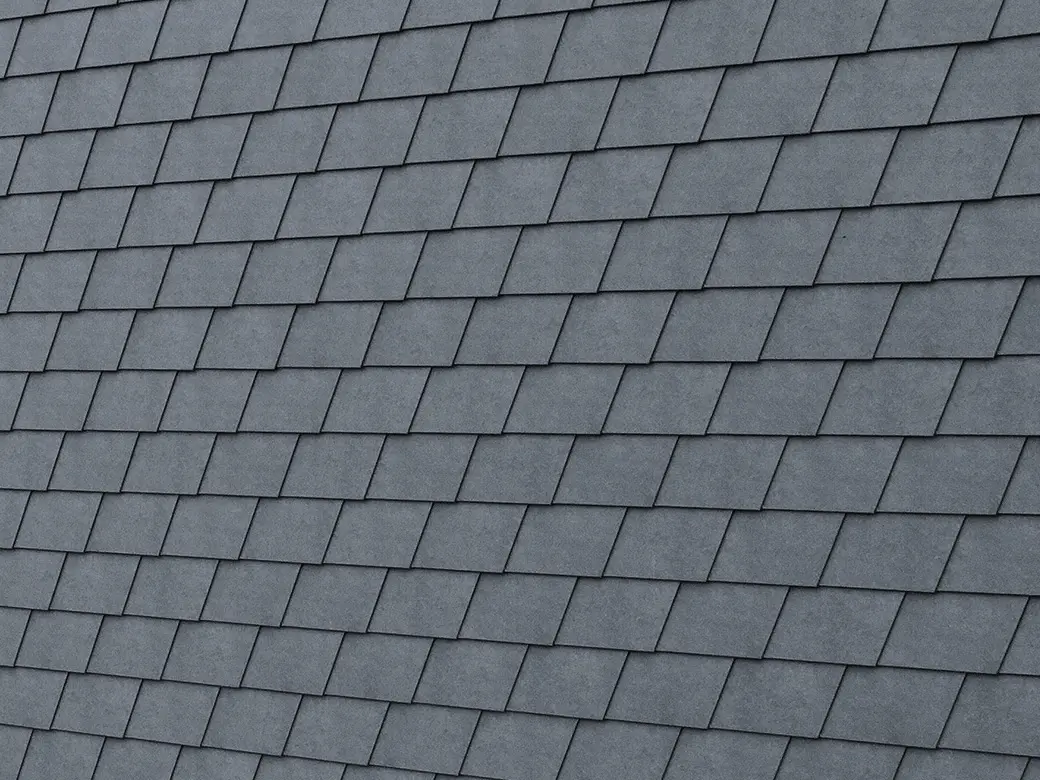

Reference buildings PREFA Façade systems Façade shingle 43 stone grey (own colour)

Reference buildings PREFA Façade systems Façade shingle 13 plain aluminium

Product catalogue PREFA Façade systems Façade shingle 01 brown (own colour) P.10

Product catalogue PREFA Façade systems Façade shingle 02 anthracite (similar to RAL 7016) P.10

Product catalogue PREFA Façade systems Façade shingle 03 black (own colour) P.10

Product catalogue PREFA Façade systems Façade shingle 04 brick red (similar to RAL 8004) P.10

Product catalogue PREFA Façade systems Façade shingle 05 oxide red (similar to RAL 3009) P.10

Product catalogue PREFA Façade systems Façade shingle 06 moss green (similar to RAL 6005) P.10

Product catalogue PREFA Façade systems Façade shingle 07 light grey (similar to RAL 7005) P.10

Product catalogue PREFA Façade systems Façade shingle 11 nut brown (own colour) P.10

Product catalogue PREFA Façade systems Façade shingle 43 stone grey (own colour) P.10

Product catalogue PREFA Façade systems Façade shingle 13 plain aluminium

AVAILABLE COLOURS

COLOUR 01 BROWN (OWN COLOUR) SURFACE P.10

COLOUR 02 ANTHRACITE (SIMILAR TO RAL 7016) SURFACE P.10

COLOUR 03 BLACK (OWN COLOUR) SURFACE P.10

COLOUR 04 BRICK RED (SIMILAR TO RAL 8004) SURFACE P.10

COLOUR 05 OXIDE RED (SIMILAR TO RAL 3009) SURFACE P.10

COLOUR 06 MOSS GREEN (SIMILAR TO RAL 6005) SURFACE P.10

COLOUR 07 LIGHT GREY (SIMILAR TO RAL 7005) SURFACE P.10

COLOUR 11 NUT BROWN (OWN COLOUR) SURFACE P.10

COLOUR 43 STONE GREY (OWN COLOUR) SURFACE P.10

COLOUR 13 PLAIN ALUMINIUM

Small-format façade shingles are the popular classics of façade design. Thanks to their flexibility, small, narrow spaces can be realised in the same way as larger façades — and always with top technical quality, of course. Owing to their concealed fasteners, the PREFA small-format façade shingles also create an attractive appearance that meets even the highest expectations.

MATERIAL:: aluminium 0.7 mm thick
VISIBLE SIDE:: made of powder-coated aluminium alloy
REAR:: protective paint
SIZE:: 420 × 240 mm (cover)
WEIGHT:: 1 m²=approx. 2.5 kg=10 shingles
INSTALLATION:: on solid sheathing (at least 24 mm thick)
FASTENING:: 1 patent clip per façade shingle = 10 patent clips per m²
CHOICE OF COLOUR:: available in 9 colours (stucco surface)
Also available with a smooth finish upon request (delivery time: 10 days); plain aluminium available on request

01 P.10 BROWN: own colour
02 P.10 ANTHRACITE: similar to RAL 7016
03 P.10 BLACK: own colour
04 P.10 BRICK RED: similar to RAL 8004
05 P.10 OXIDE RED: similar to RAL 3009
06 P.10 MOSS GREEN: similar to RAL 6005
07 P.10 LIGHT GREY: similar to RAL 7005
11 P.10 NUT BROWN: own colour
43 P.10 STONE GREY: own colour
13 PLAIN ALUMINIUM

PREFA EDGE CLEAT STRIP FOR FAÇADE SHINGLES, RHOMBOID FAÇADE TILES AND FX.12

1800 × 158 × 1.00 mm, pre-drilled

PREFA PATENT CLIP FOR FAÇADE SHINGLES

Note: download DWG and DXF format files by right-clicking and selecting “Save link as”.

527 KB PREFA_Tender_Texts_Facade_Facade_Shingle_2018-06_-_EN.pdf 51 KB PREFA_Tender_Texts_Facade_Facade_Shingle_2018-06_-_EN.docx
