Our photovoltaic system for PREFALZ roofs is a combination of glass/glass PV panels with particular developed seam clamps and solar panel clamps in one piece, which are attached directly to the double locked seams seams. Thus, the PREFALZ solar panels enable installation parallel to the roof with a low installation height.
The clear PREFALZ lines are harmoniously continued, which preserves the characteristic look of the roofing trays.
Benefits of the PREFALZ solar panel
Aesthetic
Parallel to the roof, maintains characteristics of the system, low build up, adapted to the tray width of the PREFALZ application
Resistant
Robust, durable glass/glass PV panel with the latest TOPCon cell technology
No roof penetration
The solar panels are attached directly to the double locked seams with panel clamps, and there is no need for the roof covering to be penetrated by screws, etc.
2-in-1
Seam and panel clamp in one product, easy and fast installation due to the few components required
Aesthetic
Parallel to the roof, maintains characteristics of the system, low build up, adapted to the tray width of the PREFALZ application
Resistant
Robust, durable glass/glass PV panel with the latest TOPCon cell technology
No roof penetration
The solar panels are attached directly to the double locked seams with panel clamps, and there is no need for the roof covering to be penetrated by screws, etc.
2-in-1
Seam and panel clamp in one product, easy and fast installation due to the few components required
Retrofitting possible
Solar panels can be installed on new PREFALZ roofs as well as retrofitted to existing PREFALZ roofs
Performance guarantee
Solar panel: 10-year product guarantee, Performance guarantee: 85% of the nominal panel performance after 25 years, additional 25-year product guarantee on the PREFA sub-structure framework
Independent, economical & sustainable
The sun is always available as an energy source, and the self-produced energy can be used directly, fed into the grid or stored. CO2-friendly production facility
Made in Austria
The PREFALZ solar panel is developed and produced in Austria to a high standard and is 100% compatible with PREFA’s complete system
Retrofitting possible
Solar panels can be installed on new PREFALZ roofs as well as retrofitted to existing PREFALZ roofs
Performance guarantee
Solar panel: 10-year product guarantee, Performance guarantee: 85% of the nominal panel performance after 25 years, additional 25-year product guarantee on the PREFA sub-structure framework
Independent, economical & sustainable
The sun is always available as an energy source, and the self-produced energy can be used directly, fed into the grid or stored. CO2-friendly production facility
Made in Austria
The PREFALZ solar panel is developed and produced in Austria to a high standard and is 100% compatible with PREFA’s complete system
Coordinated with the PREFALZ roof system: PREFA’s complete system
The PREFALZ solar panel is 100% compatible with the PREFALZ roof system. Adapted to the 500 and 650 seam widths, the glass/glass PV panel is attached to the seams, which preserves the appearance of the double-lock standing seam trays.

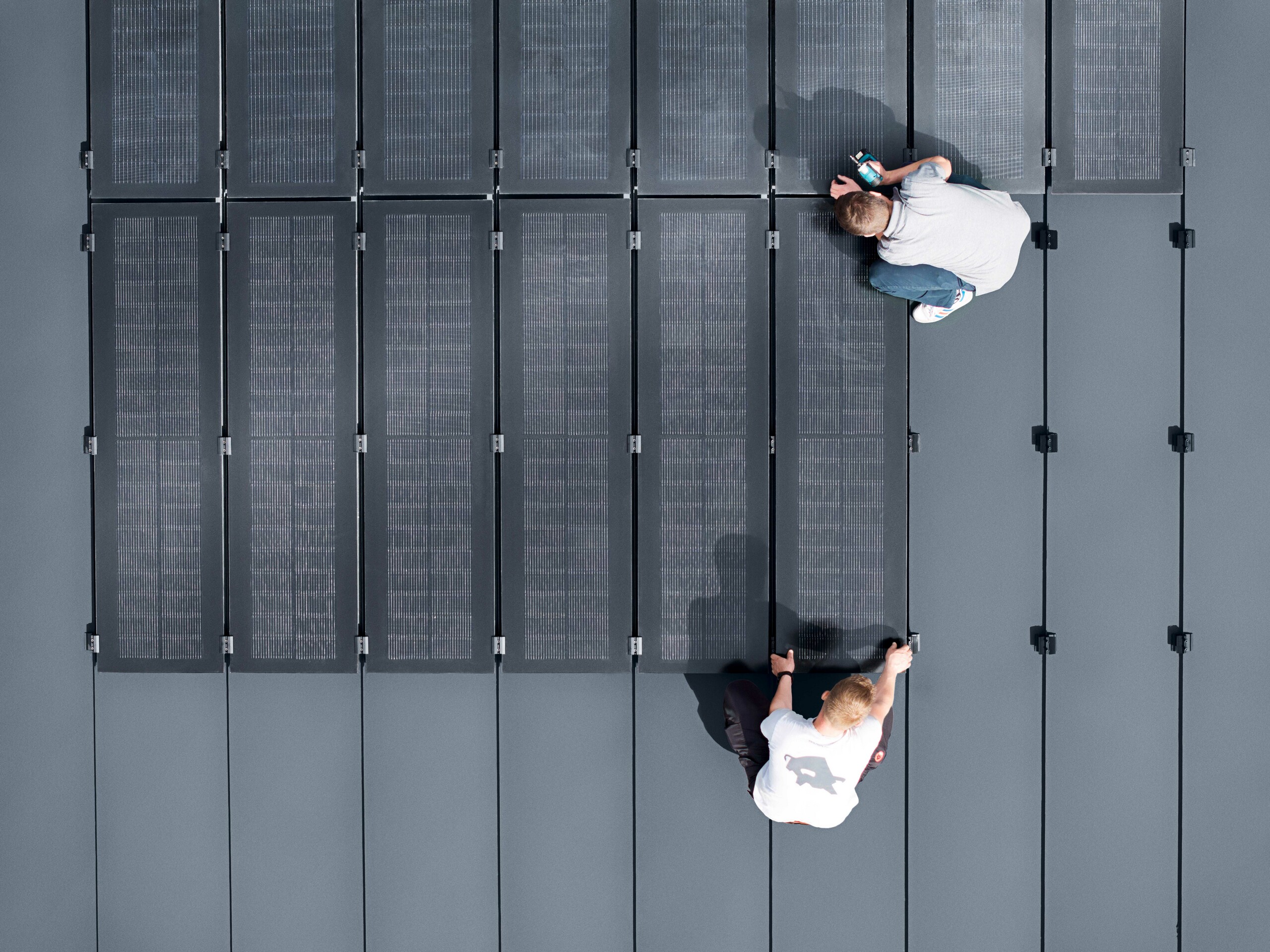

The PREFALZ solar panels can be installed on new PREFALZ roofs as well as retrofitted to existing PREFALZ roofs at any time.
Scope of delivery
The PV system is individually and dimensionally tailored to the roof product. The PREFALZ solar package not only includes the solar brackets, but also the correctly sized solar panels.
For the PREFALZ solar panel, PREFA offers the following components:
- PREFALZ solar panels
- Middle and end clamps
- Anti-slip devices
- Cable package with all required supply lines and discharges
- Various services (e.g. design of the PV system)
The PREFALZ aluminium tray for the roof itself are not included in the package. These must be requested separately.

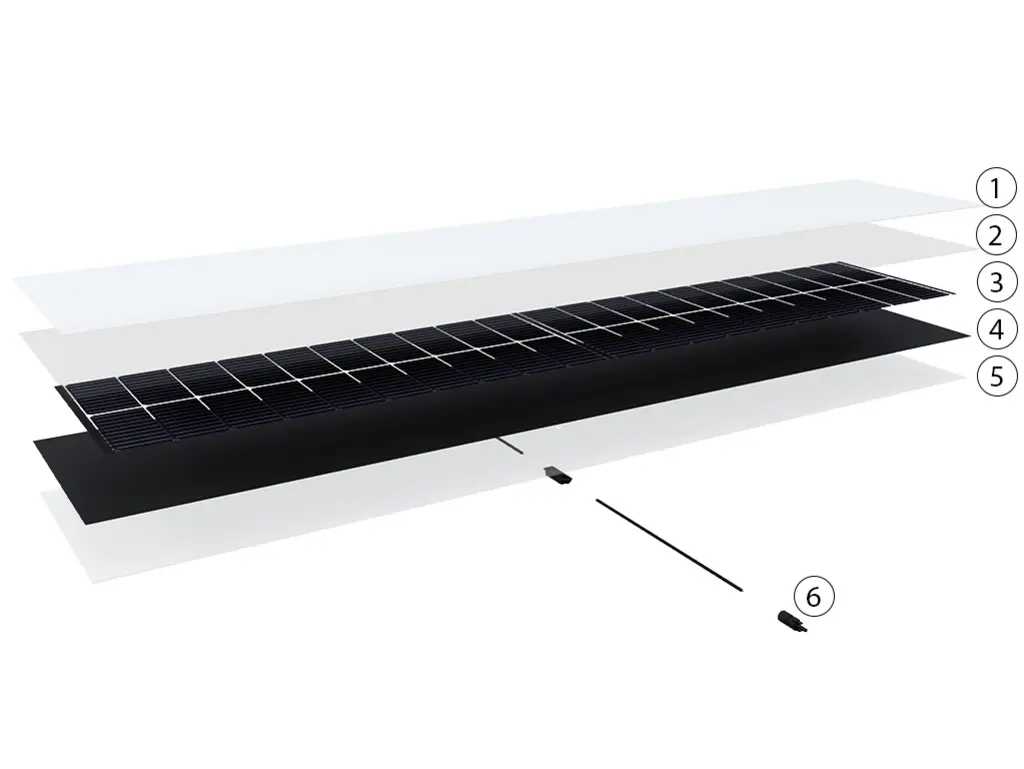

Structure of the PREFALZ solar panel
With an installation height of only 70 mm, this solution integrates harmoniously into the roof surface and is thus much slimmer than conventional on-roof solutions.
1. 3.2 mm prismatic solar glass
2. Encapsulation material
3. Photovoltaic cell type TOPCon
4. Encapsulation material
5. 3.2 mm rear glass
6. Connection box, MC4 plug / socket with solar cable and cable protection hose
Available in two sizes: Visible widths
PREFALZ 500 SOLAR PANEL |
Dimensions: 2000 x 408 mm Output: 150 Wp/pc. |
|---|---|
PREFALZ 650 SOLAR PANEL |
Dimensions: 2000 x 558 mm Output: 150 Wp/pc. |
Guarantee
PREFA offers you comprehensive guarantees for the PREFALZ solar solution. Enjoy complete peace of mind with a 25-year performance guarantee. Even after this period, the panels still have a guaranteed performance of 85% of the nominal performance.
Colours for PV panels and solar panel clamps
The PREFALZ solar panels are available in black and are delivered with matching black anodised solar panel clamps.
The roof product (aluminium trays) PREFALZ is available in standard colours.
Technical information
PREFALZ 500 solar panel |
PREFALZ 650 solar panel |
|
Output |
150 Wp |
150 Wp |
Required area |
5,44 m²/kWp |
7,44 m²/kWp |
Dimensions |
2.000 x 408 mm |
2.000 x 558 mm |
Weight |
15 kg (18 kg/m²) |
21 kg (18 kg/m²) |
Cell type |
TOPCon |
TOPCon |
Roof pitch |
from 3° (5 %)* |
from 3° (5 %)* |
Material |
Front glass 3.2 mm |
Front glass 3.2 mm |
Plug |
Standard MC4 male/female connector |
Standard MC4 male/female connector |
Fastening |
With the PREFALZ 500/650 solar middle/end clamp on double-lock standing seam, the number of clamps per panel varies depending on the roof pitch and location. |
With the PREFALZ 500/650 solar middle/end clamp on double-lock standing seam, the number of clamps per panel varies depending on the roof pitch and location. |
* Or according to national regulations and guidelines. Tested and approved for PREFALZ double-lock standing seam roofing.
Questions and answers about the PREFALZ solar panel
This is a on-roof solution consisting of glass/glass PV panels with the innovative TOPCon cell technology.
The PREFALZ solar panel is 100% compatible with the PREFALZ roof system, adapted to the 500 and 650 seam widths. The appearance of the double-lock standing seam trays is thus retained.
- POWERFUL – TOPCon cell technology provides 10% more performance, even in diffuse lighting conditions
- REDUCTION – 15% fewer individual components (due to no rail and loose components)
- HANDLING – Compared to traditional on-roof solutions, our system enables 20% faster installation (ready-to-use components)
- AREA OF APPLICATION – The mounting system can be used from a roof pitch of 3° to 70°.
- CHARACTERISTICS – Double-lock standing seam trays are retained in the complete system.
- AESTHETIC LOOK – Low installation height of 70 mm for optimal integration into the roof surface, black anodised seam and panel clamp in one construction part
- SYSTEM APPROACH – Tailored to the PREFA complete system and the tried-and-tested PREFALZ Vario solar bracket mounting system, no impairment of thermal expansion and contraction
- RETROFITTABLE – the PREFALZ solar panel can be expanded on existing PREFALZ double-lock standing seam trays, without roof penetrations.
- SUSTAINABLE – 100% developed and produced in Austria.
- DURABLE – 25 year product guarantee on the sub-structure framework, based on the life cycle of the PV panel’s 25 year performance guarantee.
The solar panels consist of the following layers:
- 3.2 mm prismatic solar glass
- Encapsulation material
- Photovoltaic cell type TOPCon
- Encapsulation material
- 3.2 mm rear glass
- Connection box, MC4 plug / socket with solar cable and cable protection hose
For the installation of PREFALZ solar panels, you also need middle and end clamps as well as a safety lock and cables of course.
Both visible widths of the PREFALZ solar panel have an output of 150 Wp each.
For the PREFALZ 500 solar panel, this corresponds to a space requirement of 5.44 m²/kWp, while the space requirement is 7.44 m²/kWp for the PREFALZ 650 solar panel.
The PREFALZ solar panel is a PV on-roof solution in which the panels are installed on PREFALZ roofs. This is possible from a roof pitch of 3° to 70°.
If you are interested in the PREFALZ solar panel, please get in touch with your contact person.
The PV system is designed by the PREFA Product Technology department or by the processor with the help of a planning tool.
Please feel free to request a quote to tailor the PV system to your individual circumstances and needs.
Planning & Application
In this section, our installation partners will find various documents on the PREFALZ solar panel as downloads. Our installation partners will find further information in our Service Area. (Only for partner companies – please have your log-in details ready. Not received your log-in details yet? Please contact your Regional Sales Manager).
Special note for our architecture and design studios: 3D and BIM data, as well as textures for our products, can also be found here: digital planning
Accessories
PREFA offers a comprehensive complete system for the installation of on-roof PV systems.
For a complete, detailed list of accessory products, see our price list or PREFA’s online store (only for processors).

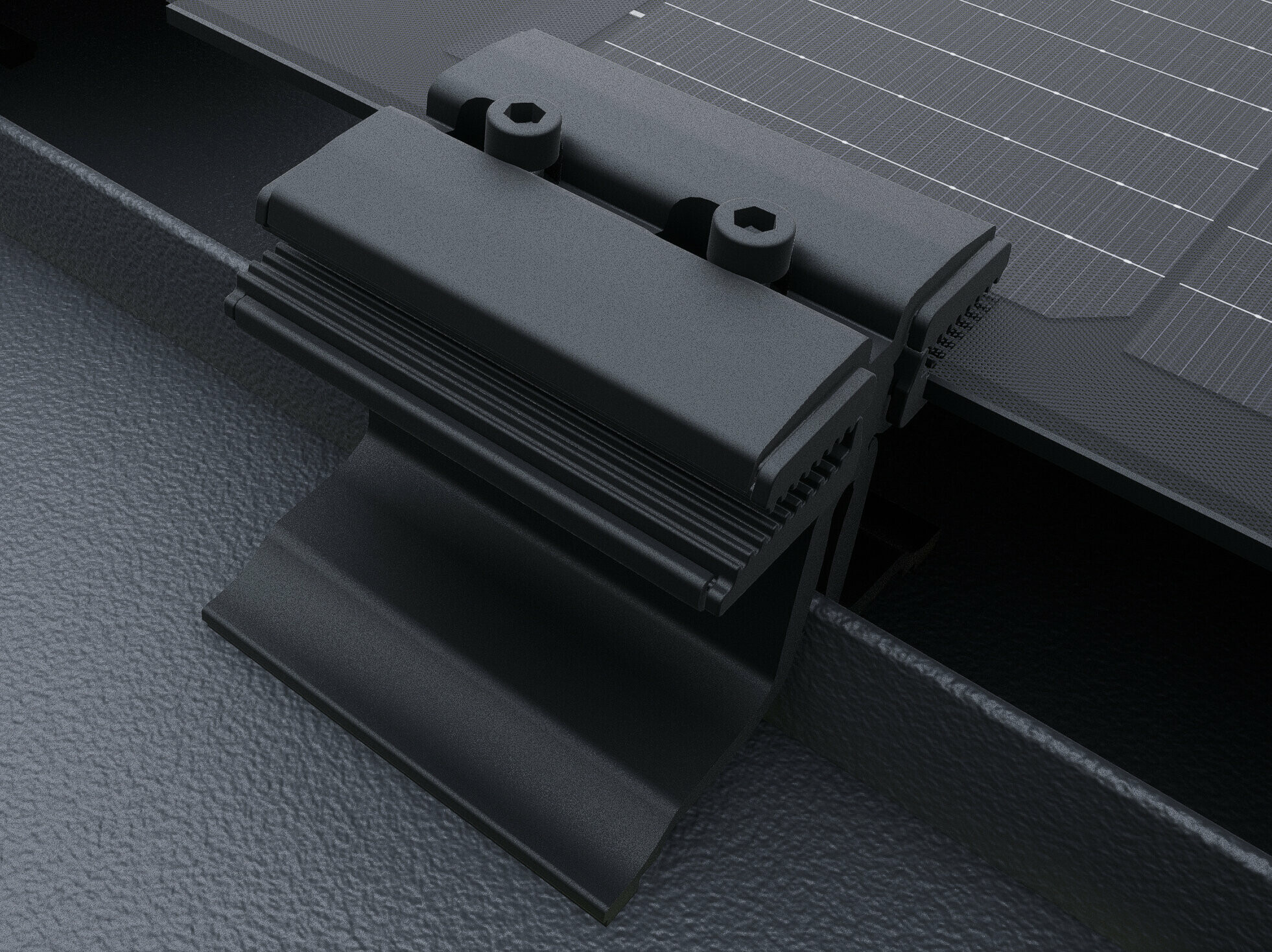

PREFALZ 500/650 solar middle clamp
Panel and seam clamp in one, black anodised (visually matching the panels)

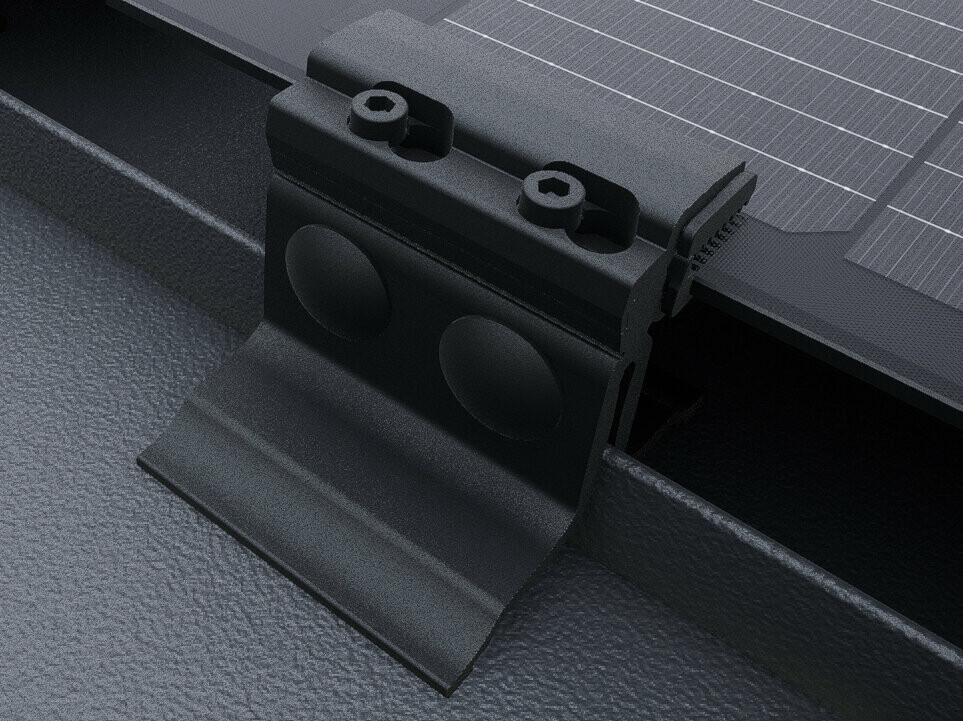

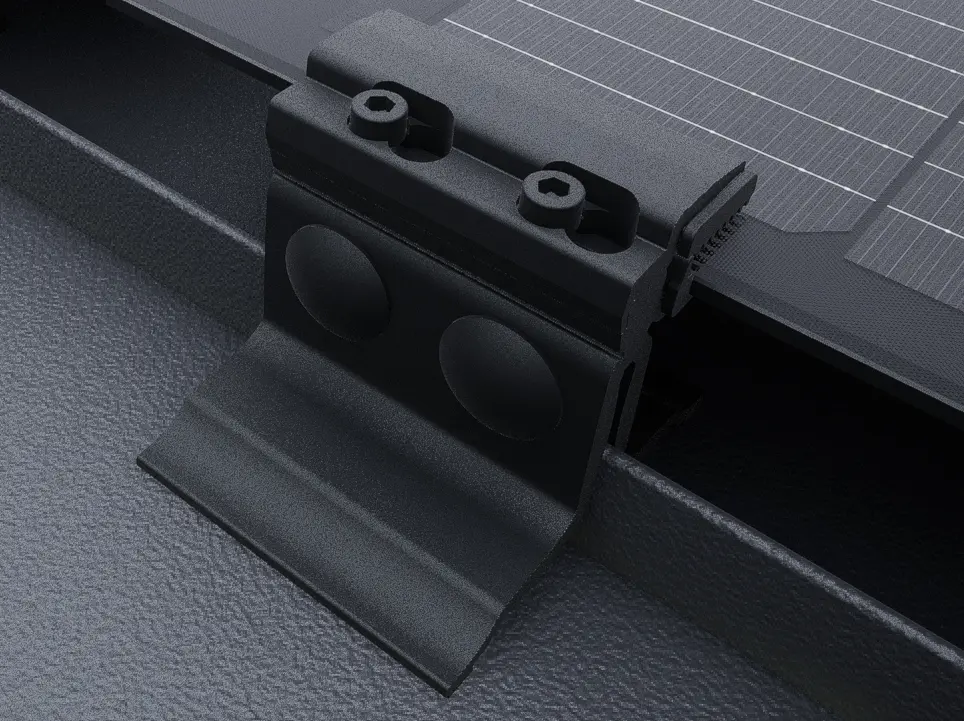

PREFALZ 500/650 solar end clamp
Panel and seam clamp in one, black anodised (visually matching the panels)

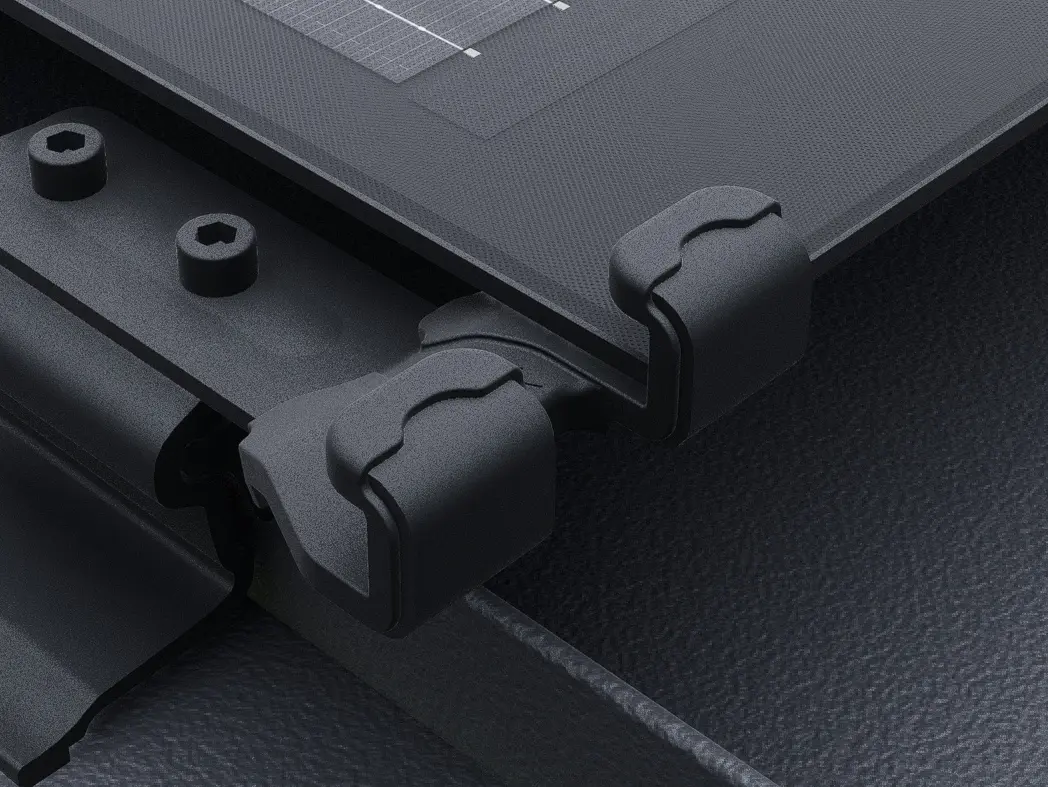

PREFALZ 500/650 solar module safety lock
Secures the panel from slipping, black anodised (visually matching the panels), 1 pc. safety lock for 2 PV panels
Solar roof conduit
For a properly sealed and secure penetration of PV cables on all PREFA roof systems to ensure the insulation of the cables in the long term.
